TRACK LIGHTS CCT SELECTABLE
TRACK HEAD 45W FL24 BLACK
NAED: 63199
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Retail
- Hospitality
- Residential
- Restaurants
- Museums and Galleries
Product features
- Sleek, modern integrated design
- Rotate 0-350° around and/or 0-90° up/down
- Selectable CCTs: 2700/3000/3500/4000K
- CRI > 90
Safety advice
- For single-circuit H-track only
- Dimmable (Phase cut)
Installation Guide
SELECTABLE TRACK LIGHTS MANUAL
SELECTABLE TRACK LIGHTS MANUAL
Product Family Spec Sheet
SELECTABLE TRACK LIGHTS
SELECTABLE TRACK LIGHTS
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Other documents / promotion
LEDVANCE Product Launch Flyer May 2023
LEDVANCE Product Launch Flyer May 2023
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 45.00 W |
| Nominal voltage | 120.00 V |
| Power factor | ≥0.90 |
| Total Harmonic Distortion | < 20 % |
Photometrical data
| Lumens | 3000 lm |
| Efficacy | 67 lm/W |
| Color Temperature/CCT | 2700/3000/3500/4000 K |
| Color Rendering Index (CRI) | 90 |
| Luminaire Type | Spotlights |
Dimensions & Weight
| Diameter | 3.74 in |
| Height | 10.9 in |
| Product weight | 2.98 lb |
Materials & Colors
| Luminaire Finish | Black |
| Housing color | Black |
| Housing | Aluminum |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Maximum Operating Temperature | 104 °F |
| Minimum Operating Temperature | -4 °F |
| Dimming | Yes |
| Type of Dimming | PHASE CUT |
| Mounting | Surface |
| Replaceable light source | No |
| Primary Lamp Type | COB |
Lifespan
| Average Rated Life (hr) | 50000 |
Certificates & Standards
| Certification Listing | RoHS; FCC; FTC; cETLus |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Ordering Abbreviation | TRACK1A45ST9SC14FL24BL |
| Abbrev. With Packaging Info. | TRACK1A45ST9SC14FL24BL 4/CS 1/SKU |
| SKU UPC | 0046135631993 |
| Family Brand Name | PERFORMANCE CLASS™ |
| General Description | LEDVANCE Performance Class Tracklight, 45W 120V › 90 CRI Triac dimming, 2700/3000/3500/4000K selectable with black finish |
| Warranty | 5 years |
Logistical data
| SKU Qty | 1 |
| Case Qty | 4 |
| Case Length (in) | 13.583 |
| Case Width (in) | 9.646 |
| Case Depth (in) | 10.039 |
| Case Cube (ft) | 0.761 |
| Case Weight (lbs) | 14.330 |
| SKU UPC | 0046135631993 |
| Pallet Qty | 240 |
| SKU's/Case | 4 |
| SKU's/Pallet | 240 |
| Cases/Pallet | 60 |
Beauty Shot

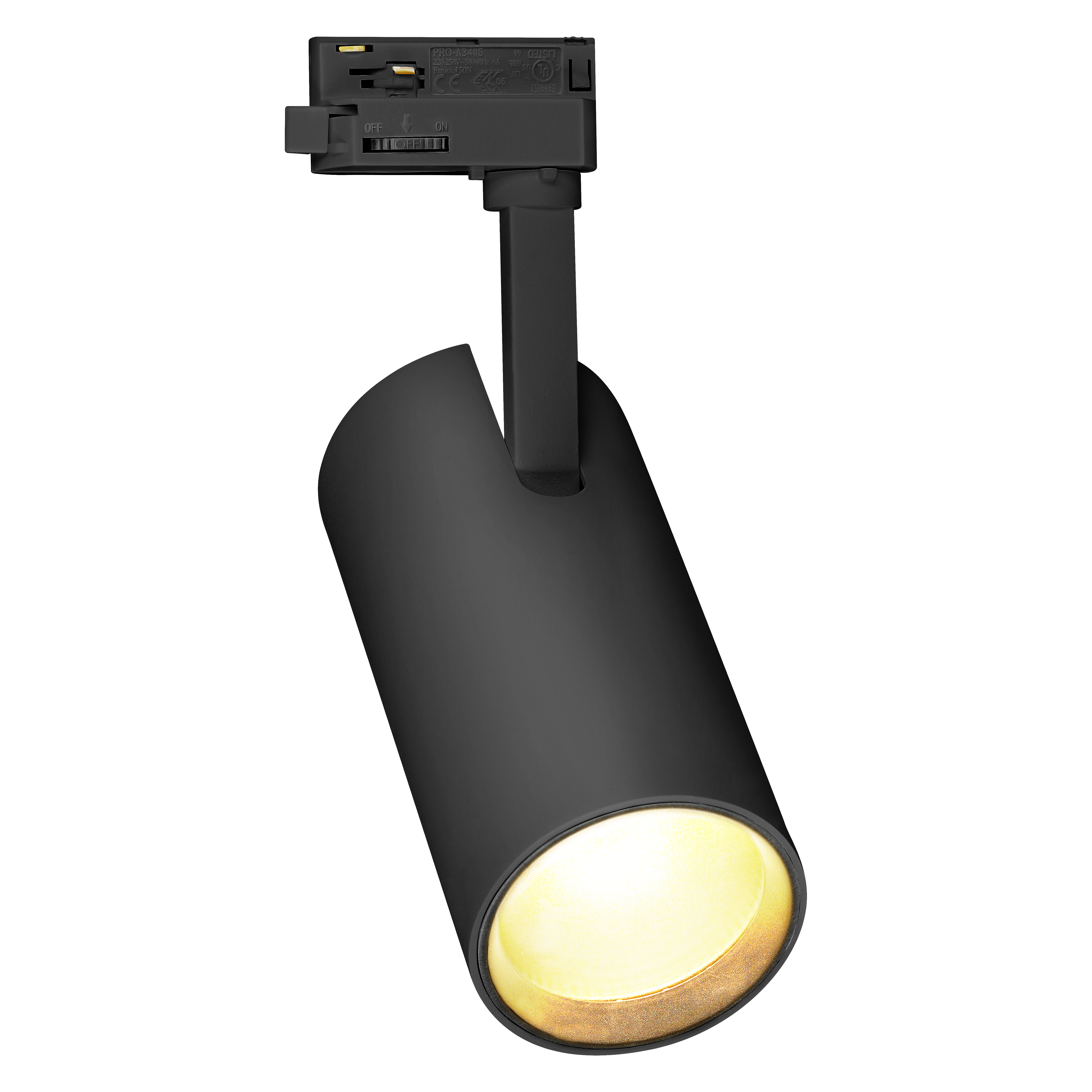

LEDVANCE Performance Class Track Light - Black
LEDVANCE Performance Class Track Light - Black
Beauty Shot

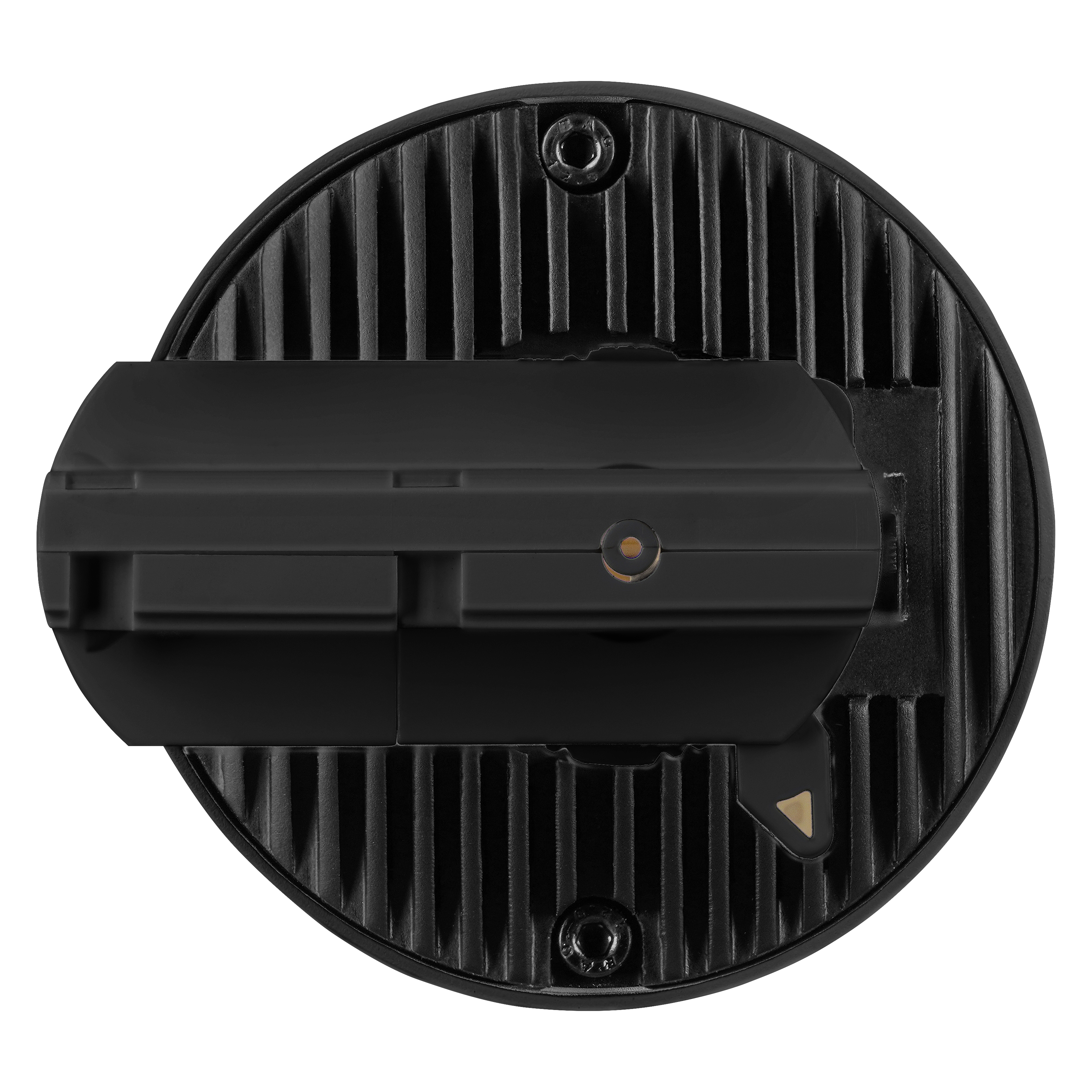

LEDVANCE Performance Class Track Light - Black
LEDVANCE Performance Class Track Light - Black
Beauty Shot

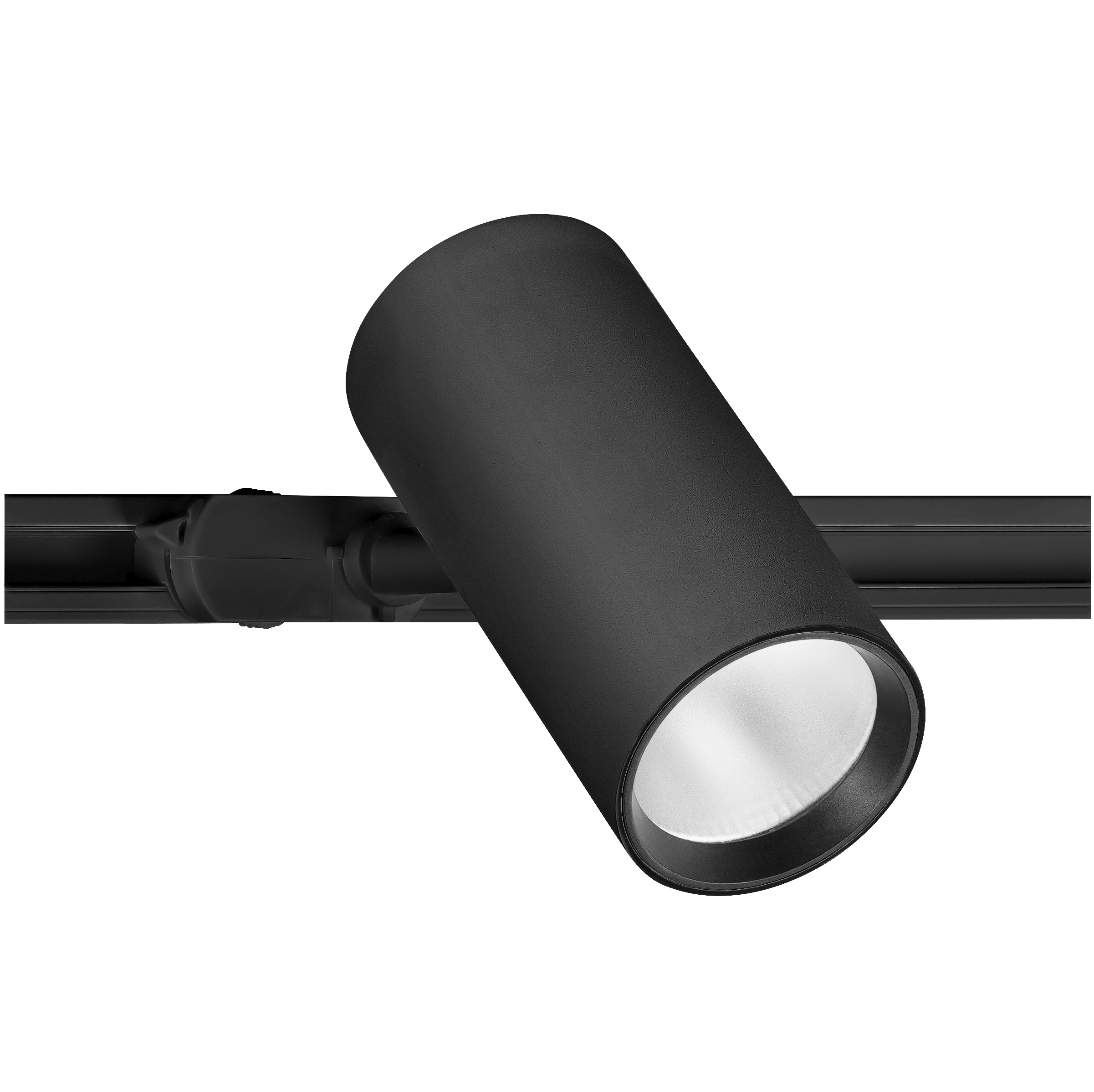

LEDVANCE Performance Class Track Light - Black
LEDVANCE Performance Class Track Light - Black
Beauty Shot

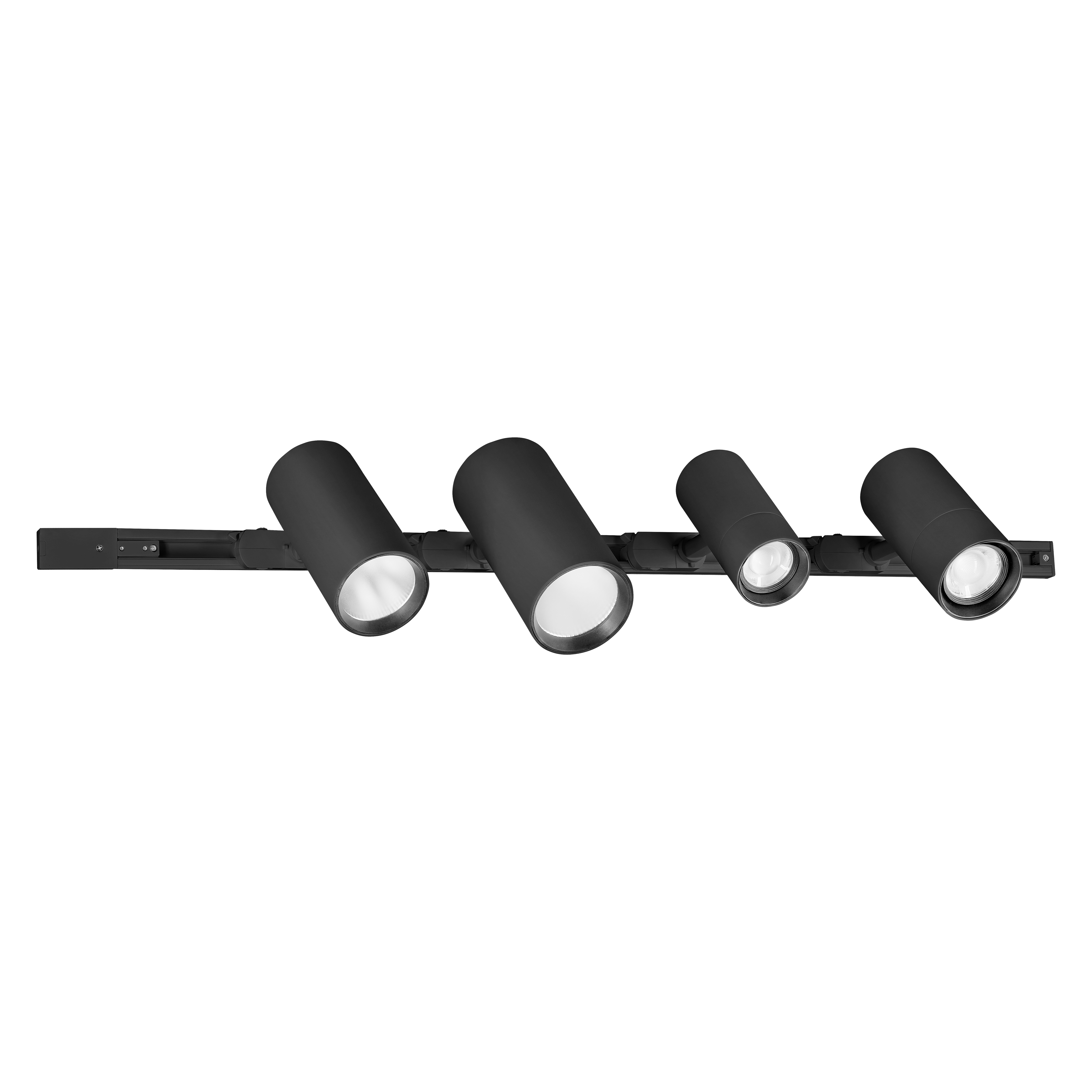

LEDVANCE Performance Class Track Light - Black
