TRACK LIGHTS OPTI-SELECT
TRACK HEAD 15W OPTISELECT WHITE
NAED: 63171
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Retail
- Hospitality
- Residential
- Restaurants
- Museums and Galleries
Product features
- Sleek, modern integrated design
- Rotate 0-350° around and/or 0-90° up/down
- Selectable CCTs: 2700/3000/3500/4000K
- OPTI-SELECT: Adjustable beam angle; Allows for easy adjustment and customization
- CRI > 90
Safety advice
- For single-circuit H-track only
- Dimmable (Phase cut)
Electrical data
| Nominal wattage | 15.00 W |
| Nominal voltage | 120 V |
Photometrical data
| Luminous flux | 1100 lm |
| Luminous efficacy | 70 lm/W |
| Color temperature | 2700…4000 K |
| Color rendering index Ra | 90 |
Dimensions & Weight
| Diameter | 85.00 mm |
| Height | 245.00 mm |
| Product weight | 945.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Recessed |
| Application environment | Indoor |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135631719 | Folding box 1 |
285 mm x 90 mm x 85 mm | 1034.00 g | 2.18 dm³ |
| 4099854074370 | Shipping box 4 |
300 mm x 195 mm x 205 mm | 4384.00 g | 11.99 dm³ |
Extended installation guide
SELECTABLE TRACK LIGHTS MANUAL
SELECTABLE TRACK LIGHTS MANUAL
Product information bulletin
SELECTABLE TRACK LIGHTS
SELECTABLE TRACK LIGHTS
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Other documents / promotion
LEDVANCE Product Launch Flyer May 2023
LEDVANCE Product Launch Flyer May 2023
Other documents / promotion
LEDVANCE PERFORMANCE CLASS TRACK LIGHT
LEDVANCE PERFORMANCE CLASS TRACK LIGHT
Beauty Shot

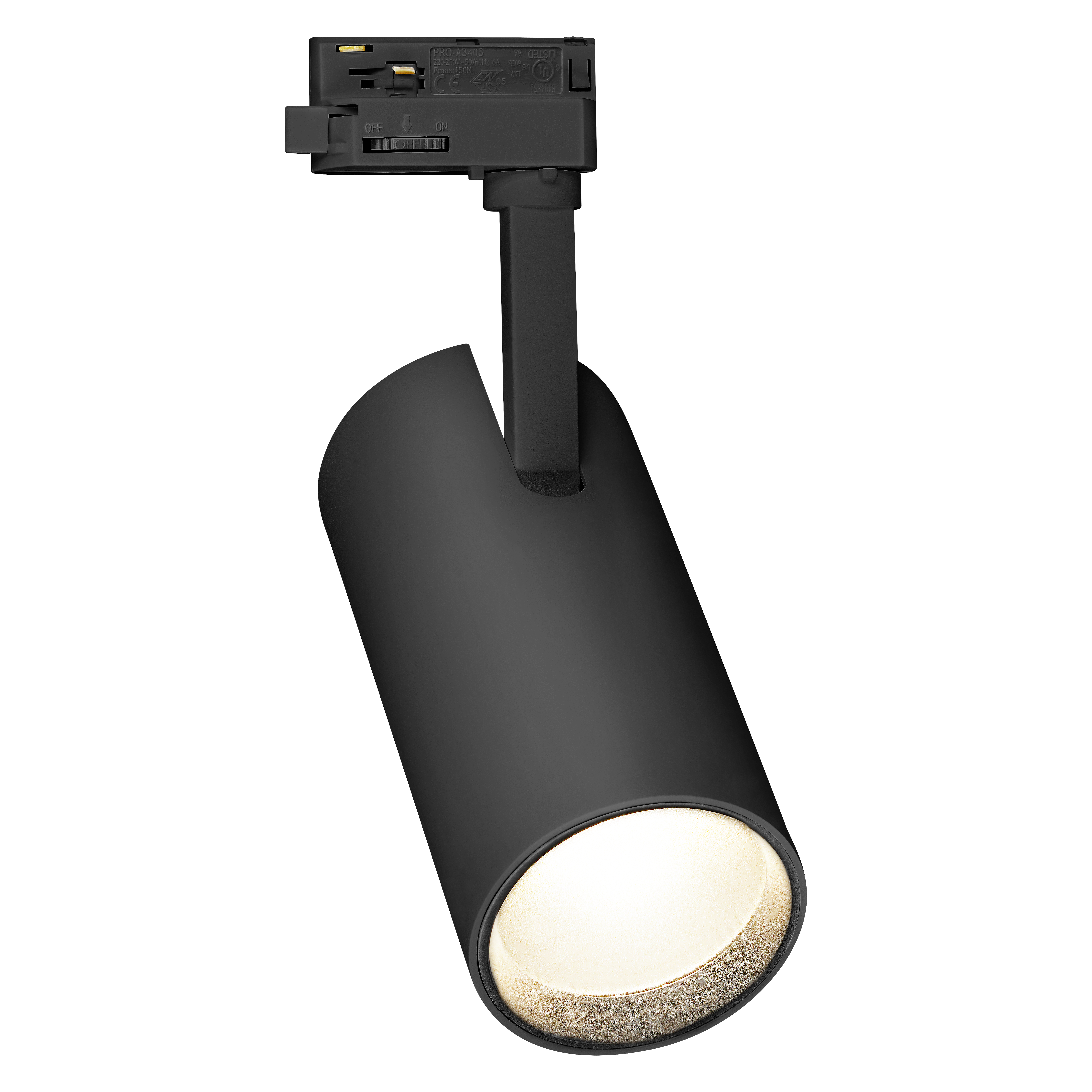

LEDVANCE Performance Class Track Light - Black
LEDVANCE Performance Class Track Light - Black
Beauty Shot

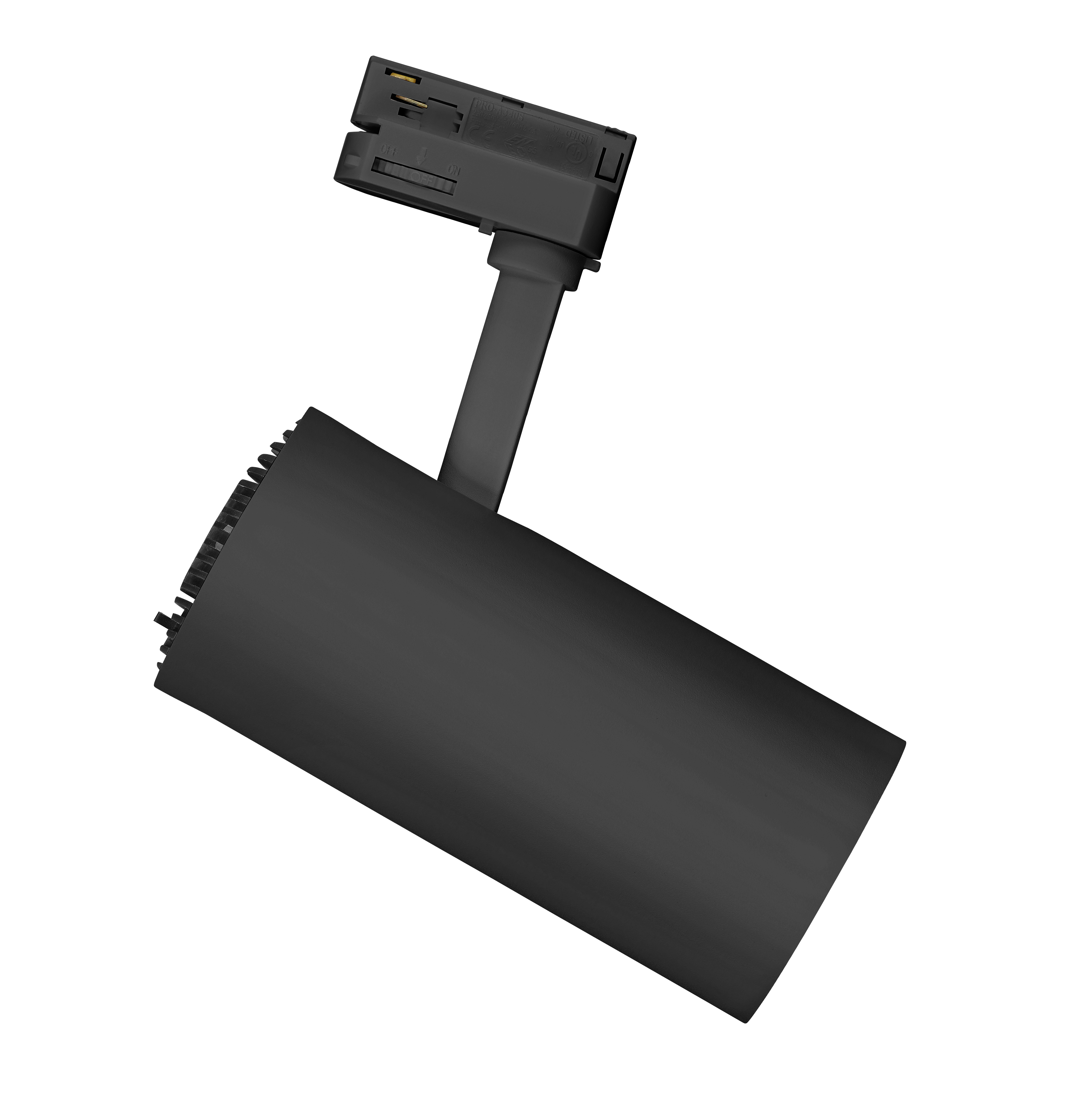

LEDVANCE Performance Class Track Light - Black
LEDVANCE Performance Class Track Light - Black
Beauty Shot

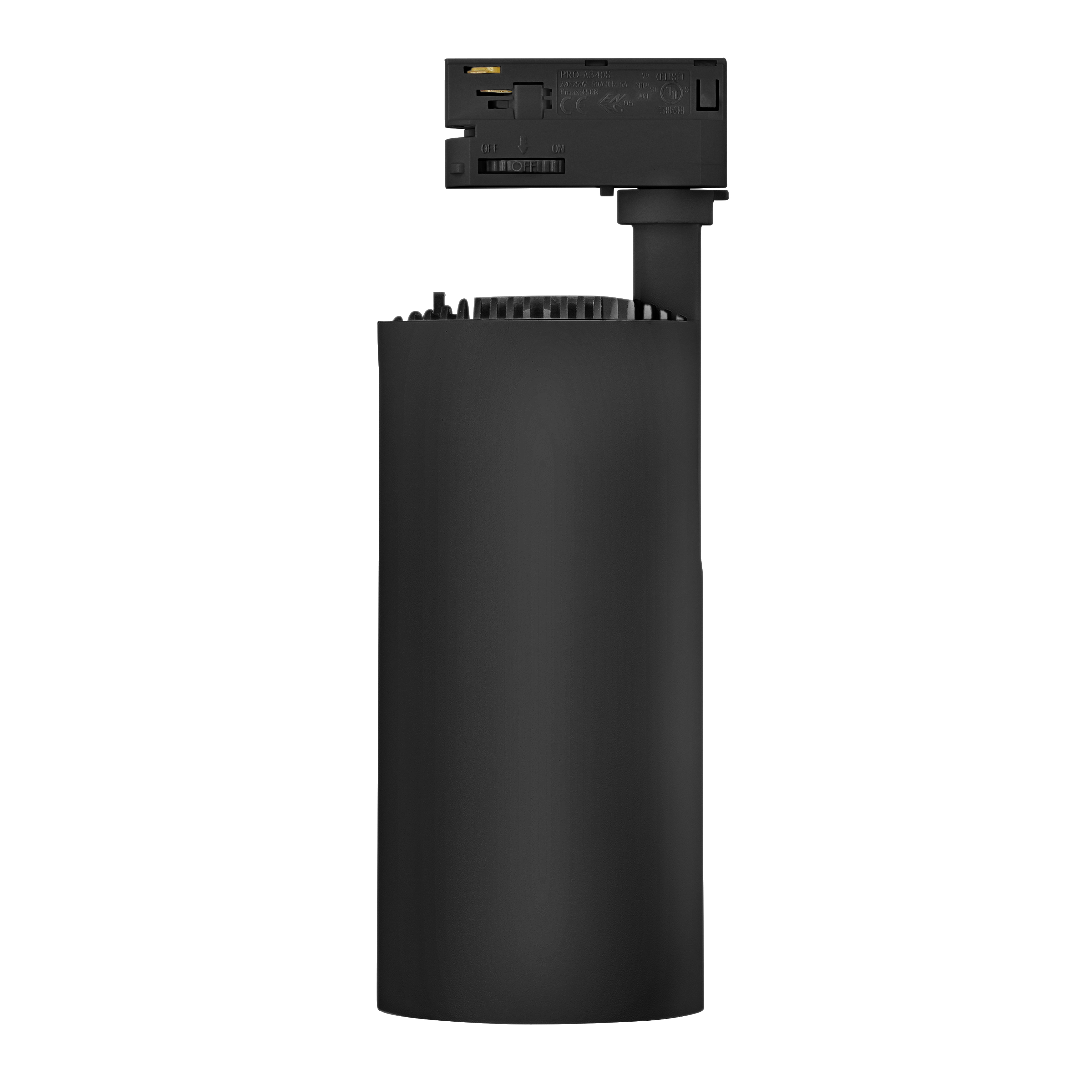

LEDVANCE Performance Class Track Light - Black
LEDVANCE Performance Class Track Light - Black
Beauty Shot

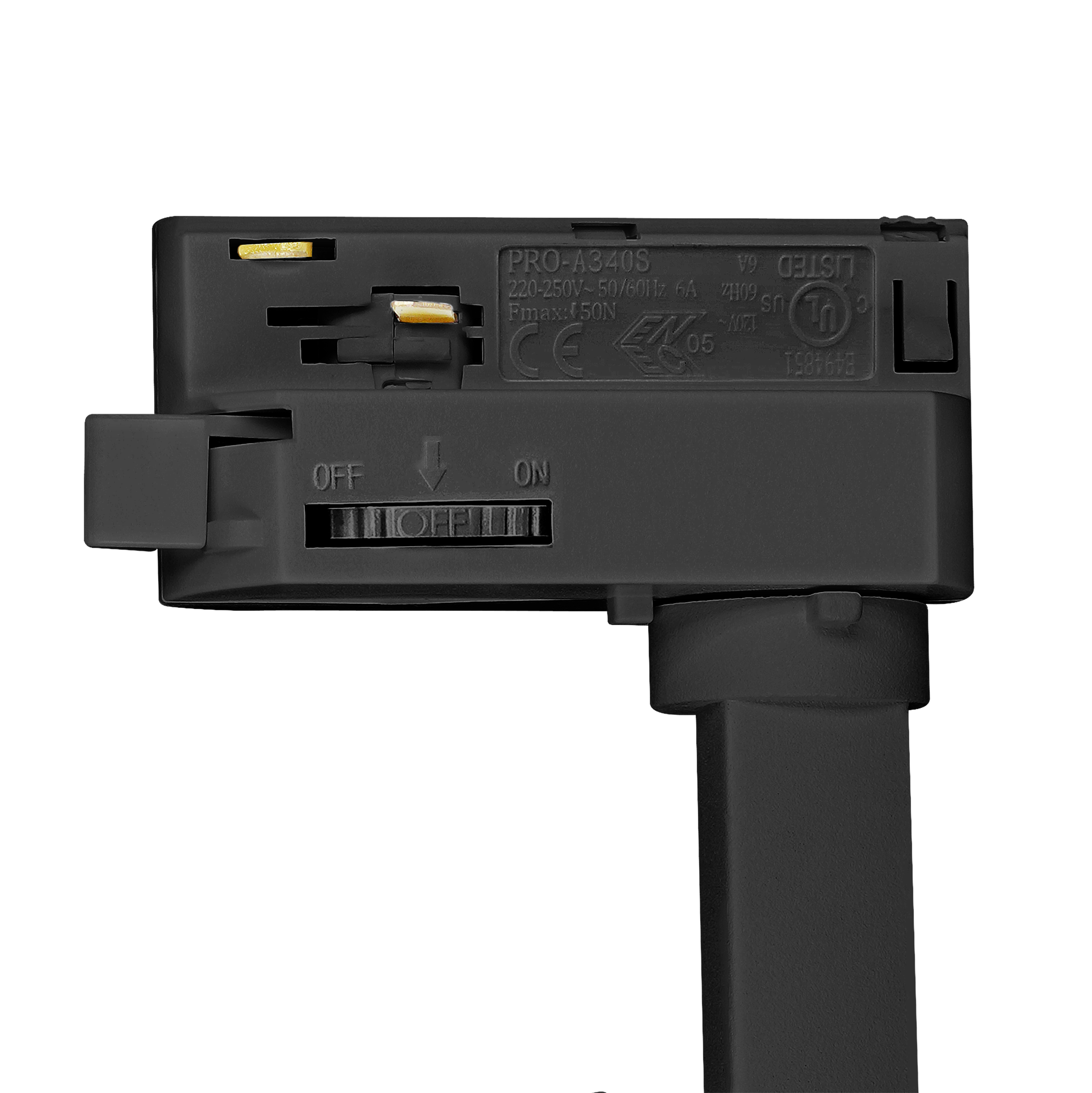

LEDVANCE Performance Class Track Light - Black
