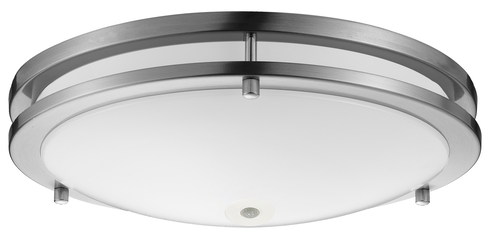

SYLVANIA Saturn Ring CCT Selectable
SATURN RING CCT SELECT 120-277V SENSOR
NAED: 65576
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Indoor applications
- Home offices & study rooms
- Bedrooms & living rooms
- Entryways & foyers
- Nurseries & children’s rooms
Product features
- Selectable CCTs: 2700/3000/3500/4000/5000K
- 0-10V phase-cut dimmable
- Sensor and integrated emergency battery backup available
- Easy installation – no additional hardware needed
- Lifetime (L70): up to 50,000 h
- No warm up time, instant on with full light and consistent lamp to lamp color
- Damp rated, indoor
Equipment / Accessories
- Mounting screws and mounting brackets included
Safety advice
- cETLus, RoHS, ENERGY STAR
- For indoor use only; not suitable for outdoor or wet locations
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 24.00 W |
| Nominal voltage | 120…277 V |
Photometrical data
| Luminous flux | 1700 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 2700 … 5000 K |
| Color rendering index Ra | 90 |
Dimensions & Weight
| Diameter | 406.40 mm |
| Height | 85.09 mm |
| Product weight | 1100.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | 0-10V |
| Mounting type | Surface |
| Application environment | Indoor |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135655760 | Folding box 1 |
106 mm x 427 mm x 428 mm | 1394.00 g | 19.37 dm³ |
| 10046135655767 | Shipping box 4 |
445 mm x 445 mm x 455 mm | 6738.00 g | 90.10 dm³ |
