SYLVANIA Puff Ceiling CCT Selectable
PUFF CEILING CCT SELECT WT 120V 4X1 UNP
NAED: 62040
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Indoor applications
- Home offices & study rooms
- Bedrooms & living rooms
- Entryways & foyers
- Nurseries & children’s rooms
Product features
- Selectable CCTs: 2700/3000/3500/4000/5000K
- Dimmable
- Sensor and integrated emergency battery backup available
- Easy installation – no additional hardware needed
- Lifetime (L70): up to 50,000 h
- No warm up time, instant on with full light and consistent lamp to lamp color
Equipment / Accessories
- Mounting screws and mounting brackets included
Safety advice
- cETLus, RoHS, ENERGY STAR
- For indoor use only; not suitable for outdoor or wet locations
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Product Family Spec Sheet
Hi-PerformanceLED Puff Ceiling
Hi-PerformanceLED Puff Ceiling
Other documents / promotion
Product Launch Flyer AUG 2021
Product Launch Flyer AUG 2021
Other documents / promotion
Hi Performance Puff and Saturn Ring Sales Flyer
Hi Performance Puff and Saturn Ring Sales Flyer
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 15.00 W |
| Nominal voltage | 120.00 V |
| Power factor | ≥0.90 |
| Total Harmonic Distortion | ≤ 20 % |
Photometrical data
| Lumens | 1100 lm |
| Efficacy | 73 lm/W |
| Color Temperature/CCT | 2700/3000/3500/4000/5000 K |
| Color Rendering Index (CRI) | 90 |
| Luminaire Type | Surface |
Dimensions & Weight
| Diameter | 11 in |
| Height | 2.36 in |
| Product weight | 0.79 lb |
Materials & Colors
| Luminaire Finish | White |
| Housing color | White |
| Housing | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Maximum Operating Temperature | 104 °F |
| Minimum Operating Temperature | -4 °F |
| Dimming | Yes |
| Type of Dimming | PHASE CUT |
| Mounting | Surface |
| Indoor/Outdoor | Indoor |
| Replaceable light source | No |
| Primary Lamp Type | SMD |
Lifespan
| Average Rated Life (hr) | 50000 |
Certificates & Standards
| Certification Listing | CEC; FCC; RoHS |
Additional product data
| Ordering Abbreviation | PUFF11R1100ST9SC3 |
| Abbrev. With Packaging Info. | PUFF11R1100ST9SC3 4/CS 1/SKU |
| SKU UPC | 0046135620409 |
| Family Brand Name | Hi-PerformanceLED |
| General Description | Slimpuff 11inch, 5CCT (2700,3000,35000,4000,5000K),1100lm ,90CRI, Triac, CEC, 50 000h,120V |
| Warranty | 5 years |
Logistical data
| SKU Qty | 1 |
| Case Qty | 4 |
| Case Length (in) | 12.874 |
| Case Width (in) | 12.402 |
| Case Depth (in) | 12.520 |
| Case Cube (ft) | 1.157 |
| Case Weight (lbs) | 6.989 |
| SKU UPC | 0046135620409 |
| Pallet Qty | 144 |
| SKU's/Case | 4 |
| SKU's/Pallet | 144 |
| Cases/Pallet | 36 |

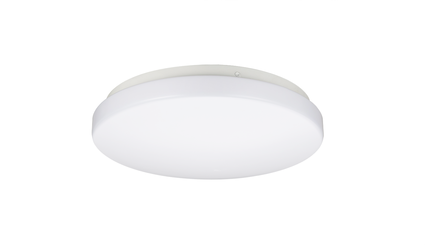

Product image: white background, horizontal
UltraLED Puff Ceiling
UltraLED Puff Ceiling

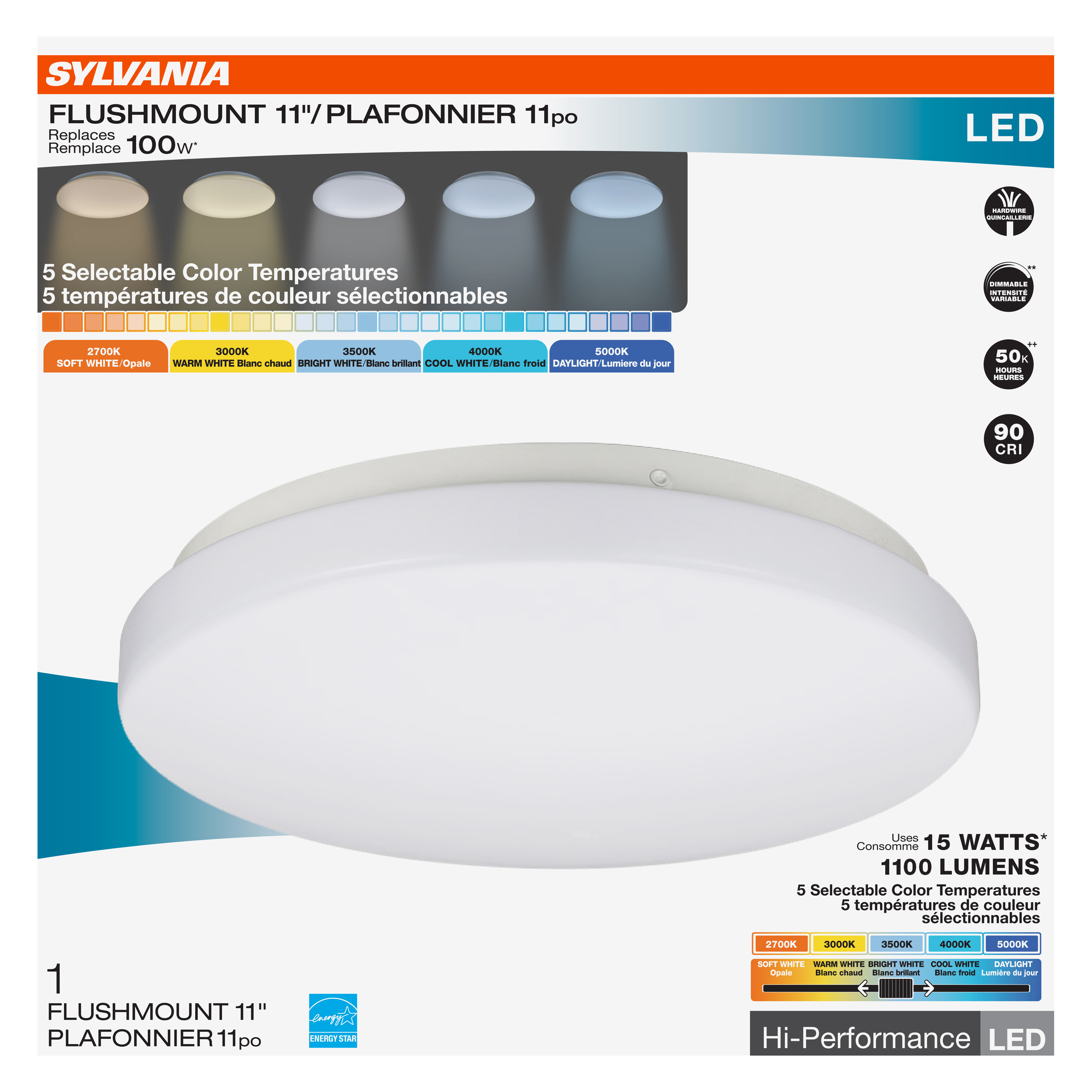

Packaging image, beauty shot
