PRODUCT DETAILS
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Offices, education, public buildings
Product features
- Slim profile, lightweight, easy to install exit sign that replaces traditional incandescent and fluorescent exit signs
- Bright, energy-efficient LEDs provide energy savings up to 97%
- Universal mounting
- 6500K color temperature (combination versions only)
- CRI > 80
- Offered in 0.5W (exit version only) and 2.2W (combination versions only)
Installation Guide
Installation Guide Exit Sign Combo
Installation Guide Exit Sign Combo
Product Family Spec Sheet
ValueLED Exit Signs
ValueLED Exit Signs
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 4.00 W |
| Nominal voltage | 120.00…277.00 V |
Photometrical data
| Lumens | 246 lm |
| Efficacy | 60 lm/W |
| Color Temperature/CCT | 6500 K |
| Color Rendering Index (CRI) | 80 |
| Luminaire Type | Emergency lighting |
Dimensions & Weight
| Length | 19.49 in |
| Height | 7.95 in |
| Width | 4.37 in |
| Product weight | 3.23 lb |
Materials & Colors
| Luminaire Finish | White |
| Housing color | White |
| Housing | Acrylonitrile butadiene styrene (ABS) |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimming | No |
| Mounting | Surface |
| Indoor/Outdoor | Indoor |
| Replaceable light source | No |
Lifespan
| Average Rated Life (hr) | 150000 |
BATTERY
| Battery size [GMS] | Others |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Ordering Abbreviation | EXITCOMBO1A/GDVTHS/U/WH/EM |
| Abbrev. With Packaging Info. | EXITCOMBO1AGDVTHSUWHEM 6/CS 1/SKU |
| SKU UPC | 0046135607608 |
| General Description | EXIT COMBO 1A, GREEN LETTERING, DUAL VOLTAGE, TWIN HEAD SQUARE, UNIVERSAL MOUNTING, WHITE, EMERGENCY BACK UP |
Logistical data
| SKU Qty | 1 |
| Case Qty | 6 |
| Case Length (in) | 22.240 |
| Case Width (in) | 21.840 |
| Case Depth (in) | 16.920 |
| Case Cube (ft) | 4.756 |
| Case Weight (lbs) | 28.445 |
| SKU UPC | 0046135607608 |
| Pallet Qty | 48 |
| SKU's/Case | 6 |
| SKU's/Pallet | 48 |
| Cases/Pallet | 8 |
Product image: white background, diagonal
ValueLED™ Combo Exit Sign - Green Diagonal
ValueLED™ Combo Exit Sign - Green Diagonal

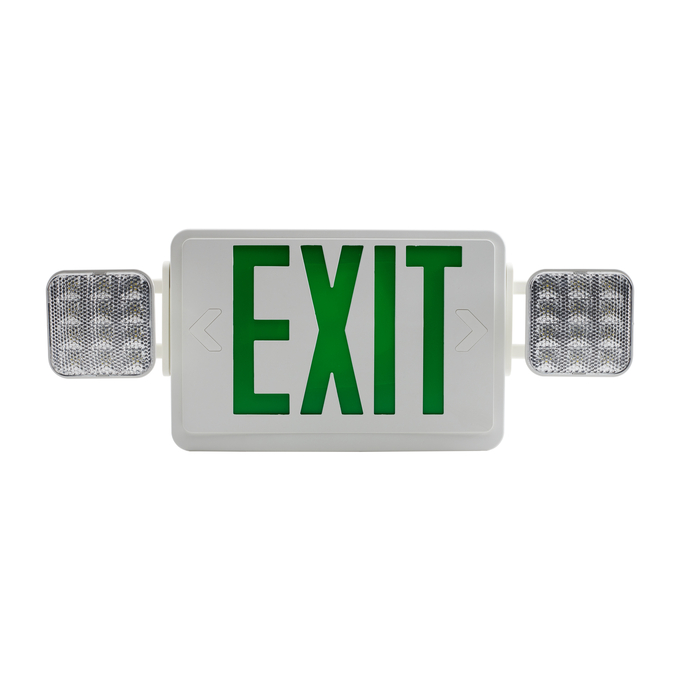

Product image: white background, horizontal
ValueLED™ Combo Exit Signs - Green
ValueLED™ Combo Exit Signs - Green
IES files (IES, additional)
ValueLED Emergency and Exit Signs
ValueLED Emergency and Exit Signs
