PRODUCT DETAILS
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Offices, education, public buildings
Product features
- Slim profile, lightweight, easy to install exit sign that replaces traditional incandescent and fluorescent exit signs
- Bright, energy-efficient LEDs provide energy savings up to 91%
- Surface mounting
- 6500K color temperature
- CRI > 80
- Offered in 2.2 watts
Installation Guide
Installation Guide Emergency Lights
Installation Guide Emergency Lights
Product Family Spec Sheet
ValueLED Emergency Lights
ValueLED Emergency Lights
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 2.40 W |
| Nominal voltage | 120.00…277.00 V |
| Power factor | ≥0.90 |
Photometrical data
| Lumens | 220 lm |
| Efficacy | 92 lm/W |
| Color Temperature/CCT | 6500 K |
| Color Rendering Index (CRI) | 80 |
| Luminaire Type | Emergency lighting |
Dimensions & Weight
| Length | 11.02 in |
| Height | 4.33 in |
| Width | 2.66 in |
| Product weight | 1.11 lb |
Materials & Colors
| Luminaire Finish | White |
| Housing color | White |
| Housing | Acrylonitrile butadiene styrene (ABS) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | +10…+40 °C |
| Maximum Operating Temperature | 104 °F |
| Minimum Operating Temperature | 50 °F |
| Dimming | No |
| Mounting | Surface |
| Indoor/Outdoor | Indoor |
| Replaceable light source | No |
| Primary Lamp Type | SMD |
Lifespan
| Average Rated Life (hr) | 150000 |
BATTERY
| Battery size [GMS] | Others |
Certificates & Standards
| Certification Listing | cULus; FCC; RoHS |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Ordering Abbreviation | EMLIGHT1B/3DVTHR/S/WH |
| Abbrev. With Packaging Info. | EMLIGHT1B3DVTHRSWH 6/CS 1/SKU |
| SKU UPC | 0046135607646 |
| General Description | EMERGENCY LIGHT 1B, 3 WATTS, DUAL VOLTAGE, TWIN HEAD ROUND, SURFACE MOUNTED, WHITE |
| Warranty | 5 years |
Logistical data
| SKU Qty | 1 |
| Case Qty | 6 |
| Case Length (in) | 11.811 |
| Case Width (in) | 9.843 |
| Case Depth (in) | 9.843 |
| Case Cube (ft) | 0.662 |
| Case Weight (lbs) | 9.307 |
| SKU UPC | 0046135607646 |
| Pallet Qty | 384 |
| SKU's/Case | 6 |
| SKU's/Pallet | 384 |
| Cases/Pallet | 64 |

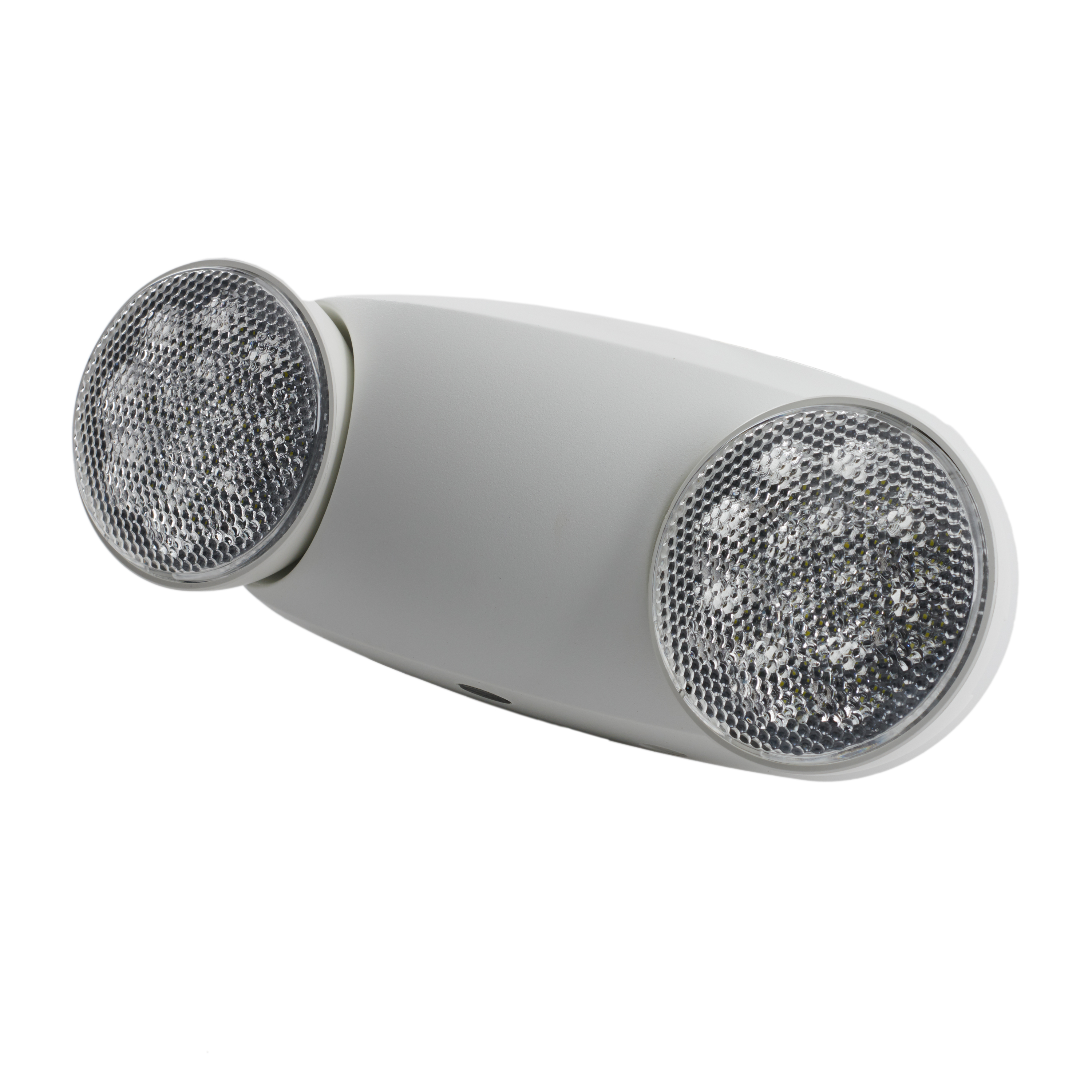

Product image: white background, diagonal
ValueLED™ Emergency Lights - Round Diagonal
ValueLED™ Emergency Lights - Round Diagonal

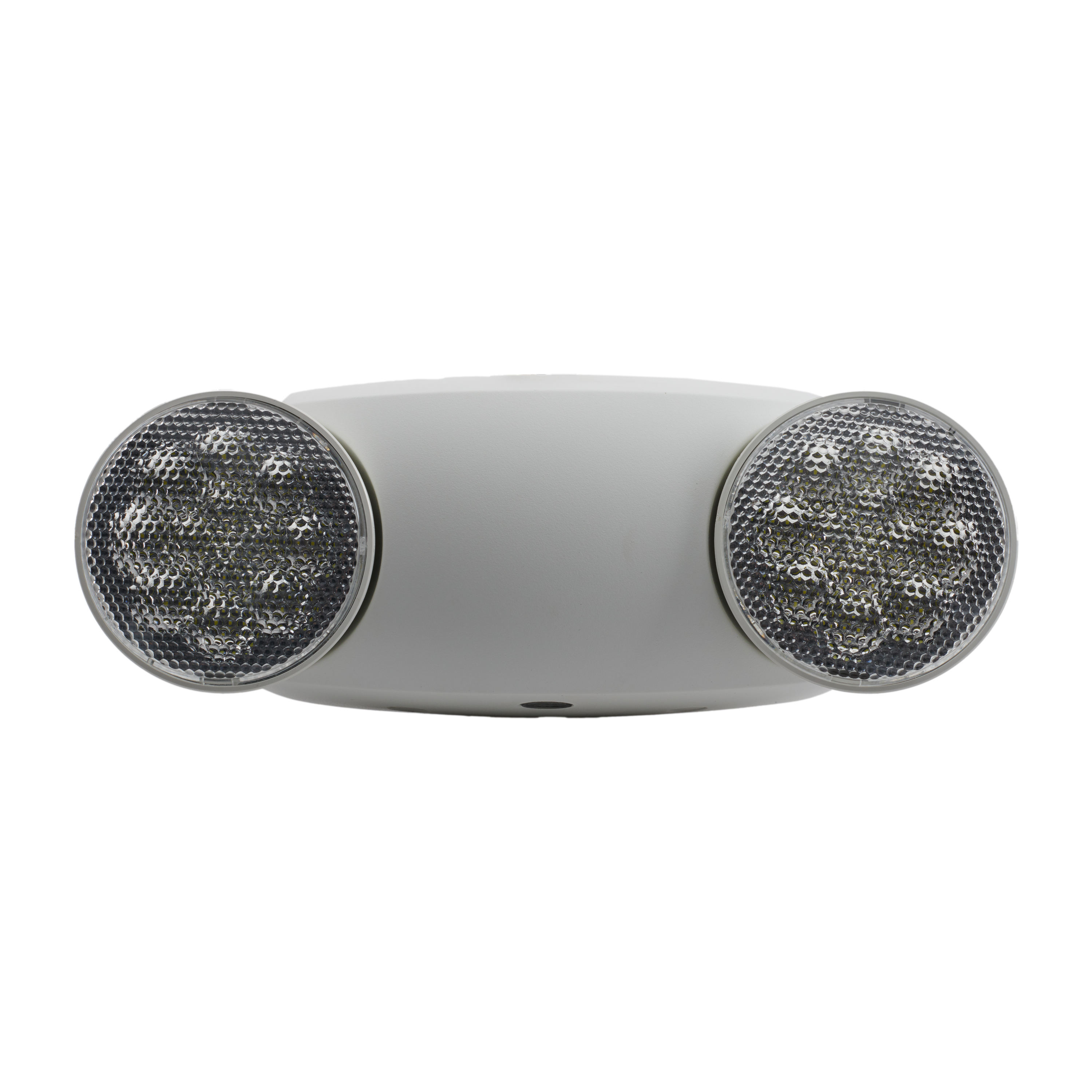

Product image: white background, horizontal
