EMERGENCY LIGHTS STANDARD

EM LIGHT 1A 3 DV TH S S WH

NAED: 60763 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Offices, education, public buildings
Product features
  • Slim profile, lightweight, easy to install exit sign that replaces traditional incandescent and fluorescent exit signs
  • Bright, energy-efficient LEDs provide energy savings up to 91%
  • Surface mounting
  • 6500K color temperature
  • CRI > 80
  • Offered in 2.2 watts
Electrical data
Nominal wattage 2.40 W
Nominal voltage 120…277 V
Photometrical data
Luminous flux 214 lm
Luminous efficacy 89 lm/W
Color temperature 6500 K
Color rendering index Ra 80
Dimensions & Weight
Length 342.00 mm
Height 109.00 mm
Width 88.00 mm
Product weight 617.00 g
Materials & Colors
Product color White
Housing color White
Body material Acrylonitrile butadiene styrene (ABS)
Mercury content 0.0 mg
Application & Mounting
Dimmable No
Mounting type Surface
Application environment Indoor
Replaceable light source No
BATTERY
Battery size [GMS] Others
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135607639 Folding box
1		 123 mm x 350 mm x 95 mm 767.00 g 4.10 dm³
4058118120451 Shipping box
6		 385 mm x 360 mm x 200 mm 5380.00 g 27.72 dm³
Extended installation guide
Installation Guide Emergency Lights
PDF (274.5 KB)
Product information bulletin
ValueLED Emergency Lights
PDF (488.58 KB)
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
PDF (139.12 KB)

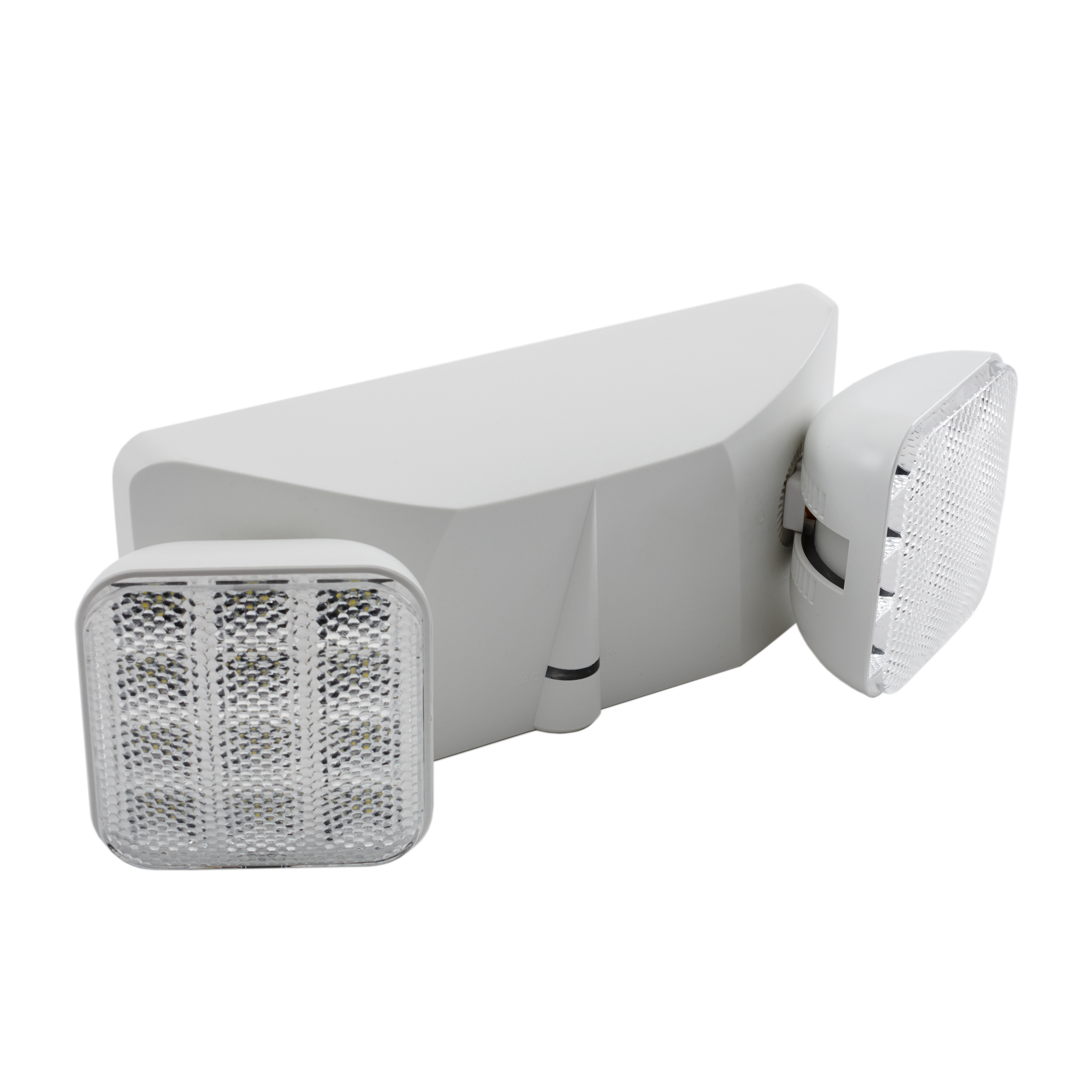

Product image: white background, diagonal
ValueLED™ Emergency Lights - Square Diagonal
JPG (1.72 MB)

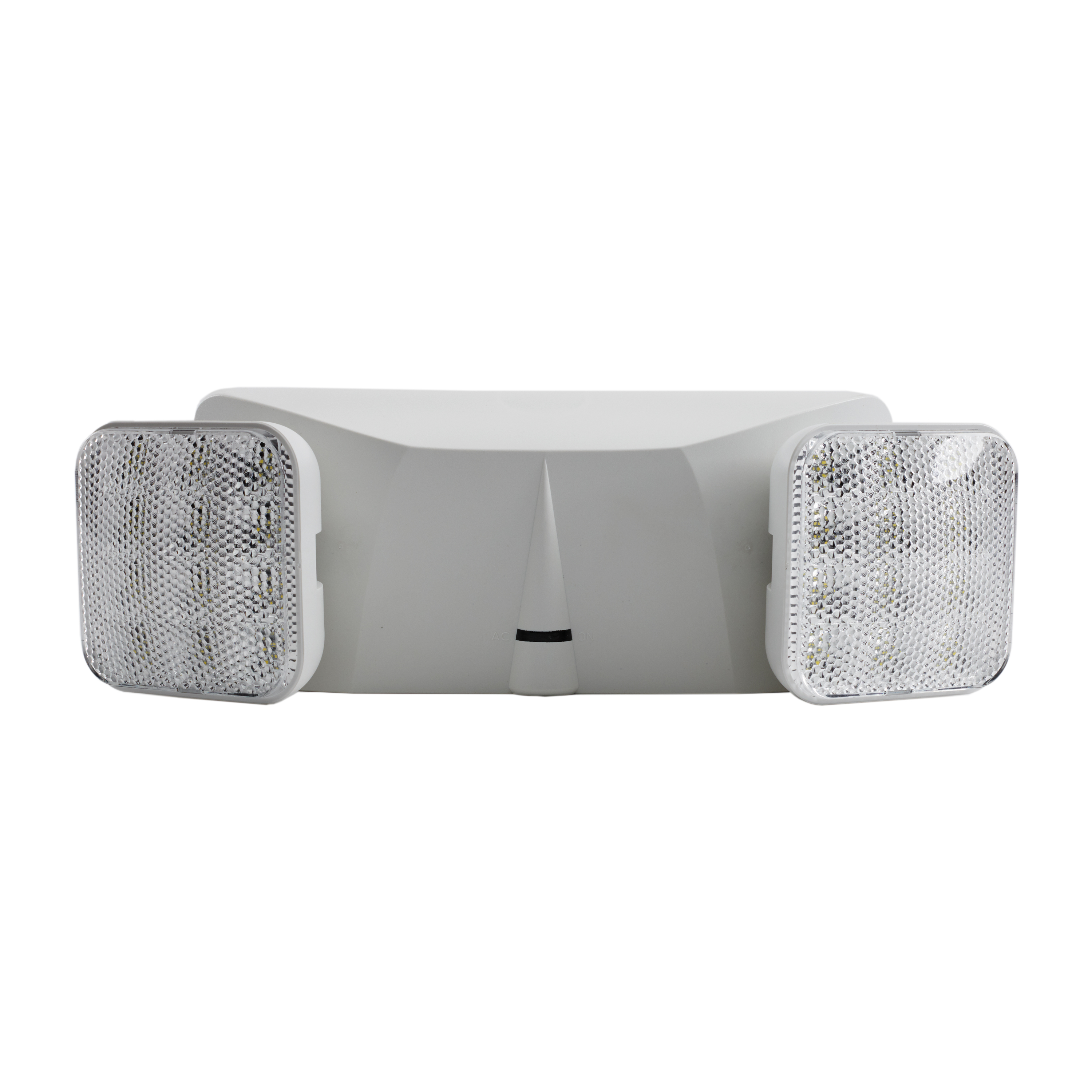

Product image: white background, horizontal
