PRODUCT DETAILS
Product features
- Slim profile, lightweight, easy to install emergency light that replaces traditional incandescent and fluorescent emergency lights
- Bright, energy-efficient LEDs provide energy savings up to 97%
- Offered in watts up to 2W
- Surface mounting
- 6500K color temperature
- CRI > 80
- Optional self-diagnostic and remote capable
Installation Guide
EXIT & EMERGENCY LIGHT
EXIT & EMERGENCY LIGHT
Product Family Spec Sheet
LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
Product Family Spec Sheet
EXIT AND EMERGENCY LIGHTING CANADA
EXIT AND EMERGENCY LIGHTING CANADA
Product Family Spec Sheet
LEDVANCE LED EXIT SIGNS and EMERGENCY LIGHTING
LEDVANCE LED EXIT SIGNS and EMERGENCY LIGHTING
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Other documents / promotion
LEDVANCE Product Launch Flyer August 2025
LEDVANCE Product Launch Flyer August 2025
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 2.40 W |
| Nominal voltage | 3.60 V |
| Power factor | ≥0.90 |
| Total Harmonic Distortion | < 20 % |
Photometrical data
| Lumens | 200 lm |
| Efficacy | 83 lm/W |
| Color Temperature/CCT | 6500 K |
| Color Rendering Index (CRI) | 80 |
Dimensions & Weight
| Length | 8.43 in |
| Height | 2.98 in |
| Width | 4.25 in |
| Product weight | 0.77 lb |
Materials & Colors
| Luminaire Finish | White |
| Housing color | White |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | 0…40 °C |
| Maximum Operating Temperature | 104 °F |
| Minimum Operating Temperature | 0 °C |
| Dimming | No |
| Mounting | Surface |
| Replaceable light source | No |
| Primary Lamp Type | SMD |
Lifespan
| Average Rated Life (hr) | 50000 |
Certificates & Standards
| Certification Listing | RoHS; FCC; cULus |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Ordering Abbreviation | REMOTE/LED2I/WH |
| Abbrev. With Packaging Info. | REMOTELED2IWH 12/CS 1/SKU |
| SKU UPC | 0046135660771 |
| Family Brand Name | LEDVANCE |
| General Description | REMOTE HEAD, LED XW, DOUBLE HEAD, INDOOR, WHITE, 2.4W, 3.6V |
| Warranty | 5 years |
Logistical data
| SKU Qty | 1 |
| Case Qty | 12 |
| Case Length (in) | 18.898 |
| Case Width (in) | 10.827 |
| Case Depth (in) | 9.646 |
| Case Cube (ft) | 1.142 |
| Case Weight (lbs) | 12.445 |
| SKU UPC | 0046135660771 |
| Pallet Qty | 384 |
| SKU's/Case | 12 |
| SKU's/Pallet | 384 |
| Cases/Pallet | 32 |

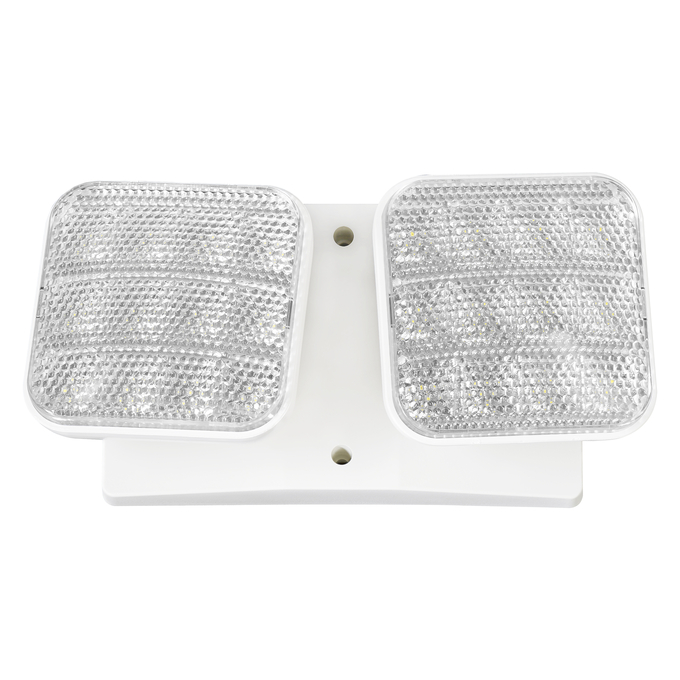

Product image: white background, horizontal
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY

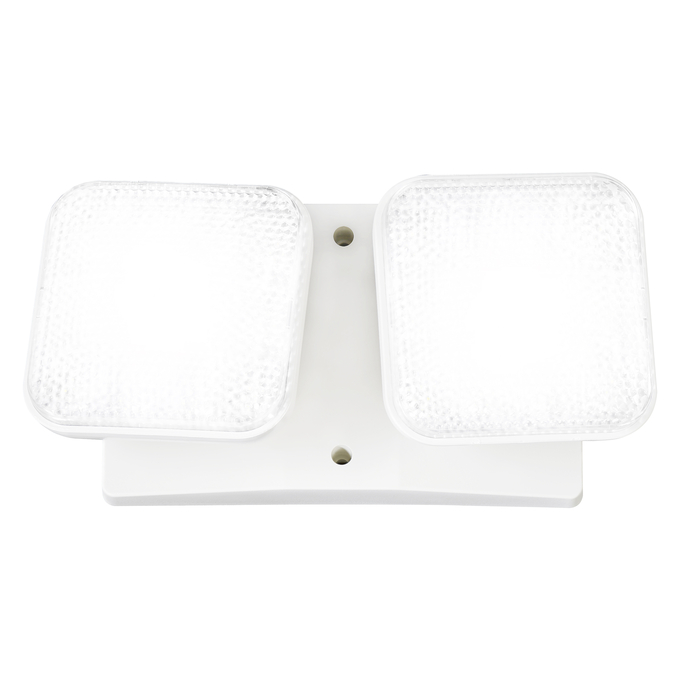

Product image: white background, upright, switched on
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY

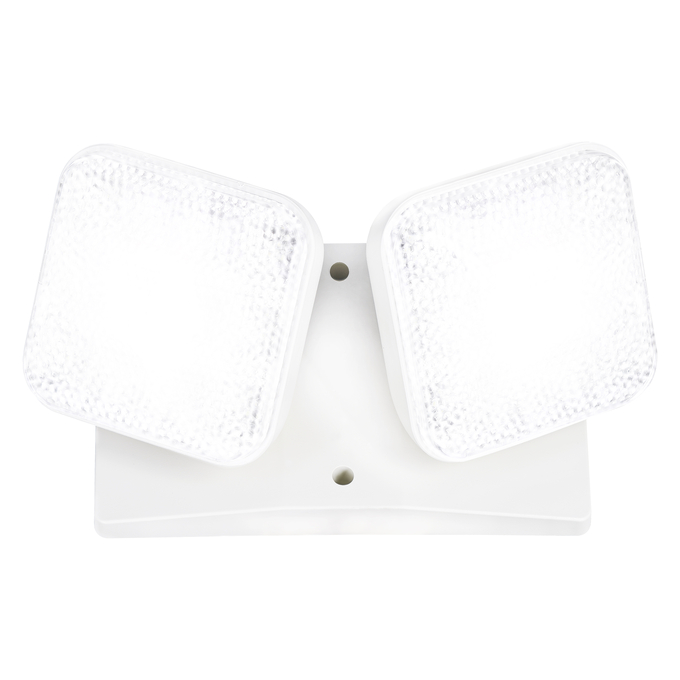

Product image: white background, upright, switched on
