PRODUCT DETAILS
Product features
- Slim profile, lightweight, easy to install emergency light that replaces traditional incandescent and fluorescent emergency lights
- Bright, energy-efficient LEDs provide energy savings up to 97%
- Offered in watts up to 2W
- Surface mounting
- 6500K color temperature
- CRI > 80
- Optional self-diagnostic and remote capable
Installation Guide
EXIT & EMERGENCY LIGHT
EXIT & EMERGENCY LIGHT
Product Family Spec Sheet
LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
Other documents / promotion
LEDVANCE Product Launch Flyer August 2025
LEDVANCE Product Launch Flyer August 2025
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 1.80 W |
| Nominal voltage | 120.00…277.00 V |
| Power factor | ≥0.90 |
| Total Harmonic Distortion | < 20 % |
Photometrical data
| Lumens | 160 lm |
| Efficacy | 89 lm/W |
| Color Temperature/CCT | 6500 K |
| Color Rendering Index (CRI) | 80 |
Dimensions & Weight
| Length | 11.02 in |
| Height | 4.33 in |
| Width | 2.64 in |
| Product weight | 1.1 lb |
Materials & Colors
| Luminaire Finish | White |
| Housing color | White |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | 0…40 °C |
| Maximum Operating Temperature | 104 °F |
| Minimum Operating Temperature | 0 °C |
| Dimming | No |
| Mounting | Surface |
| Replaceable light source | No |
| Primary Lamp Type | SMD |
Lifespan
| Average Rated Life (hr) | 50000 |
Certificates & Standards
| Certification Listing | RoHS; FCC; cULus |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Ordering Abbreviation | EMLV/THR/WH/RSD |
| Abbrev. With Packaging Info. | EMLVTHRWHRSD 6/CS 1/SKU |
| SKU UPC | 0046135660757 |
| Family Brand Name | LEDVANCE |
| General Description | EMERGENCY LIGHT, 120/277V, TWIN HEAD ROUND, WHITE, REMOTE CAPABLE, SELF DIAGNOSTIC, 1.8W |
| Warranty | 5 years |
Logistical data
| SKU Qty | 1 |
| Case Qty | 6 |
| Case Length (in) | 12.008 |
| Case Width (in) | 9.646 |
| Case Depth (in) | 10.236 |
| Case Cube (ft) | 0.686 |
| Case Weight (lbs) | 8.706 |
| SKU UPC | 0046135660757 |
| Pallet Qty | 384 |
| SKU's/Case | 6 |
| SKU's/Pallet | 384 |
| Cases/Pallet | 64 |

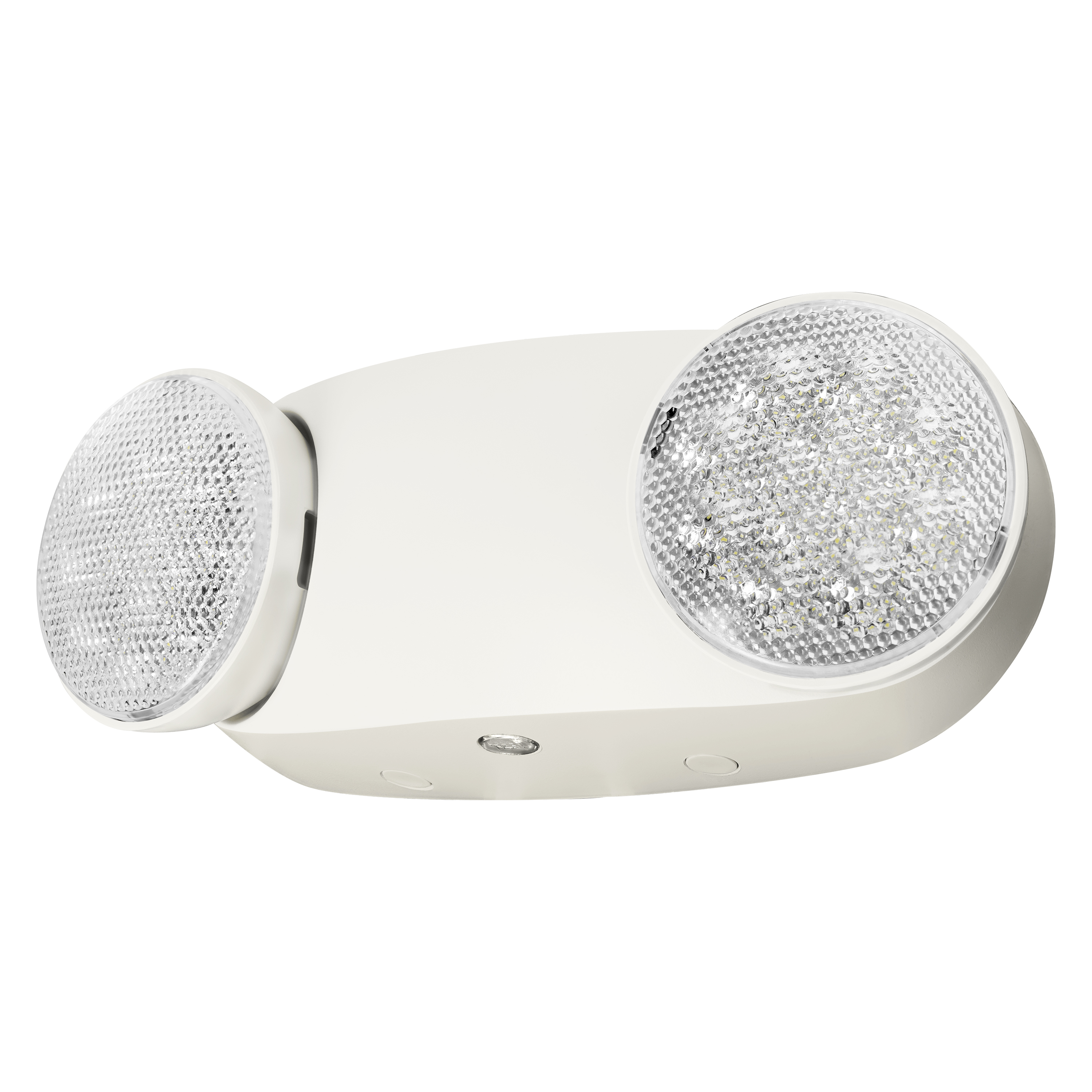

Product image: white background, diagonal
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY

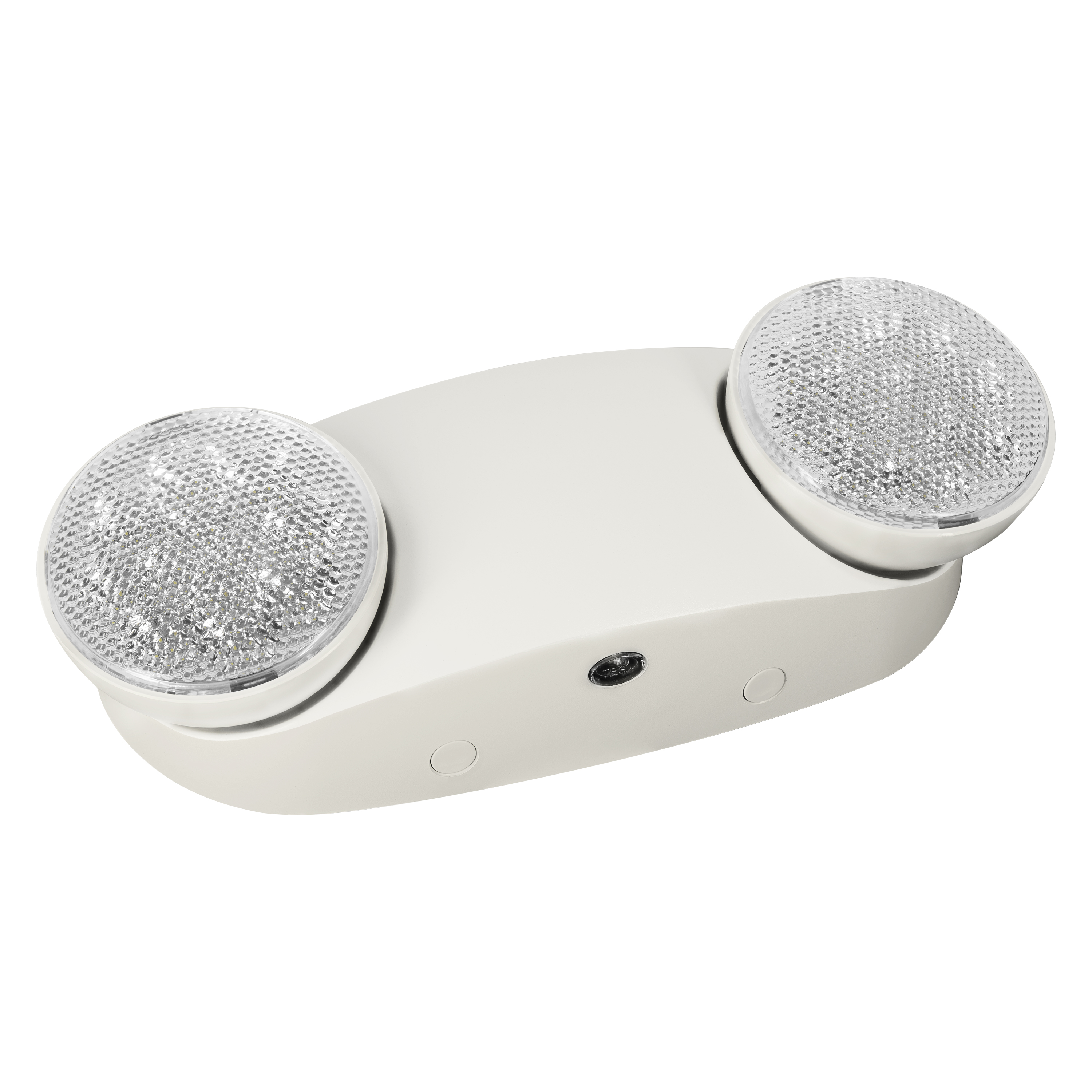

Product image: white background, horizontal
VALUE CLASS EXIT AND EMERGENCY
VALUE CLASS EXIT AND EMERGENCY

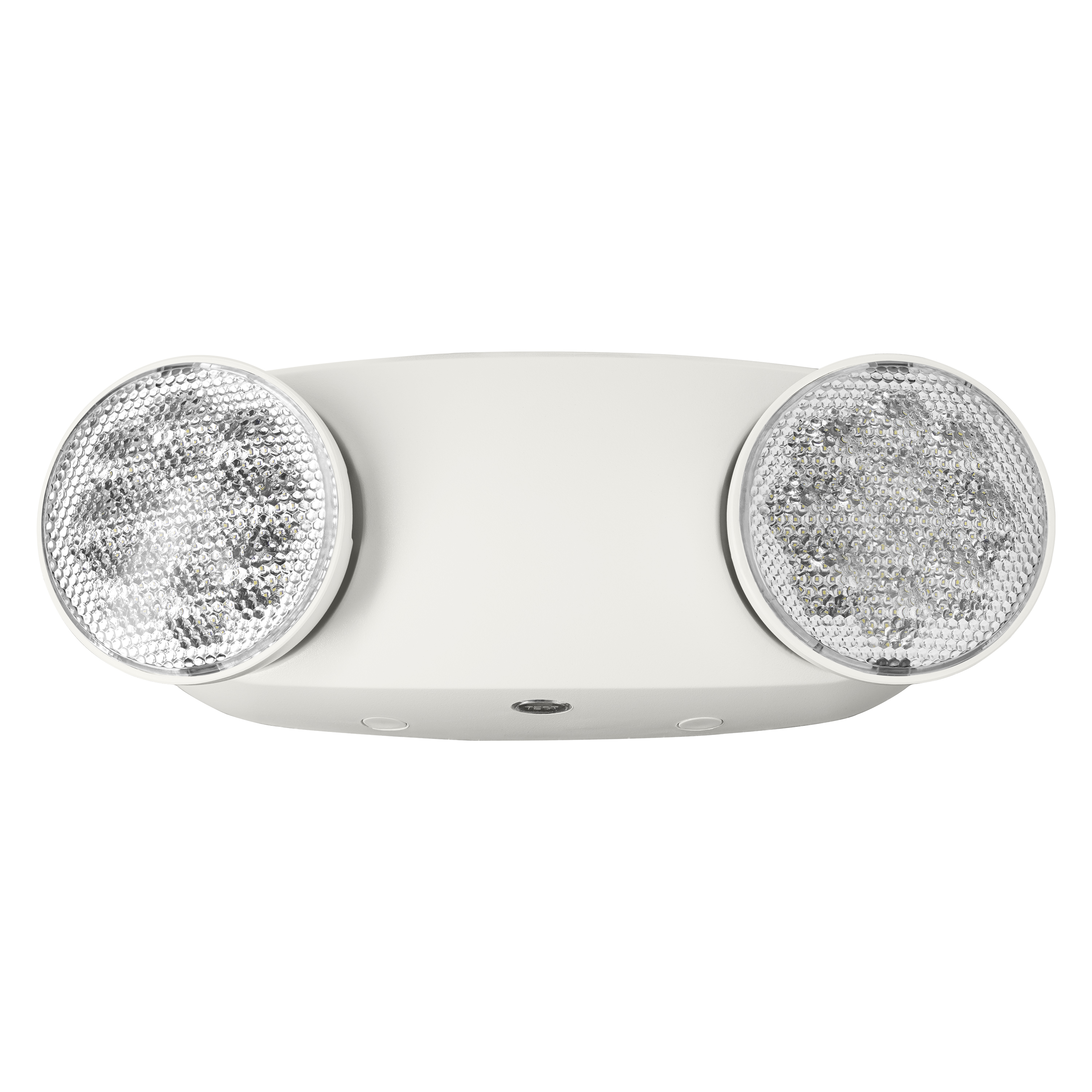

Product image: white background, spacial
