PRODUCT DETAILS
Areas of application
- General lighting
- Grocery & Retail
- Healthcare
- Industrial areas
- Loading docks and warehouses
- Manufacturing facilities
- Multi-family residential
- Retail spaces
- Storage areas
Product features
- Available in 120-277V
- Aluminum Housing: Corrosion-resistant highly durable and low-maintenance
- UL 924 compliant for emergency lighting safety
- Built-in lithium battery
- Provides up to 90 min battery run time
Safety advice
- The use of accessory equipment not recommended by the manufacturer will void product listing and warranty and may cause an unsafe installation.
- Any service on this equipment should be performed by qualified personnel only
- Equipment should be mounted in locations and at heights where it will not be subject to tampering by unauthorized personnel.
- Use caution when servicing batteries.
- Make sure wire terminations are secure, and leads are properly tucked in appropriate wire channels.
- Initially, battery in this unit may not be fully charged. After electricity is connected, allow for a minimum of 24 hours for battery to charge before relying on emergency lighting
- Cap unused wires with enclosed wire nuts or other approved method.
- Failure to follow these instructions and warnings may result in death, serious injury or significant property damage
- Risk of fire. Lamps are hot. Keep combustible material away from hot parts. Observe lamp manufacturer's warnings, recommendations and instructions
- Risk of electric shock- never connect to disconnect from or service while equipment is energized.
- Do not use outdoors. Suitable for use in -4°F to 104°F (-20°C to 40°C) damp locations only
- Consult local building code for approved wiring and installation
- Disconnect AC power before servicing and installation.
- Do not mount near gas or electric heaters.
- Do not use this equipment for anything other than its intended use.
Installation Guide
Exit Sign Edge Lit Installation Guide
Exit Sign Edge Lit Installation Guide
Product Family Spec Sheet
EXIT AND EMERGENCY EDGE LIT
EXIT AND EMERGENCY EDGE LIT
Other documents / promotion
LEDVANCE Product Launch Flyer August 2026
LEDVANCE Product Launch Flyer August 2026
Electrical data
| Nominal Wattage | 2.50 W |
| Nominal voltage | 120.00…277.00 V |
| Power factor | ≥0.90 |
| Total Harmonic Distortion | < 20 % |
Photometrical data
| Lumens | 15 lm |
| Efficacy | 6 lm/W |
| Color Temperature/CCT | 6500 K |
| Color Rendering Index (CRI) | 80 |
Dimensions & Weight
| Length | 12.2 in |
| Height | 1.81 in |
| Width | 9.72 in |
| Product weight | 1.15 lb |
Materials & Colors
| Luminaire Finish | White |
| Housing color | White |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…40 °C |
| Maximum Operating Temperature | 104 °F |
| Minimum Operating Temperature | -4 °F |
| Dimming | No |
| Mounting | Surface |
| Replaceable light source | No |
| Primary Lamp Type | SMD |
Lifespan
| Average Rated Life (hr) | 50000 |
Certificates & Standards
| Certification Listing | RoHS; FCC; cULus |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Ordering Abbreviation | EXVELAL |
| Abbrev. With Packaging Info. | EXVELAL 8/CS 1/SKU |
| SKU UPC | 0046135676802 |
| Family Brand Name | LEDVANCE |
| General Description | EXIT SIGN, VALUE CLASS, EDGE LIT, ALUMINUM |
| Warranty | 5 years |
Logistical data
| SKU Qty | 1 |
| Case Qty | 8 |
| Case Length (in) | 16.929 |
| Case Width (in) | 12.205 |
| Case Depth (in) | 14.173 |
| Case Cube (ft) | 1.695 |
| Case Weight (lbs) | 13.577 |
| SKU UPC | 0046135676802 |
| Pallet Qty | 192 |
| SKU's/Case | 8 |
| SKU's/Pallet | 192 |
| Cases/Pallet | 24 |

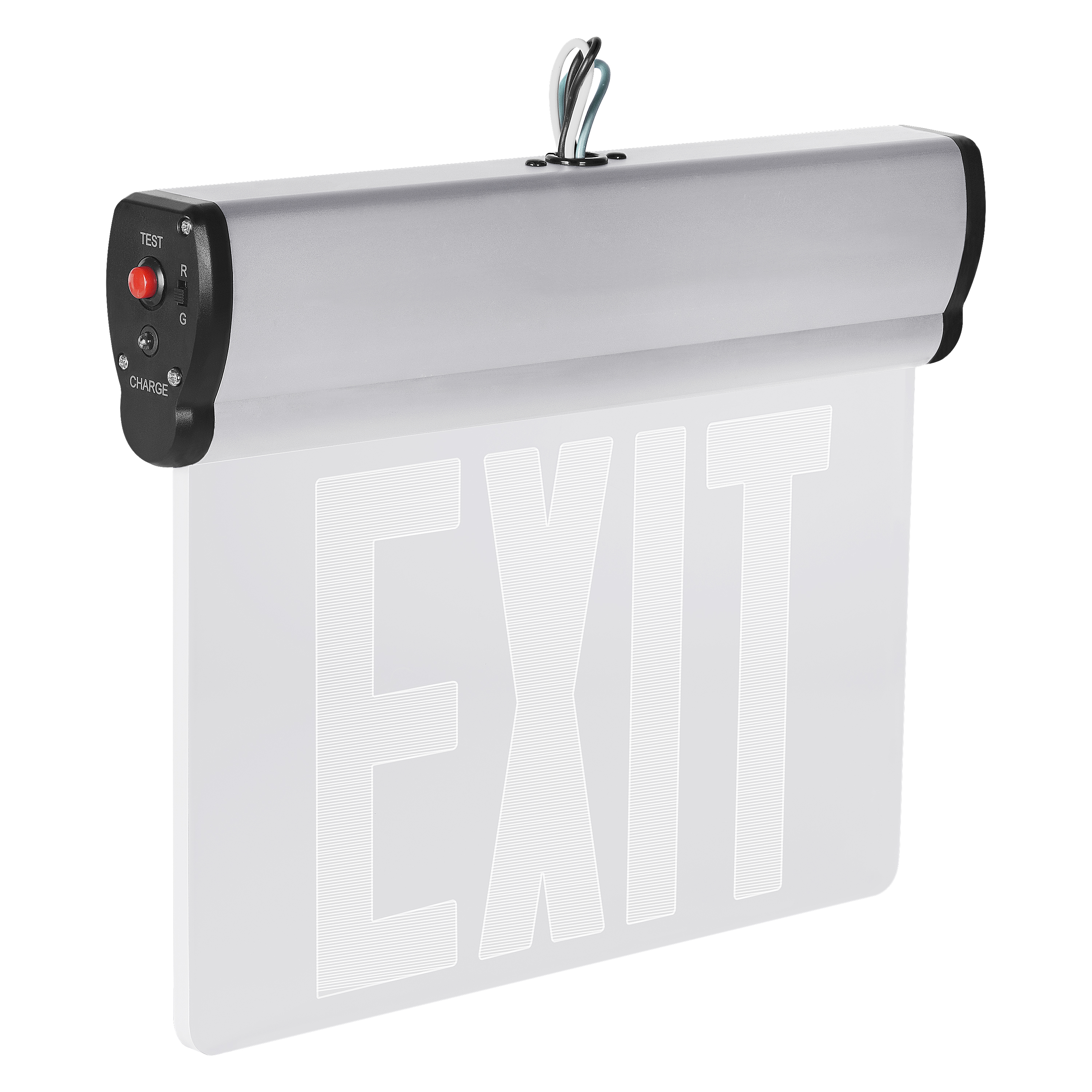

Product image: white background, diagonal
Exit Sign Edge Lit
Exit Sign Edge Lit

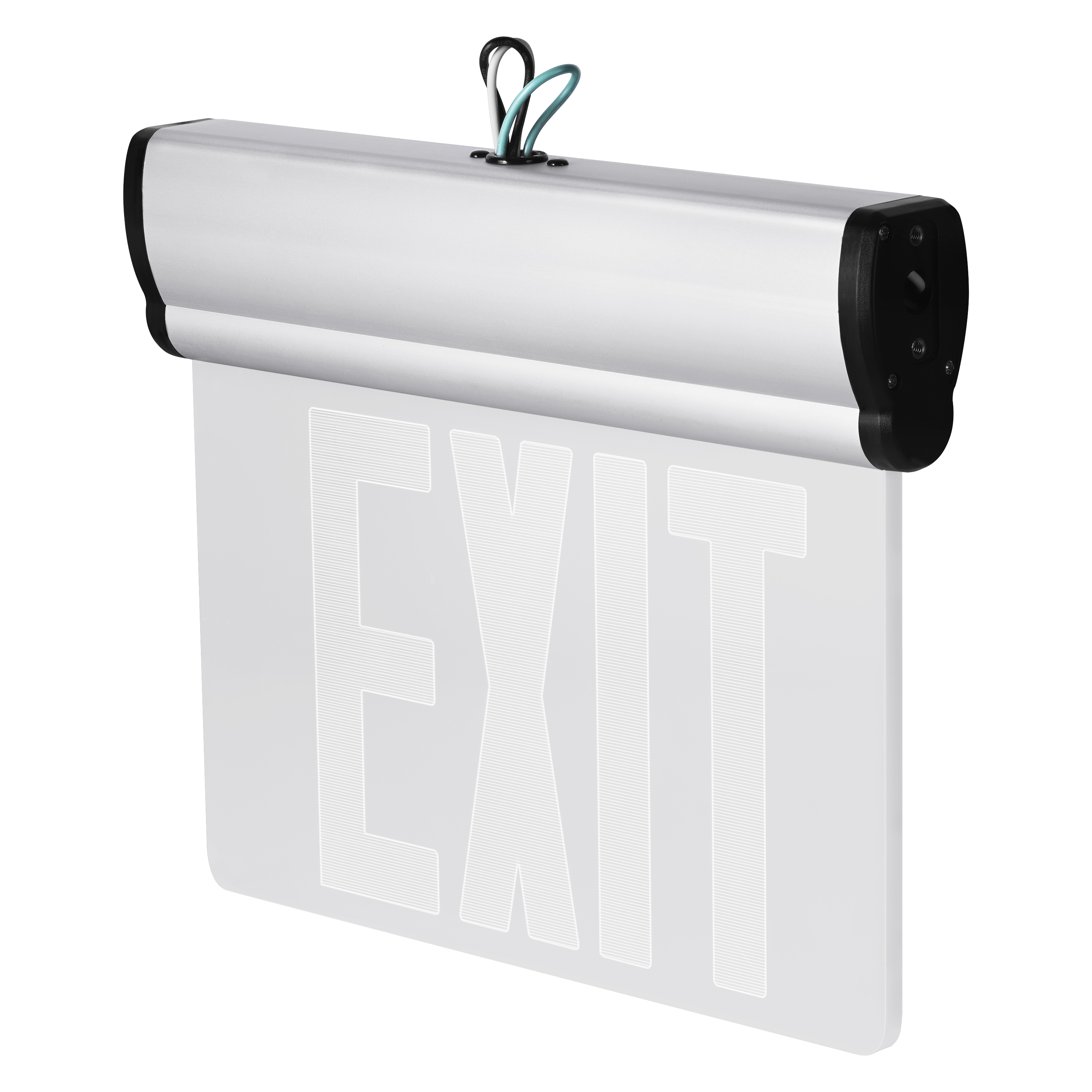

Product image: white background, diagonal, alternative image
Exit Sign Edge Lit
Exit Sign Edge Lit

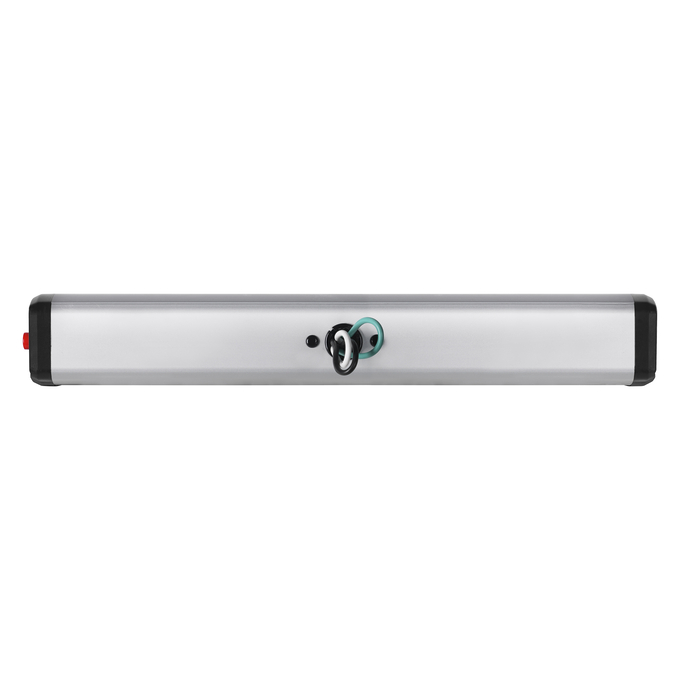

Product image: white background, horizontal
Exit Sign Edge Lit
Exit Sign Edge Lit

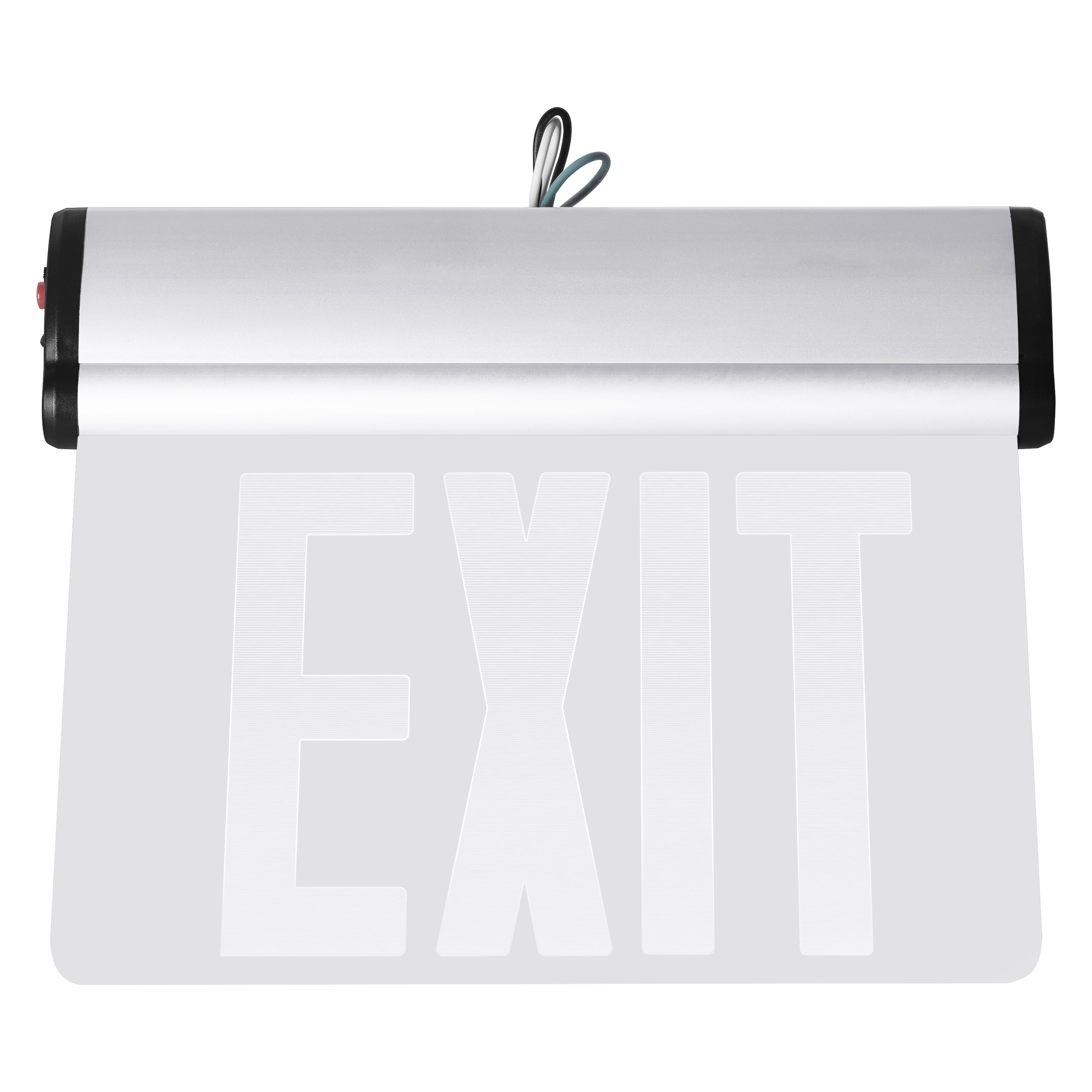

Product image: white background, upright
Exit Sign Edge Lit
Exit Sign Edge Lit

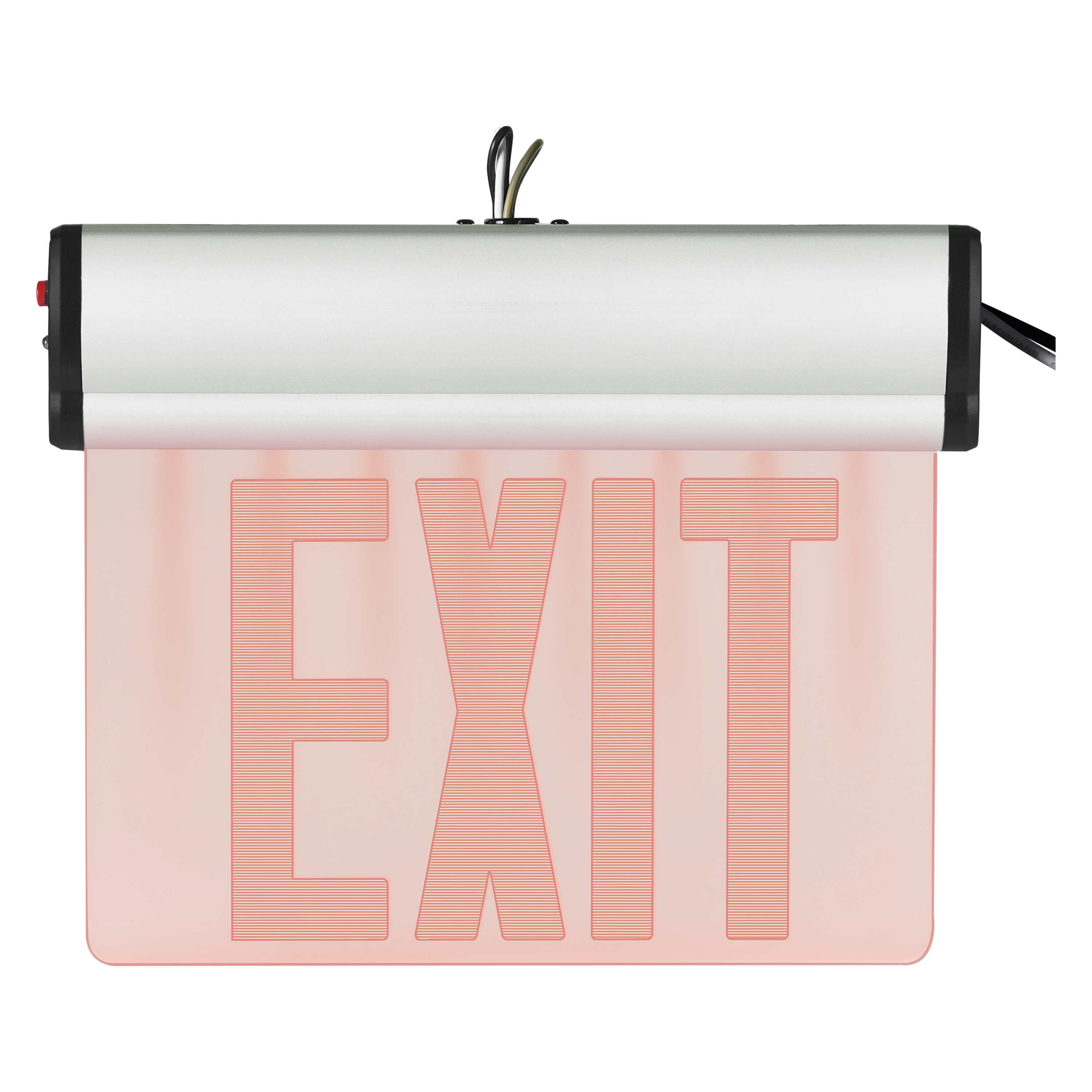

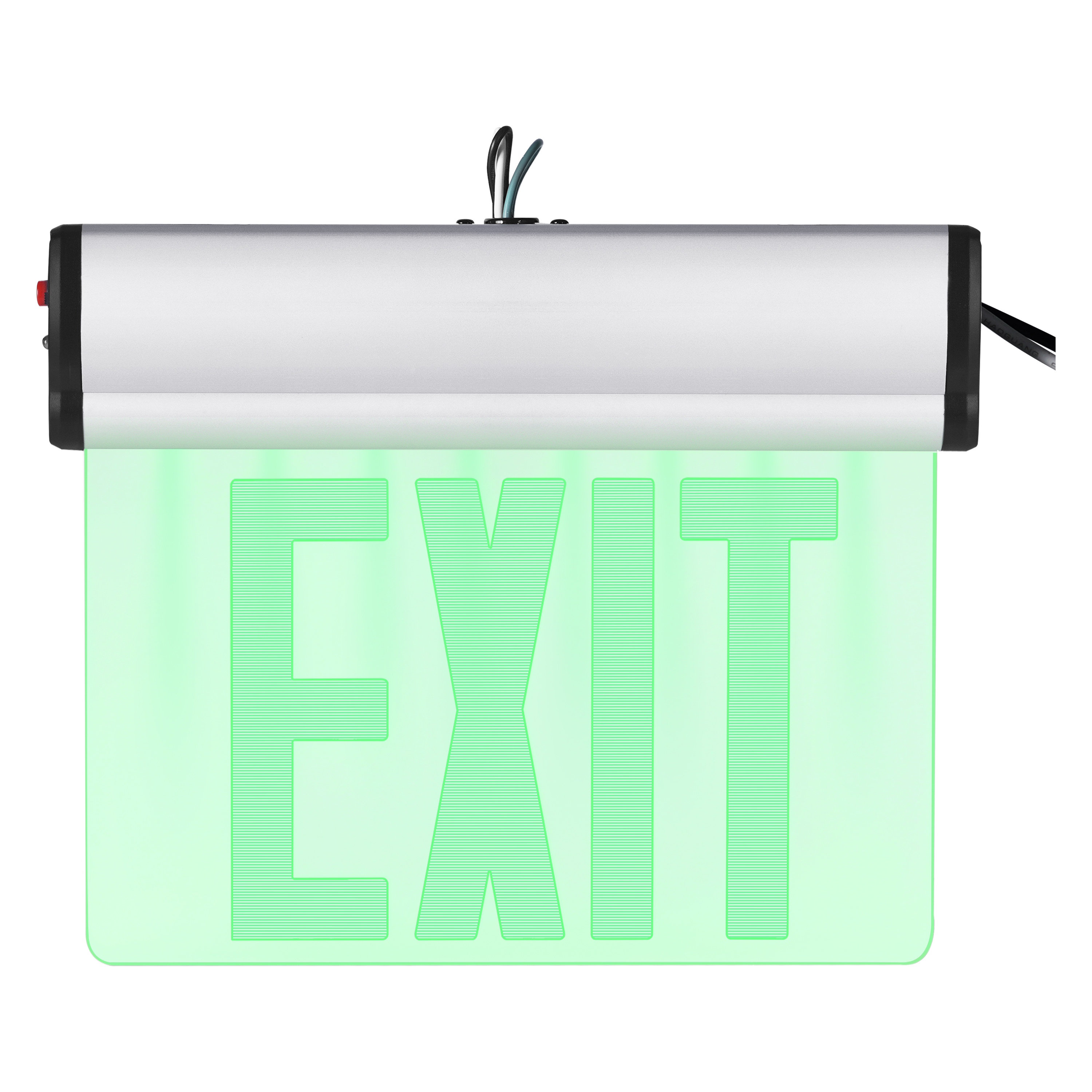

Product image: white background, upright, switched on
Exit Sign Edge Lit
Exit Sign Edge Lit

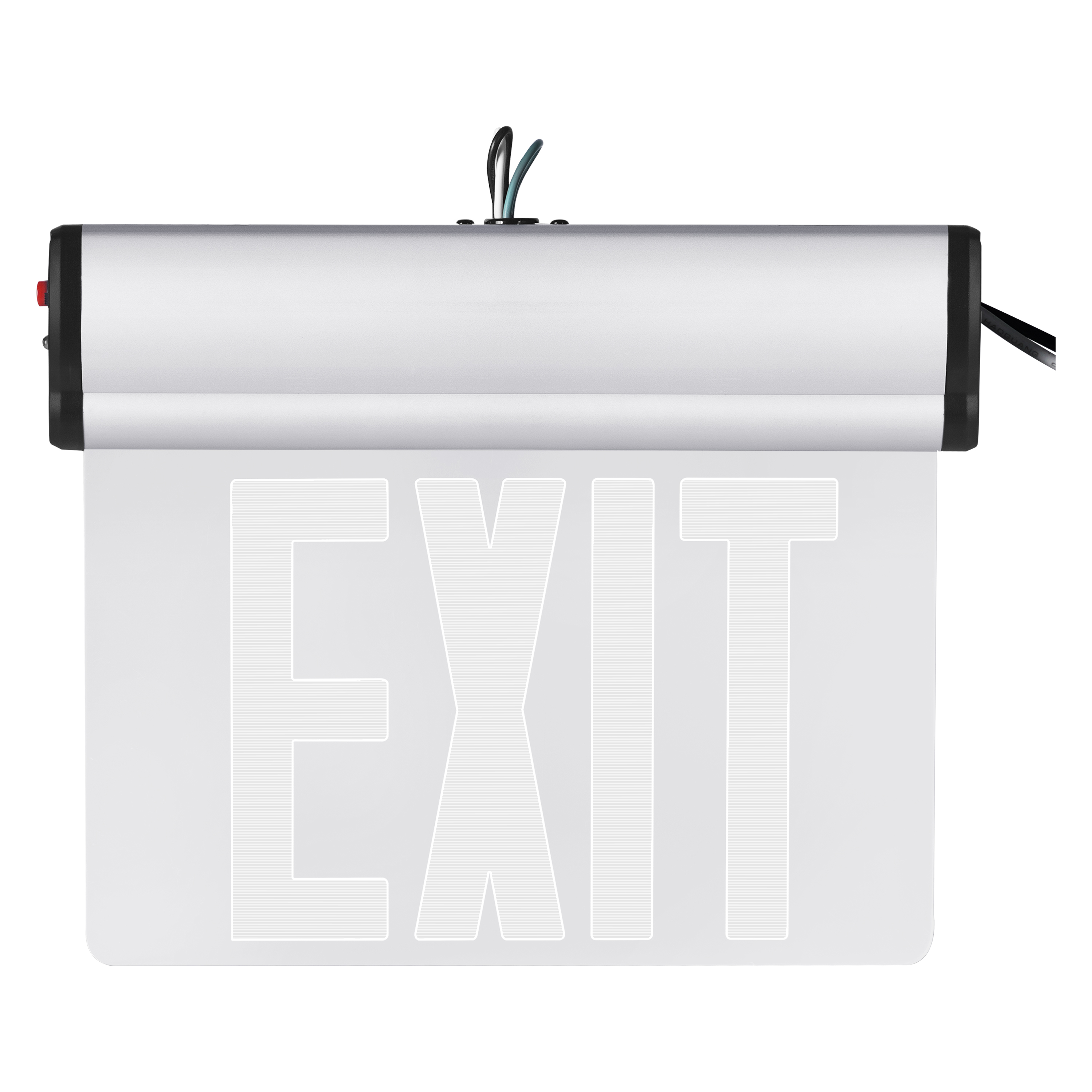

Product image: white background, upright, switched on
Exit Sign Edge Lit
Exit Sign Edge Lit

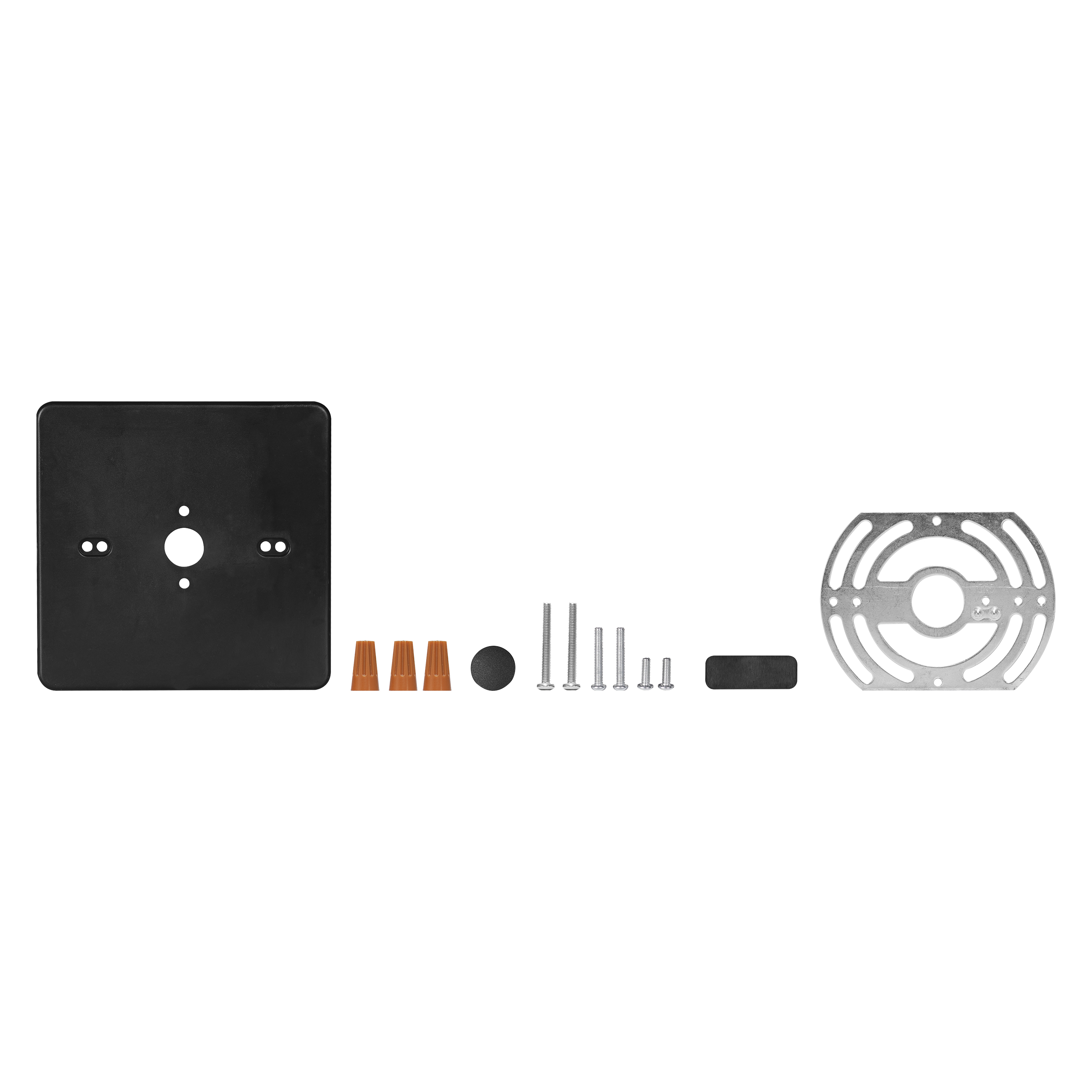

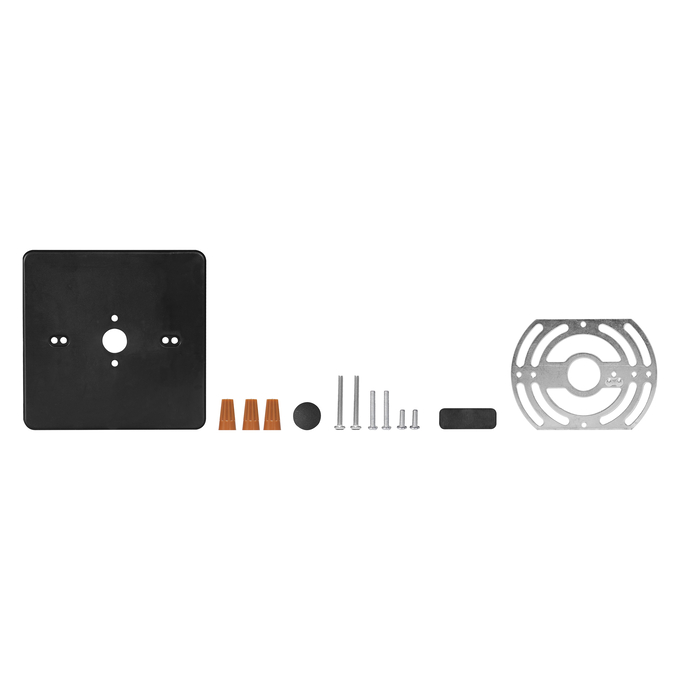

Product image: white background, with accessory, alternative image
