SYLVANIA DOWNLIGHT RETROFIT GIMBAL CCT SELECTABLE

RT GIMBAL 5/6" 5CCT 900LM

NAED: 65121 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Residential
  • Offices
  • Retail
  • Education
Product features
  • Integrated white trim, E26 medium base socket adapter
  • Selectable CCTs: 2700/3000/3500/4000/5000K
  • Available in 120VAC
  • Up to 90 LPW
  • Energy savings up to 88 %
  • Flicker-free dimming, phase-cut down to 10 %
  • Beam angle 110°
Safety advice
  • Suitable for indoor dry, damp and wet locations.
  • Not intended for use with emergency light luminaires or exit lights.
Product information bulletin
Hi-PerformanceLED RT Gimbal
PDF (580.42 KB)
Other documents / promotion
Insert Sheet - Residential LUM
PDF (1.04 MB)
Other documents / promotion
Insert Sheet - Residential LUM
PDF (1.34 MB)
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
PDF (139.12 KB)
Electrical data
Nominal wattage 10 W
Nominal voltage 120 V
Photometrical data
Luminous flux 900 lm
Luminous efficacy 90 lm/W
Color temperature 2700 K
Color rendering index Ra 90
Dimensions & Weight
Diameter 182.88 mm
Length 70.87 mm
Product weight 287.00 g
Materials & Colors
Mercury content 0.0 mg
Application & Mounting
Dimmable Yes
Replaceable light source No
Holder designation E26
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135651212 Folding box
1		 97 mm x 195 mm x 197 mm 273.00 g 3.69 dm³
4058118153053 Shipping box
4		 401 mm x 205 mm x 211 mm 1937.00 g 17.37 dm³

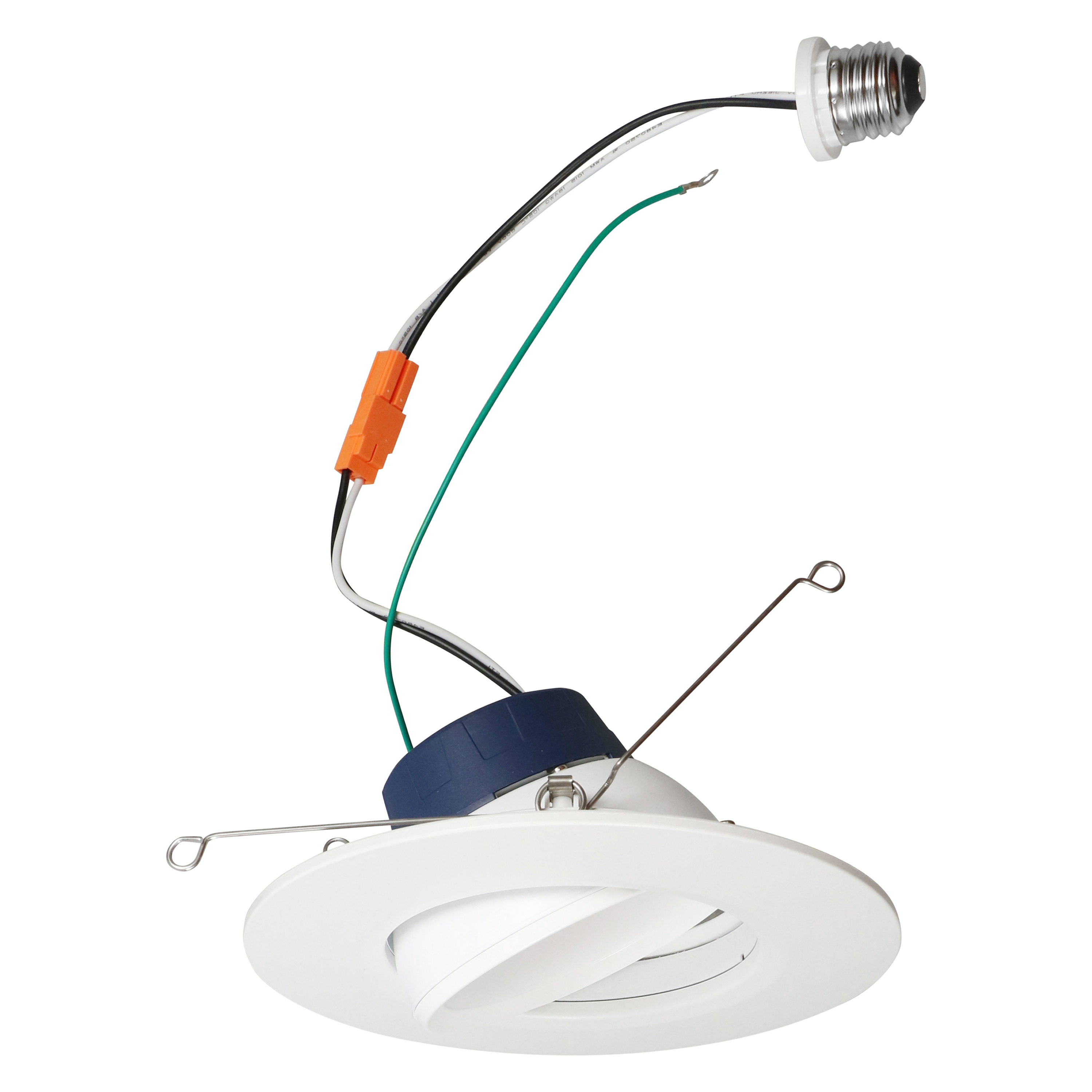

Product image: white background, upright
LED RT56 Gimbal Screw-based Selectable
JPG (757.69 KB)

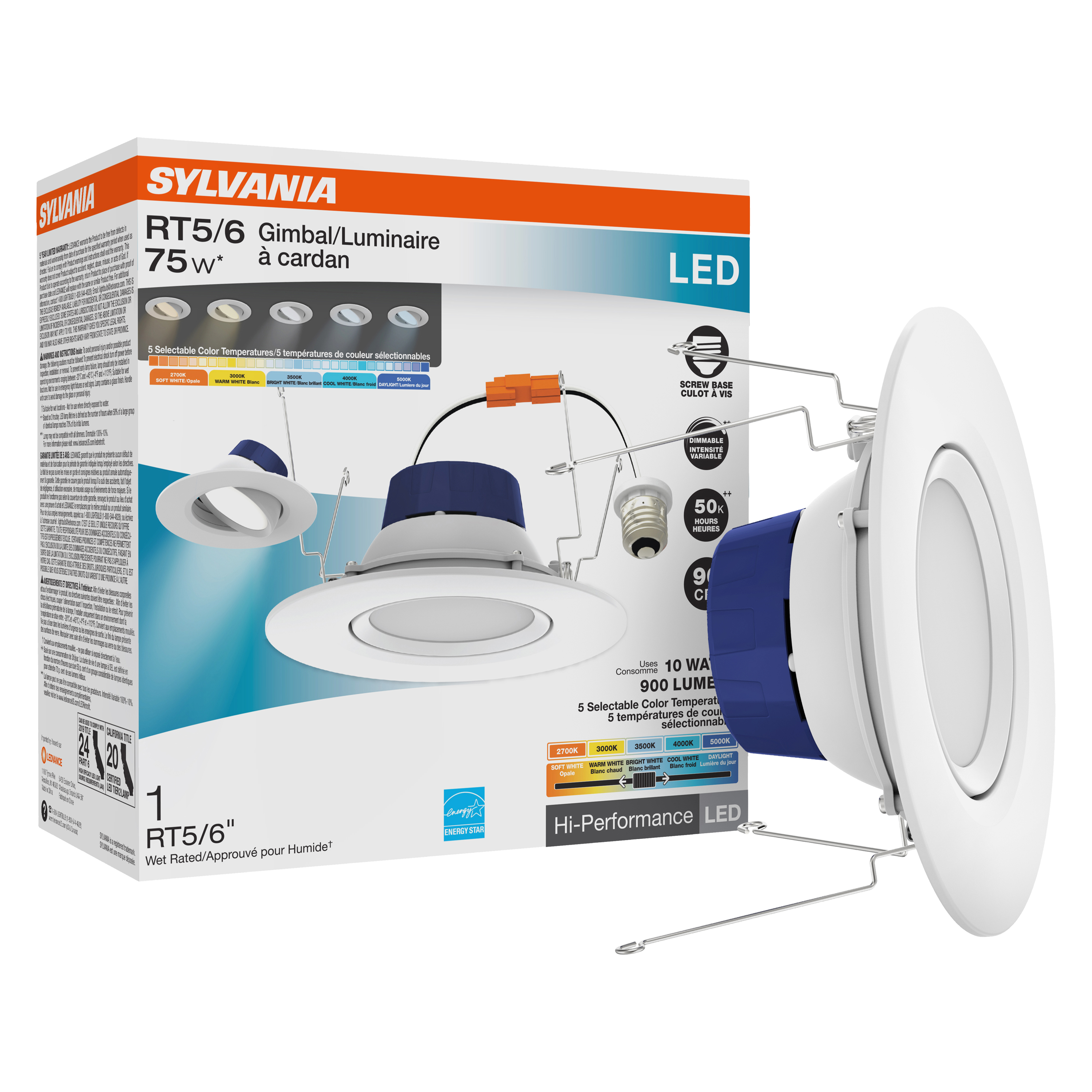

Packaging image, beauty shot
RT5/6 Gimbal
JPG (2.19 MB)

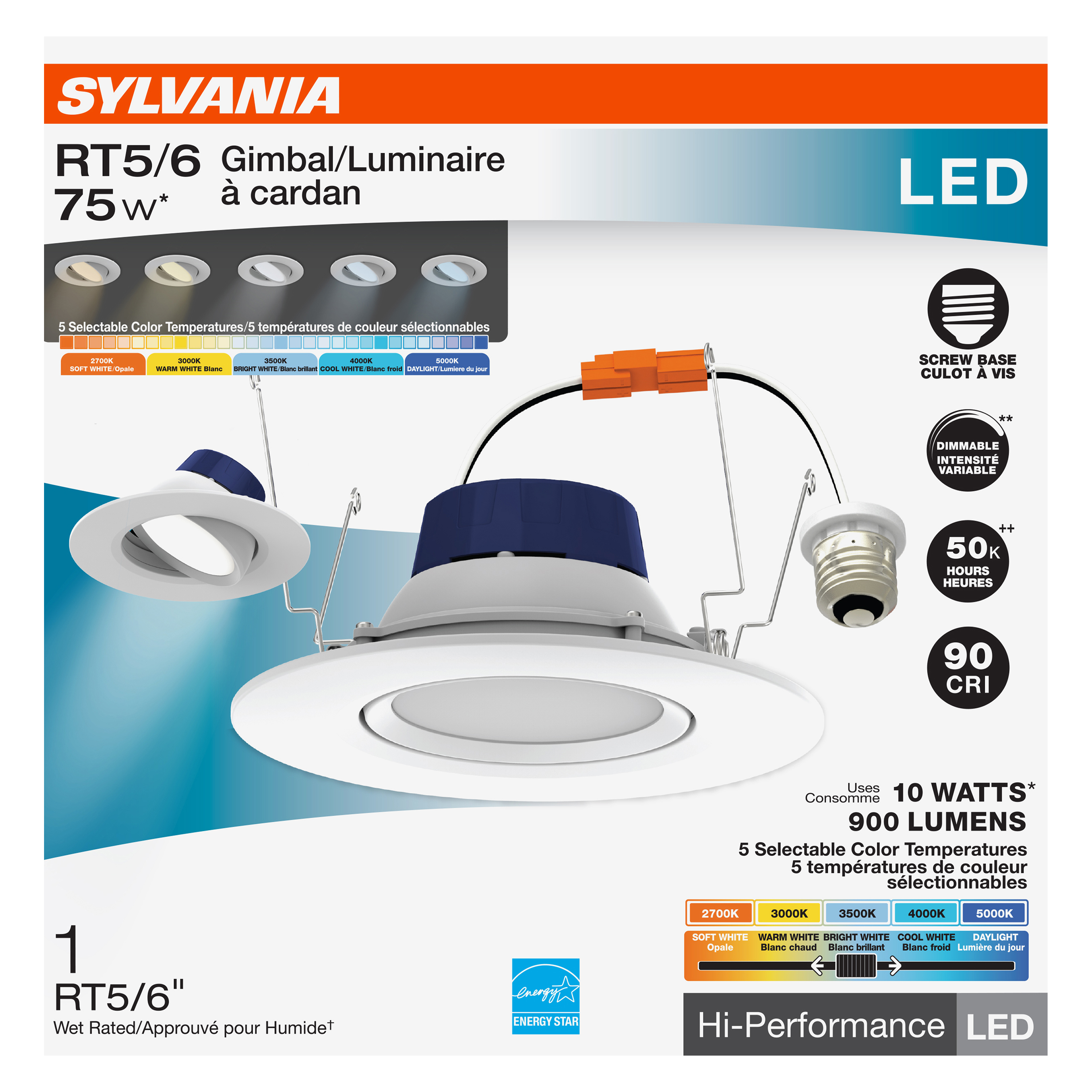

Packaging image, frontal
RT5/6 Gimbal
JPG (2.1 MB)

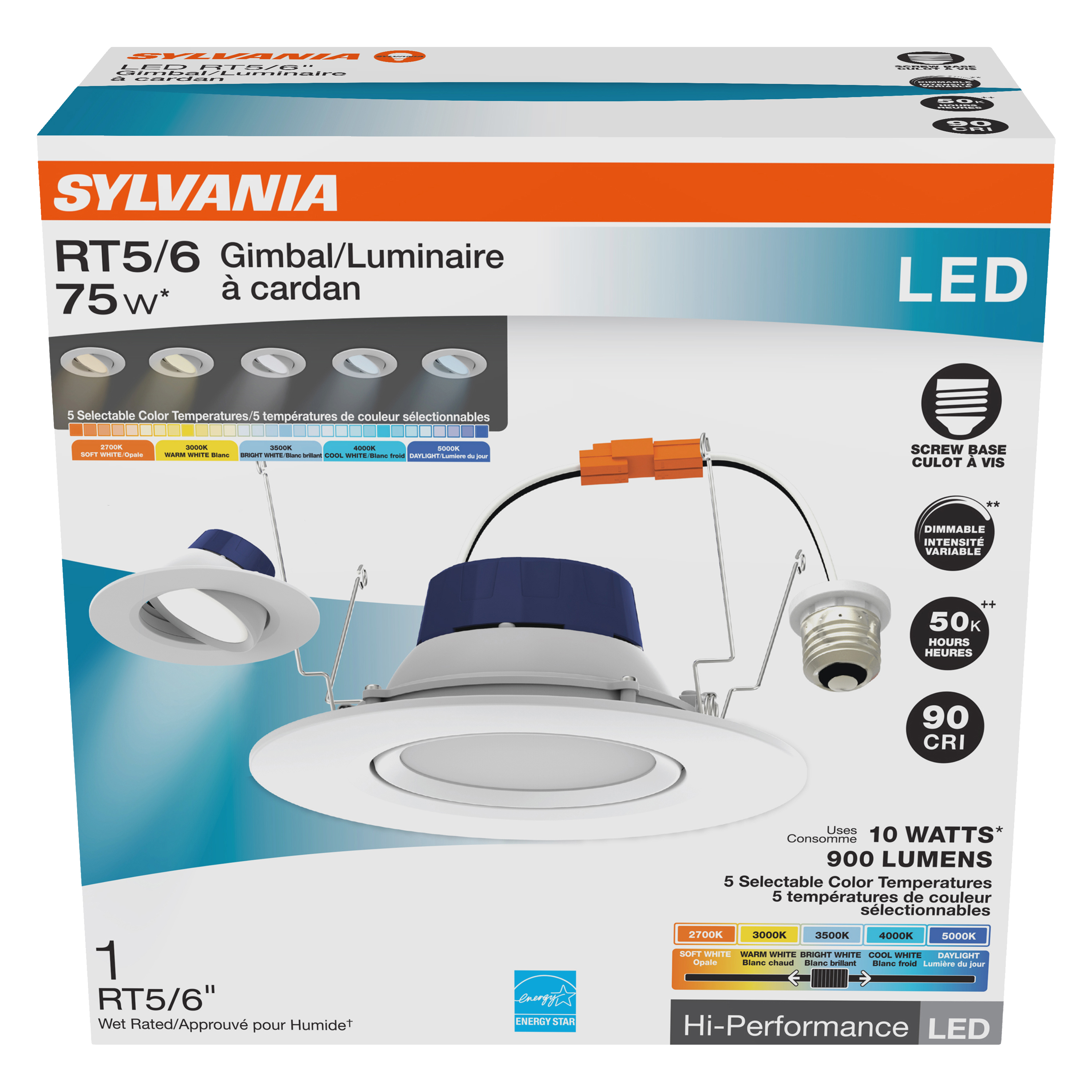

Packaging image, frontal
RT5/6 Gimbal
JPG (2.16 MB)

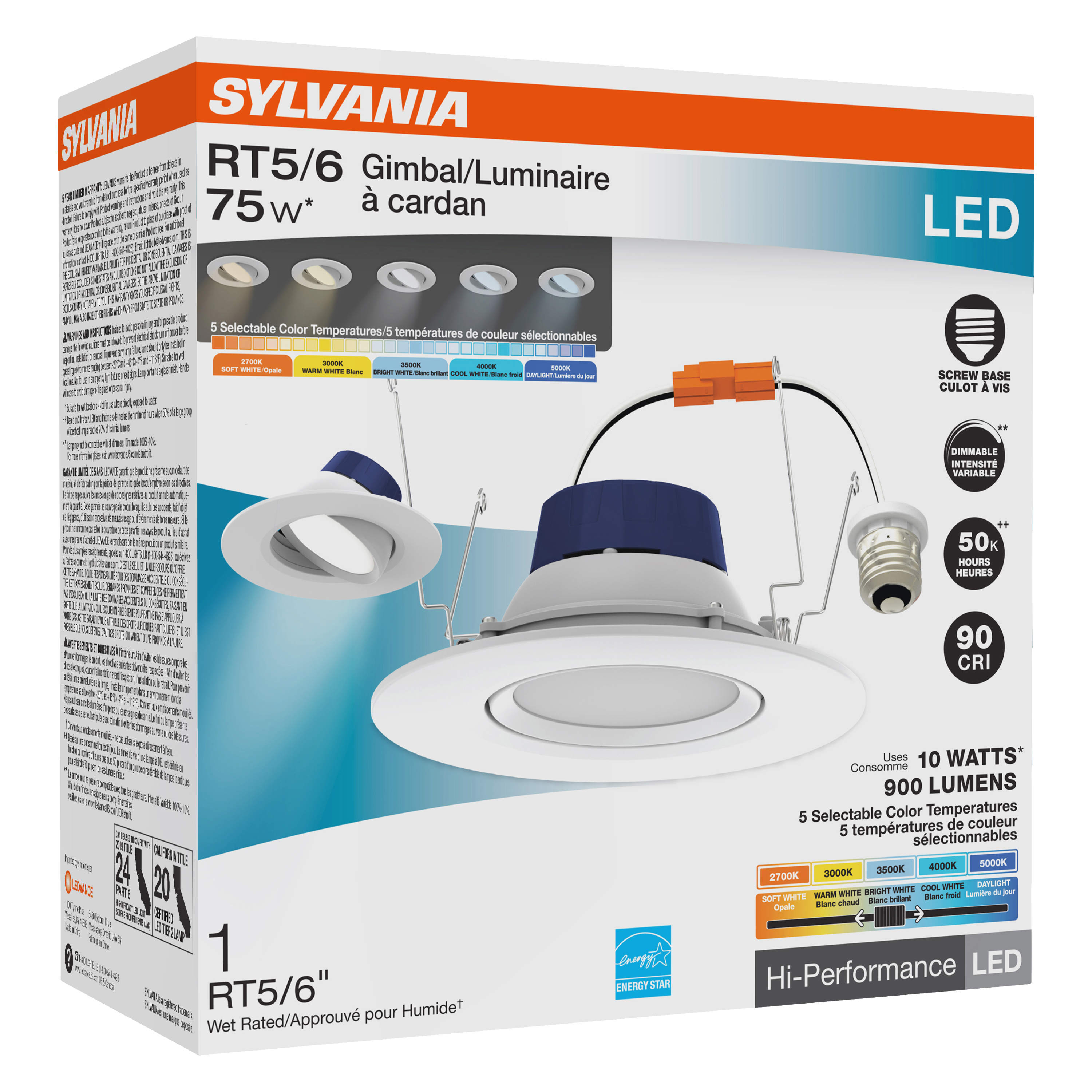

Packaging image, spacial
RT5/6 Gimbal
JPG (2.47 MB)
