SYLVANIA DOWNLIGHT RETROFIT GIMBAL CCT SELECTABLE
RT GIMBAL 5/6" 5CCT 725LM
NAED: 65120
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Residential
- Offices
- Retail
- Education
Product features
- Integrated white trim, E26 medium base socket adapter
- Selectable CCTs: 2700/3000/3500/4000/5000K
- Available in 120VAC
- Up to 90 LPW
- Energy savings up to 88 %
- Flicker-free dimming, phase-cut down to 10 %
- Beam angle 110°
Safety advice
- Suitable for indoor dry, damp and wet locations.
- Not intended for use with emergency light fixtures or exit lights.
Product Family Spec Sheet
Hi-PerformanceLED RT Gimbal
Hi-PerformanceLED RT Gimbal
Other documents / promotion
Insert Sheet - Residential LUM
Insert Sheet - Residential LUM
Other documents / promotion
Insert Sheet - Residential LUM
Insert Sheet - Residential LUM
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 8.00 W |
| Nominal voltage | 120.00 V |
| Power factor | > 0.90 |
Photometrical data
| Lumens | 725 lm |
| Efficacy | 91 |
| Color Temperature/CCT | 2700/3000/3500/4000/5000 K |
| Light color (designation) | Color-changing |
| Color Rendering Index (CRI) | 90 |
| Luminaire Type | Downlight |
Dimensions & Weight
| Diameter | 7.2 in |
| Length | 2.79 in |
| Product weight | 0.32 lb |
Materials & Colors
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Maximum Operating Temperature | 104 °F |
| Minimum Operating Temperature | -4 °F |
| Dimming | Yes |
| Replaceable light source | No |
| Holder designation | E26 |
Lifespan
| Average Rated Life (hr) | 50000 |
Certificates & Standards
| Certification Listing | RoHS; FCC; cETLus; CEC |
| Energy Star Rated | X |
Additional product data
| Ordering Abbreviation | LEDRT56G725SC3 |
| Abbrev. With Packaging Info. | LEDRT56G725SC3 4/CS 1/SKU |
| SKU UPC | 0046135651205 |
| Base | E26 Medium |
| Family Brand Name | Hi-PerformanceLED |
| General Description | LED RT56 Gimbal, 8W, Dimmable, 90CRI, 725 Lumens, Selectable 2700, 3000, 3500, 4000, 5000K, 50000 life |
| Warranty | 5 years |
Logistical data
| SKU Qty | 1 |
| Case Qty | 4 |
| Case Length (in) | 12.874 |
| Case Width (in) | 7.677 |
| Case Depth (in) | 7.795 |
| Case Cube (ft) | 0.446 |
| Case Weight (lbs) | 2.419 |
| SKU UPC | 0046135651205 |
| Pallet Qty | 380 |
| SKU's/Case | 4 |
| SKU's/Pallet | 380 |
| Cases/Pallet | 95 |

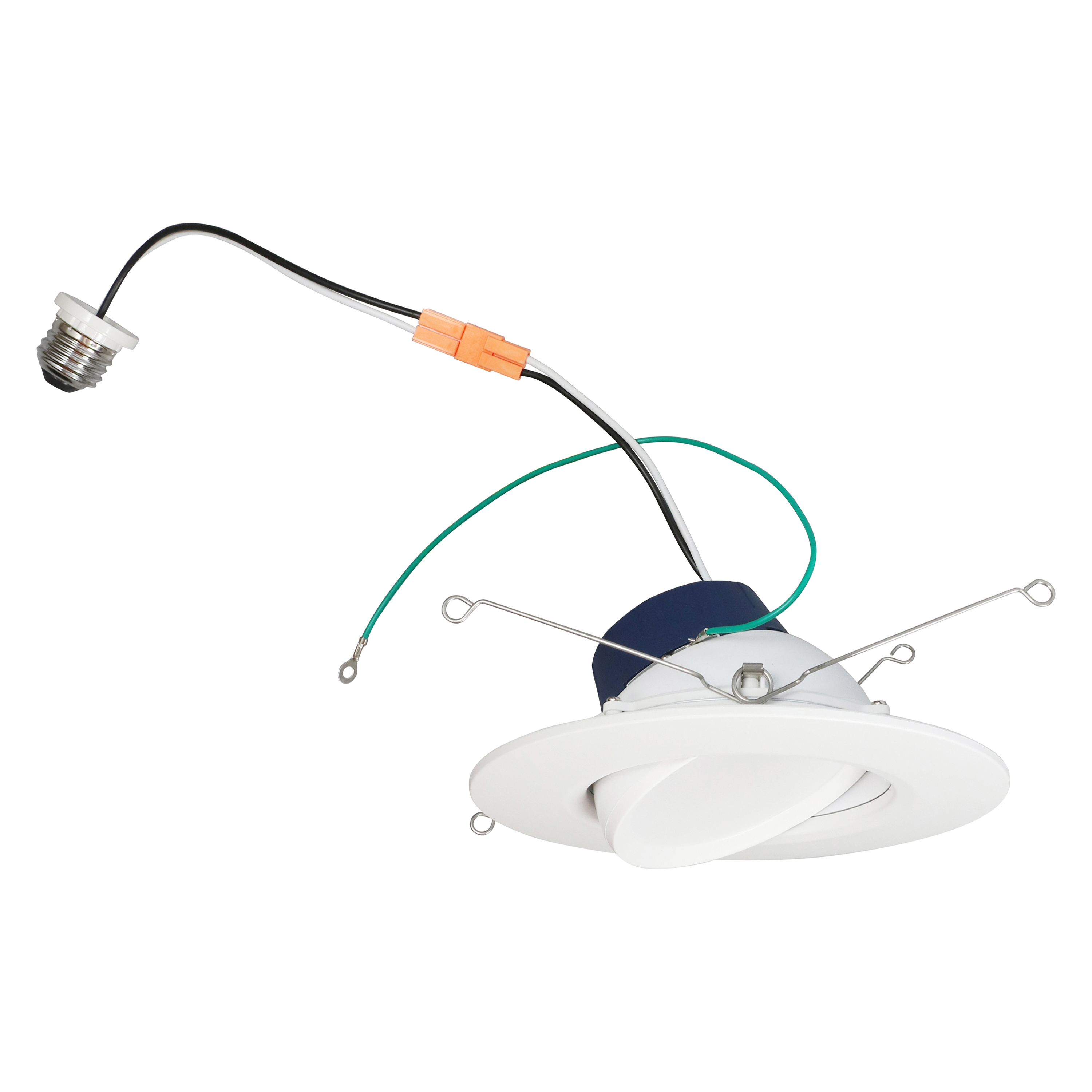

Product image: white background, upright
LED RT56 Gimbal Screw-based Selectable
LED RT56 Gimbal Screw-based Selectable
