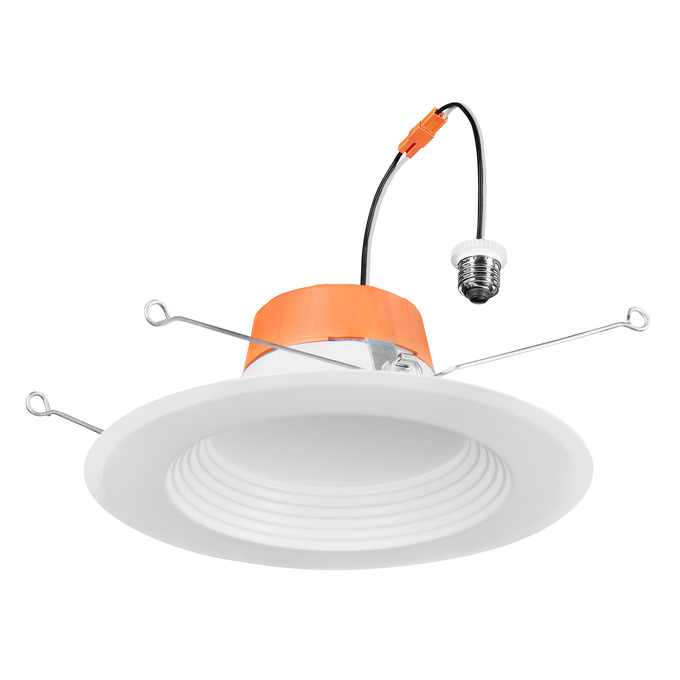

RT SELECT 1A 5/6" 5CCT 725LM BA white, upright

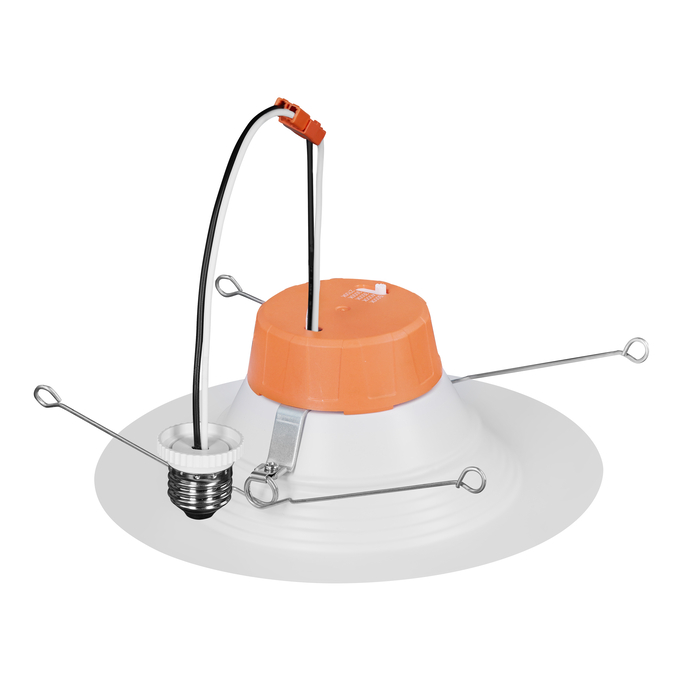

RT SELECT 1A 5/6" 5CCT 725LM BA white, backside

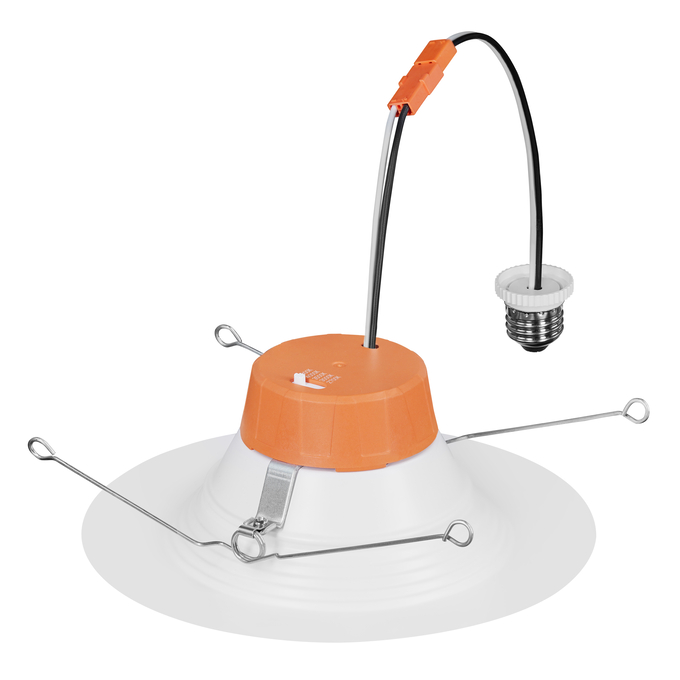

RT SELECT 1A 5/6" 5CCT 725LM BA white, backside

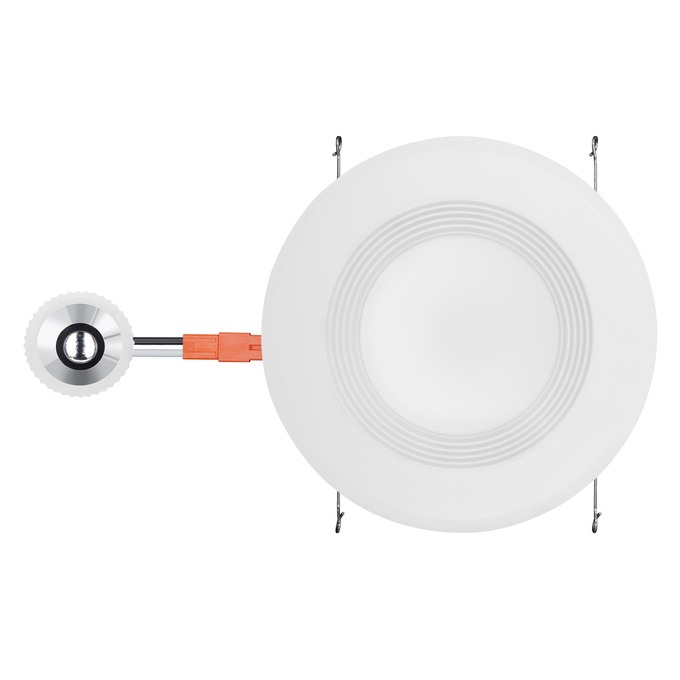

RT SELECT 1A 5/6" 5CCT 725LM BA Beauty Shot

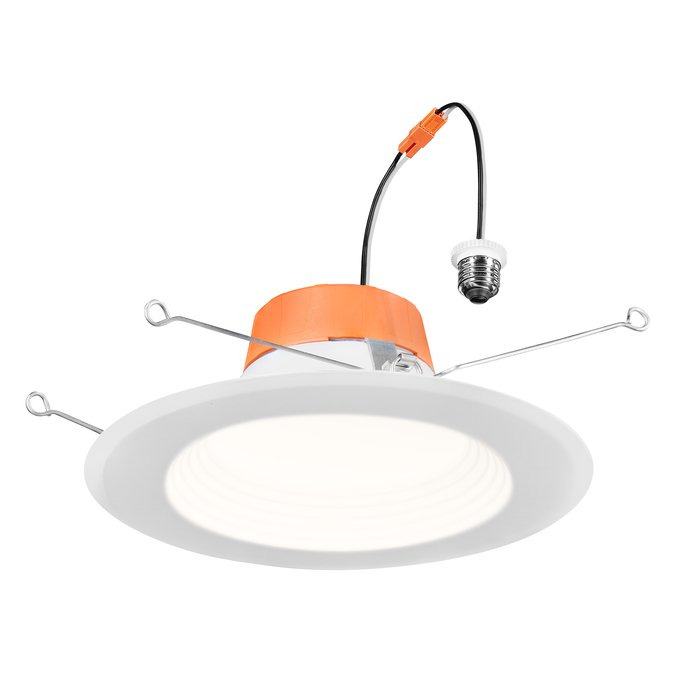

RT SELECT 1A 5/6" 5CCT 725LM BA Beauty Shot

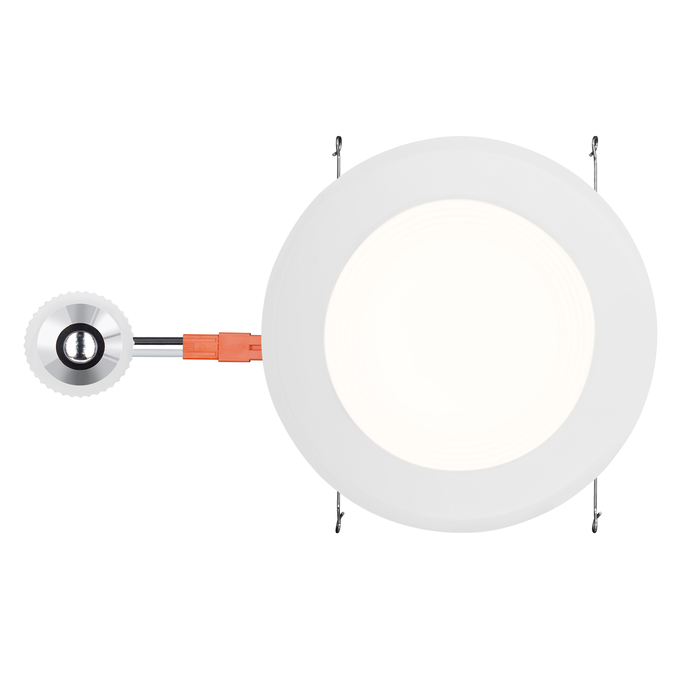

RT SELECT 1A 5/6" 5CCT 725LM BA Beauty Shot

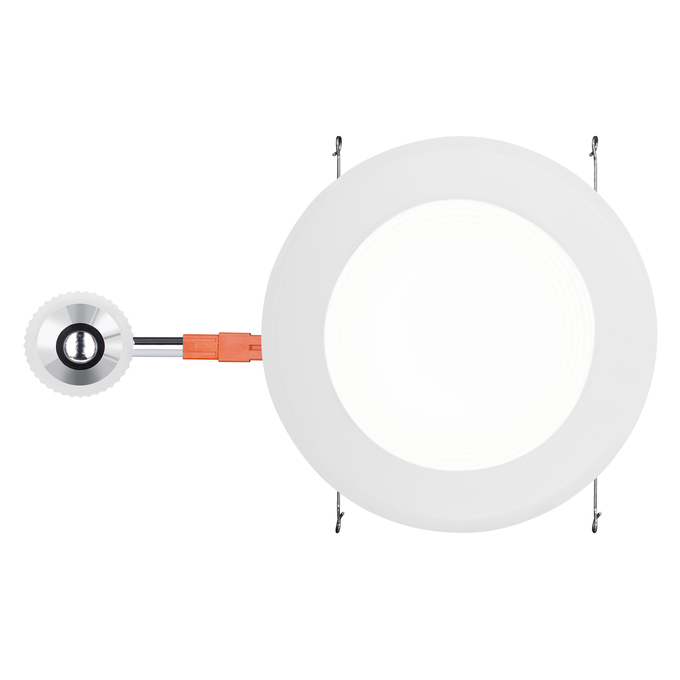

RT SELECT 1A 5/6" 5CCT 725LM BA Beauty Shot

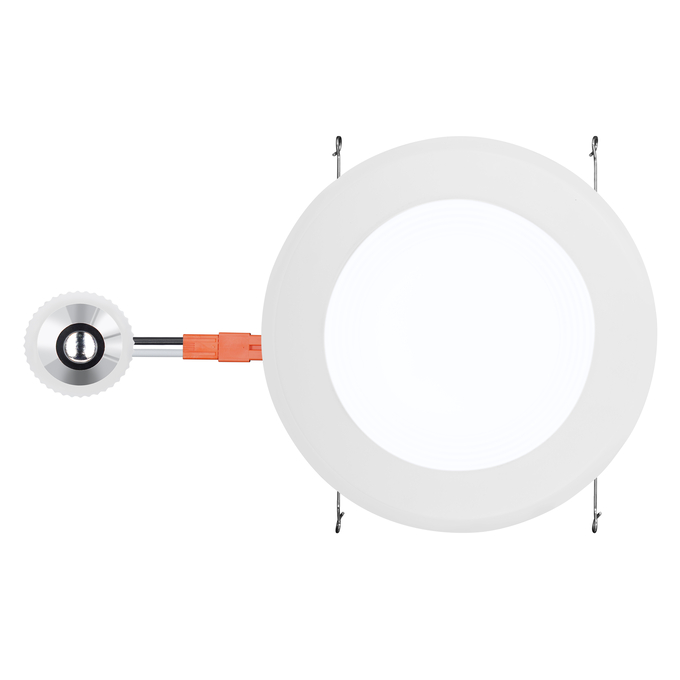

RT SELECT 1A 5/6" 5CCT 725LM BA Beauty Shot
RT SELECT 1A 5/6" 5CCT 725LM BA Beauty Shot
RT SELECT 1A 5/6" 5CCT 725LM BA Beauty Shot
RT SELECT 1A 5/6" 5CCT 725LM BA Beauty Shot
RT SELECT 1A 5/6" 5CCT 725LM BA Beauty Shot
RT SELECT 1A 5/6" 5CCT 725LM BA Beauty Shot
DOWNLIGHT RETROFIT SELECTABLE

RT SELECT 1A 5/6" 5CCT 725LM BA

NAED: 62869
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Residential
  • Bedrooms
  • Kitchens
  • Bathrooms
Product features
  • Integrated white trim, E26 medium base socket adapter
  • Selectable CCTs: 2700/3000/3500/4000/5000K
  • Available in 120VAC
  • Up to 100 LPW
  • Energy savings up to 89 %
  • Flicker-free dimming, phase-cut down to 10 %
  • Color trim rings available as optional accessory
  • No warm-up time, instant-on with full light output
Safety advice
  • Suitable for indoor dry, damp and wet locations.
  • For use in housings that can structurally support a lamp weighing one pound.
  • RT5/6 designed to install in standard 5" and 6" insulated and non-insulated housings.
  • Not intended for use with emergency light fixtures or exit lights.
Installation Guide
Install Guide- Downlights
PDF (5.42 MB)
Product Family Spec Sheet
DUAL SELECTABLE SCREW-BASE DOWNLIGHT
PDF (1.17 MB)
Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022
PDF (867.24 KB)
Other documents / promotion
LEDVANCE Performance Class Selectable Screw-Base Downlight Sales Flyer
PDF (1.55 MB)
Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022
PDF (867.18 KB)
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
PDF (139.12 KB)
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
PDF (147.57 KB)
Electrical data
Nominal Wattage 8.00 W
Nominal voltage 120.00 V
Power factor ≥0.90
Total Harmonic Distortion < 20 %
Photometrical data
Lumens 725 lm
Efficacy 80 lm/W
Color Temperature/CCT 2700/3000/3500/4000/5000 K
Color Rendering Index (CRI) 90
Luminaire Type Downlight
Dimensions & Weight
Diameter 7.36 in
Height 2.76 in
Product weight 0.44 lb
Materials & Colors
Luminaire Finish White
Housing color White
Housing Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Dimming Yes
Type of Dimming PHASE CUT
Mounting Recessed
Replaceable light source No
Lifespan
Average Rated Life (hr) 50000
Certificates & Standards
Certification Listing RoHS; FCC; cULus; CEC
Replaceable light source (EPREL) Not replaceable
Energy Star Rated X
Additional product data
Ordering Abbreviation RT561A725ST9SC3BAWHE26
Abbrev. With Packaging Info. RT561A725ST9SC3BAWHE26 6/CS 1/SKU
SKU UPC 0046135628696
Family Brand Name PERFORMANCE
General Description Performance Class Downlight for 5/6" can, 725lm, 120V, › 90 CRI, 2700K/3000K/3500K/4000K/5000K, baffle finish, w/E26 adaptor. Wet rated with metal housing.Title 20/24 Compliant and Energy Star Listed
Warranty 5 years
Logistical data
SKU Qty 1
Case Qty 6
Case Length (in) 15.472
Case Width (in) 9.882
Case Depth (in) 8.228
Case Cube (ft) 0.728
Case Weight (lbs) 4.187
SKU UPC 0046135628696
Pallet Qty 432
SKU's/Case 6
SKU's/Pallet 432
Cases/Pallet 72
