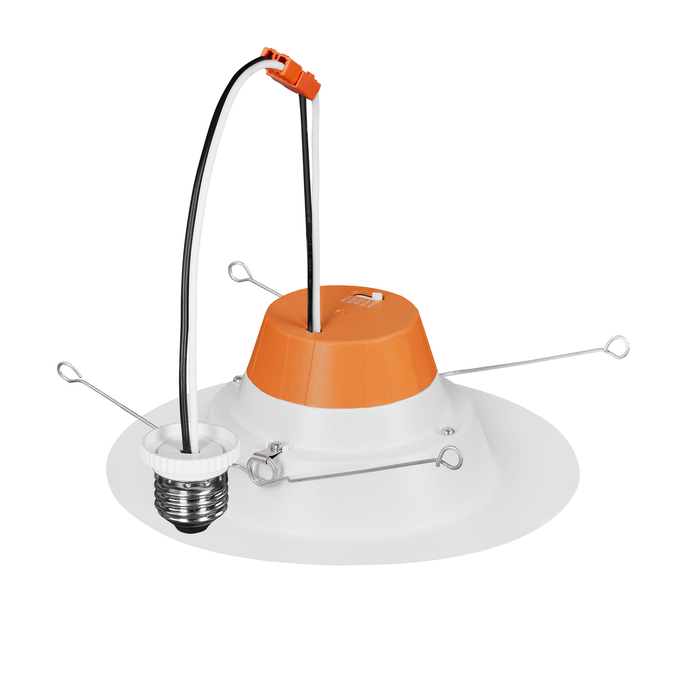

RT SELECT 1A 5/6" 5CCT 725LM SM white, backside

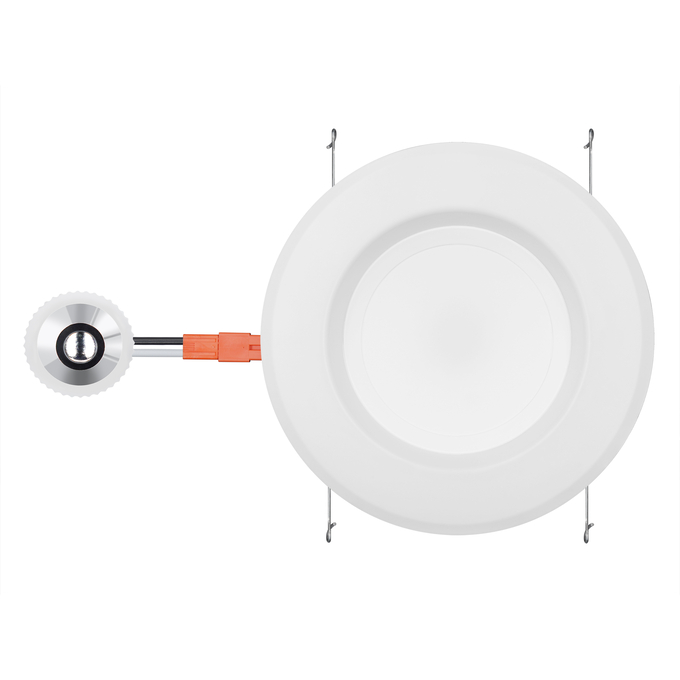

RT SELECT 1A 5/6" 5CCT 725LM SM white, bottom view

RT SELECT 1A 5/6" 5CCT 725LM SM Beauty Shot

RT SELECT 1A 5/6" 5CCT 725LM SM Beauty Shot

RT SELECT 1A 5/6" 5CCT 725LM SM Beauty Shot

RT SELECT 1A 5/6" 5CCT 725LM SM Beauty Shot

RT SELECT 1A 5/6" 5CCT 725LM SM Beauty Shot

RT SELECT 1A 5/6" 5CCT 725LM SM Beauty Shot

RT SELECT 1A 5/6" 5CCT 725LM SM Beauty Shot

RT SELECT 1A 5/6" 5CCT 725LM SM Beauty Shot

RT SELECT 1A 5/6" 5CCT 725LM SM Beauty Shot

RT SELECT 1A 5/6" 5CCT 725LM SM Beauty Shot

RT SELECT 1A 5/6" 5CCT 725LM SM Beauty Shot

DOWNLIGHT RETROFIT SELECTABLE

RT SELECT 1A 5/6" 5CCT 725LM SM

NAED: 62868

Download data sheet

Our warranty conditions

PRODUCT DETAILS

Areas of application

Residential
Bedrooms
Kitchens
Bathrooms

Product features

Integrated white trim, E26 medium base socket adapter
Selectable CCTs: 2700/3000/3500/4000/5000K
Available in 120VAC
Up to 100 LPW
Energy savings up to 89 %
Flicker-free dimming, phase-cut down to 10 %
Color trim rings available as optional accessory
No warm-up time, instant-on with full light output

Safety advice

Suitable for indoor dry, damp and wet locations.
For use in housings that can structurally support a lamp weighing one pound.
RT5/6 designed to install in standard 5" and 6" insulated and non-insulated housings.
Not intended for use with emergency light fixtures or exit lights.

Installation Guide
Install Guide- Downlights

Product Family Spec Sheet
DUAL SELECTABLE SCREW-BASE DOWNLIGHT

Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022

PDF (867.24 KB)

Other documents / promotion
LEDVANCE Performance Class Selectable Screw-Base Downlight Sales Flyer

Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022

PDF (867.18 KB)

Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001

PDF (139.12 KB)

Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions

PDF (147.57 KB)

Electrical data

Nominal Wattage	8.00 W
Nominal voltage	120.00 V
Power factor	≥0.90
Total Harmonic Distortion	< 20 %

Photometrical data

Lumens	725 lm
Efficacy	80 lm/W
Color Temperature/CCT	2700/3000/3500/4000/5000 K
Color Rendering Index (CRI)	90
Luminaire Type	Downlight

Dimensions & Weight

Diameter	7.36 in
Height	2.76 in
Product weight	0.44 lb

Materials & Colors

Luminaire Finish	White
Housing color	White
Housing	Polycarbonate (PC)
Mercury content	0.0 mg

Application & Mounting

Dimming	Yes
Type of Dimming	PHASE CUT
Mounting	Recessed
Replaceable light source	No

Lifespan

Average Rated Life (hr)

50000

Certificates & Standards

Certification Listing	RoHS; FCC; cULus; CEC
Replaceable light source (EPREL)	Not replaceable
Energy Star Rated	X

Additional product data

Ordering Abbreviation	RT561A725ST9SC3SMWHE26
Abbrev. With Packaging Info.	RT561A725ST9SC3SMWHE26 6/CS 1/SKU
SKU UPC	0046135628689
Family Brand Name	PERFORMANCE
General Description	Performance Class Downlight for 5/6" can, 725lm, 120V, › 90 CRI, 2700K/3000K/3500K/4000K/5000K, smooth finish, w/E26 adaptor. Wet ratedwith metal housing.Title 20/24 Compliant and Energy Star Listed
Warranty	5 years

Logistical data

SKU Qty	1
Case Qty	6
Case Length (in)	15.472
Case Width (in)	9.882
Case Depth (in)	8.228
Case Cube (ft)	0.728
Case Weight (lbs)	4.187
SKU UPC	0046135628689
Pallet Qty	432
SKU's/Case	6
SKU's/Pallet	432
Cases/Pallet	72

Product image	Product name	UPC
	RT TRIM RING RT4 SM BLACK	OS62498
	RT TRIM RING RT4 SM COPPER	OS62499
	RT TRIM RING RT4 SM SATIN NICKEL	OS62500
	RT TRIM RING RT56 SM BLK	OS62501
	RT TRIM RING RT56 SM COPPER	OS62502
	RT TRIM RING RT56 SM SATIN NICKEL	OS62503
	RT TRIM RING RT4 BA BLK	OS63430
	RT TRIM RING RT4 BA COPPER	OS63431
	RT TRIM RING RT4 BA SATIN NICKEL	OS63432
	RT TRIM RING RT56 BA BLK	OS63433
	RT TRIM RING RT56 BA COPPER	OS63434
	RT TRIM RING RT56 BA SATIN NICKEL	OS63435

Product image: white background, upright
Performance Class LEDVANCE Downlight Screw Base

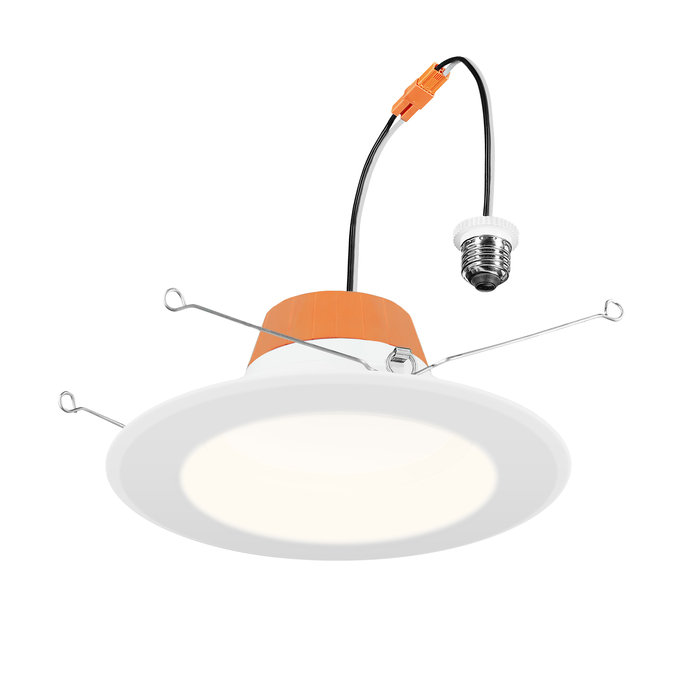

Beauty Shot
Performance Class LEDVANCE Downlight Screw Base - 2700K

JPG (461.53 KB)

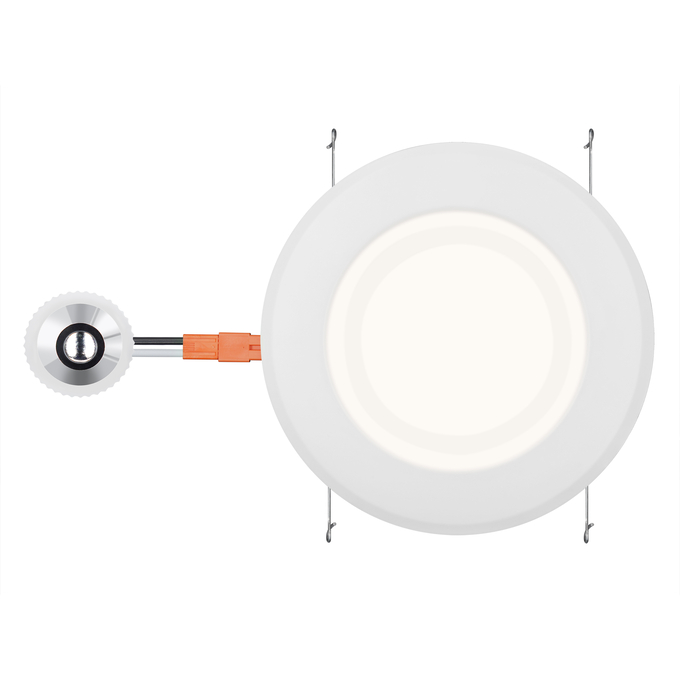

Beauty Shot
Performance Class LEDVANCE Downlight Screw Base - 3000K

JPG (459.04 KB)

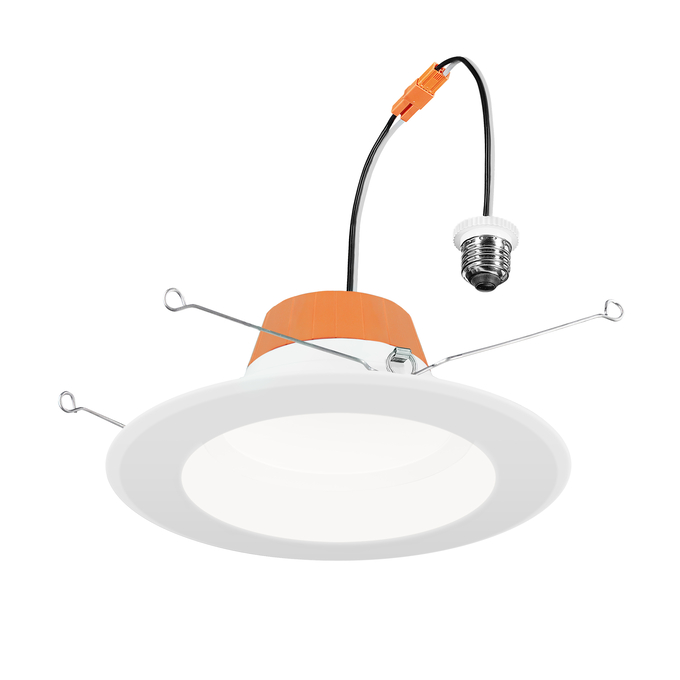

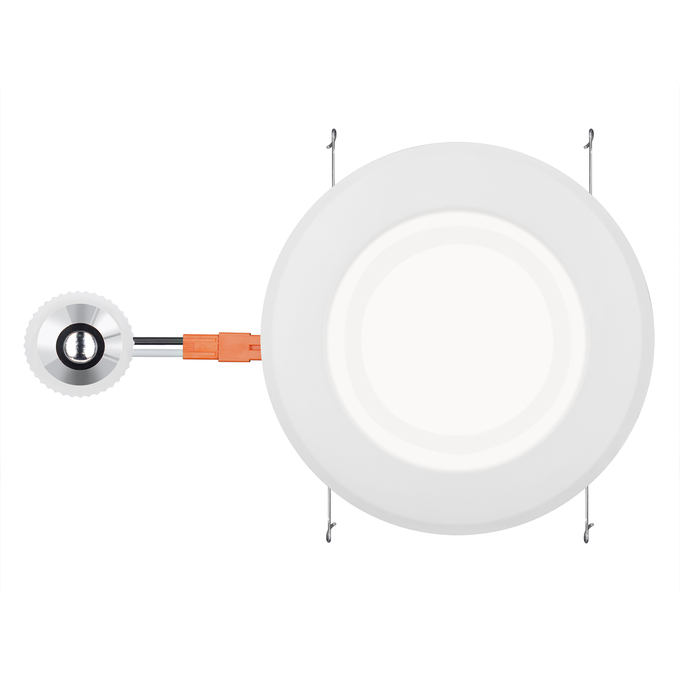

Beauty Shot
Performance Class LEDVANCE Downlight Screw Base - 3500K

JPG (456.89 KB)

Beauty Shot
Performance Class LEDVANCE Downlight Screw Base - 4000K

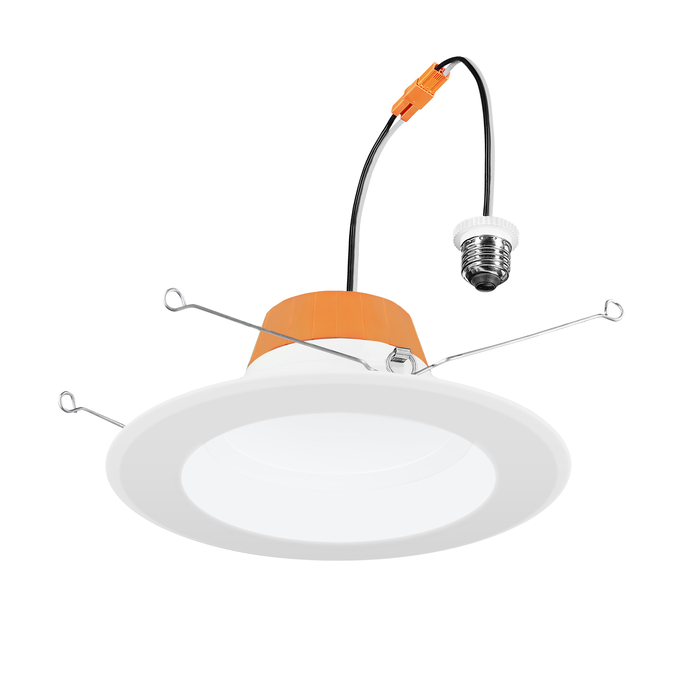

Beauty Shot
Performance Class LEDVANCE Downlight Screw Base - 5000K

JPG (459.56 KB)

Beauty Shot
Performance Class LEDVANCE Downlight Screw Base - 2700K

Beauty Shot
Performance Class LEDVANCE Downlight Screw Base - 3000K

JPG (466.33 KB)

Beauty Shot
Performance Class LEDVANCE Downlight Screw Base - 3500K

JPG (457.65 KB)

Beauty Shot
Performance Class LEDVANCE Downlight Screw Base - 4000K

JPG (454.89 KB)

Beauty Shot
Performance Class LEDVANCE Downlight Screw Base - 5000K

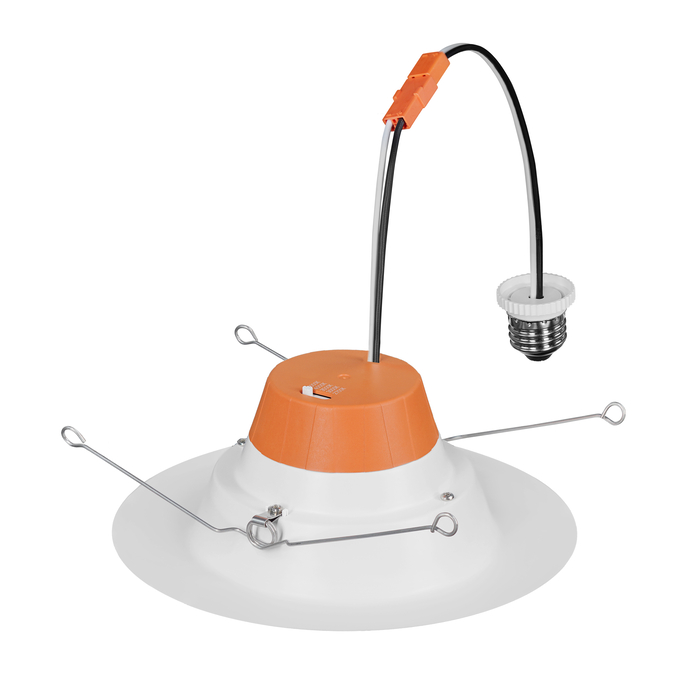

Beauty Shot
