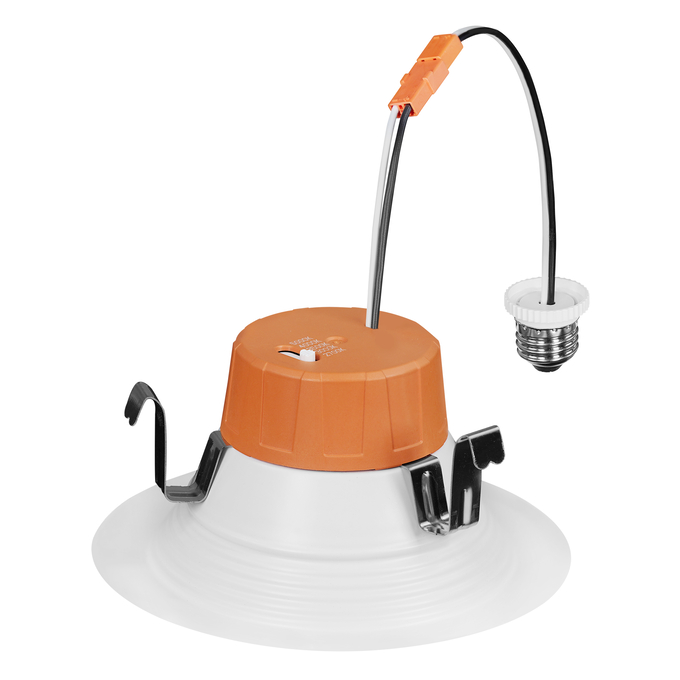

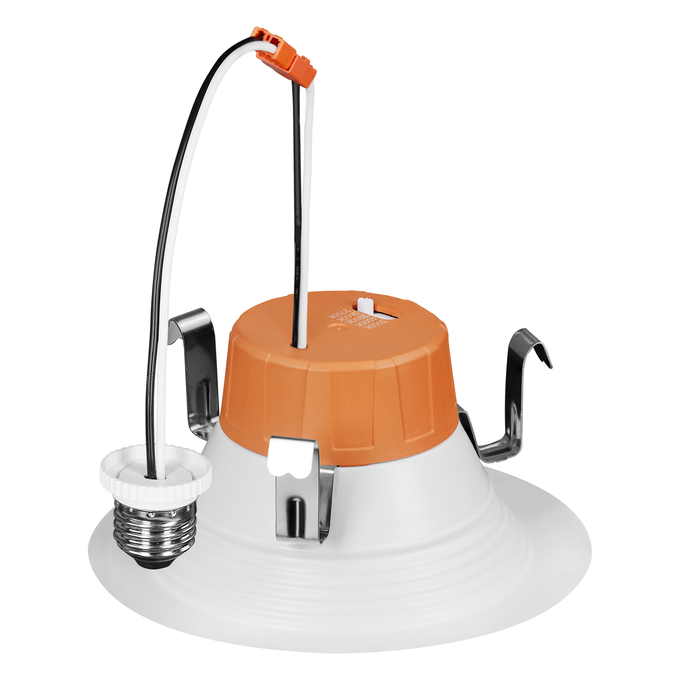

RT SELECT 1A 4" 5CCT 650LM BA white, backside
RT SELECT 1A 4" 5CCT 650LM BA white, backside

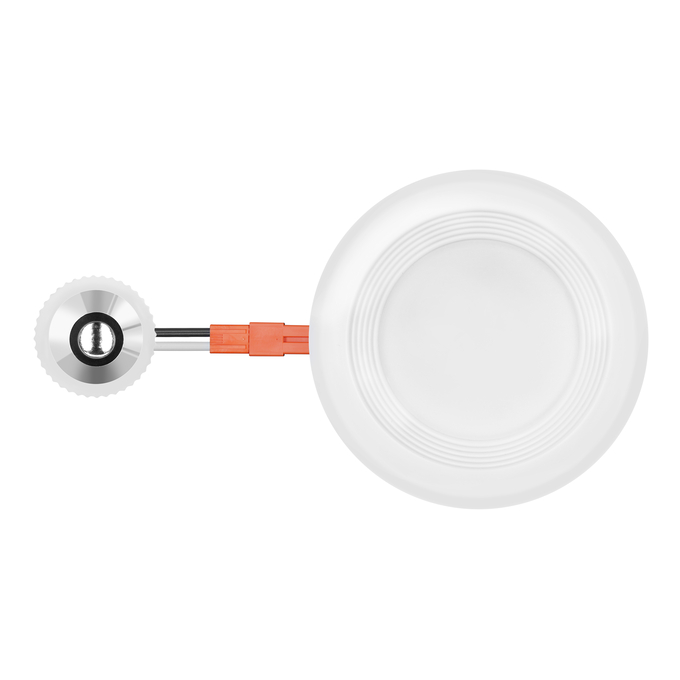

RT SELECT 1A 4" 5CCT 650LM BA white, bottom view

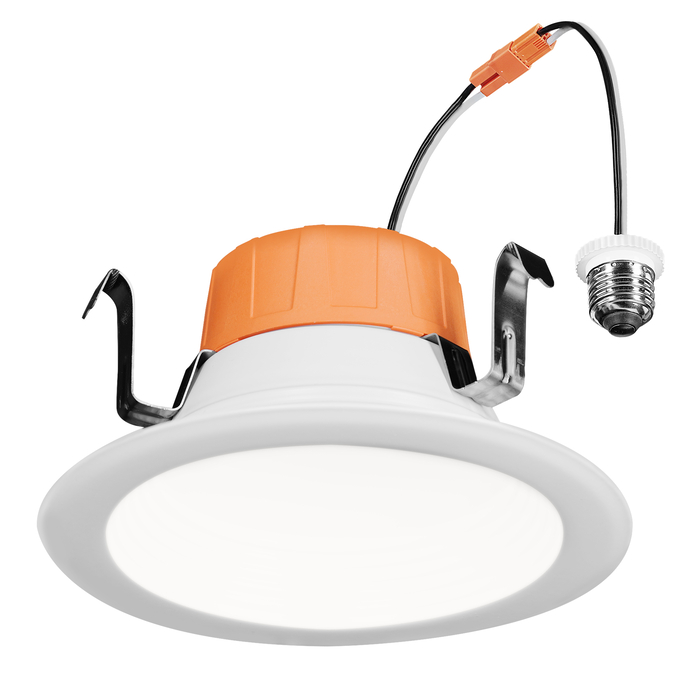

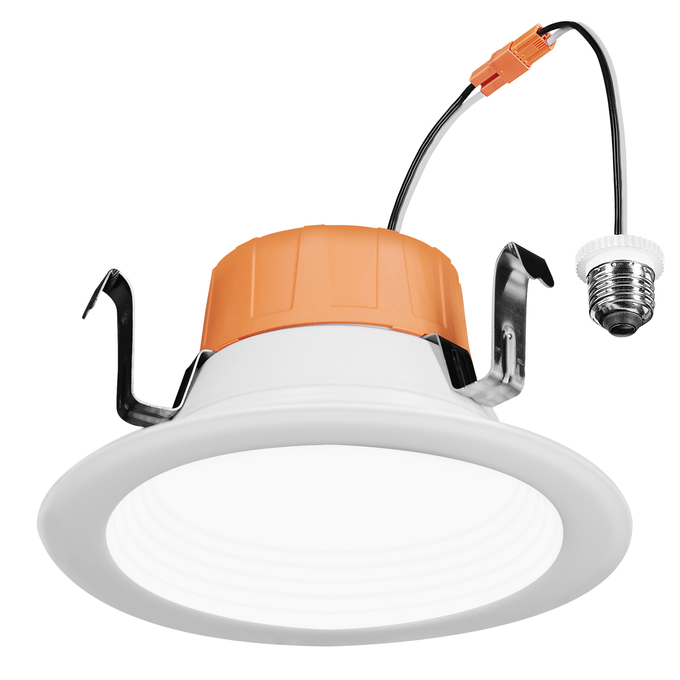

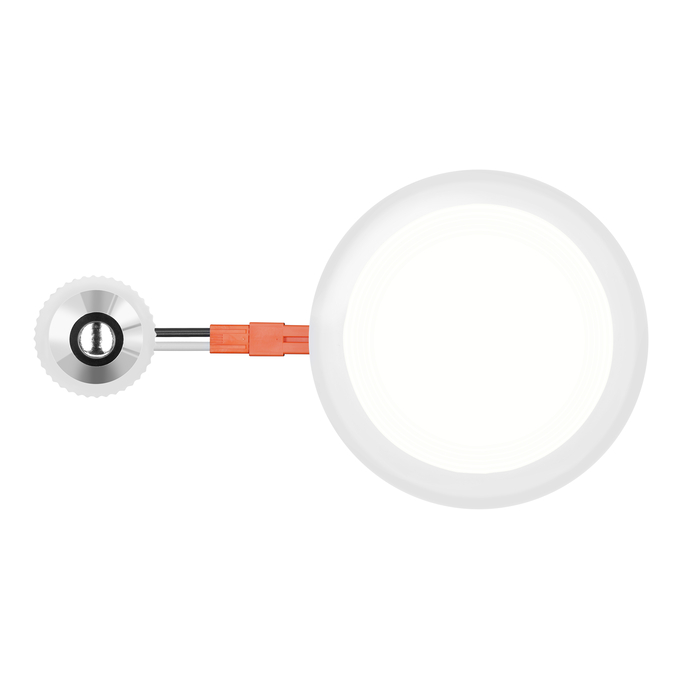

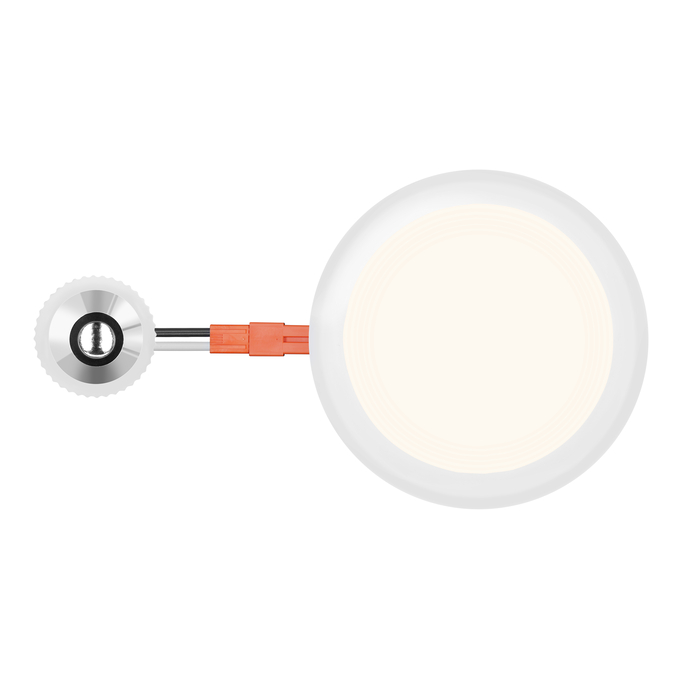

RT SELECT 1A 4" 5CCT 650LM BA Beauty Shot
RT SELECT 1A 4" 5CCT 650LM BA Beauty Shot
RT SELECT 1A 4" 5CCT 650LM BA Beauty Shot
RT SELECT 1A 4" 5CCT 650LM BA Beauty Shot
RT SELECT 1A 4" 5CCT 650LM BA Beauty Shot
RT SELECT 1A 4" 5CCT 650LM BA Beauty Shot
RT SELECT 1A 4" 5CCT 650LM BA Beauty Shot
RT SELECT 1A 4" 5CCT 650LM BA Beauty Shot
RT SELECT 1A 4" 5CCT 650LM BA Beauty Shot
RT SELECT 1A 4" 5CCT 650LM BA Beauty Shot
DOWNLIGHT RETROFIT SELECTABLE

RT SELECT 1A 4" 5CCT 650LM BA

NAED: 62867
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Residential
  • Bedrooms
  • Kitchens
  • Bathrooms
Product features
  • Integrated white trim, E26 medium base socket adapter
  • Selectable CCTs: 2700/3000/3500/4000/5000K
  • Available in 120VAC
  • Up to 100 LPW
  • Energy savings up to 89 %
  • Flicker-free dimming, phase-cut down to 10 %
  • Color trim rings available as optional accessory
  • No warm-up time, instant-on with full light output
Safety advice
  • Suitable for indoor dry, damp and wet locations.
  • For use in housings that can structurally support a lamp weighing one pound.
  • RT5/6 designed to install in standard 5" and 6" insulated and non-insulated housings.
  • Not intended for use with emergency light fixtures or exit lights.
Installation Guide
Install Guide- Downlights
PDF (5.42 MB)
Product Family Spec Sheet
DUAL SELECTABLE SCREW-BASE DOWNLIGHT
PDF (1.17 MB)
Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022
PDF (867.24 KB)
Other documents / promotion
LEDVANCE Performance Class Selectable Screw-Base Downlight Sales Flyer
PDF (1.55 MB)
Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022
PDF (867.18 KB)
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
PDF (139.12 KB)
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
PDF (147.57 KB)
Electrical data
Nominal Wattage 7.00 W
Nominal voltage 120.00 V
Power factor ≥0.90
Total Harmonic Distortion < 20 %
Photometrical data
Lumens 650 lm
Efficacy 80 lm/W
Color Temperature/CCT 2700/3000/4000/5000 K
Color Rendering Index (CRI) 90
Luminaire Type Downlight
Dimensions & Weight
Diameter 5 in
Height 2.24 in
Product weight 0.4 lb
Materials & Colors
Luminaire Finish White
Housing color White
Housing Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Dimming Yes
Type of Dimming PHASE CUT
Mounting Recessed
Replaceable light source No
Lifespan
Average Rated Life (hr) 15000
Certificates & Standards
Certification Listing RoHS; FCC; cULus; CEC
Replaceable light source (EPREL) Not replaceable
Energy Star Rated X
Additional product data
Ordering Abbreviation RT41A650ST9SC3BAWHE26
Abbrev. With Packaging Info. RT41A650ST9SC3BAWHE26 6/CS 1/SKU
SKU UPC 0046135628672
Family Brand Name PERFORMANCE
General Description Performance Class Downlight for 4" can, 650lm, 120V, › 90 CRI, 2700K/3000K/3500K/4000K/5000K, baffle finish, w/E26 adaptor. Wet rated with metal housing.Title 20/24 Compliant and Energy Star Listed
Warranty 5 years
Logistical data
SKU Qty 1
Case Qty 6
Case Length (in) 10.866
Case Width (in) 8.504
Case Depth (in) 5.827
Case Cube (ft) 0.312
Case Weight (lbs) 3.310
SKU UPC 0046135628672
Pallet Qty 912
SKU's/Case 6
SKU's/Pallet 912
Cases/Pallet 152
