DOWNLIGHT LIGHT DISK KIT CCT SELECTABLE
LED LIGHT DISK 5CCT 900LM
NAED: 62446
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Residential
Product features
- Lasts up to 25x longer than incandescent lamps
- Available in 120VAC
- Up to 75 LPW
- Energy savings up to 85 %
- Flicker-free dimming, phase-cut down to 10 %
- Uniform, glare free illumination distribution
Safety advice
- Suitable for indoor dry, damp and wet locations.
Extended installation guide
Performance Class Light Disk Installation Guide
Performance Class Light Disk Installation Guide
Product information bulletin
LED LIGHT DISK
LED LIGHT DISK
Other documents / promotion
June 2022 Luminaire Product of the Month LED Light Disk
June 2022 Luminaire Product of the Month LED Light Disk
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Electrical data
| Nominal wattage | 15.00 W |
| Nominal voltage | 120 V |
Photometrical data
| Luminous flux | 900 lm |
| Luminous efficacy | 65 lm/W |
| Color temperature | 2700 … 5000 K |
| Color rendering index Ra | 90 |
Dimensions & Weight
| Diameter | 190.50 mm |
| Height | 31.00 mm |
| Product weight | 220.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC)|Acrylonitrile butadiene styrene (ABS) |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Surface |
| Application environment | Indoor |
| Replaceable light source | No |
| Holder designation | E26 |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135624469 | Folding box 1 |
197 mm x 48 mm x 197 mm | 330.00 g | 1.86 dm³ |
| 10046135624466 | Shipping box 4 |
210 mm x 210 mm x 220 mm | 1581.00 g | 9.70 dm³ |
Product image: white background, horizontal

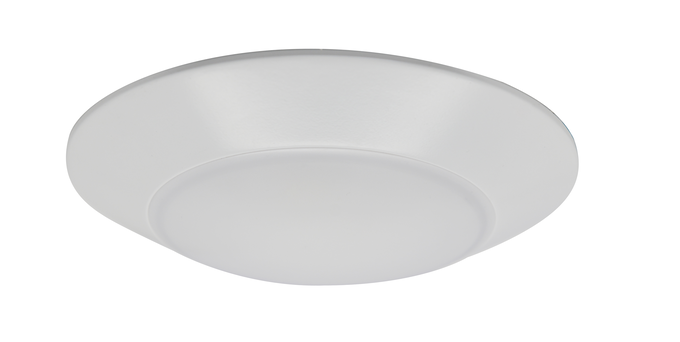

LIGHT DISK
LIGHT DISK
Product image: white background, upright
LIGHT DISK-FRONT
LIGHT DISK-FRONT
Product image: white background, with accessory, alternative image

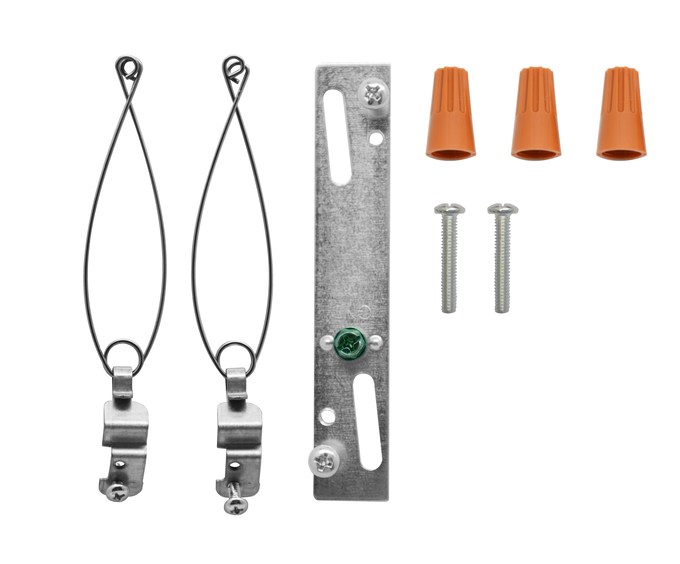

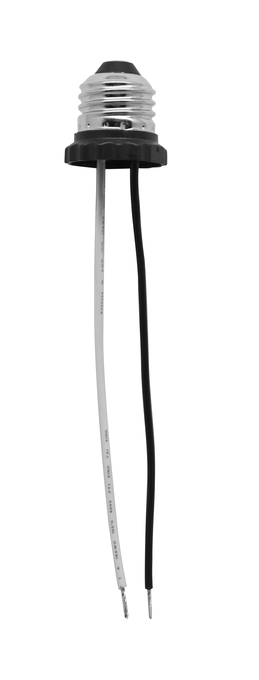

LIGHT DISK ACCESSORIES
LIGHT DISK ACCESSORIES
Product image: white background, with accessory, alternative image
LIGHT DISK ACCESSORIES
LIGHT DISK ACCESSORIES
Beauty Shot

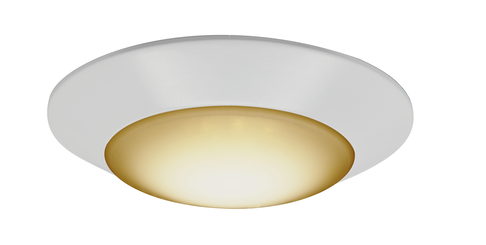

LIGHT DISK- CCT 2700K
LIGHT DISK- CCT 2700K
Beauty Shot

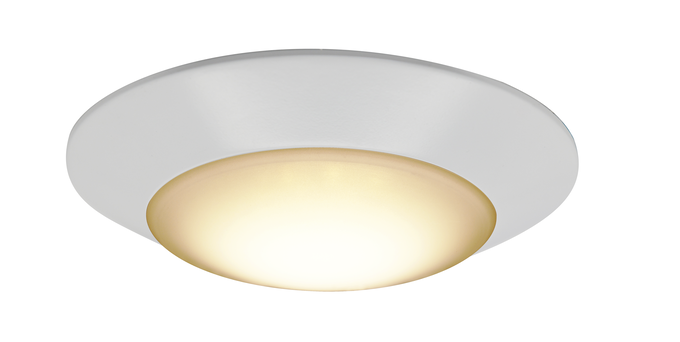

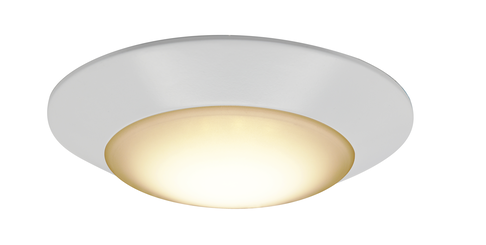

LIGHT DISK- CCT3000K
LIGHT DISK- CCT3000K
Beauty Shot

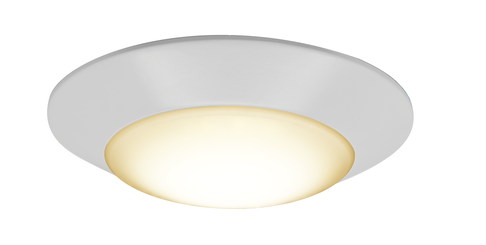

LIGHT DISK- CCT3500K
LIGHT DISK- CCT3500K
Beauty Shot

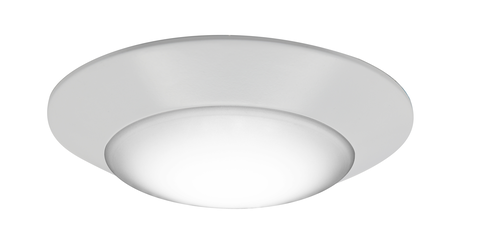

LIGHT DISK- CCT4000K
LIGHT DISK- CCT4000K
Beauty Shot

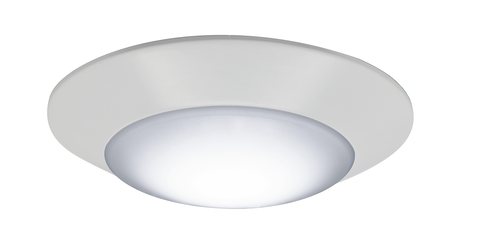

LIGHT DISK - CCT5000K
LIGHT DISK - CCT5000K
IES files (IES, additional)
Performance Class Light Disk
Performance Class Light Disk
