MICRODISK SLIM PERFORMANCE CCT SELECTABLE

LEDMD SLIM SELECT 3A 6" 5CCT 800LM 120V BL

NAED: 63060 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Residential
  • Commercial applications
  • New installations or retrofit of existing installations
  • Closets
  • Cabinet lighting
Product features

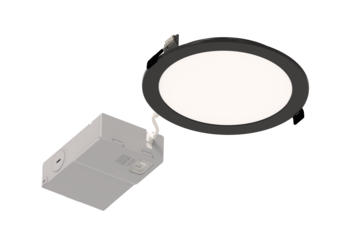

  • Canless recessed flush mount downlight with remote driver design for easy installation
  • 1/2" height allows installation directly under joists

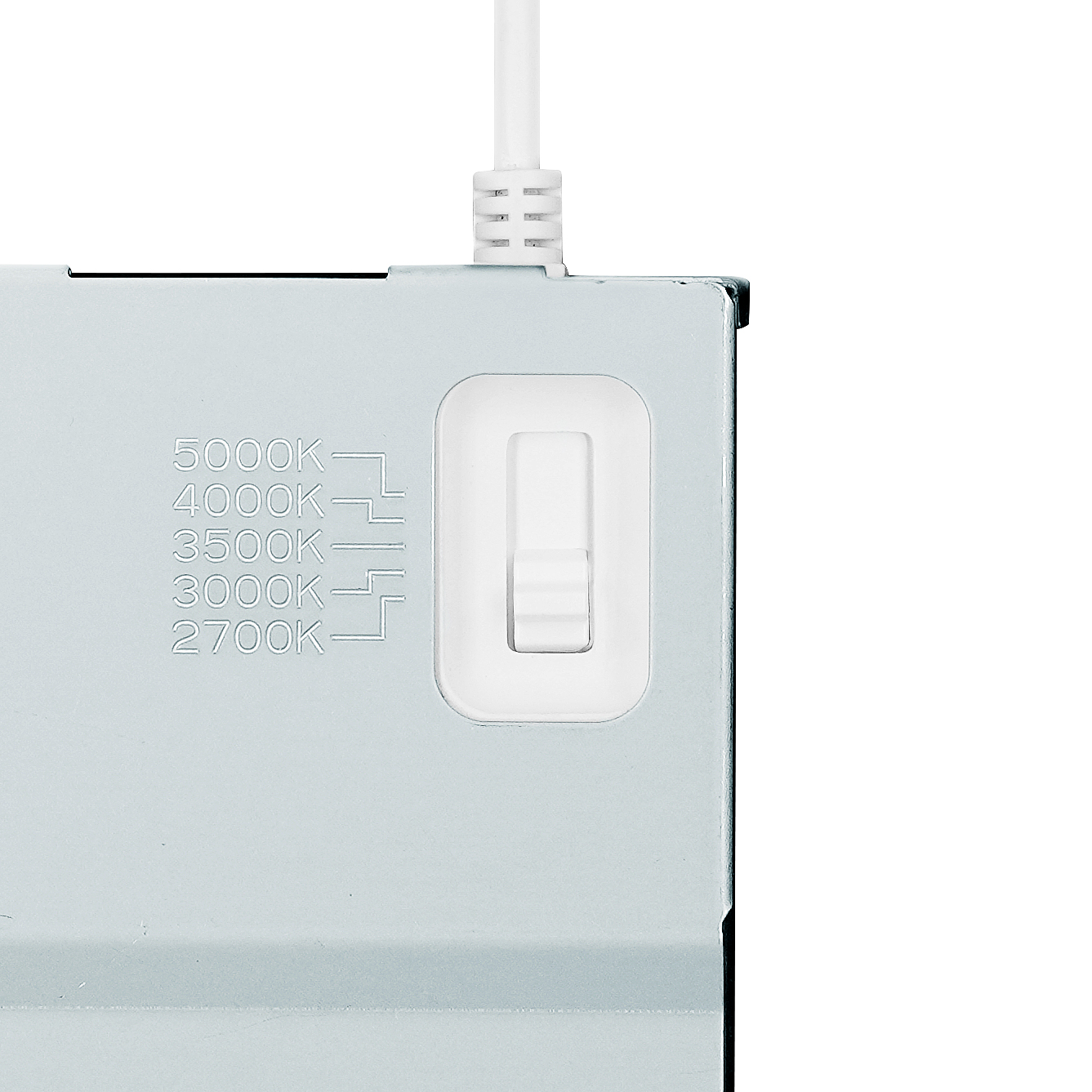

  • Selectable CCTs: 2700/3000/3500/4000/5000K
  • Flicker-free dimming
  • Up to 87 LPW
  • Energy savings up to 92 %
  • Beam Angle of 110° FWHM
  • 90 CRI, R9>50
Equipment / Accessories
  • Luminaire with interconnected cable to galvanized steel remote driver wiring enclosure via 16in (400mm) FT6 cable
Safety advice
  • Suitable for wet locations.
  • Suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5).
  • IC Rated.
  • Max Ceiling Thickness 1.18" (30 mm).
Extended installation guide
FLAME RESISTANT SELECTABLE SLIM MICRODISK MANUAL
Product information bulletin
SLIM CCT SELECTABLE MICRODISK LEDLUM178
Other documents / promotion
LEDVANCE Product Launch Flyer May 2023
Electrical data
Nominal wattage 10.00 W
Nominal voltage 120 V
Photometrical data
Luminous flux 800 lm
Luminous efficacy 61 lm/W
Color temperature 2700 … 5000 K
Color rendering index Ra 90
Dimensions & Weight
Diameter 125.00 mm
Height 22.86 mm
Product weight 264.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Plastic
Mercury content 0.0 mg
Application & Mounting
Dimmable Yes
Type of dimming PHASE CUT
Mounting type Recessed
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135630606 Folding box
1
64 mm x 177 mm x 180 mm 339.00 g 2.04 dm³
10046135630603 Shipping box
6
401 mm x 185 mm x 196 mm 2453.00 g 14.54 dm³
Beauty Shot

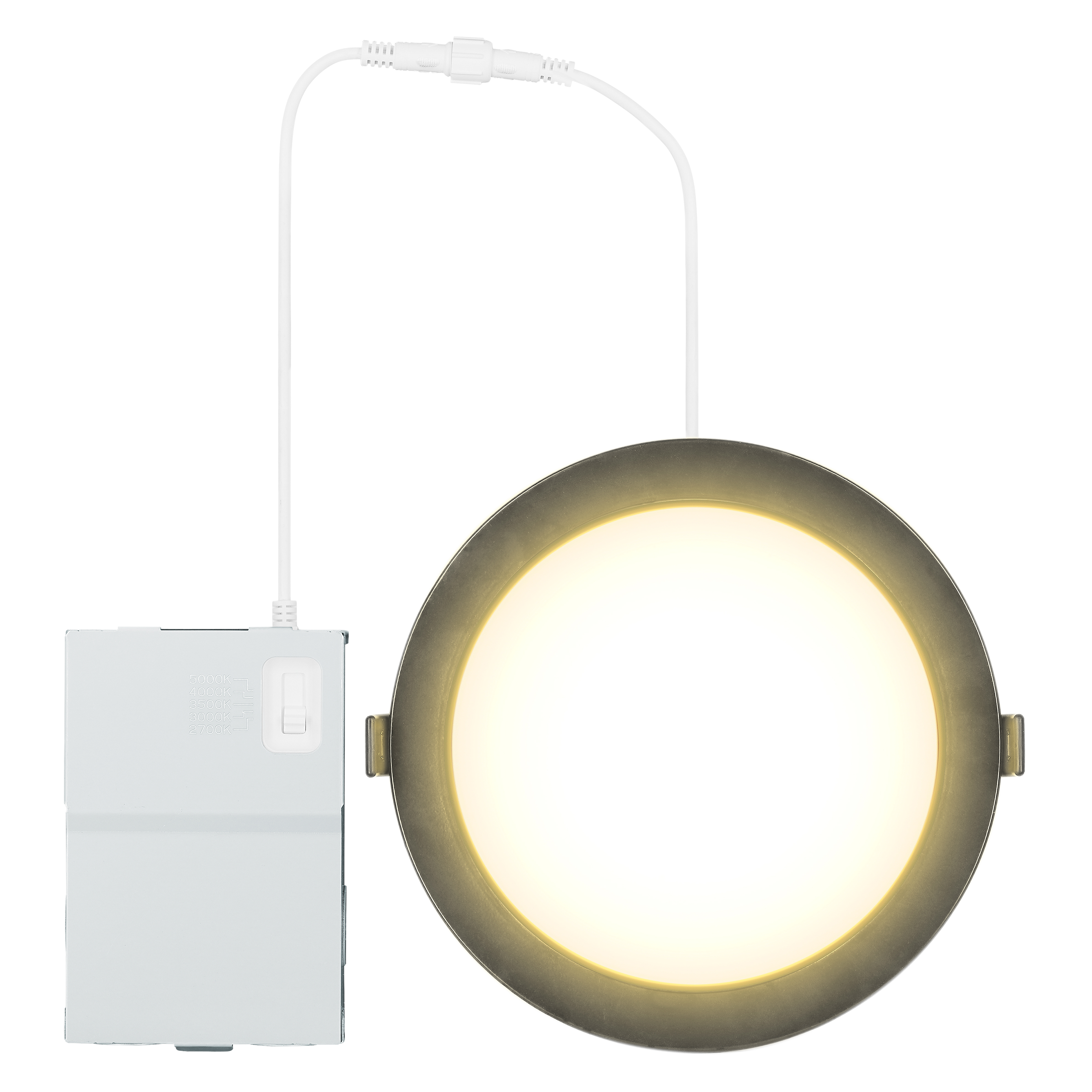

LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot

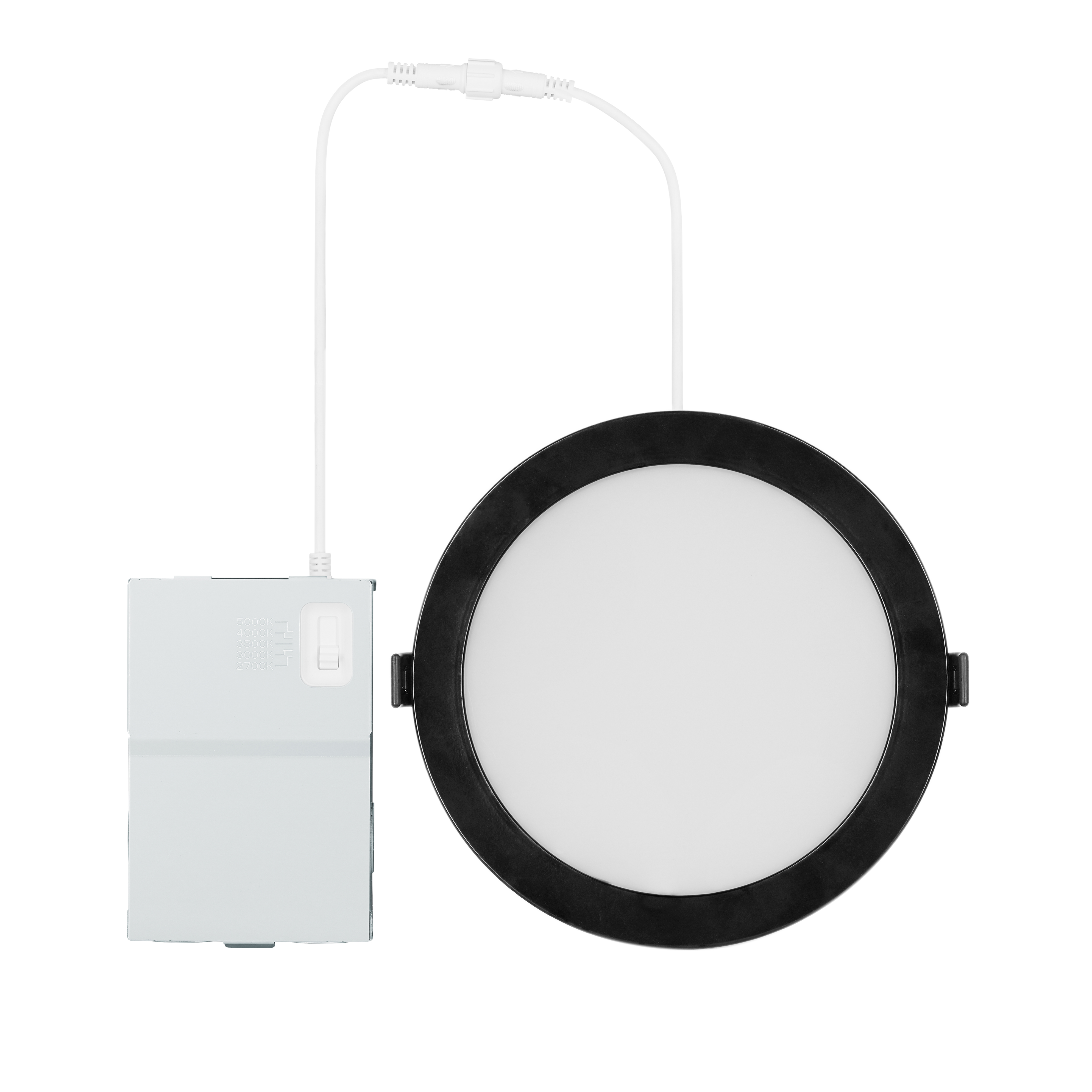

LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot

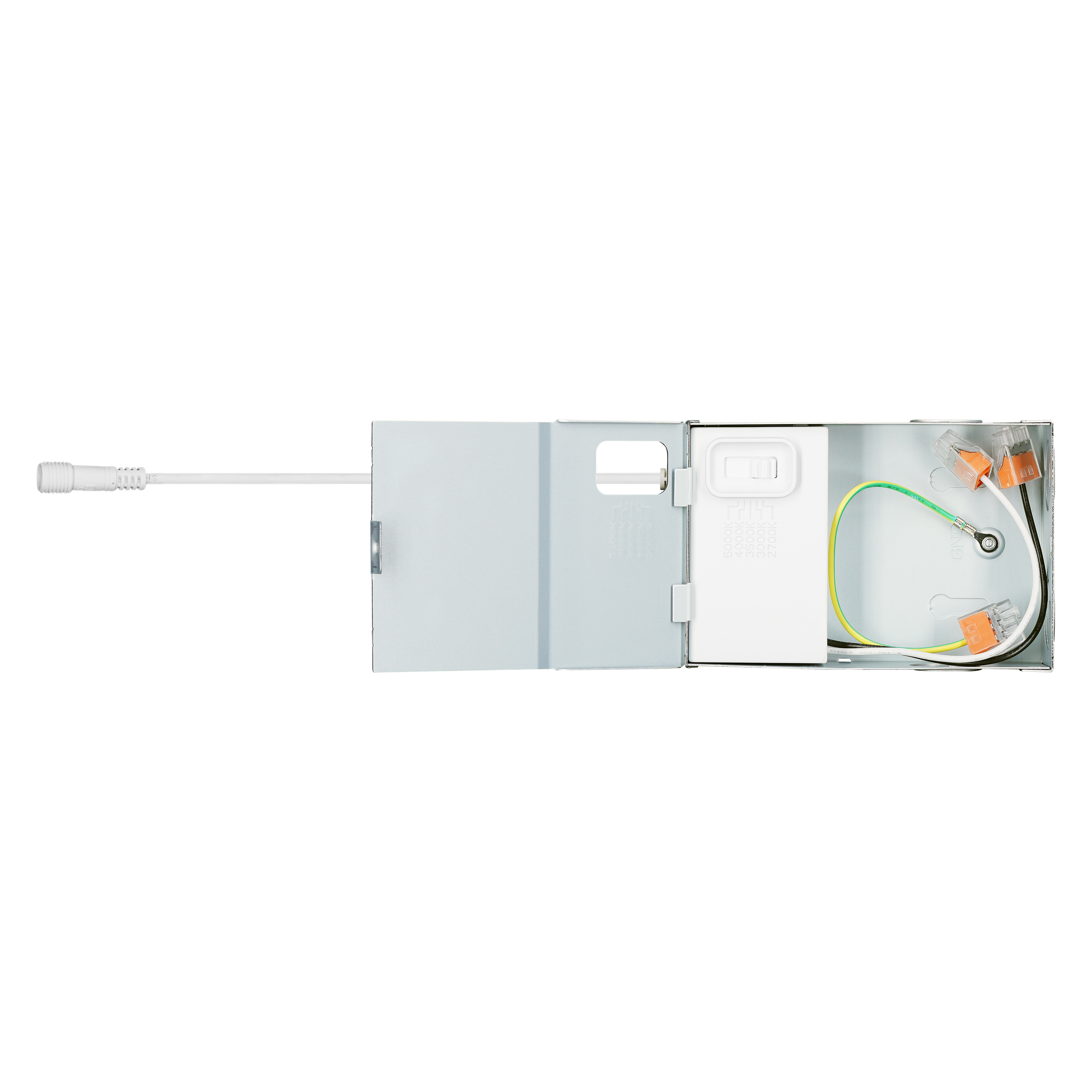

LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot

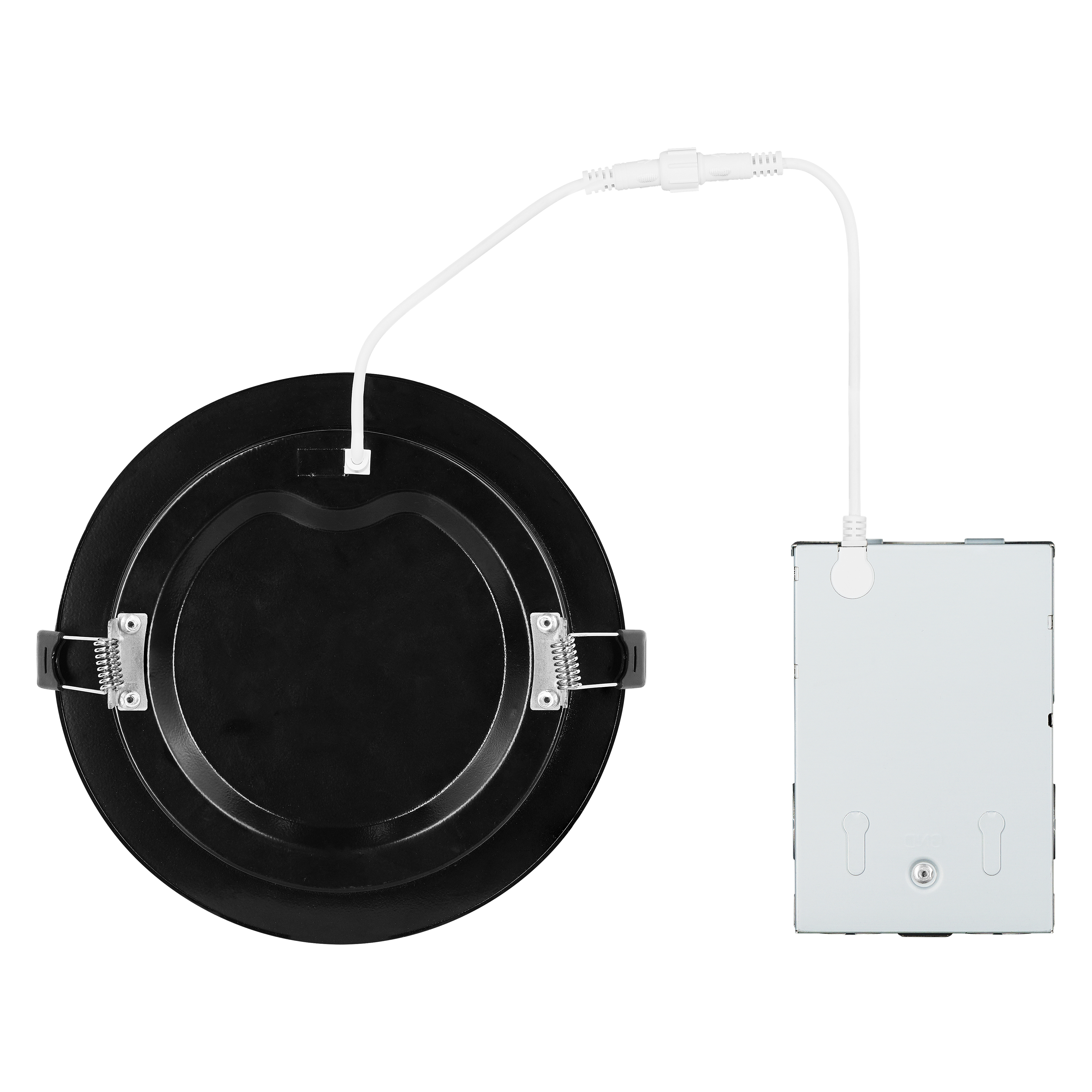

LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot

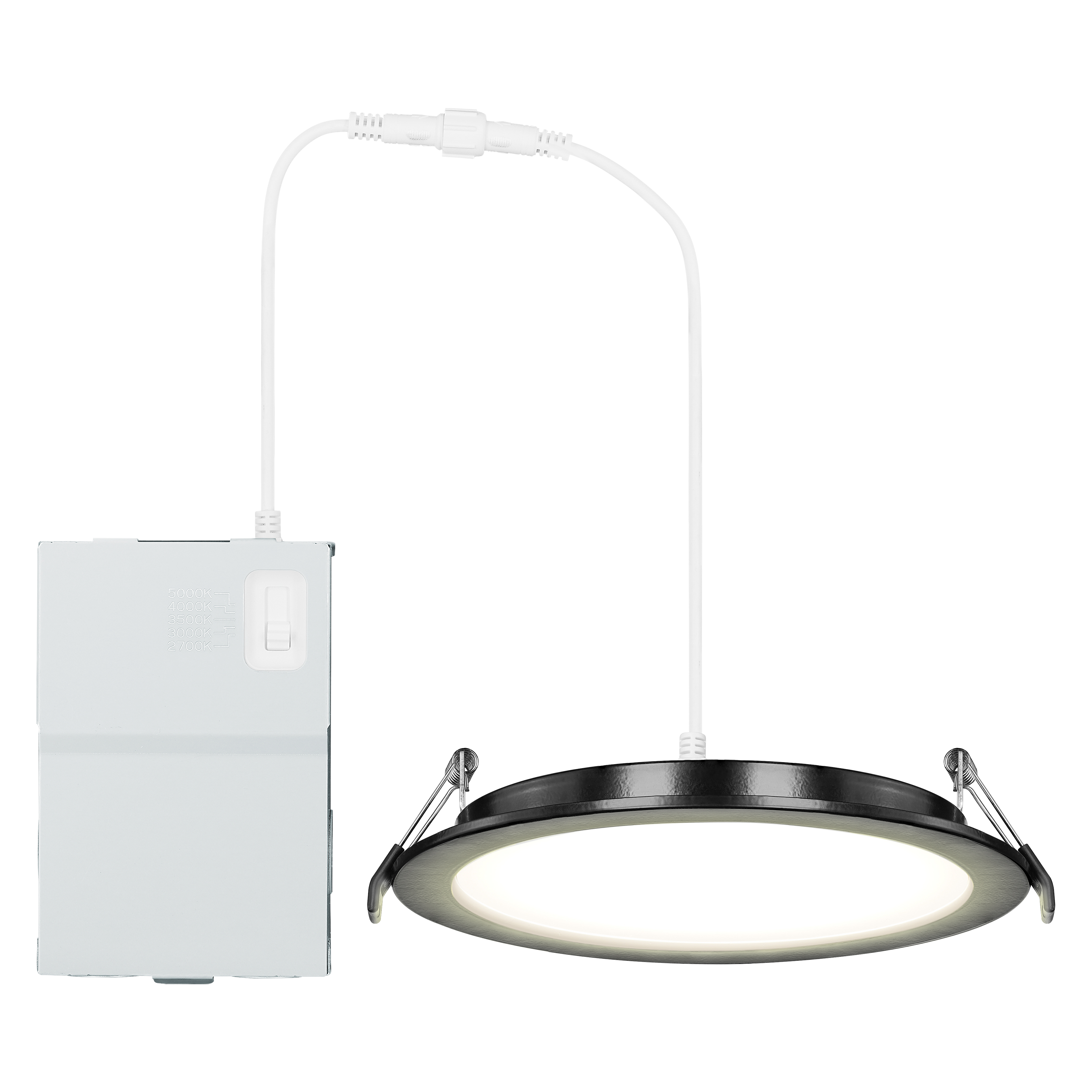

LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot

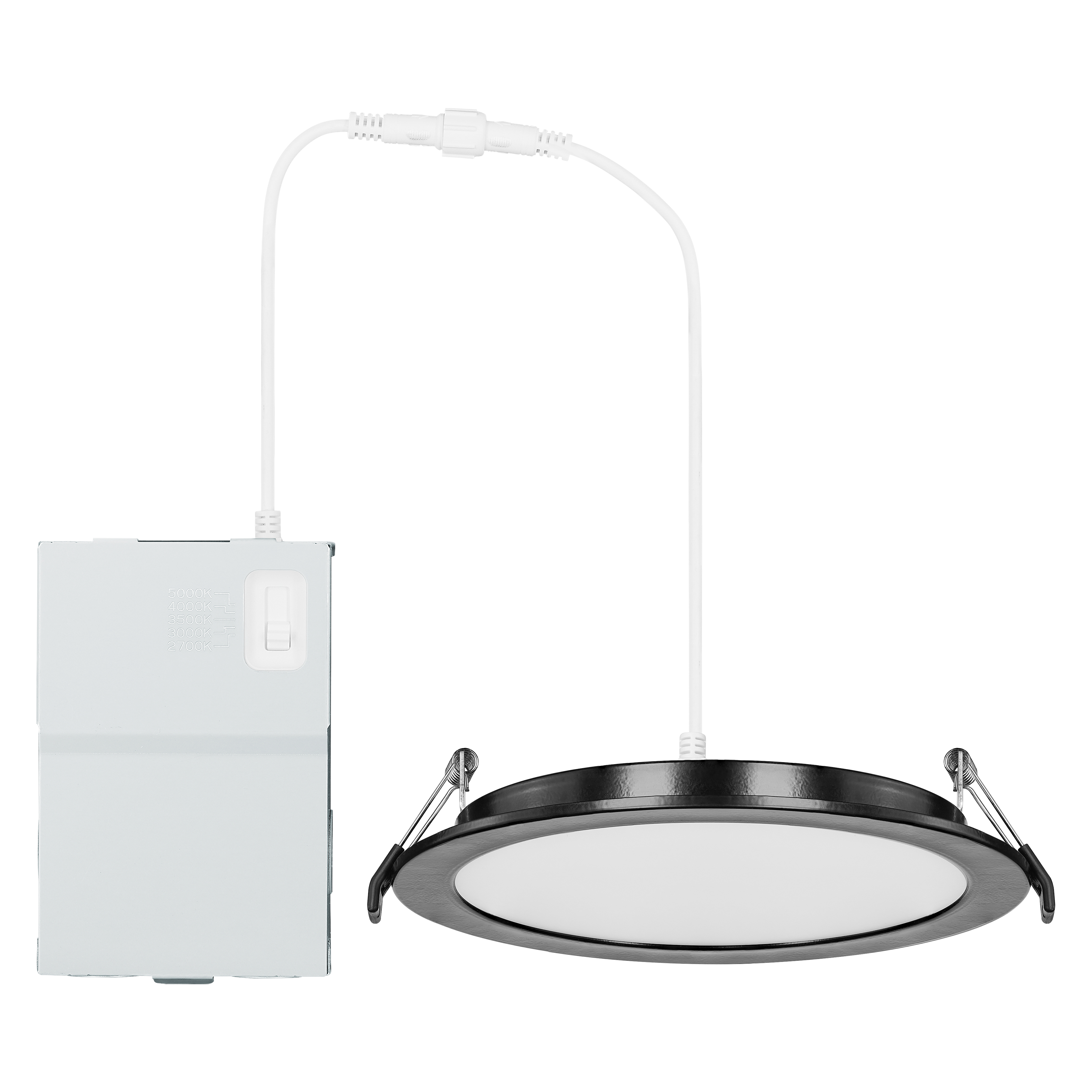

LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot

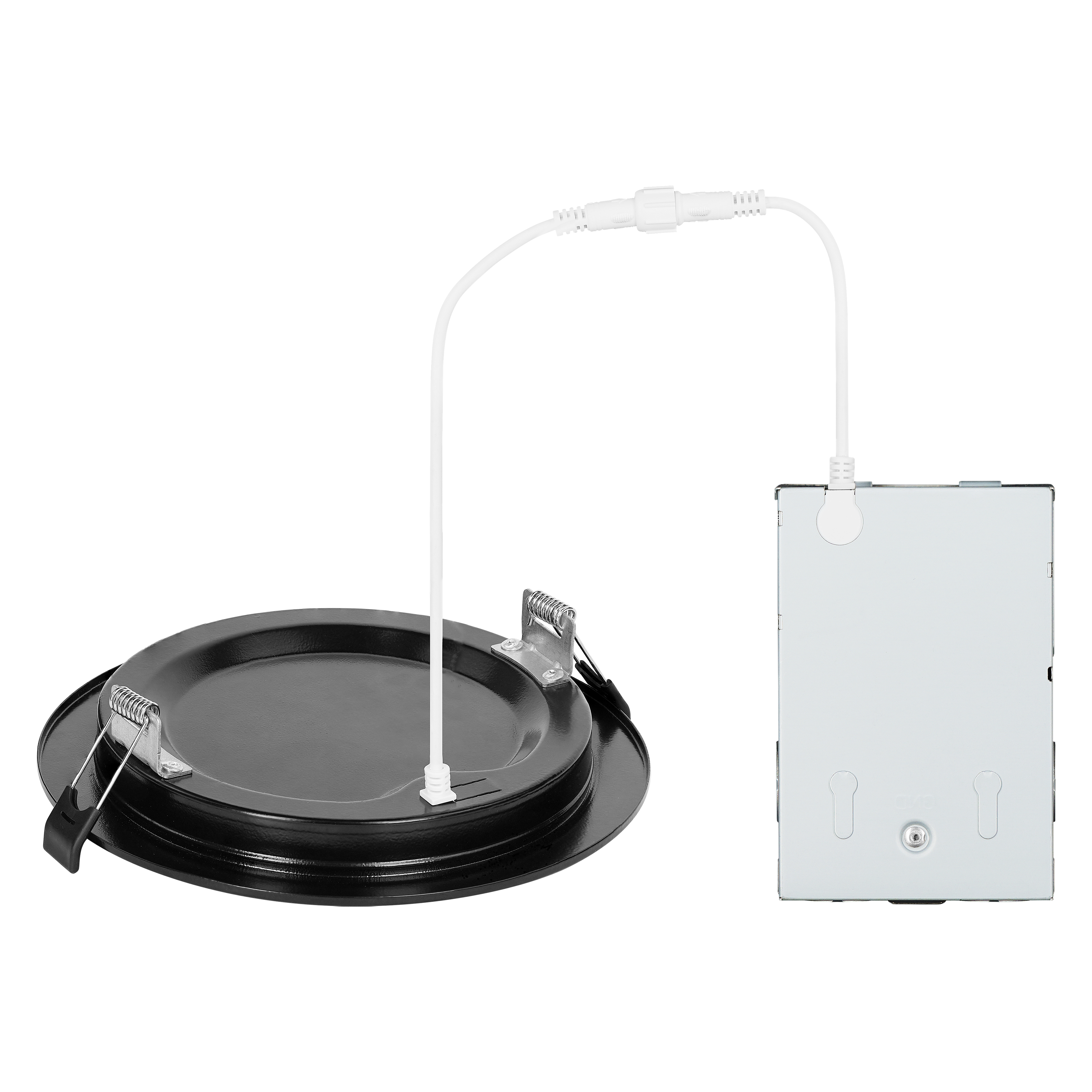

LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot
LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot
LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot
LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot
LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot
LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot
LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot
LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot
LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot
LEDVANCE Performance Class Downlight 6" Black Finish
Beauty Shot

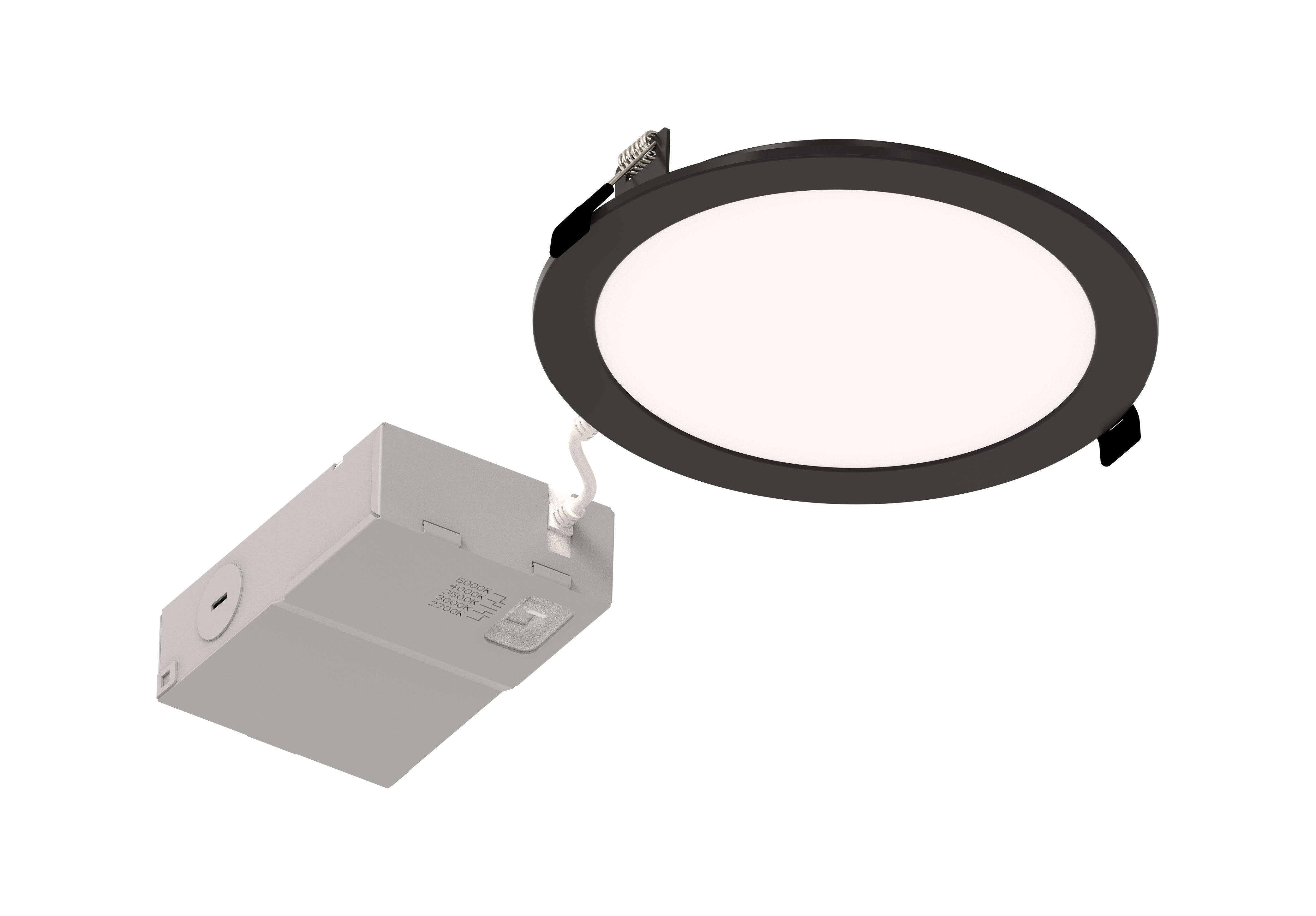

LEDVANCE Performance Class Downlight
