MICRODISK SLIM PERFORMANCE CCT SELECTABLE
LEDMD SLIM SELECT 3A 6" 5CCT 1200LM 120V WH
NAED: 63056
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Residential
- Commercial applications
- New installations or retrofit of existing installations
- Closets
- Cabinet lighting
Product features
- Canless recessed flush mount downlight with remote driver design for easy installation
- 1/2" height allows installation directly under joists
- Selectable CCTs: 2700/3000/3500/4000/5000K
- Flicker-free dimming
- Up to 87 LPW
- Energy savings up to 92 %
- Beam Angle of 110° FWHM
- 90 CRI, R9>50
Equipment / Accessories
- Luminaire with interconnected cable to galvanized steel remote driver wiring enclosure via 16in (400mm) FT6 cable
Safety advice
- Suitable for wet locations.
- Suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5).
- IC Rated.
- Max Ceiling Thickness 1.18" (30 mm).
Extended installation guide
6 inch round slim microdisk User manual
6 inch round slim microdisk User manual
Product information bulletin
SLIM CCT SELECTABLE MICRODISK LEDLUM178
SLIM CCT SELECTABLE MICRODISK LEDLUM178
Other documents / promotion
LEDVANCE Product Launch Flyer May 2023
LEDVANCE Product Launch Flyer May 2023
Electrical data
| Nominal wattage | 14.00 W |
| Nominal voltage | 120 V |
Photometrical data
| Luminous flux | 1200 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 2700 … 5000 K |
| Color rendering index Ra | 90 |
Dimensions & Weight
| Diameter | 175.00 mm |
| Height | 22.86 mm |
| Product weight | 302.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Plastic |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Recessed |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135630569 | Folding box 1 |
64 mm x 177 mm x 180 mm | 377.00 g | 2.04 dm³ |
| 10046135630566 | Shipping box 6 |
401 mm x 185 mm x 196 mm | 2681.00 g | 14.54 dm³ |

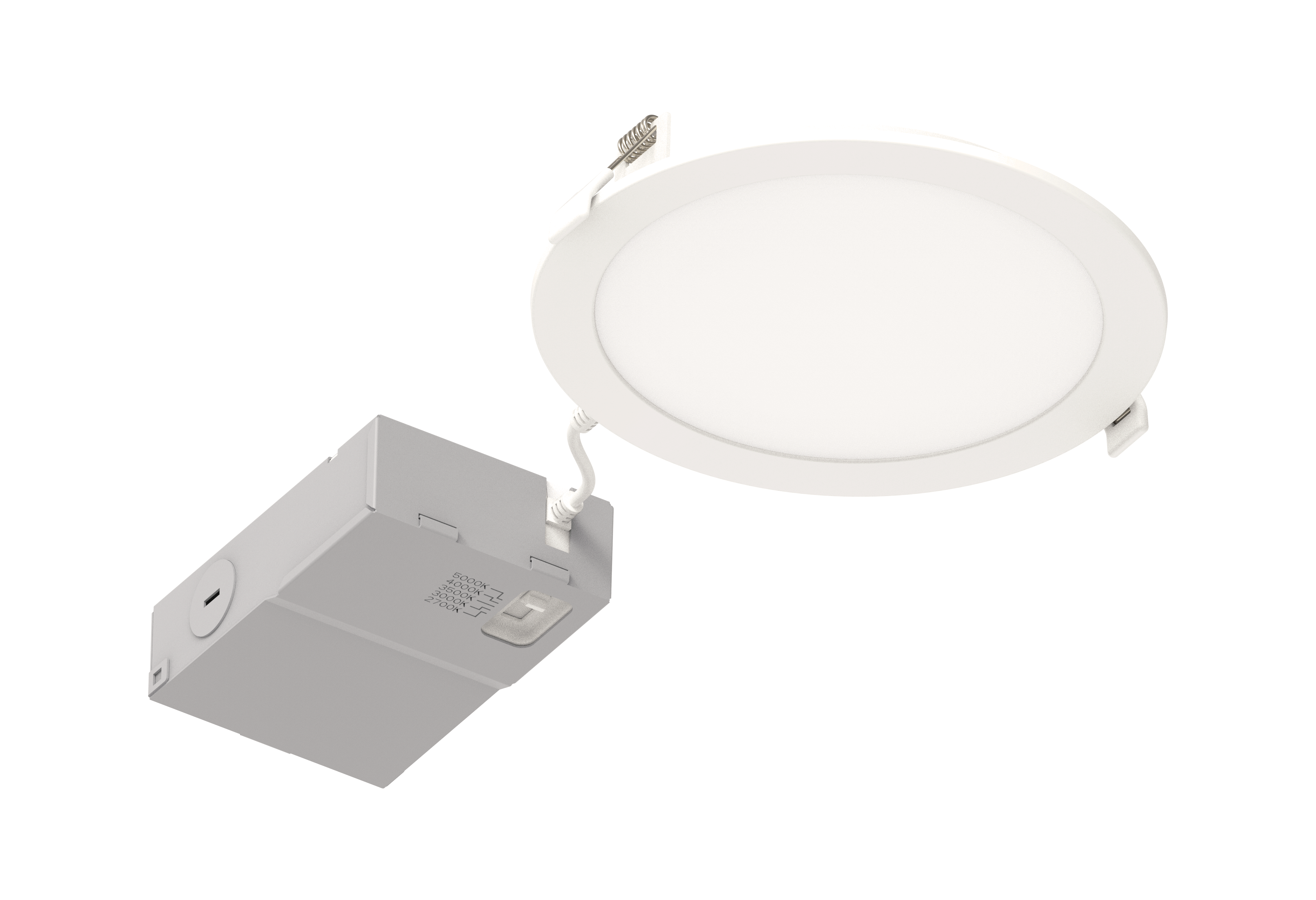

Beauty Shot
