SLIM MICRODISK PERFORMANCE CCT SELECTABLE
LEDMD SLIM SELECT 3A 4" 5CCT 800LM 120V WH
NAED: 63054
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Residential
- Commercial applications
- New installations or retrofit of existing installations
- Closets
- Cabinet lighting
Product features
- Canless recessed flush mount downlight with remote driver design for easy installation
- 1/2" height allows installation directly under joists
- Selectable CCTs: 2700/3000/3500/4000/5000K
- Flicker-free dimming
- Up to 87 LPW
- Energy savings up to 92 %
- Beam Angle of 110° FWHM
- 90 CRI, R9>50
Equipment / Accessories
- Luminaire with interconnected cable to galvanized steel remote driver wiring enclosure via 16in (400mm) FT6 cable
Safety advice
- Suitable for wet locations.
- Suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5).
- IC Rated.
- Max Ceiling Thickness 1.18" (30 mm).
Product Family Spec Sheet
SLIM CCT SELECTABLE MICRODISK LEDLUM178
SLIM CCT SELECTABLE MICRODISK LEDLUM178
Other documents / promotion
LEDVANCE Product Launch Flyer May 2023
LEDVANCE Product Launch Flyer May 2023
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Other documents / promotion
TAA Compliant Products Brochure
TAA Compliant Products Brochure
Electrical data
| Nominal Wattage | 10.00 W |
| Nominal voltage | 120.00 V |
| Power factor | ≥0.90 |
| Total Harmonic Distortion | < 20 % |
Photometrical data
| Lumens | 800 lm |
| Efficacy | 61 lm/W |
| Color Temperature/CCT | 2700/3000/3500/4000/5000 K |
| Color Rendering Index (CRI) | 90 |
| Luminaire Type | Downlight |
Dimensions & Weight
| Diameter | 4.92 in |
| Height | 0.9 in |
| Product weight | 0.58 lb |
Materials & Colors
| Luminaire Finish | White |
| Housing color | White |
| Housing | Plastic |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Maximum Operating Temperature | 104 °F |
| Minimum Operating Temperature | -4 °F |
| Dimming | Yes |
| Type of Dimming | PHASE CUT |
| Mounting | Recessed |
| Replaceable light source | No |
Lifespan
| Average Rated Life (hr) | 50000 |
Certificates & Standards
| Certification Listing | RoHS; FCC |
| Replaceable light source (EPREL) | Not replaceable |
| Energy Star Rated | X |
Additional product data
| Ordering Abbreviation | LEDMD4R3A800ST9SC3WH |
| Abbrev. With Packaging Info. | LEDMD4R3A800ST9SC3WH 6/CS 1/SKU |
| SKU UPC | 0046135630545 |
| Family Brand Name | Slim Microdisk |
| General Description | 4" round slim microdisk, 5 CCT selectable, white finish, 800lm, 120V, Triac dimming, › 90 CRI |
| Warranty | 5 years |
Logistical data
| SKU Qty | 1 |
| Case Qty | 6 |
| Case Length (in) | 10.591 |
| Case Width (in) | 10.158 |
| Case Depth (in) | 5.748 |
| Case Cube (ft) | 0.358 |
| Case Weight (lbs) | 4.627 |
| SKU UPC | 0046135630545 |
| Pallet Qty | 768 |
| SKU's/Case | 6 |
| SKU's/Pallet | 768 |
| Cases/Pallet | 128 |

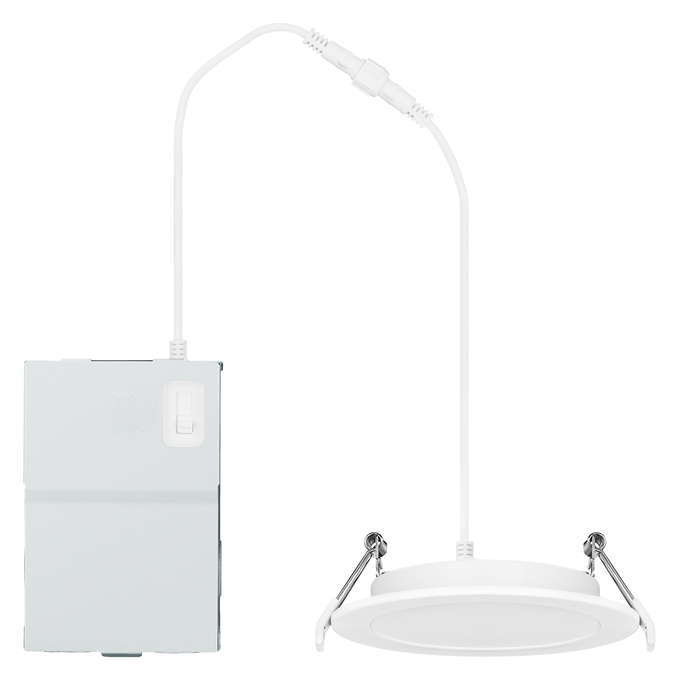

Beauty Shot
