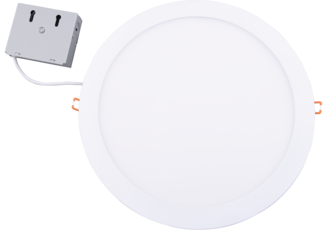

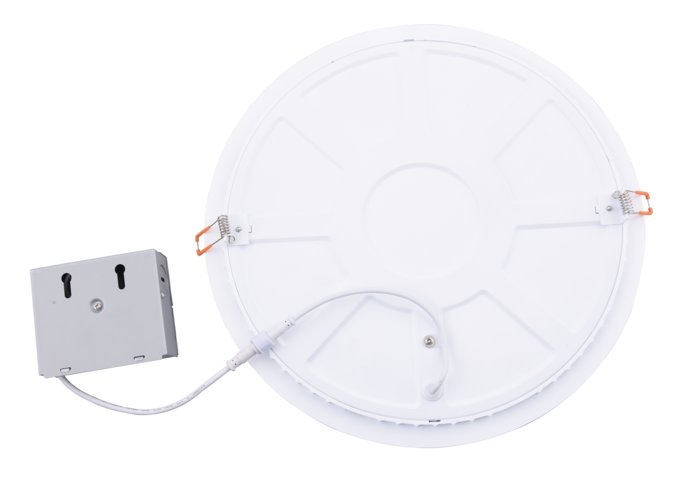

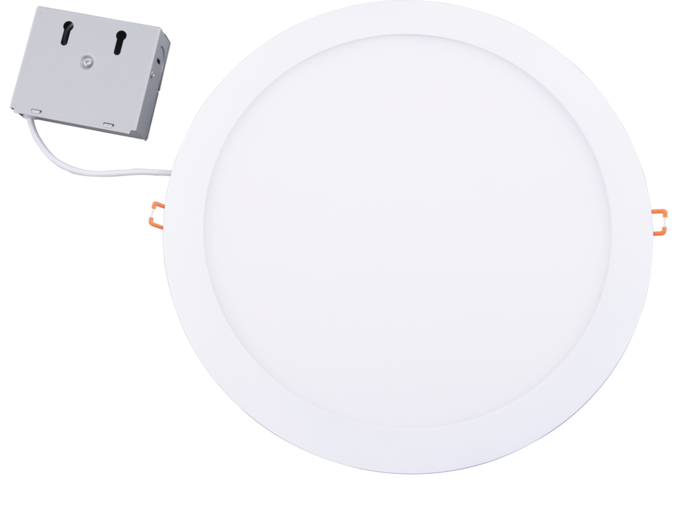

LEDMD SLIM SELECT 2A 12" 5CCT 2000LM 120V

NAED: 65526

Download data sheet

Canless recessed flush mount downlight with remote driver design for easy installation
1/2" height allows installation directly under joists
Selectable CCTs: 2700/3000/3500/4000/5000K
Flicker-free dimming, Phase-cut
Up to 80 LPW
Energy savings up to 92 %
Available in 120VAC
Beam Angle of 112° FWHM
90 CRI, R9>50

Luminaire with interconnected cable to galvanized steel remote driver wiring enclosure via FT6 cable
3 Push-on Wire Terminals

Suitable for indoor, dry, and wet locations.
IC Rated.
Not intended for use with emergency light fixtures or exit lights.
Suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5).
For use in housings that can structurally support a lamp weighing one pound.
Max Ceiling Thickness 0.37" (9.4 mm).

Product Family Spec Sheet
ValueLED Selectable Slim MICRODISK

Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001

Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions

Ambient temperature range	-20…+40 °C
Maximum Operating Temperature	104 °F
Minimum Operating Temperature	-4 °F
Dimming	Yes
Type of Dimming	PHASE CUT
Mounting	Recessed
Indoor/Outdoor	Indoor
Replaceable light source	No

Average Rated Life (hr)

50000

Certification Listing	RoHS; FCC
Replaceable light source (EPREL)	Not replaceable

Ordering Abbreviation	LEDMD12R2A2000ST9SC3
Abbrev. With Packaging Info.	LEDMD12R2A2000ST9SC3 4/CS 1/SKU
SKU UPC	0046135655265
Family Brand Name	Hi-PerformanceLED
General Description	Slim Micro Disk 12inch, 2000 lumens, 90CRI, 5 Selectable colors. Remote driver, hardwire
Warranty	5 years
