MICRODISK NIGHT RING
LEDMD NIGHT RING 4" 5CCT 830LM 120V
NAED: 65792
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Residential
- Nightlight as an orientation light or safety light for children's rooms, stairs, or bedrooms
Product features
- Canless recessed flush mount downlight with remote driver design for easy installation
- Nightlight option offers a 2200K CCT and 20lms creating a calming ambient glow
- Selectable CCTs: 2700/3000/3500/4000/5000K
- Flicker-free dimming, phase-cut down to 10 %
- Up to 83 LPW
- Energy savings up to 92 %
- Available in 120VAC
- Beam Angle of 110° FWHM
- 90 CRI, R9>50
Equipment / Accessories
- Luminaire with interconnected cable to galvanized steel remote driver wiring enclosure via FT4 cable
- Quick connectors are included in the box with purchase of each SKU
- 3 Wire Nuts
Safety advice
- Suitable for damp locations.
- Max Ceiling Thickness 0.75" (19 mm).
Product information bulletin
LEDLUM208 LEDVANCE LUMINAIRES NIGHT RING MICRODISK
LEDLUM208 LEDVANCE LUMINAIRES NIGHT RING MICRODISK
Other documents / promotion
LEDVANCE Performance Class NIGHT RING MICRODISK Sales Flyer
LEDVANCE Performance Class NIGHT RING MICRODISK Sales Flyer
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Electrical data
| Nominal wattage | 10.00 W |
| Nominal voltage | 120 V |
Photometrical data
| Luminous flux | 830 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 2700 … 5000 K |
| Color rendering index Ra | 90 |
Dimensions & Weight
| Diameter | 125.00 mm |
| Height | 17.00 mm |
| Product weight | 280.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Plastic |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Recessed |
| Replaceable light source | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135657924 | Folding box 1 |
133 mm x 70 mm x 127 mm | 393.00 g | 1.18 dm³ |
| 4099854236952 | Shipping box 4 |
296 mm x 152 mm x 146 mm | 1787.00 g | 6.57 dm³ |
| Product image | Product name | EAN |
|---|---|---|
| MD EXT CABLE 6FT WH | 0046135608988 | |
| MD EXT CABLE 10FT WH | 0046135608995 | |
| MD EXT CABLE 20FT WH | 0046135609008 | |
|
SLIM MD FRAME | 0046135629594 |
|
MD FRAME T-GRID | 0046135637438 |
Product image: white background, diagonal

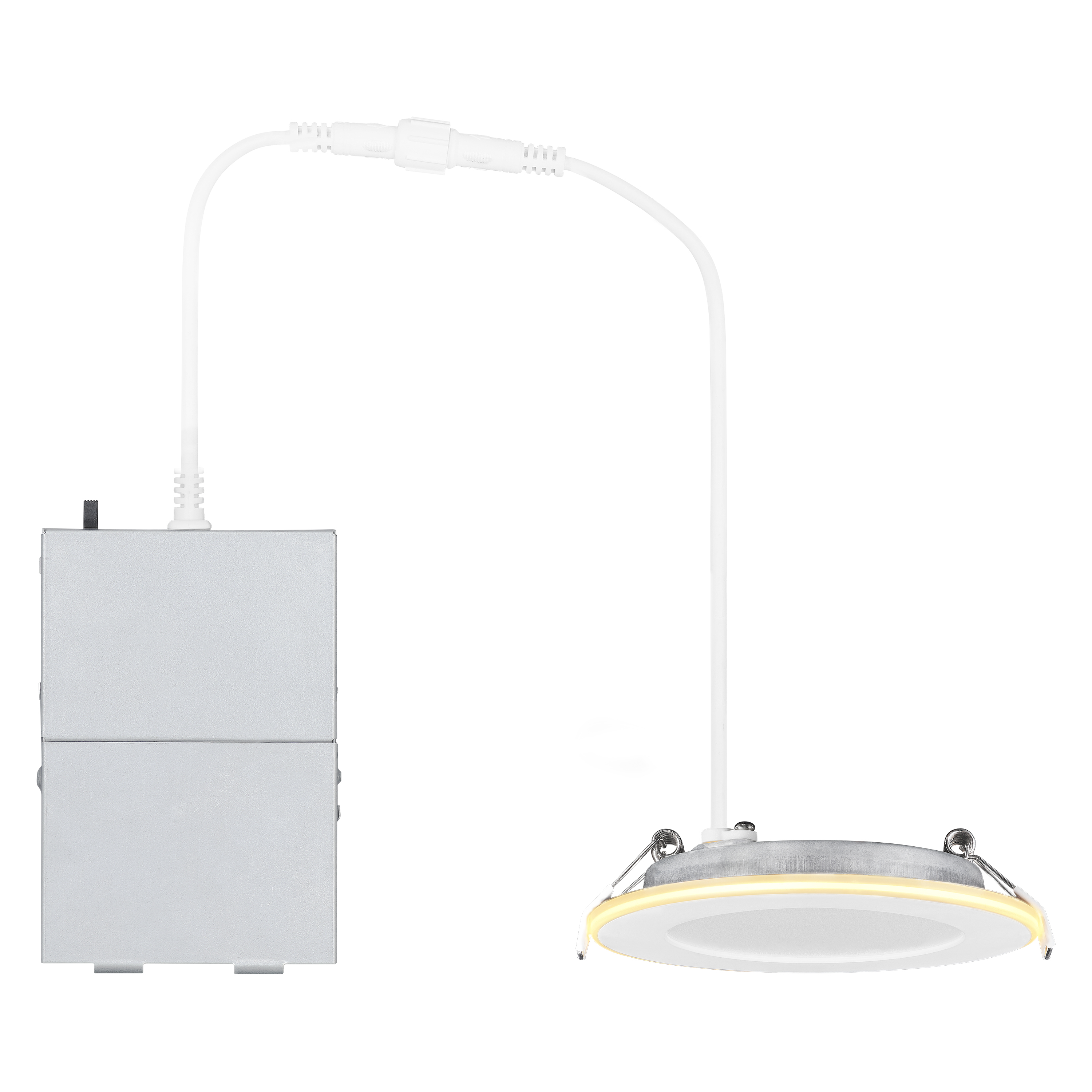

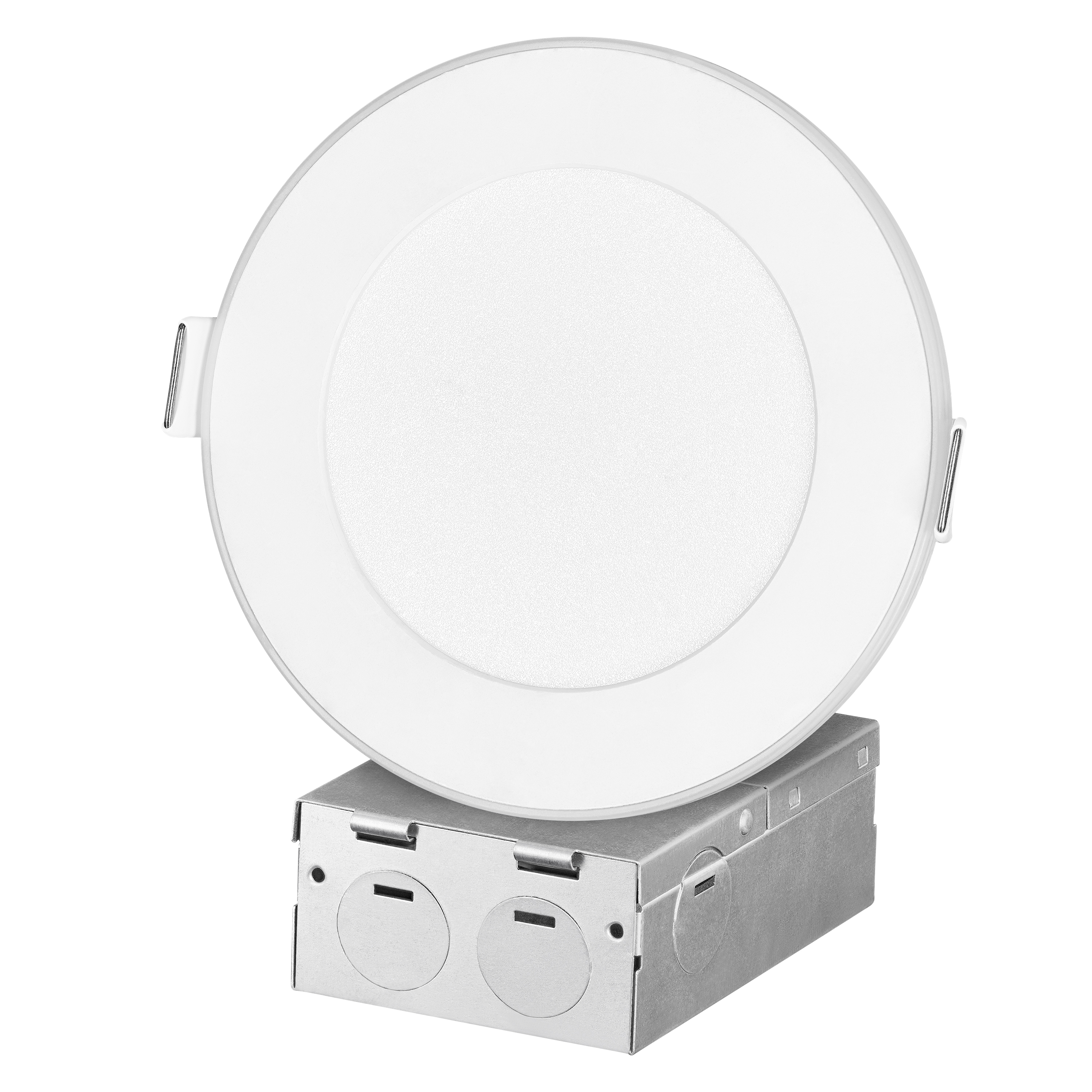

4" Microdisk with nightlight feature
4" Microdisk with nightlight feature
Product image: white background, horizontal, alternative image
4" Microdisk with nightlight feature
4" Microdisk with nightlight feature
Product image: white background, spacial
4" Microdisk with nightlight feature
4" Microdisk with nightlight feature
Product image: white background, spacial
4" Microdisk with nightlight feature
4" Microdisk with nightlight feature
Beauty Shot
4" Microdisk with nightlight feature
4" Microdisk with nightlight feature
IES file (IES)
LEDVANCE LUMINAIRES NIGHT RING MICRODISK IES FILES
LEDVANCE LUMINAIRES NIGHT RING MICRODISK IES FILES
IES files (IES, additional)
LUMINAIRES NIGHT RING MICRODISK LM79 FILES
LUMINAIRES NIGHT RING MICRODISK LM79 FILES
