LINEAR HAZARDOUS LOCATION

HAZ LIN 040 HUV D 8 50 WH

Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Power plants
  • Heavy industrial sites
  • Loading docks
  • Chemical processing facilities
Product features
  • Explosion-proof construction: prevents ignition of gases, vapors, or dust
  • Certified for hazardous areas, meeting UL 844 for explosive environments
  • UV stabilized, impact-resistant fiberglass reinforced polycarbonate lens
  • Compact and rugged structure; easy for installation
  • Shock and vibration resistance with IK08
  • SUS304 stainless steel housing: corrosion & heat resistant, durable for harsh use
  • Selectable wattage and lumen outputs
  • 5000K
  • IP66
Electrical data
Nominal wattage 40.00 W
Nominal voltage 277…480 V
Photometrical data
Luminous flux 5067 lm
Luminous efficacy 127 lm/W
Color temperature 5000 K
Color rendering index Ra 80
Dimensions & Weight
Length 698.00 mm
Height 133.00 mm
Width 220.00 mm
Product weight 5270.00 g
Materials & Colors
Product color White
Housing color White
Mercury content 0.0 mg
Application & Mounting
Dimmable Yes
Type of dimming 0-10V
Mounting type Surface
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854606038 Shipping box
1		 1,400 mm x 250 mm x 175 mm 5875.00 g 61.26 dm³
Extended installation guide
Hazardous Linear
PDF (2.8 MB)
Product information bulletin
LEDLUM247 LEDVANCE Luminaires LINEAR 4' HAZARDOUS LOCATION
PDF (363.12 KB)
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
PDF (139.12 KB)
Other documents / promotion
LEDVANCE Product Launch Flyer August 2025
PDF (960.79 KB)

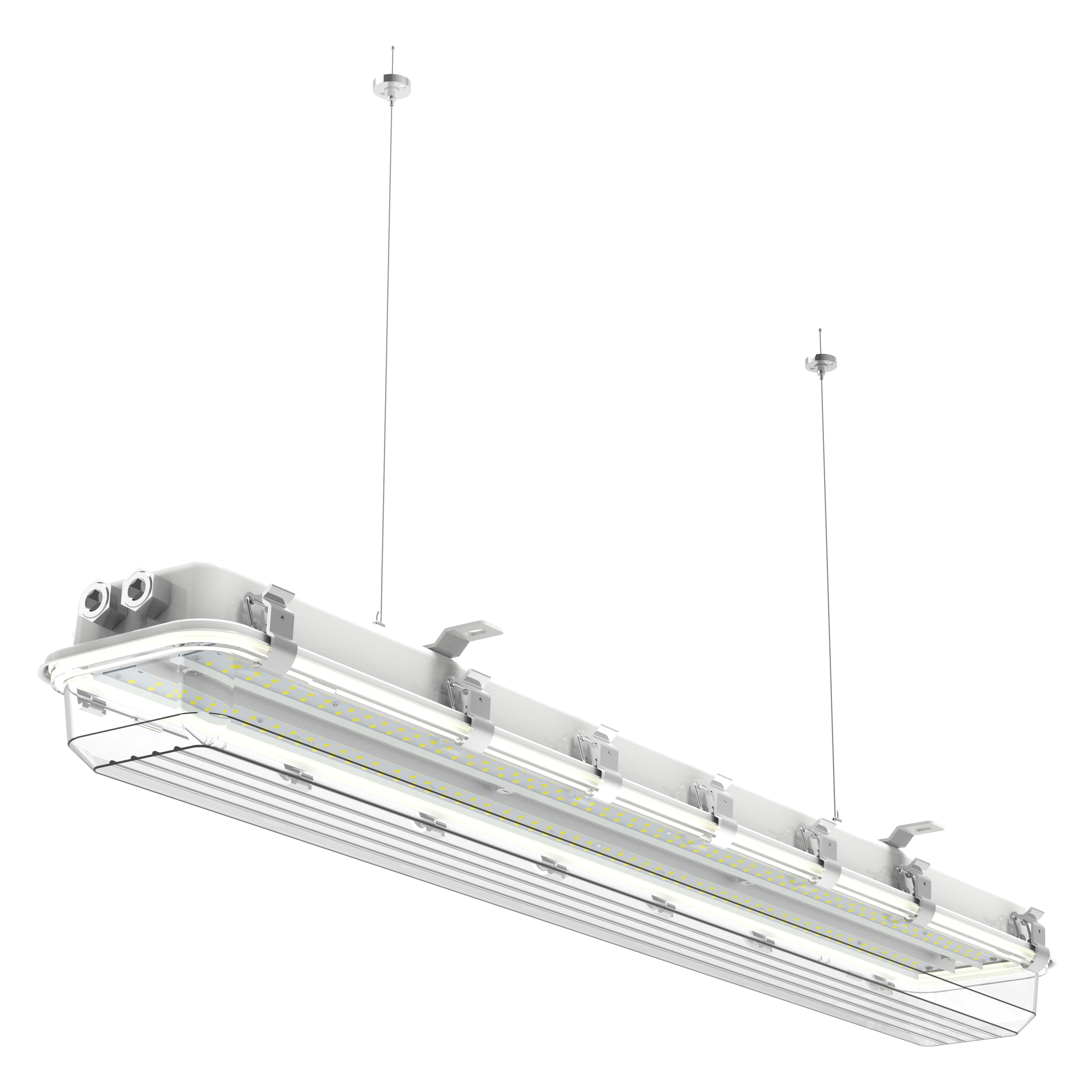

Product image: white background, diagonal
