SYLVANIA Specialty LED Lamps
SPECIALTY LED LAMPS S11 1.5W 3000K CL 1PK
NAED: 74675
Blister / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
- Residential and commercial
Product features
- Available in a variety of shapes, sizes, and base configurations
- Available in 3000K CCT
- RoHS compliant, mercury and lead free
- UV and IR free
Safety advice
- Suitable for damp locations.
- Non-dimmable.
- -4°F to +113°F (-20°C to +45°C)
- Not for use with emergency light fixtures or exit lights.
Electrical data
| Nominal wattage | 1.5 W |
| Construction wattage | 1.50 W |
| Nominal voltage | 120 V |
| Claimed equiv. conventional lamp power | 5 W |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
Photometrical data
| Luminous flux | 70 lm |
| Luminous efficacy | 46 lm/W |
| Light color (designation) | Warm White |
| Color temperature | 3000 K |
| Color rendering index Ra | 80 |
| Light color | 830 |
Dimensions & Weight
| Overall length | 53.34 mm |
| Diameter | 27.94 mm |
| Product weight | 3.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
Additional product data
| Base (standard designation) | E26 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Standards | RoHS, CSA, FTC, FCC, cETLus |
Country-specific categorizations
| Order reference | LED1.5S11830BL |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E26 |
| Length | 53.34 mm |
| Height | 27.94 mm |
| Width | 27.94 mm |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135746758 | Blister 1 |
35 mm x 98 mm x 149 mm | 12.00 g | 0.51 dm³ |
| 10046135746755 | Shipping box 6 |
238 mm x 116 mm x 159 mm | 213.00 g | 4.39 dm³ |
PRODUCT DATASHEET
Insert Sheet - LED Specialty Lamps
Insert Sheet - LED Specialty Lamps
Product information bulletin
SYLVANIA LED Micro Specialty Lamps
SYLVANIA LED Micro Specialty Lamps
Other documents / promotion
Insert Sheet - LED Specialty Lamps
Insert Sheet - LED Specialty Lamps
Other documents / promotion
LED Ultra General Purpose Lamps Limited Warranty
LED Ultra General Purpose Lamps Limited Warranty

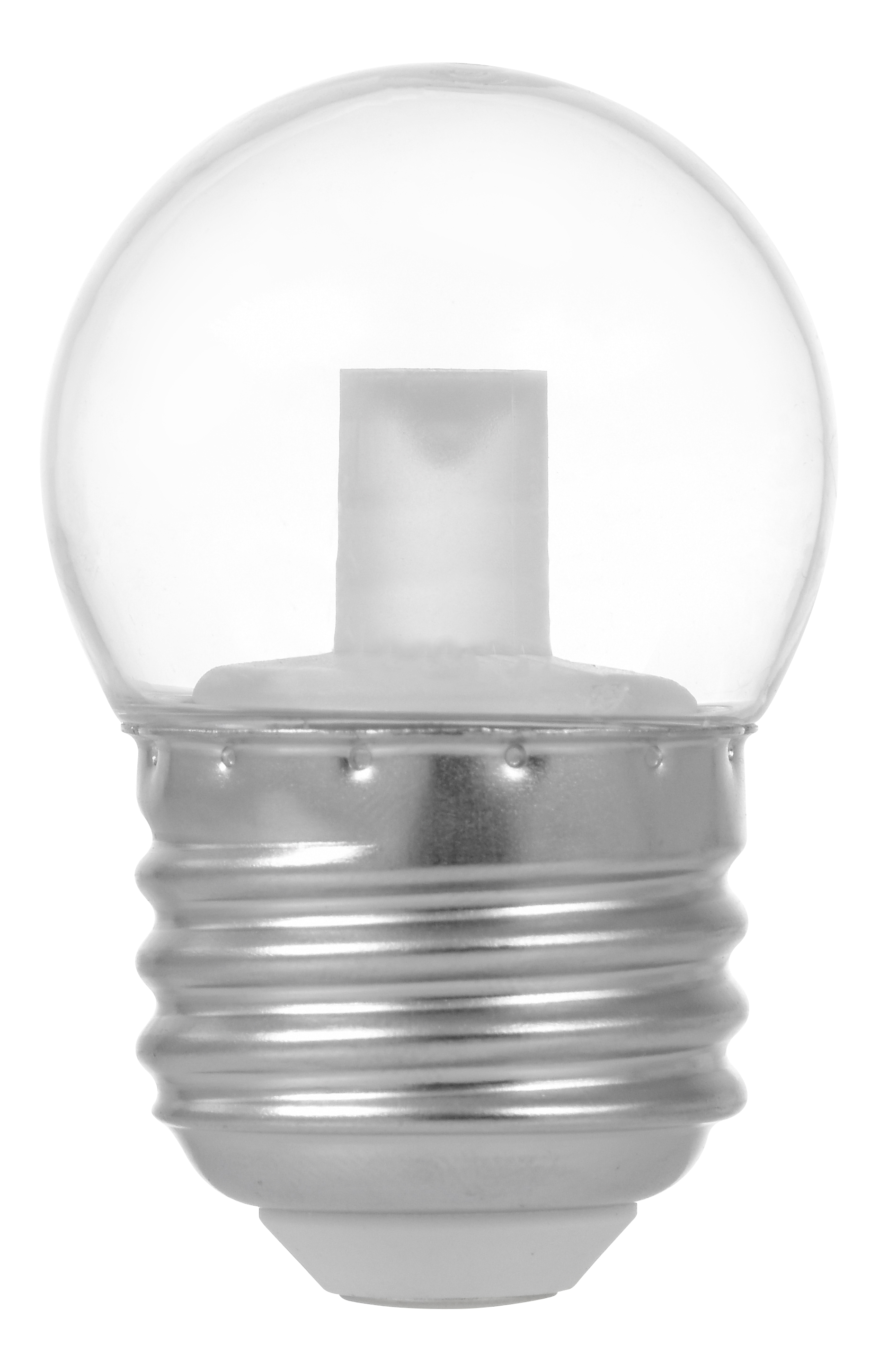

Product image: white background, upright
LED Specialty Lamp S11 Clear
LED Specialty Lamp S11 Clear

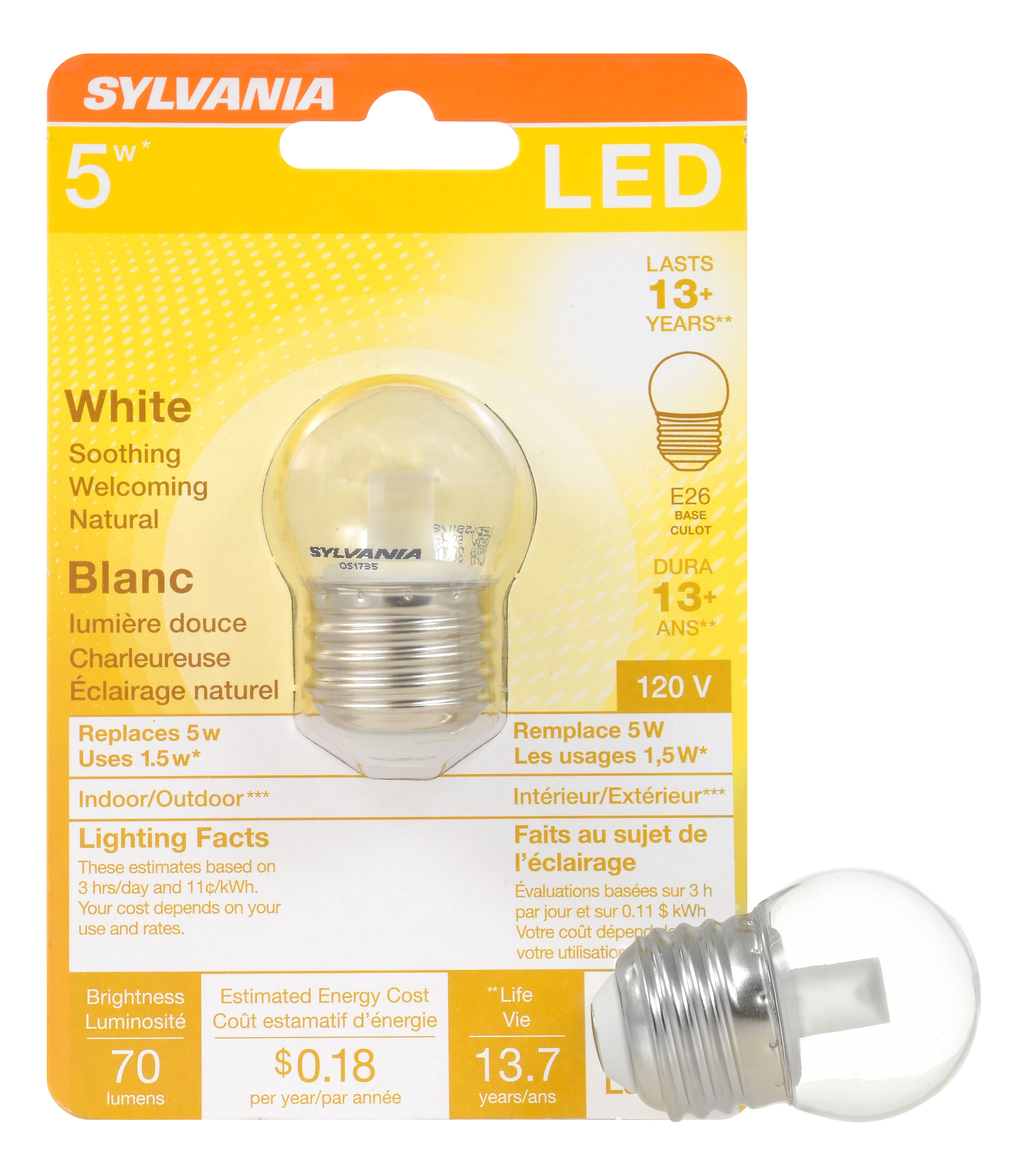

Packaging image, beauty shot
04613574675 bb Beauty Shot
04613574675 bb Beauty Shot
Packaging image, frontal
LED Specialty Clear S11
LED Specialty Clear S11

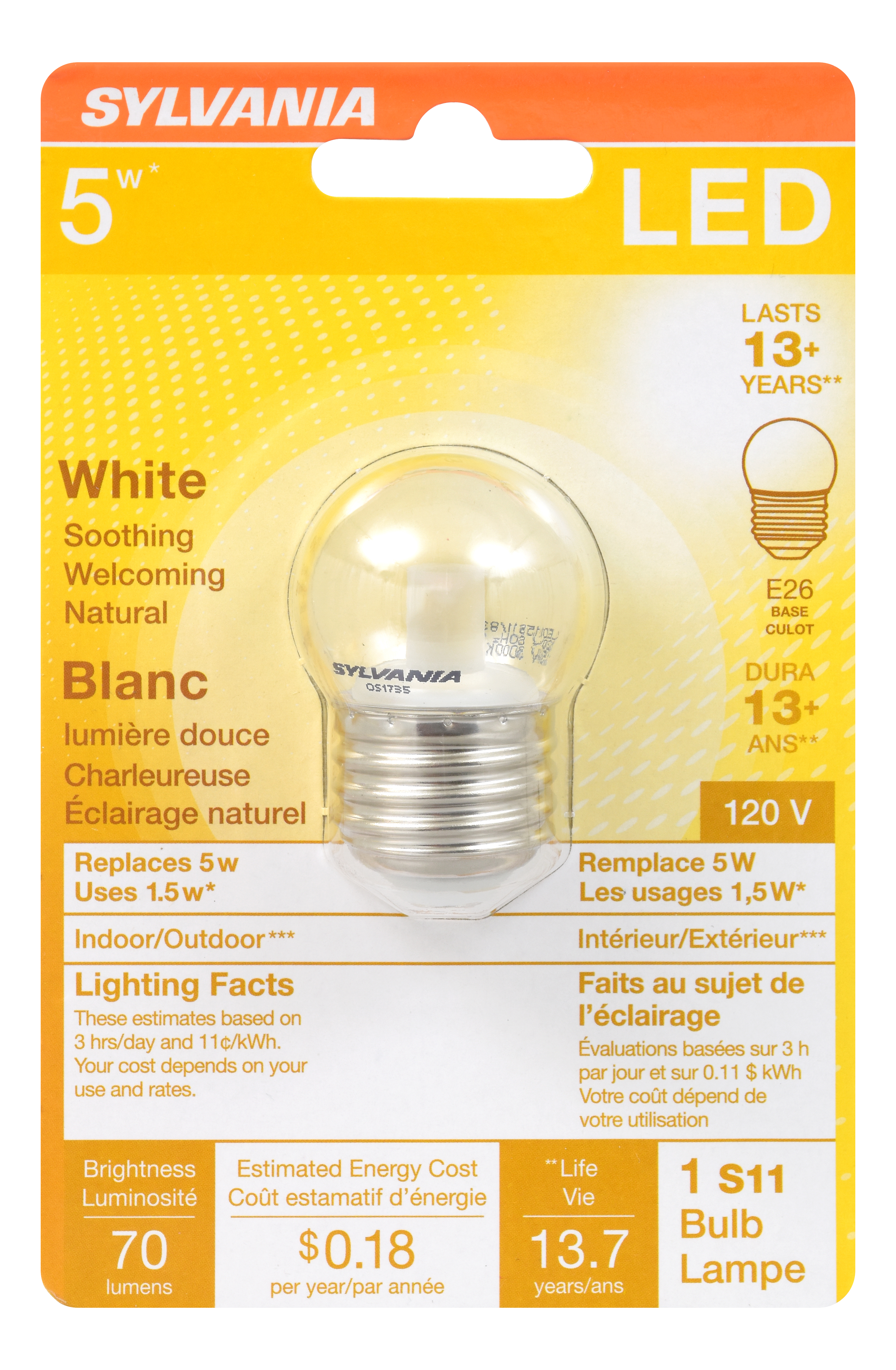

Packaging image, frontal
