SYLVANIA DULUX SubstiTUBE CCT Selectable LED Pin Base Lamps (UL TYPE A)
LED PBG24Q DIM SUB 9.5W V 8 3CCT
NAED: 41702
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights
- Sconces
- Task Lighting
- Recessed ceiling fixtures
Product features
- LED replacement for conventional compact fluorescent lamps for use with existing ballast
- Available in 9.5W
- CCT Selectable: 3000/3500/4100K
- CRI ≥ 80
- Frosted plastic finish
- Energy savings up to 68 %
- CCT Selectable lamps with either 110° or 120° beam angle and light emitting angle of 150° or 360°
- Compatible with electronic (4-pin) ballast
- Lifetime (L70): up to 50,000 h
- 0-10V dimmable with select compatible 0-10V dimming ballasts
- 5-year limited lamp warranty (24/7 operation)
- Power factor: > 0.9
Safety advice
- Check ballast compatibility guide for approved ballasts for SubstiTUBE Type A operation.
- CCT Selectable lamps are not suitable for use in enclosed (lens or diffuser) luminaire.
- Not approved for use in vapor tight or sealed luminaire.
- Ambient Operating Range: -4°F to +104°F (-20°C to +40°C)
- Refer to the installation manual included inside the packaging.
- THD < 20 %
- Check Pin Based Socket Guide
Product Family Spec Sheet
DULUX® LED Pin Base Lamps
DULUX® LED Pin Base Lamps
Product Family Spec Sheet
DULUX® LED Pin Base Lamps
DULUX® LED Pin Base Lamps
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 9.50 W |
| Nominal voltage | 120.00…277.00 V |
| Claimed Equivalent Lamp Pwr | 26 W |
Photometrical data
| Lumens | 1100 lm |
| Efficacy | 115 lm/W |
| Color Temperature/CCT | 3000 K |
| Color Rendering Index (CRI) | 80 |
| Light color | 830 |
Dimensions & Weight
| Diameter | 2.76 in |
| Length | 5.12 in |
| Height | 2.76 in |
| Width | 2.76 in |
| Product weight | 0.27 lb |
Materials & Colors
| Lamp Finish | Frosted |
| Bulb shape | T4X2 |
| Bulb Glass Type | PLASTICS |
Application & Mounting
| Dimming | Yes |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Lifespan
| Average Rated Life (hr) | 50000 |
Additional product data
| Base type | G24q-1 |
| Mercury content | 0.0 mg |
| Ordering Abbreviation | LED9.5PBG24QVDIM8SC1SUB |
| Abbrev. With Packaging Info. | LED9.5PBG24QVDIM8SC1SUB 24/CS 1/SKU |
| SKU UPC | 0046135417023 |
| Family Brand Name | SubstiTUBE® DULUX® |
| General Description | SubstiTUBE® DULUX® Pin Base, 9.5W, 82 CRI, 1100/1120/1150 Lumens, 3000K, 3500K, 4000K Color Selectable, 50000 Hrs Life, Vertical Orientation, Dimmable G24q base |
| Warranty | 5 years |
Capabilities
| Dimming | Yes |
Certificates & Standards
| Certification Listing | RoHS; CSA; FTC; FCC |
Logistical data
| SKU Qty | 1 |
| Case Qty | 24 |
| Case Length (in) | 15.433 |
| Case Width (in) | 12.244 |
| Case Depth (in) | 6.221 |
| Case Cube (ft) | 0.680 |
| Case Weight (lbs) | 9.342 |
| SKU UPC | 0046135417023 |
| Pallet Qty | 1,512 |
| SKU's/Case | 24 |
| SKU's/Pallet | 1512 |
| Cases/Pallet | 63 |
| Product image | Product name | UPC |
|---|---|---|
|
EMBB 2A 21W UNV DIM DC | OS75740 |

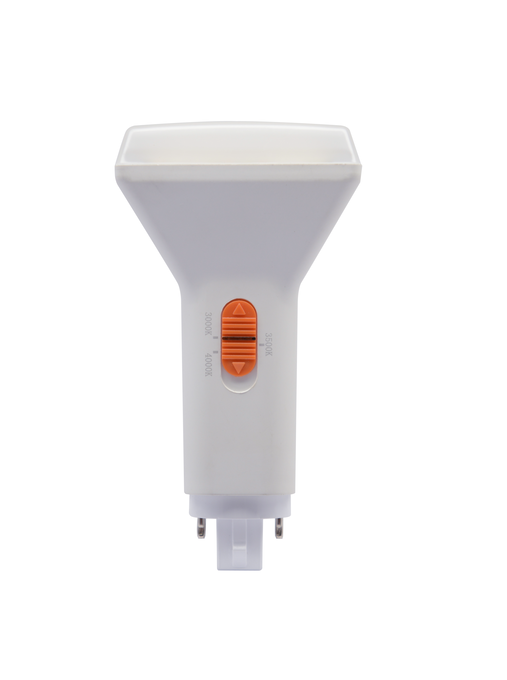

Product image: white background, upright
