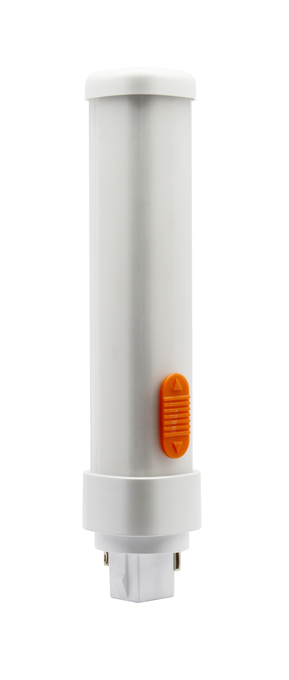

SYLVANIA DULUX SubstiTUBE CCT Selectable LED Pin Base Lamps (UL TYPE A)
LED PBG24Q DIM SUB 9.5W H 8 3CCT
NAED: 41701
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights
- Sconces
- Task Lighting
- Recessed ceiling fixtures
Product features
- LED replacement for conventional compact fluorescent lamps for use with existing ballast
- Available in 9.5W
- CCT Selectable: 3000/3500/4100K
- CRI ≥ 80
- Frosted plastic finish
- Energy savings up to 68 %
- CCT Selectable lamps with either 110° or 120° beam angle and light emitting angle of 150° or 360°
- Compatible with electronic (4-pin) ballast
- Lifetime (L70): up to 50,000 h
- 0-10V dimmable with select compatible 0-10V dimming ballasts
- 5-year limited lamp warranty (24/7 operation)
- Power factor: > 0.9
Safety advice
- Check ballast compatibility guide for approved ballasts for SubstiTUBE Type A operation.
- CCT Selectable lamps are not suitable for use in enclosed (lens or diffuser) luminaire.
- Not approved for use in vapor tight or sealed luminaire.
- Ambient Operating Range: -4°F to +104°F (-20°C to +40°C)
- Refer to the installation manual included inside the packaging.
- THD < 20 %
- Check Pin Based Socket Guide
Product information bulletin
DULUX® LED Pin Base Lamps
DULUX® LED Pin Base Lamps
Product information bulletin
DULUX® LED Pin Base Lamps
DULUX® LED Pin Base Lamps
Electrical data
| Nominal wattage | 9.5 W |
| Construction wattage | 9.50 W |
| Nominal voltage | 120 V |
| Claimed equiv. conventional lamp power | 26 W |
Photometrical data
| Luminous flux | 900 lm |
| Luminous efficacy | 94 lm/W |
| Color temperature | 3000 K |
| Color rendering index Ra | 80 |
| Light color | 830 |
Dimensions & Weight
| Overall length | 161.00 mm |
| Diameter | 33.20 mm |
| Product weight | 115.00 g |
Additional product data
| Base (standard designation) | G24q-1 |
| Mercury content | 0.0 mg |
Capabilities
| Dimmable | Yes |
Country-specific categorizations
| Order reference | 9,5W/8SC1 120V |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | G24q-1 |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 161.00 mm |
| Height | 33.20 mm |
| Width | 33.20 mm |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135417016 | Folding box 1 |
35 mm x 35 mm x 163 mm | 155.00 g | 0.20 dm³ |
| 4058118252206 | Shipping box 24 |
225 mm x 155 mm x 187 mm | 3910.00 g | 6.52 dm³ |
