SYLVANIA ULTRA LED™ PAR Lamps

ULTRA LED™ Glass PAR Lamps 7W PAR20 DIM 3000K FL 40 1PK

NAED: 41047 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
Product features
  • Longer life than traditional halogen lamps
  • Glass body with full optics – similar to halogen PAR lamps
  • CRI of 80 ensures good color definition
  • RoHS compliant, mercury and lead free
  • Dimmable down to 10 %
  • Wet rated
Safety advice
  • Suitable for wet locations.
  • -4°F to +113°F (-20°C to +45°C)
  • Not for use with emergency light fixtures or exit lights.
  • Approved for use in enclosed fixtures.
Electrical data
Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 50 W
Photometrical data
Luminous flux 525 lm
Luminous efficacy 75 lm/W
Color temperature 3000 K
Color rendering index Ra 82
Light color 830
Dimensions & Weight
Overall length 83.00 mm
Diameter 64.01 mm
Product weight 123.00 g
Additional product data
Base (standard designation) E26
Capabilities
Dimmable Yes
Country-specific categorizations
Order reference 7W/830 120V 6X1
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Length 83.00 mm
Height 64.01 mm
Width 64.01 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135410475 Folding box
1		 70 mm x 89 mm x 140 mm 186.00 g 0.87 dm³
10046135410472 Shipping box
6		 221 mm x 187 mm x 156 mm 1291.00 g 6.43 dm³
Product information bulletin
ULTRA LED Glass PAR Lamps
PDF (349.61 KB)

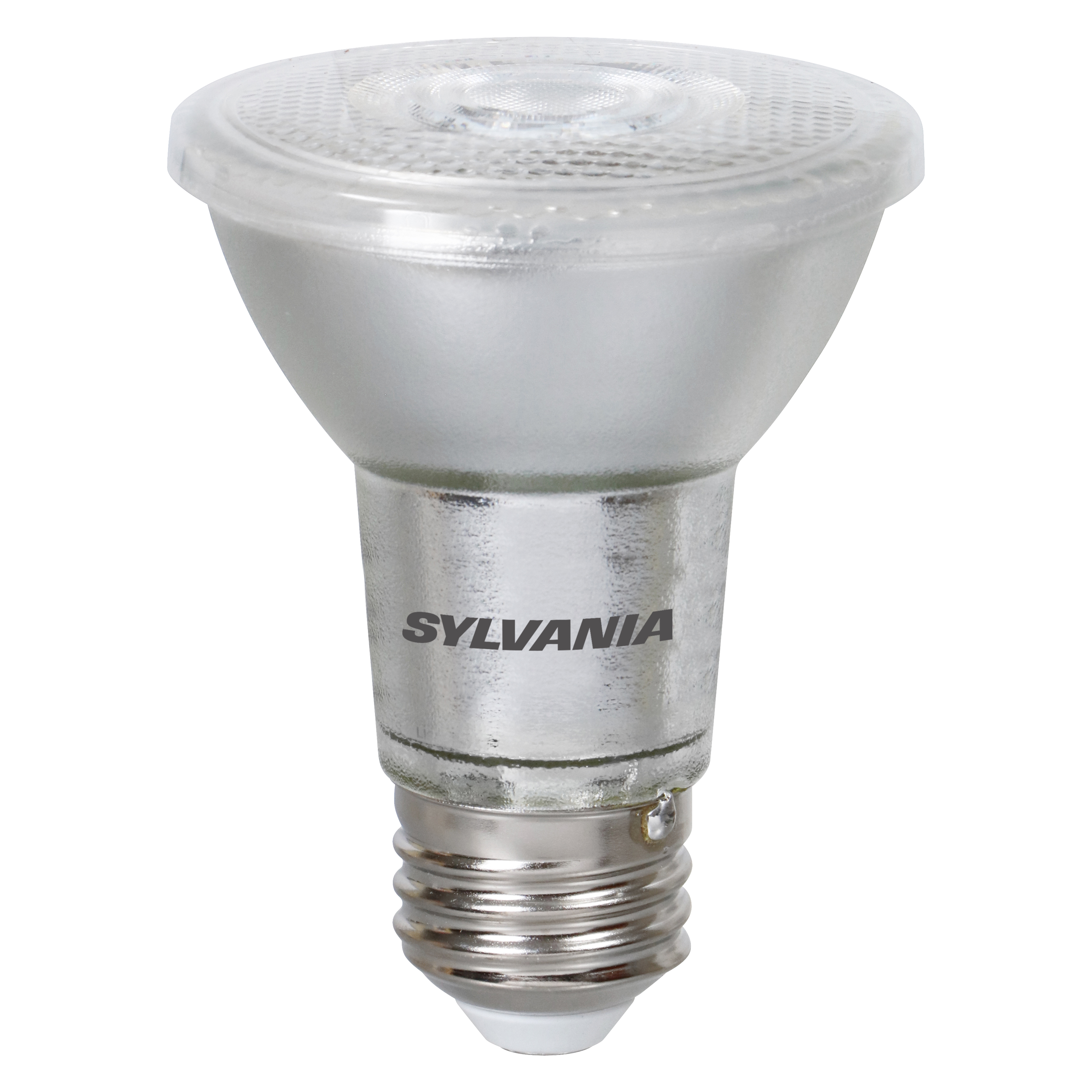

Product image: white background, upright
LED PAR20
JPG (1.99 MB)
Beauty Shot
ULTRA LED Glass PAR Family
JPG (1.19 MB)
Packaging image, beauty shot
LED PAR20 E26 DIM 7W 3000K FL40
JPG (2.94 MB)
Packaging image, beauty shot
LED PAR20 E26 DIM 7W 3000K FL40
JPG (3.27 MB)
Packaging image, frontal
LED PAR20 E26 DIM 7W 3000K FL40
JPG (3.6 MB)
Packaging image, spacial
LED PAR20 E26 DIM 7W 3000K FL40
JPG (4.64 MB)
Packaging image, spacial
LED PAR20 E26 DIM 7W 3000K FL40
JPG (4.75 MB)
