SYLVANIA Motion Sensor PAR Lamps

ULTRA LED™ Motion Sensor PAR Lamps 11.5W PAR38 MOT 3000K 1PK

NAED: 40195 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
  • Driveways, back yards, parking lots, and porches
  • Residential and commercial
Product features
  • Quick and easy installation in standard E26 socket
  • Automatically turns on when motion is detected
  • Turns off after 90 seconds when motion is not detected
  • 10' to 15' detection range
  • 15,000 hours lifetime (L70)
  • 5-year limited warranty
Safety advice
  • Not for use in totally enclosed fixtures.
  • Wet rated for indoor and outdoor use.
  • Non-dimmable.
  • -4°F to +113°F (-20°C to +45°C)
  • Not for use with emergency light fixtures or exit lights.
Product information bulletin
ULTRA LED Motion Sensor PAR38 Lamp
PDF (315.82 KB)
Electrical data
Nominal wattage 11.5 W
Construction wattage 11.50 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 100 W
Photometrical data
Luminous flux 1050 lm
Luminous efficacy 91 lm/W
Color temperature 3000 K
Color rendering index Ra 82
Light color 830
Dimensions & Weight
Overall length 131.00 mm
Diameter 121.00 mm
Product weight 355.00 g
Additional product data
Base (standard designation) E26
Mercury content 0.0 mg
Capabilities
Dimmable No
Certificates & Standards
Standards RoHS, FTC, FCC
Country-specific categorizations
Order reference 11,5W/930 120V
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E26
Length 131.00 mm
Height 121.00 mm
Width 121.00 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135401954 Folding box
1		 127 mm x 127 mm x 156 mm 469.00 g 2.51 dm³
10046135401951 Shipping box
4		 279 mm x 273 mm x 165 mm 2164.00 g 12.60 dm³

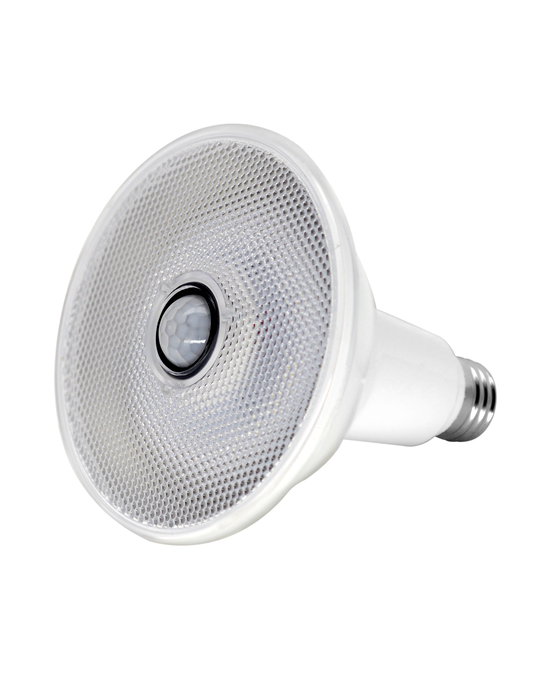

Product image: white background, diagonal
LED PAR38 SIDE 11.5W
TIF (7.67 MB)
Product image: white background, diagonal
LED PAR38 SIDE 11.5W
TIF (1.78 MB)
Product image: white background, upright
LED PAR38 11.5W OFF
TIF (1.56 MB)

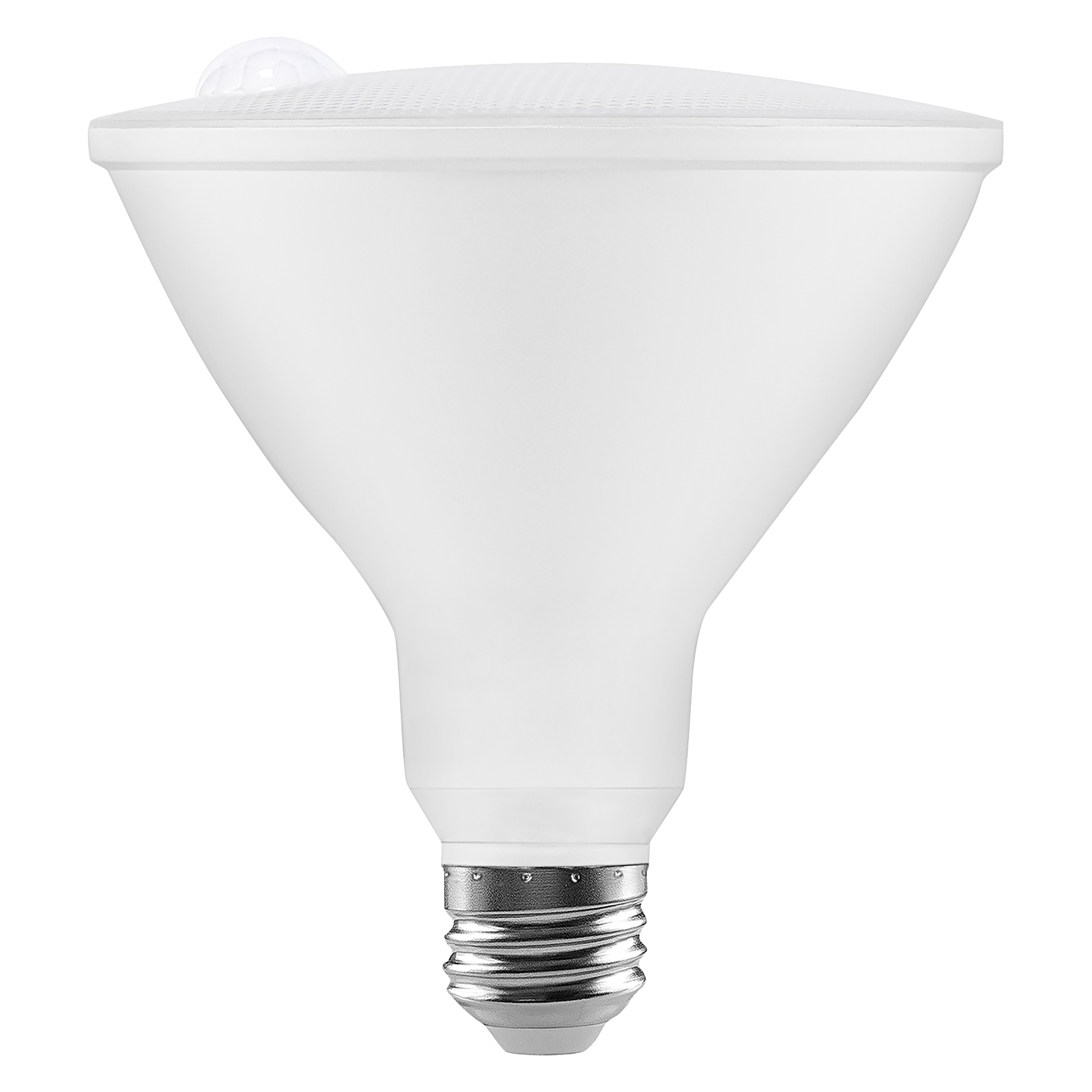

Product image: white background, upright
LED PAR38,11.5W 1050lm 3000K
JPG (676.15 KB)

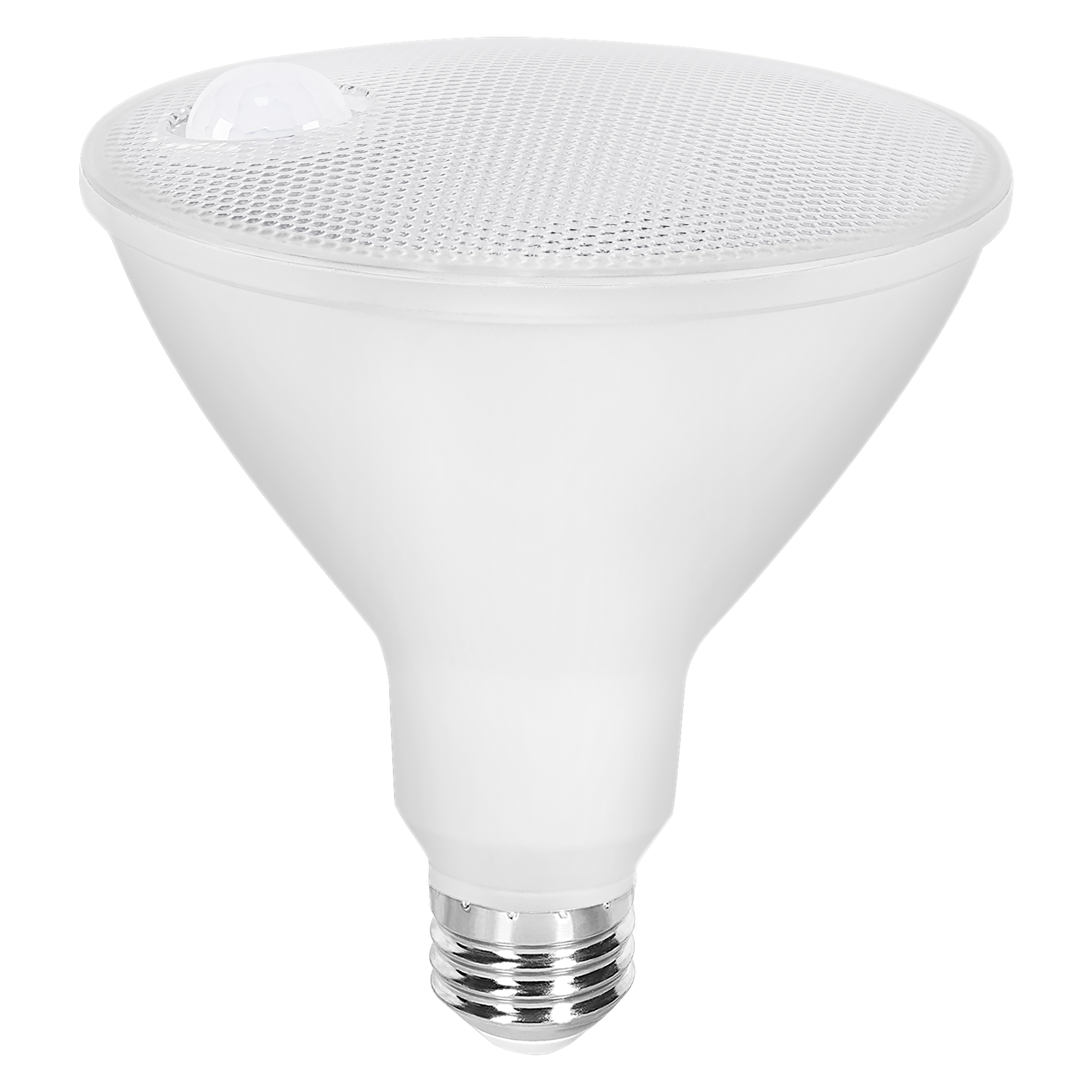

Product image: white background, spacial
LED PAR38,11.5W 1050lm 3000K
JPG (991.88 KB)
Beauty Shot
LED PAR38 11.5W ON
TIF (3.59 MB)

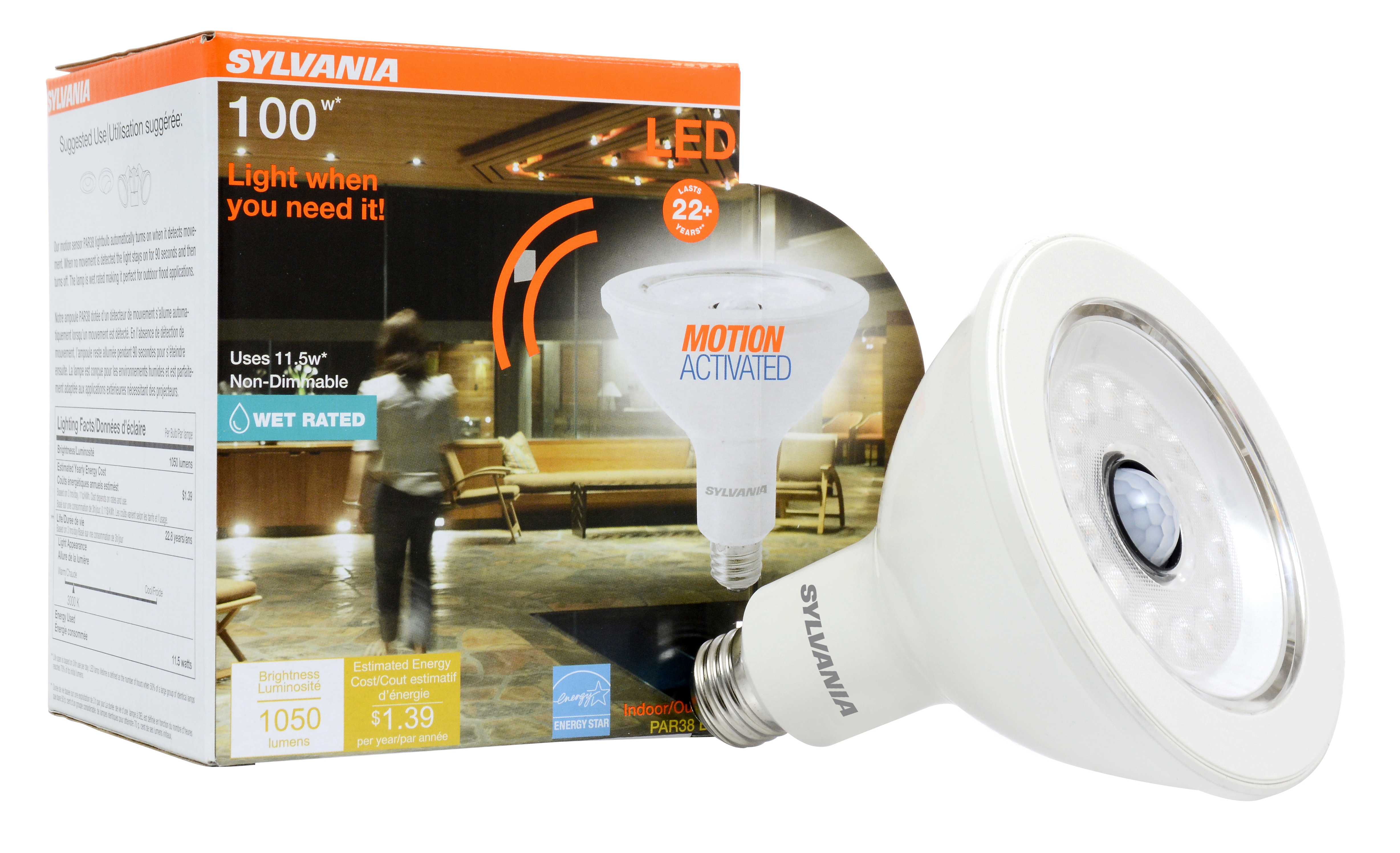

Packaging image, beauty shot
LED PAR38 Motion Activated
JPG (5.79 MB)

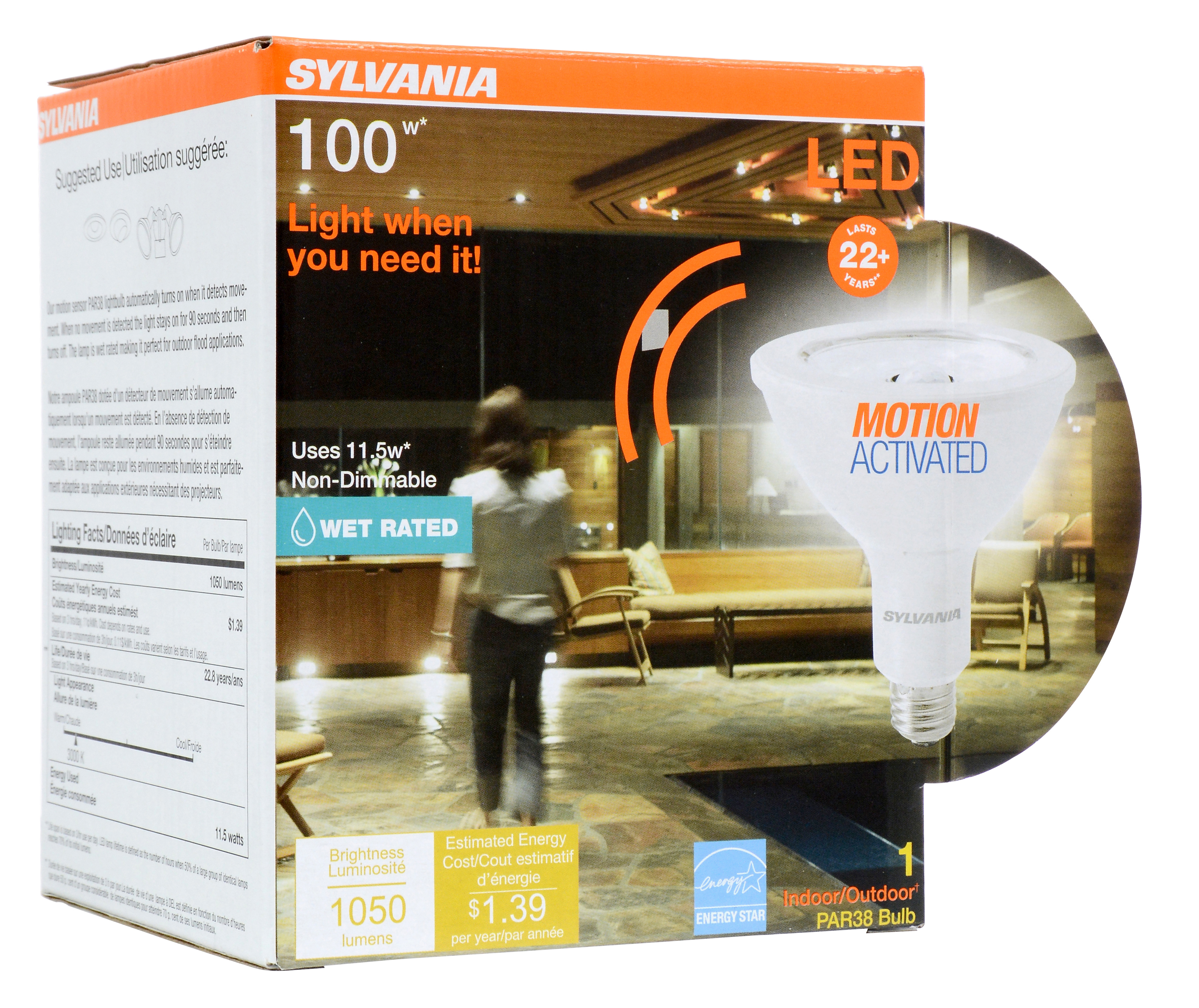

Packaging image, spacial
