SYLVANIA High Output PAR Lamps
ULTRA LED™ HO PAR Lamps PAR20 11W 3000K NFL 25 1PK
NAED: 40414
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
- Grocery
- Houses of worship
Product features
- High CBCP performance
- Up to 100 LPW
- Outstanding color uniformity and beam quality utilizing COB technology
- 277V option allows compatible replacement for HID lamps
- UL1993 & UL1598C tested
- Great replacement options for high power halogen and HID lamp
- 25,000 hours lifetime (L70)
- Dimmable down to 10 %
Safety advice
- Use in fixtures that support a half-pound lamp.
- -4°F to +104°F (-20°C to +40°C)
- Not for use with emergency light fixtures or exit lights.
Product Family Spec Sheet
ULTRA LED HO PAR Lamps
ULTRA LED HO PAR Lamps
Electrical data
| Nominal Wattage | 11.00 W |
| Nominal voltage | 120.00…277.00 V |
| Claimed Equivalent Lamp Pwr | 75 W |
| Type of current | AC |
| Centerbeam Candlepower (cp) | 3,300 cd |
Photometrical data
| Lumens | 1000 lm |
| Efficacy | 91 |
| Color Temperature/CCT | 3000 K |
| Color Rendering Index (CRI) | 81 |
| Light color | 830 |
Dimensions & Weight
| Diameter | 2.5 in |
| Length | 3.43 in |
| Height | 2.5 in |
| Width | 2.5 in |
| Product weight | 0.25 lb |
Materials & Colors
| Lamp Finish | White |
| Bulb shape | PAR20 |
| Bulb Glass Type | PLASTICS |
Application & Mounting
| Dimming | No |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
Lifespan
| Average Rated Life (hr) | 25000 |
Additional product data
| Base type | E26 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Ordering Abbreviation | LED11PAR20VHO830NFL25UNV |
| Abbrev. With Packaging Info. | WRT LED11PAR20VHO830NFL25UNV 6/CS 1/SKU |
| SKU UPC | 0046135404146 |
| Family Brand Name | ULTRA HO |
| General Description | LED PAR20, 120-277V 81CRI, 1000 Lumen, 3000K, 25000 Life, E26 Medium Base |
| Warranty | 5 years |
Capabilities
| Dimming | No |
Certificates & Standards
| Certification Listing | RoHS; FTC; FCC; cETLus |
Logistical data
| SKU Qty | 1 |
| Case Qty | 6 |
| Case Length (in) | 9.312 |
| Case Width (in) | 6.250 |
| Case Depth (in) | 4.750 |
| Case Cube (ft) | 0.160 |
| Case Weight (lbs) | 2.221 |
| SKU UPC | 0046135404146 |
| Pallet Qty | 1,800 |
| SKU's/Case | 6 |
| SKU's/Pallet | 1800 |
| Cases/Pallet | 300 |

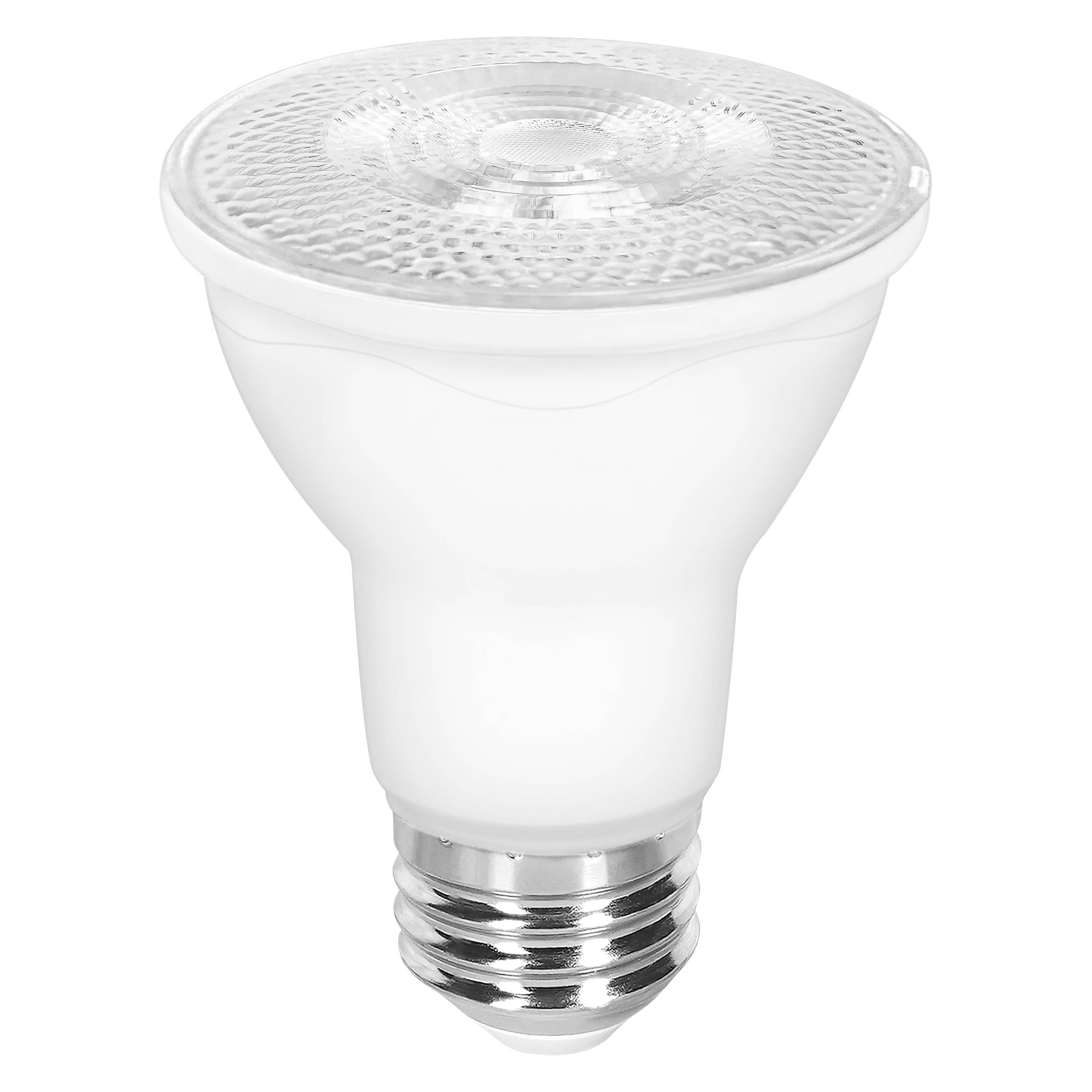

Product image: white background, upright
LED PAR20 HO 11W ULTRA
LED PAR20 HO 11W ULTRA
