SYLVANIA High Output PAR Lamps
ULTRA LED™ HO PAR Lamps PAR38 25W HO DIM 5000K FL 40 1PK
NAED: 74794
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
- Grocery
- Houses of worship
Product features
- High CBCP performance
- Up to 100 LPW
- Outstanding color uniformity and beam quality utilizing COB technology
- 277V option allows compatible replacement for HID lamps
- UL1993 & UL1598C tested
- Great replacement options for high power halogen and HID lamp
- 25,000 hours lifetime (L70)
- Dimmable down to 10 %
Safety advice
- Use in fixtures that support a half-pound lamp.
- -4°F to +104°F (-20°C to +40°C)
- Not for use with emergency light fixtures or exit lights.
Product Family Spec Sheet
ULTRA LED HO PAR Lamps
ULTRA LED HO PAR Lamps
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 23.00 W |
| Nominal voltage | 120.00 V |
| Claimed Equivalent Lamp Pwr | 250 W |
| Centerbeam Candlepower (cp) | 18,000 cd |
Photometrical data
| Lumens | 2650 lm |
| Efficacy | 115 |
| Color Temperature/CCT | 5000 K |
| Color Rendering Index (CRI) | 81 |
| Light color | 850 |
Dimensions & Weight
| Diameter | 4.76 in |
| Length | 5.09 in |
| Height | 4.76 in |
| Width | 4.76 in |
| Product weight | 0.44 lb |
Materials & Colors
| Lamp Finish | White |
| Bulb shape | PAR38 |
| Bulb Glass Type | PLASTICS |
Application & Mounting
| Dimming | Yes |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Lifespan
| Average Rated Life (hr) | 25000 |
Additional product data
| Base type | E26 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Ordering Abbreviation | LED23PAR38HODIM850FL40WRP |
| Abbrev. With Packaging Info. | LED23PAR38HODIM850FL40WRP 6/CS 1/SKU |
| SKU UPC | 0046135747946 |
| Family Brand Name | ULTRA HO |
| General Description | LED PAR38, 23W, Dimmable, 81CRI, 2650 Lumen, 5000K, 25000 Life, Medium Base |
Capabilities
| Dimming | Yes |
Certificates & Standards
| Certification Listing | RoHS; FCC; FTC; CEC; cETLus |
Logistical data
| SKU Qty | 1 |
| Case Qty | 6 |
| Case Length (in) | 15.875 |
| Case Width (in) | 12.906 |
| Case Depth (in) | 6.125 |
| Case Cube (ft) | 0.726 |
| Case Weight (lbs) | 8.110 |
| SKU UPC | 0046135747946 |
| Pallet Qty | 270 |
| SKU's/Case | 6 |
| SKU's/Pallet | 270 |
| Cases/Pallet | 45 |

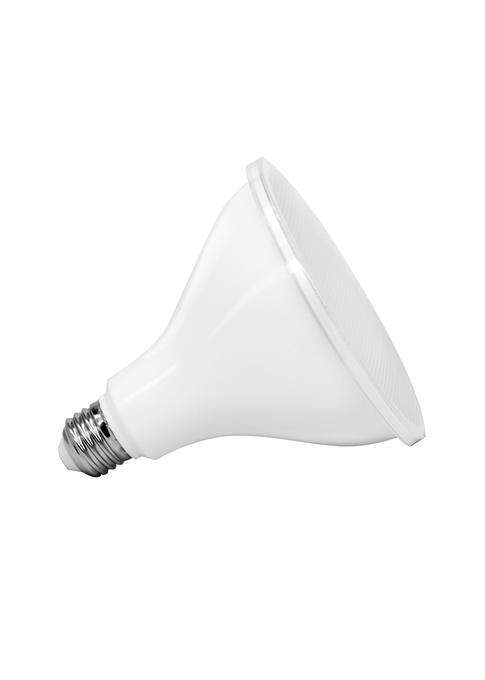

Product image: white background, upright
ULTRA LED HO PAR38 Lamp
ULTRA LED HO PAR38 Lamp
Product image: white background, upright
LED PAR38 23W Dim 2650 Lumen 5000K 3000K
LED PAR38 23W Dim 2650 Lumen 5000K 3000K
Product image: white background, upright
LED PAR38 23W Dim 2650 Lumen 5000K 3000K
LED PAR38 23W Dim 2650 Lumen 5000K 3000K

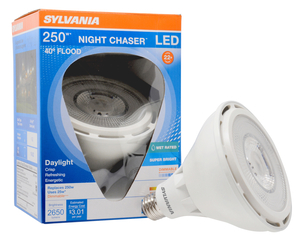

Packaging image, beauty shot
