SYLVANIA ULTRA LED™ MR16

MR16 ULTRA LED 6W DIM 3000K NFL 25 GL 1PK

NAED: 78240 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
Product features
  • Longer life than traditional halogen lamps
  • 12V AC/DC input voltage
  • UV and IR free
  • No mercury, lead or other hazardous materials
  • No warm-up time, instant-on with full light output and stable color
  • Ideal for re-lamping when halogen lamps reach end of life
  • Glass body with the look and feel of traditional halogen lamps
  • Up to 90 LPW
  • CRI > 80
  • 3-year limited warranty
  • Long life up to 25,000 hours (L70)
Safety advice
  • Suitable for damp locations – not for use where directly exposed to water.
  • Dimmable
  • -4°F to +104°F (-20°C to +40°C)
  • Not for use with emergency light fixtures or exit lights.
  • Use only with Class 2 power supply.
Electrical data
Nominal wattage 6 W
Construction wattage 6.00 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 35 W
Photometrical data
Luminous flux 450 lm
Luminous efficacy 75 lm/W
Color temperature 3000 K
Color rendering index Ra 83
Light color 830
Dimensions & Weight
Overall length 43.99 mm
Diameter 50.01 mm
Product weight 47.00 g
Additional product data
Base (standard designation) GU5.3
Capabilities
Dimmable Yes
Country-specific categorizations
Order reference SILV 6W/830 12V
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) GU5.3
Length 43.99 mm
Height 50.01 mm
Width 50.01 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135782404 Folding box
1
54 mm x 54 mm x 92 mm 70.00 g 0.27 dm³
10046135782401 Shipping box
6
171 mm x 117 mm x 108 mm 504.00 g 2.17 dm³
Product information bulletin
ULTRA LED Glass MR16 Lamps
Product information bulletin
ULTRA LED™ MR16
Other documents / promotion
HTS372 ULTRA PAR LED Lamp Family
Other documents / promotion
HTS360 ULTRA LED Glass MR16
Product image: white background, upright
LED MR16 Lamp
Application pictures

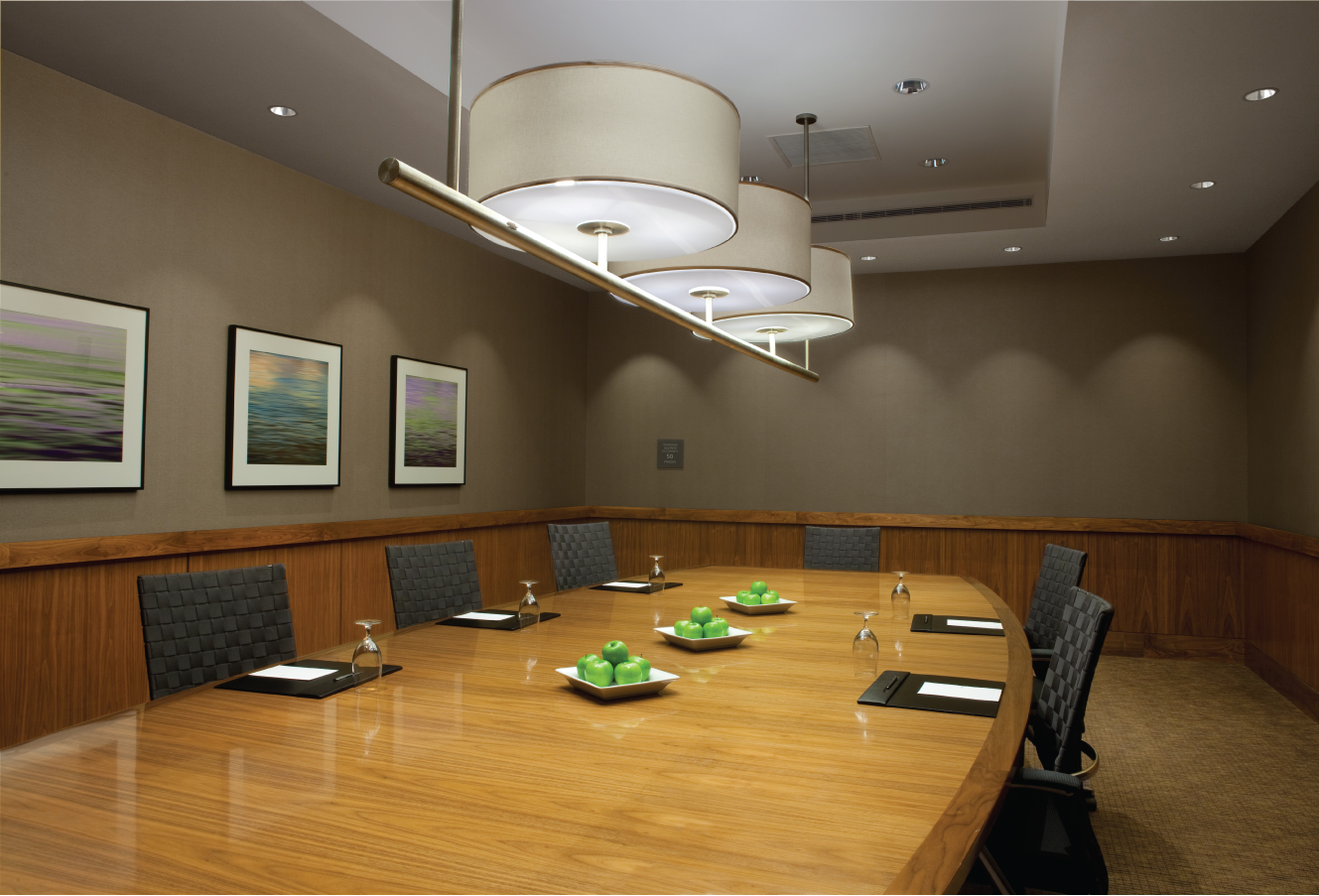

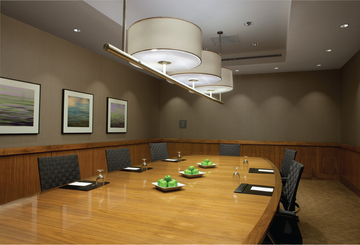

Westin Hotel Conference Room
Application pictures

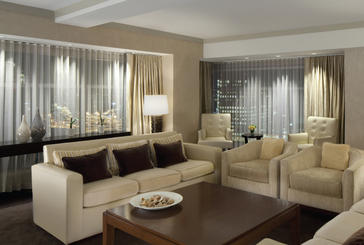

Westin Hotel Suite
Application pictures

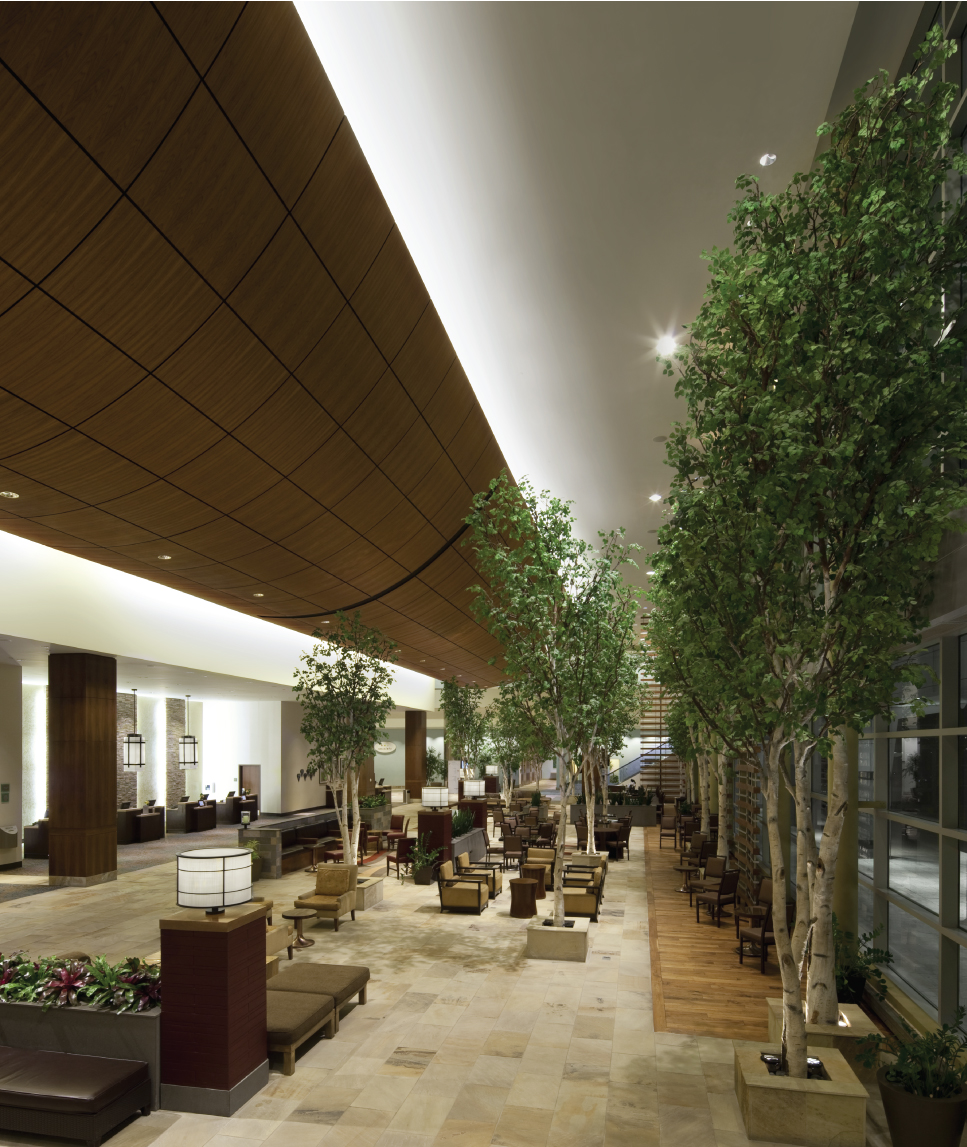

Westin Hotel Lobby
