SYLVANIA ULTRA LED™ MR16

MR16 ULTRA LED 8W DIM 2700K SP 15 1PK

NAED: 48056 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
Product features
  • Longer life than traditional halogen lamps
  • 12V AC/DC input voltage
  • UV and IR free
  • No mercury, lead or other hazardous materials
  • No warm-up time, instant-on with full light output and stable color
  • Ideal for re-lamping when halogen lamps reach end of life
  • Glass body with the look and feel of traditional halogen lamps
  • Up to 90 LPW
  • CRI > 80
  • 3-year limited warranty
  • Long life up to 25,000 hours (L70)
Safety advice
  • Suitable for damp locations – not for use where directly exposed to water.
  • Dimmable
  • -4°F to +104°F (-20°C to +40°C)
  • Not for use with emergency light fixtures or exit lights.
  • Use only with Class 2 power supply.
Electrical data
Nominal wattage 8 W
Construction wattage 8.00 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 75 W
Photometrical data
Luminous flux 700 lm
Luminous efficacy 87 lm/W
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Dimensions & Weight
Overall length 44.00 mm
Diameter 50.00 mm
Product weight 44.00 g
Additional product data
Base (standard designation) GU5.3
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable Yes
Certificates & Standards
Standards RoHS, CSA, FCC, cETLus
Country-specific categorizations
Order reference SILV 8W/827 12V
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) GU5.3
Length 44.00 mm
Height 50.00 mm
Width 50.00 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135480560 Folding box
1		 54 mm x 54 mm x 92 mm 67.00 g 0.27 dm³
10046135480567 Shipping box
6		 171 mm x 117 mm x 108 mm 486.00 g 2.17 dm³
Product information bulletin
ULTRA LED MR16 Lamps
PDF (393.23 KB)
Product information bulletin
ULTRA LED™ MR16
PDF (714.41 KB)
Product image: white background, upright

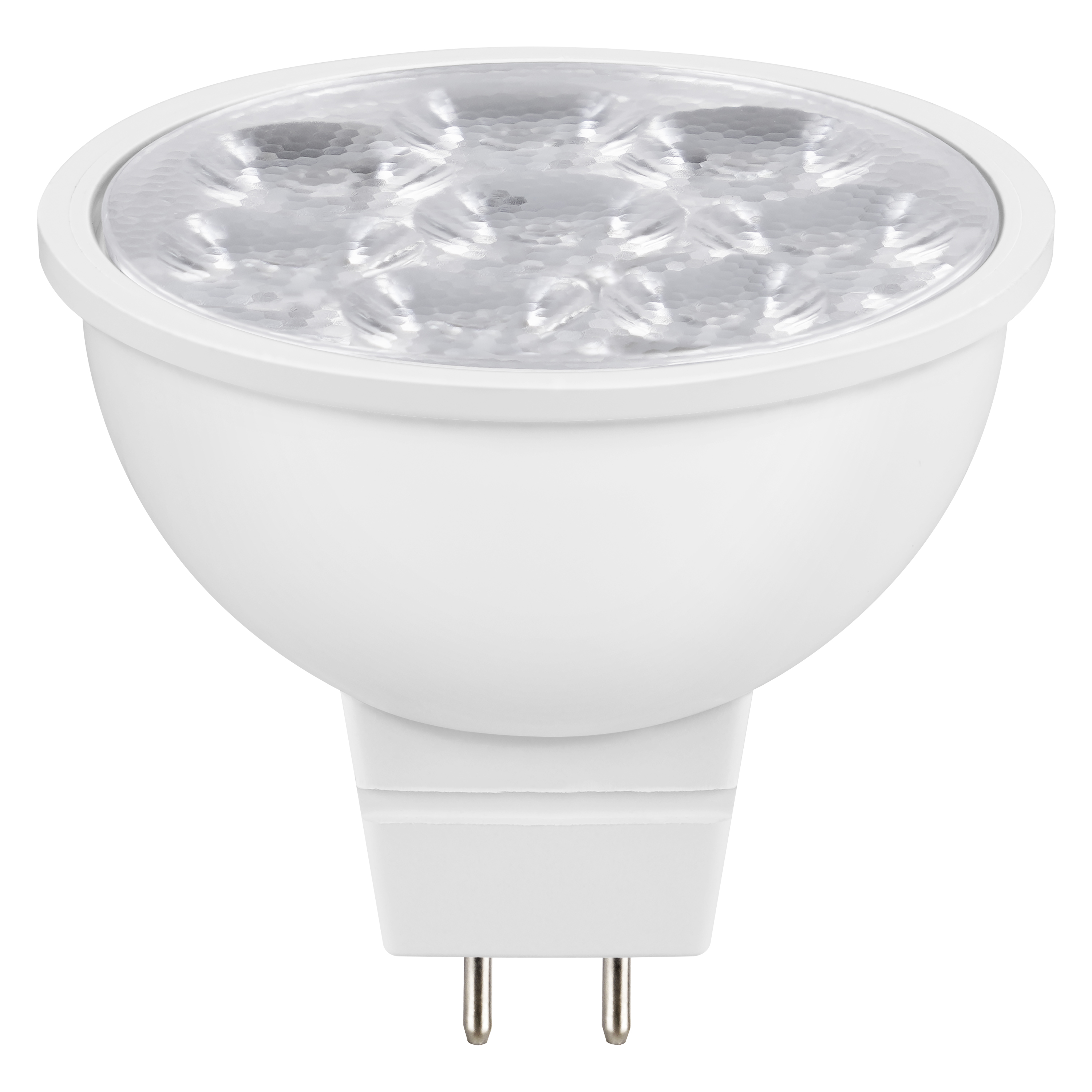

ULTRA LED MR16 Lamp 15 degree
JPG (1.02 MB)
IES files (IES, additional)
LED MR16 8.5W Dimmable 2700K IES LDT PDF FILE
ZIP (86.72 KB)
