SYLVANIA TruWave MR16

TruWave® MR16 4.5W DIM 5000K NFL 25 1PK

NAED: 40923 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
Product features
  • Exceptional color quality without the loss of efficacy typical of most 90+ CRI solutions
  • Properly saturates red to make building spaces and flesh tones accurate and vibrant
  • Clean light color rendering for seeing realistic, vivid colors
  • Controls blue wavelengths for lower glare and reduced eye strain to improve readability
  • Up to 78 LPW
  • 5-year limited warranty
  • California Title 20
  • Long life up to 25,000 hours (L70)
Safety advice
  • Not for use in totally enclosed fixtures.
  • Suitable for use in dry and damp locations.
  • Dimmable down to 10 %
  • -4°F to +113°F (-20°C to +45°C)
  • Not for use with emergency light fixtures or exit lights.
  • 12V
Electrical data
Nominal wattage 4.5 W
Construction wattage 4.50 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 20 W
Photometrical data
Luminous flux 350 lm
Luminous efficacy 77 lm/W
Color temperature 5000 K
Color rendering index Ra 90
Light color 950
Dimensions & Weight
Overall length 43.99 mm
Diameter 50.01 mm
Product weight 47.00 g
Additional product data
Base (standard designation) GU5.3
Mercury content 0.0 mg
Capabilities
Dimmable Yes
Country-specific categorizations
Order reference SILV 4,5W/950 1
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) GU5.3
Length 43.99 mm
Height 50.01 mm
Width 50.01 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135409233 Folding box
1
54 mm x 54 mm x 92 mm 70.00 g 0.27 dm³
10046135409230 Shipping box
6
183 mm x 122 mm x 122 mm 516.00 g 2.72 dm³
Product information bulletin
Natural Series MR16
Other documents / promotion
Insert Sheet - Natural Series with TruWave Technology
Other documents / promotion
Ultra LED Retrofit and True Wave™ Limited Product Warranty
Other documents / promotion
Insert Sheet - Natural Series with TruWave Technology

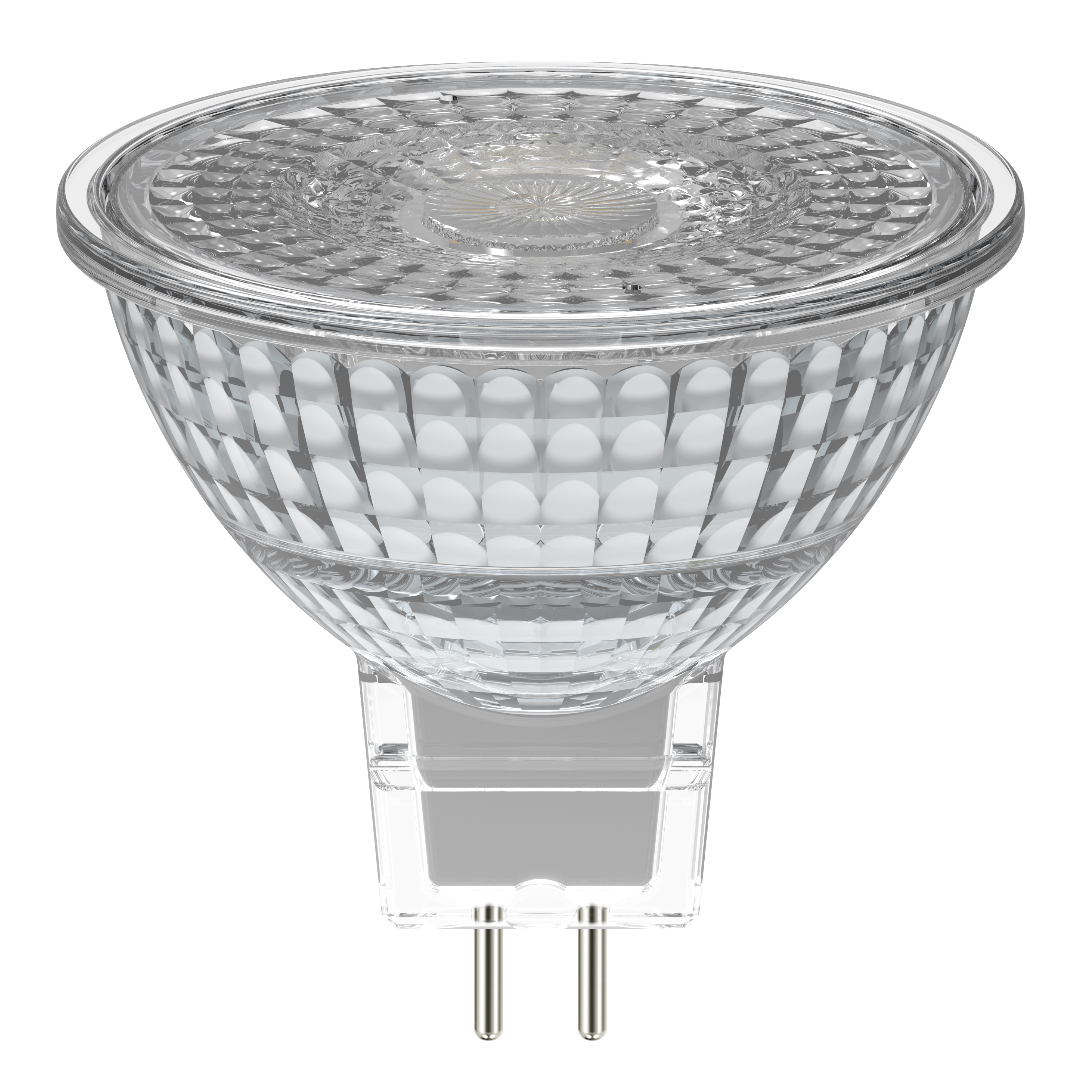

Product image: white background, upright
Natural MR16 Bulb

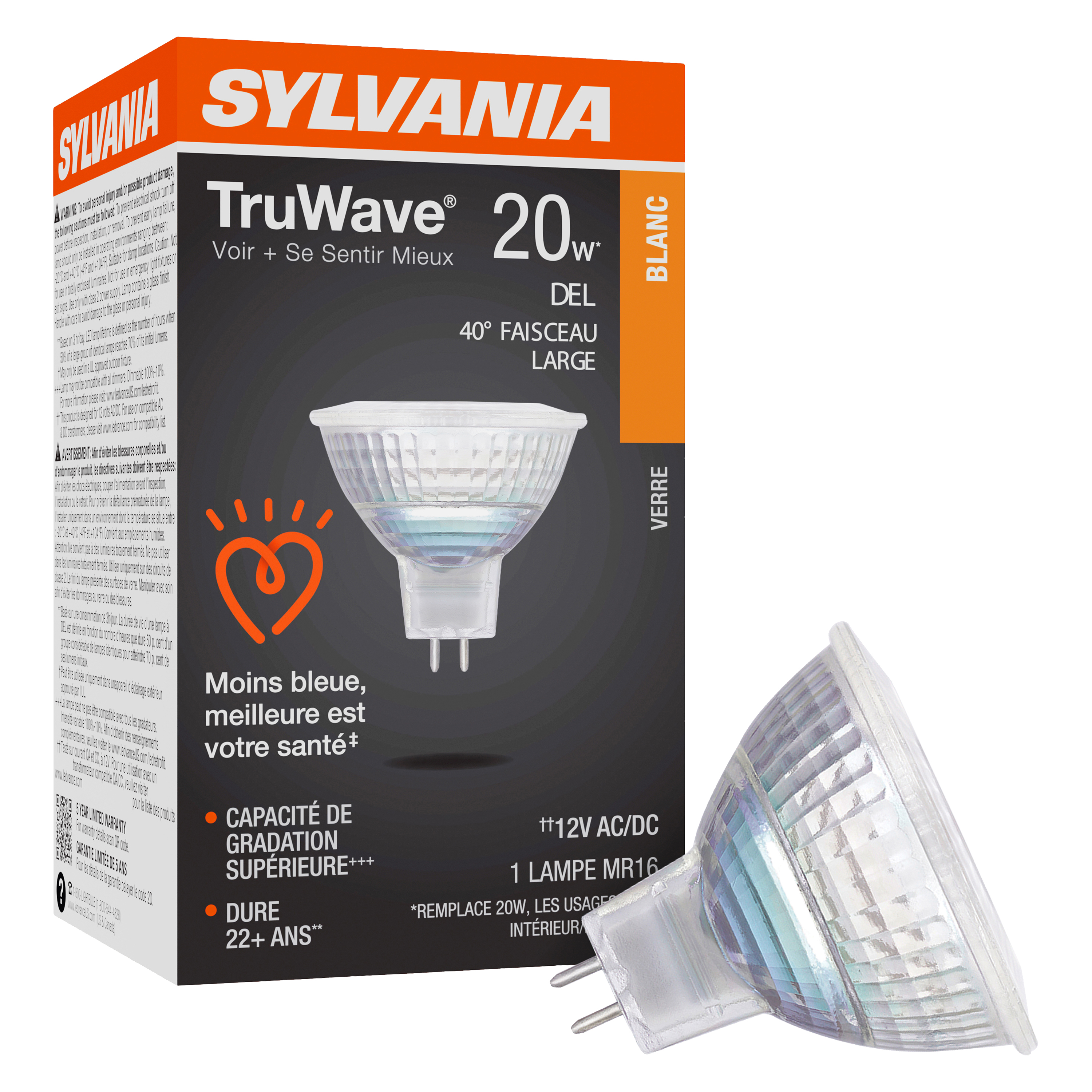

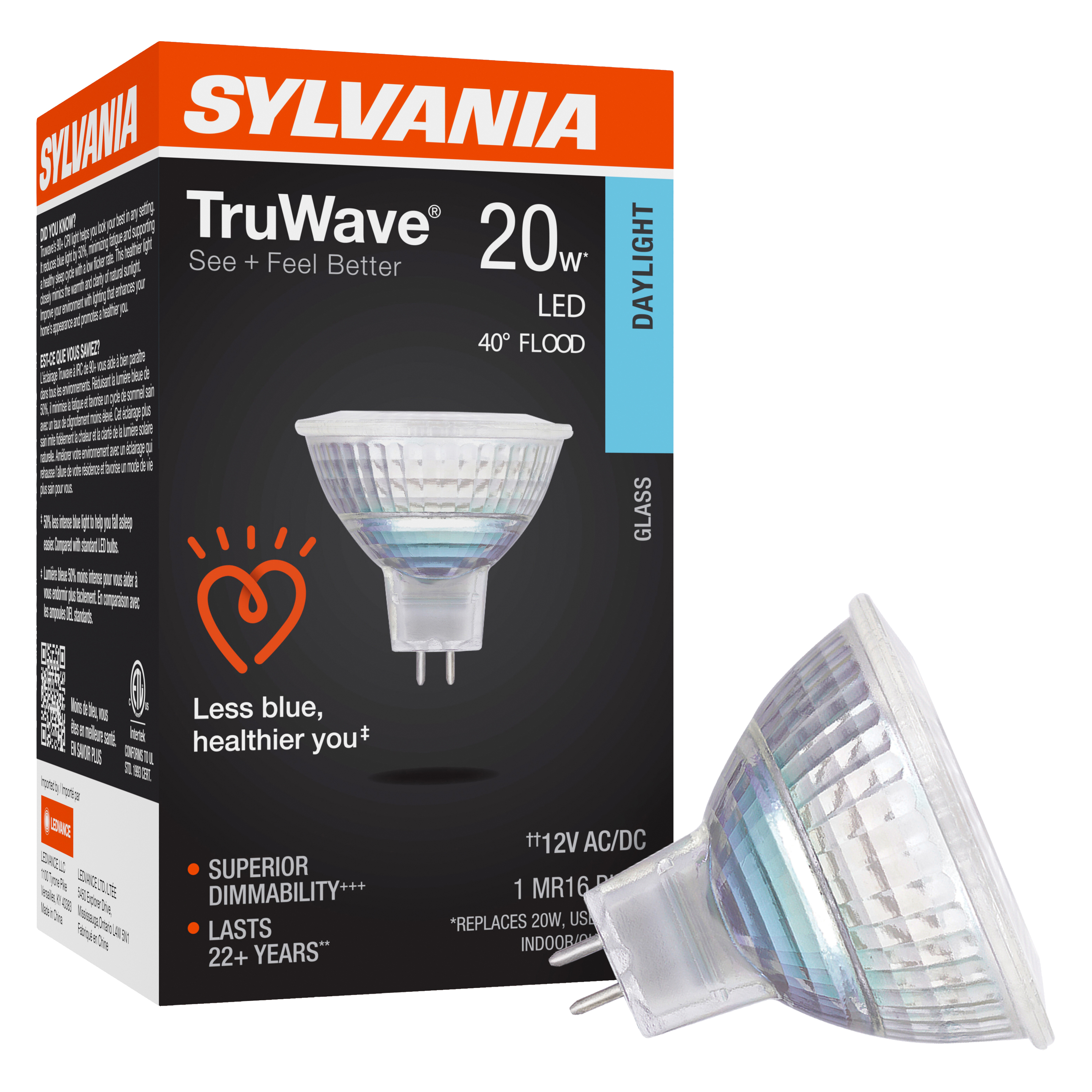

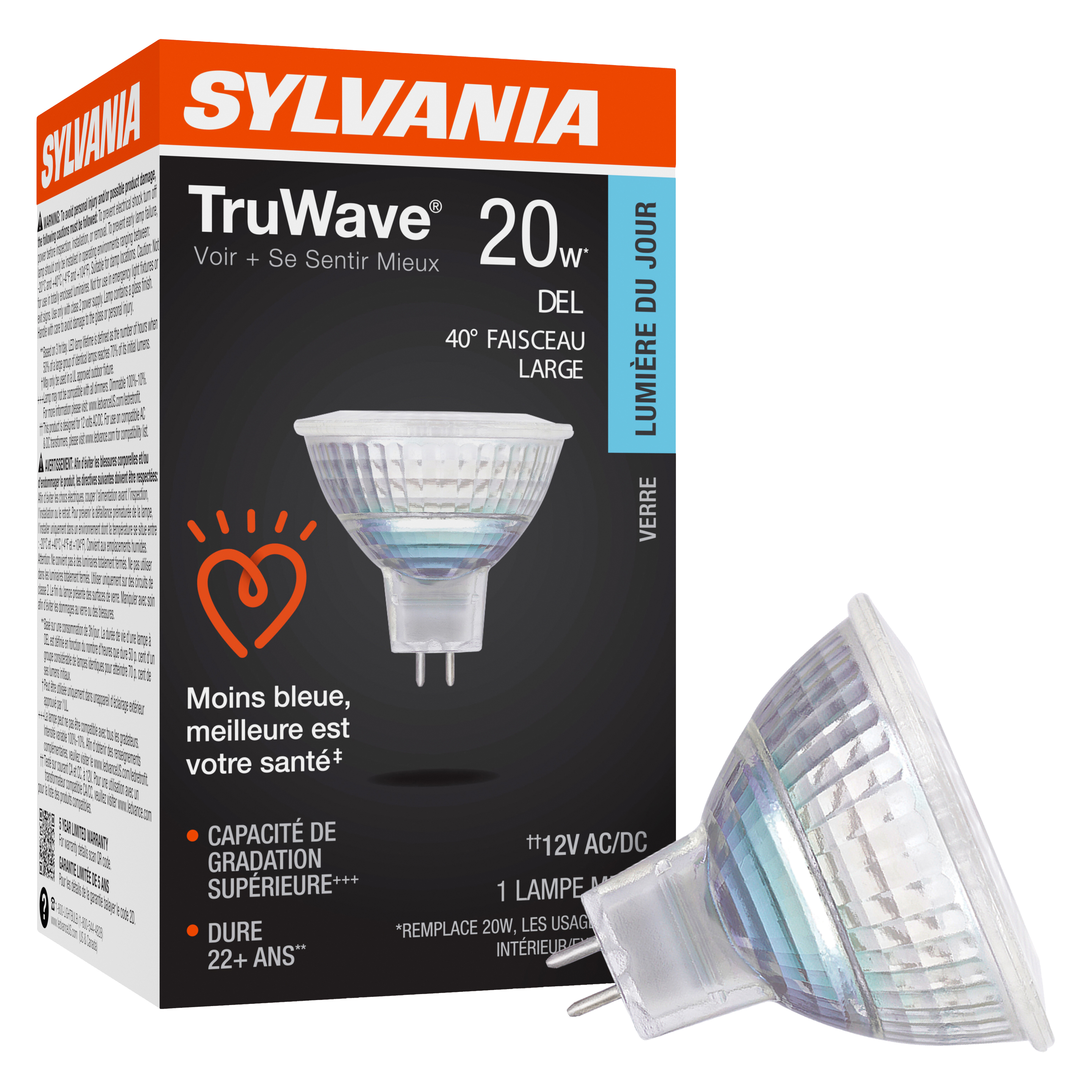

Combo Shot = Product Beauty Shot + Packaging Image
Natural MR16 Bulb
Combo Shot = Product Beauty Shot + Packaging Image
Natural MR16 Bulb
Combo Shot = Product Beauty Shot + Packaging Image
Natural MR16 Bulb
Combo Shot = Product Beauty Shot + Packaging Image
Natural MR16 Bulb

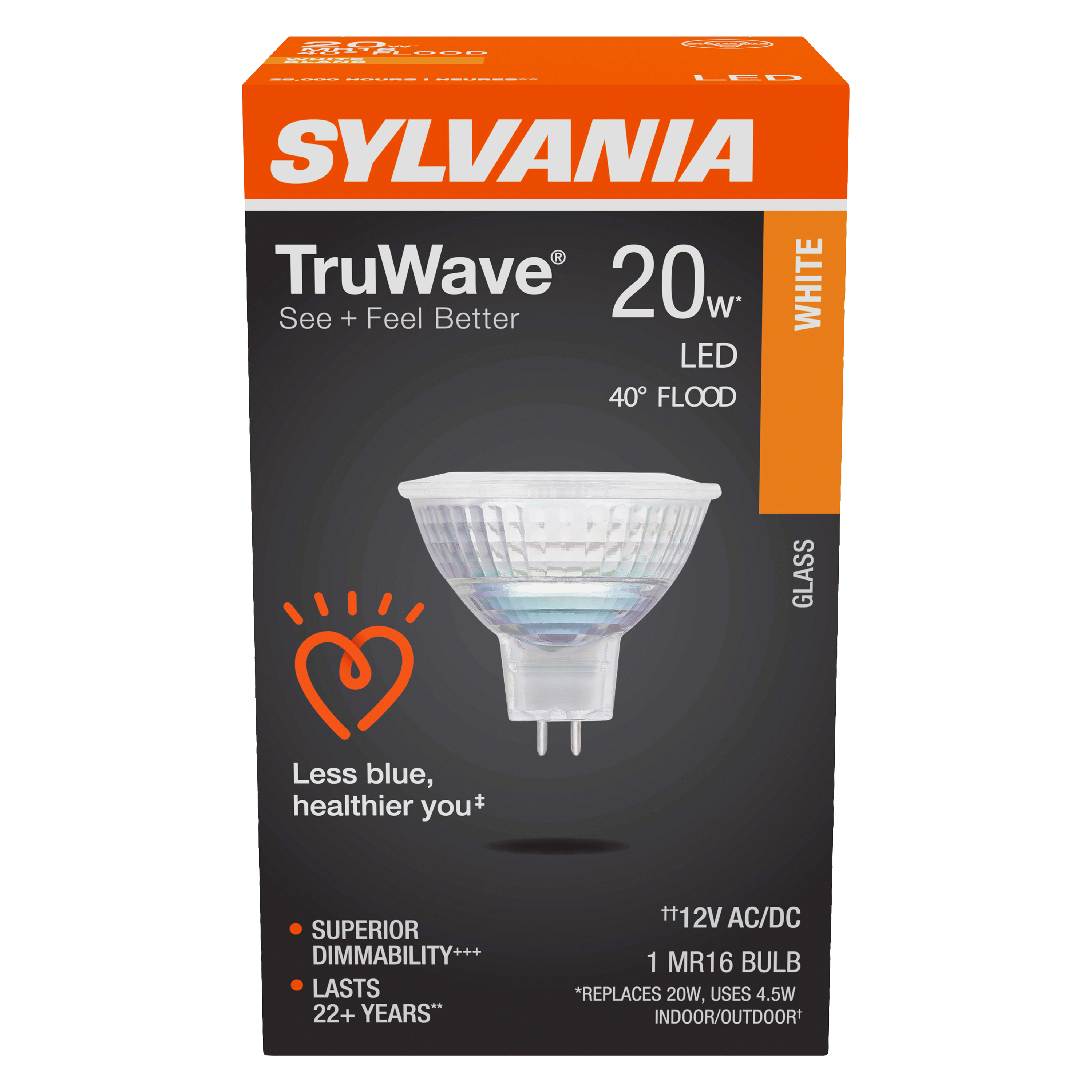

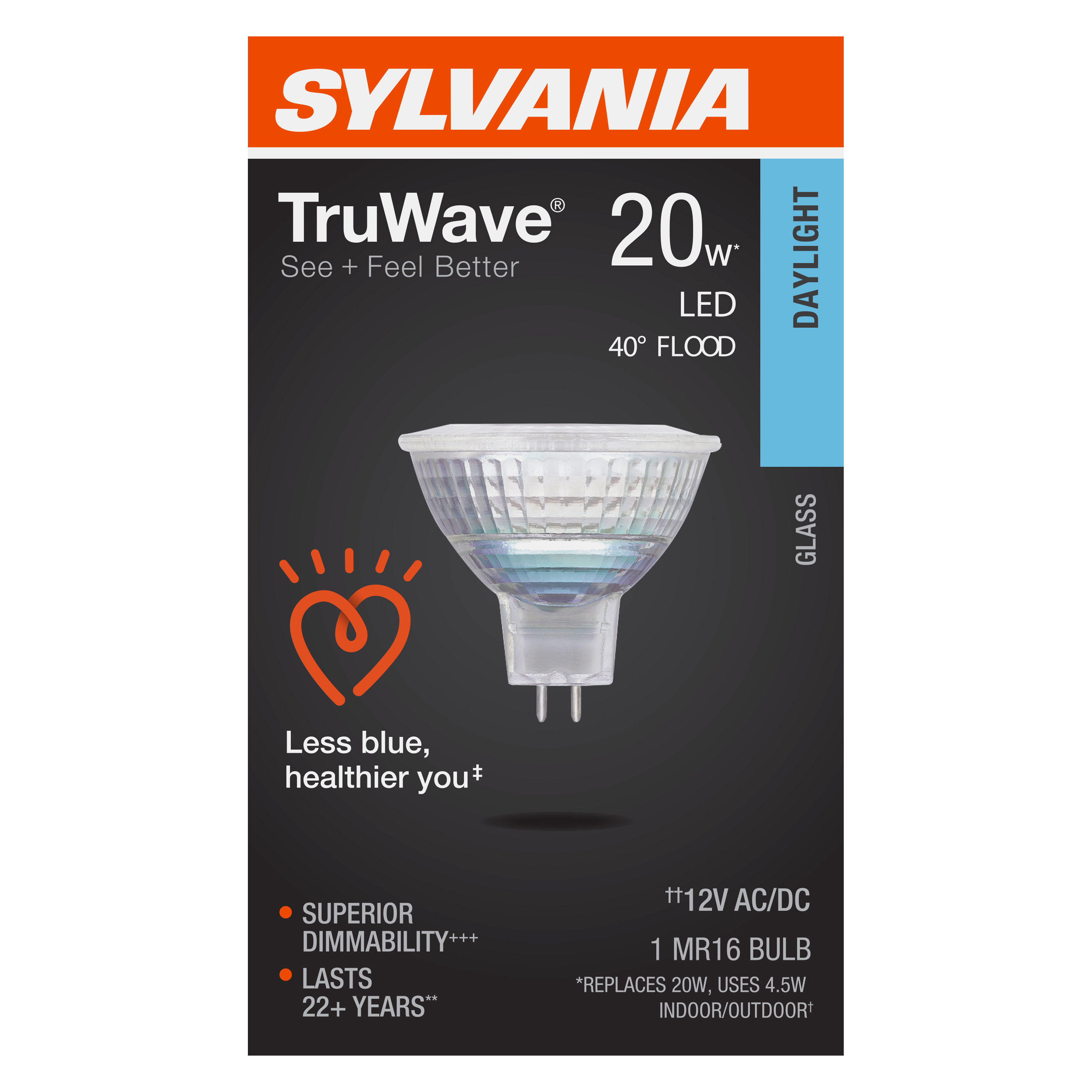

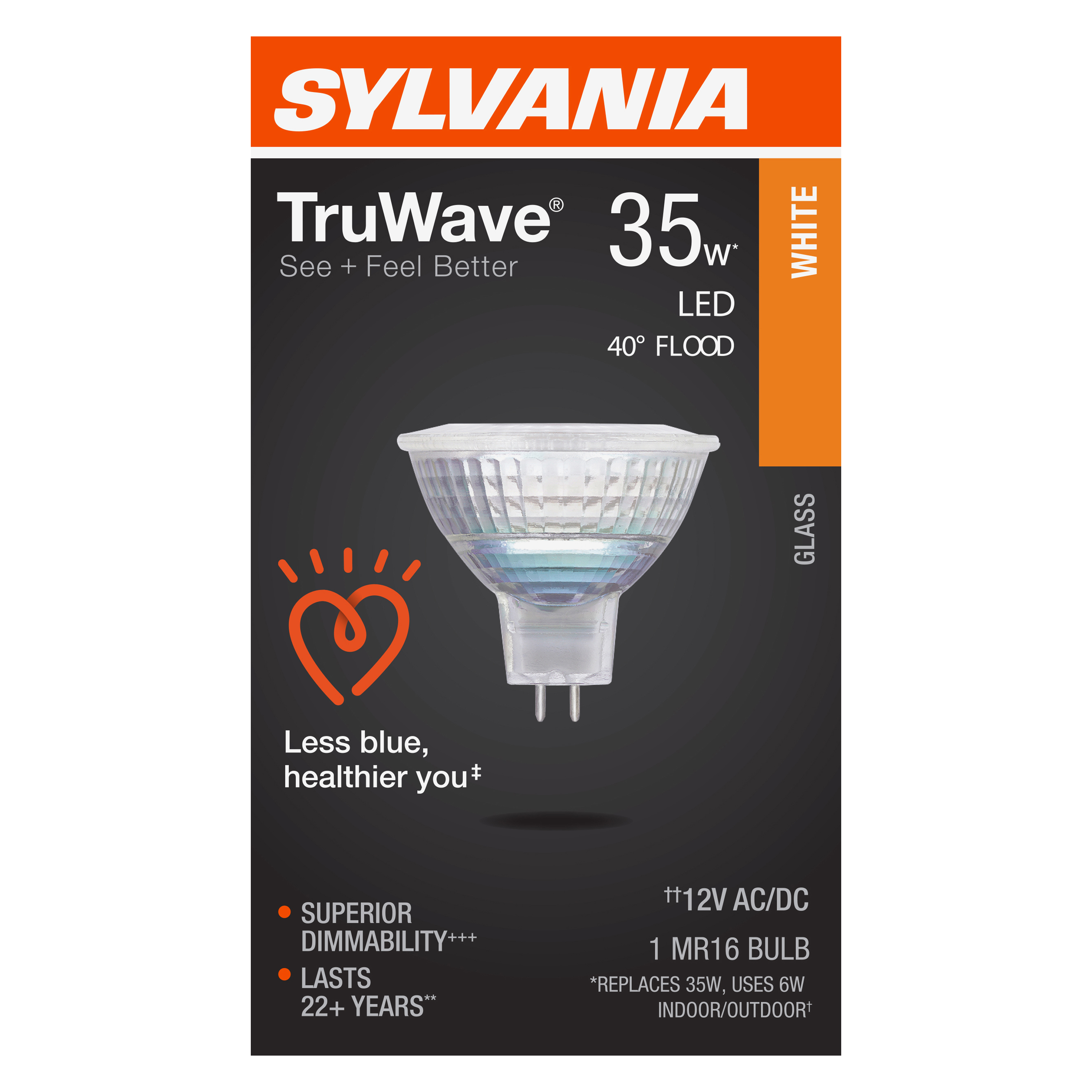

Packaging image, frontal
