PRODUCT DETAILS
Areas of application
- Indoor low bay
- Residential
- Hospitality
- Retail
Product features
- Ultra slim design for a modern look
- Available in 120V only
- Clear bright light (5000K) offers uniform, glare free illumination distribution
- Up to 100 LPW
- E26 Medium Screw-based design intended to replace traditional technologies
- 80 CRI, R9>0
- Energy savings up to 84 %
Safety advice
- Not for use with dimmers.
- Please read and comply with all instructions, including the installation manual included inside the packaging before attempting installation.
- All installation, inspection, and maintenance of lighting fixtures should be done with the power to the fixture turned off.
- Lamps should be installed and operated in compliance with the National Electrical Code (NEC), Underwriters Laboratories Inc. (UL) requirements, and all applicable codes and regulations.
Product Family Spec Sheet
Low Bay Surface Light
Low Bay Surface Light
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Other documents / promotion
LED HIDr Lamps
LED HIDr Lamps
Electrical data
| Nominal Wattage | 47.00 W |
| Nominal voltage | 120.00 V |
| Claimed Equivalent Lamp Pwr | 100 W |
Photometrical data
| Lumens | 4600 lm |
| Efficacy | 98 |
| Color Temperature/CCT | 5000 K |
| Color Rendering Index (CRI) | > 80 |
| Light color | 850 |
Dimensions & Weight
| Diameter | 11.8 in |
| Length | 4.18 in |
| Height | 11.8 in |
| Width | 11.8 in |
| Product weight | 1.44 lb |
Materials & Colors
| Bulb shape | SPECIAL |
| Bulb Glass Type | PLASTICS |
Application & Mounting
| Dimming | No |
Lifespan
| Average Rated Life (hr) | 15000 |
Additional product data
| Base type | E26 |
| Ordering Abbreviation | LED47LOWBAY850MED |
| Abbrev. With Packaging Info. | LED47LOWBAY850MED 3/CS 1/SKU |
| SKU UPC | 0046135413551 |
| General Description | 47W LED Low Bay Lamp with premium ring - 5000K Med |
Capabilities
| Dimming | No |
Certificates & Standards
| Certification Listing | RoHS; FCC |
Logistical data
| SKU Qty | 1 |
| Case Qty | 3 |
| Case Length (in) | 14.567 |
| Case Width (in) | 12.795 |
| Case Depth (in) | 13.386 |
| Case Cube (ft) | 1.444 |
| Case Weight (lbs) | 7.500 |
| SKU UPC | 0046135413551 |
| Pallet Qty | 81 |
| SKU's/Case | 3 |
| SKU's/Pallet | 81 |
| Cases/Pallet | 27 |

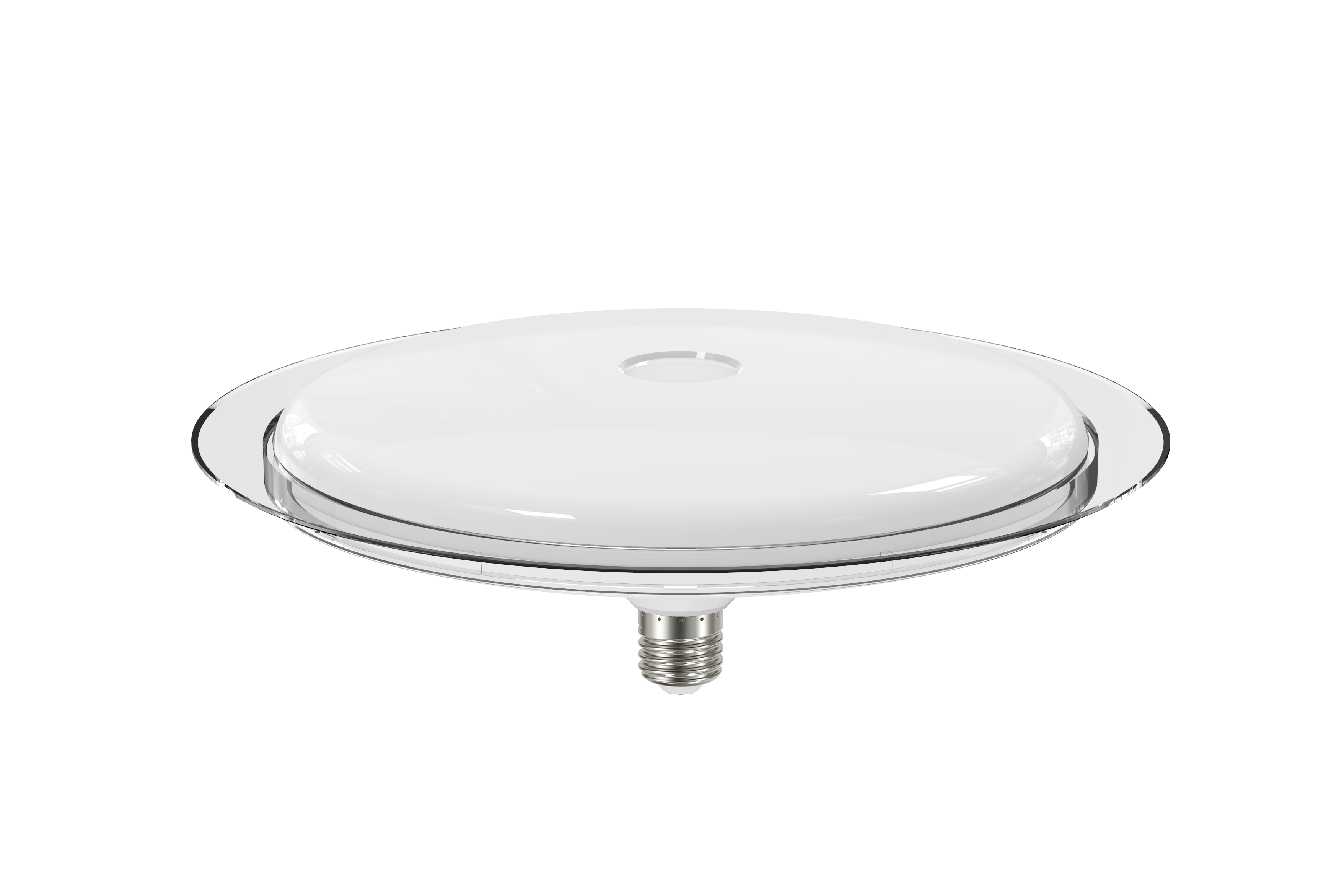

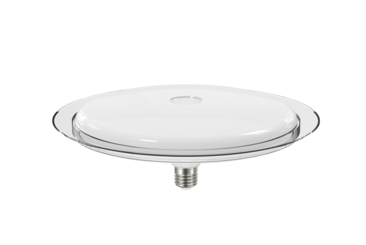

Product image: white background, horizontal
Low Bay Lamp with ring
Low Bay Lamp with ring
