SYLVANIA ULTRA LED™ HID Replacement High Lumen Lamps

HIDr High Lumen 80W UNV 5000K MOG

NAED: 40717
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • High and Low Bay
  • Decorative post tops
  • Walkways
Product features
  • No warm-up time, instant-on with full light output and stable color
  • Rated for open and enclosed fixtures
  • 360° beam angle (or omnidirectional) with Type V distribution
  • Up to 145 LPW
  • Replacement for 100W-400W HID Medium/Mogul Base applications
  • 80 CRI, R9>0
  • Energy savings up to 76 %
  • Available in 120-277V
  • 6KV surge
  • Easy to install, UL type B requires easy ballast bypass
Safety advice
  • Not intended for use in dimming applications.
  • Verify fixture size before installation to ensure fit.
  • Not suited with outdoor fixtures with air vents.
  • Should not be directly exposed to water/humidity.
  • All installation, inspection, and maintenance of lighting fixtures should be done with the power to the fixture turned off.
  • Please read and comply with all instructions, including the installation manual included inside the packaging before attempting installation.
  • Lamps should be installed and operated in compliance with the National Electrical Code (NEC), Underwriters Laboratories Inc. (UL) requirements, and all applicable codes and regulations.
  • See installation manual for wiring options.
  • Ensure lamp holders/sockets are in good operating condition before installation and if any defects are detected, change the lamp holders/sockets.
  • Do not make or alter any open holes in an enclosure of wiring or electrical components during installation.
  • Make sure the lamps have the proper connections before restoring power.
Product Family Spec Sheet
ULTRA LED High Lumen Lamps
PDF (377.57 KB)
Other documents / promotion
LED HIDr Lamps
PDF (842.09 KB)
Other documents / promotion
Ultra LED Retrofit and True Wave™ Limited Product Warranty
PDF (226.52 KB)
Electrical data
Nominal Wattage 80.00 W
Nominal voltage 120.00…277.00 V
Claimed Equivalent Lamp Pwr 250 W
Type of current AC
Photometrical data
Lumens 11600 lm
Efficacy 145
Color Temperature/CCT 5000 K
Color Rendering Index (CRI) 80
Light color 850
Dimensions & Weight
Diameter 4.53 in
Length 9.8 in
Height 4.53 in
Width 4.53 in
Product weight 3.04 lb
Materials & Colors
Lamp Finish Clear
Bulb shape SPECIAL
Bulb Glass Type PLASTICS
Application & Mounting
Dimming No
Temperatures & operating conditions
Ambient temperature range -40…+50 °C
Lifespan
Average Rated Life (hr) 50000
Additional product data
Base type EX39
Mercury content 0.0 mg
Ordering Abbreviation LED80HIDR850
Abbrev. With Packaging Info. LED80HIDR850 4/CS 1/SKU
SKU UPC 0046135407178
Family Brand Name ULTRA
General Description 80W LED HID Retrofit Lamp 80W; 5000K - Corn Lamp
Warranty 5 years
Capabilities
Dimming No
Certificates & Standards
Certification Listing RoHS; CSA; FCC; cULus; CEC
Logistical data
SKU Qty 1
Case Qty 4
Case Length (in) 10.750
Case Width (in) 10.750
Case Depth (in) 11.625
Case Cube (ft) 0.777
Case Weight (lbs) 13.619
SKU UPC 0046135407178
Pallet Qty 192
SKU's/Case 4
SKU's/Pallet 192
Cases/Pallet 48
Product image Product name UPC
LED ADAPTOR LEDADAPTORMOGUL OS75055

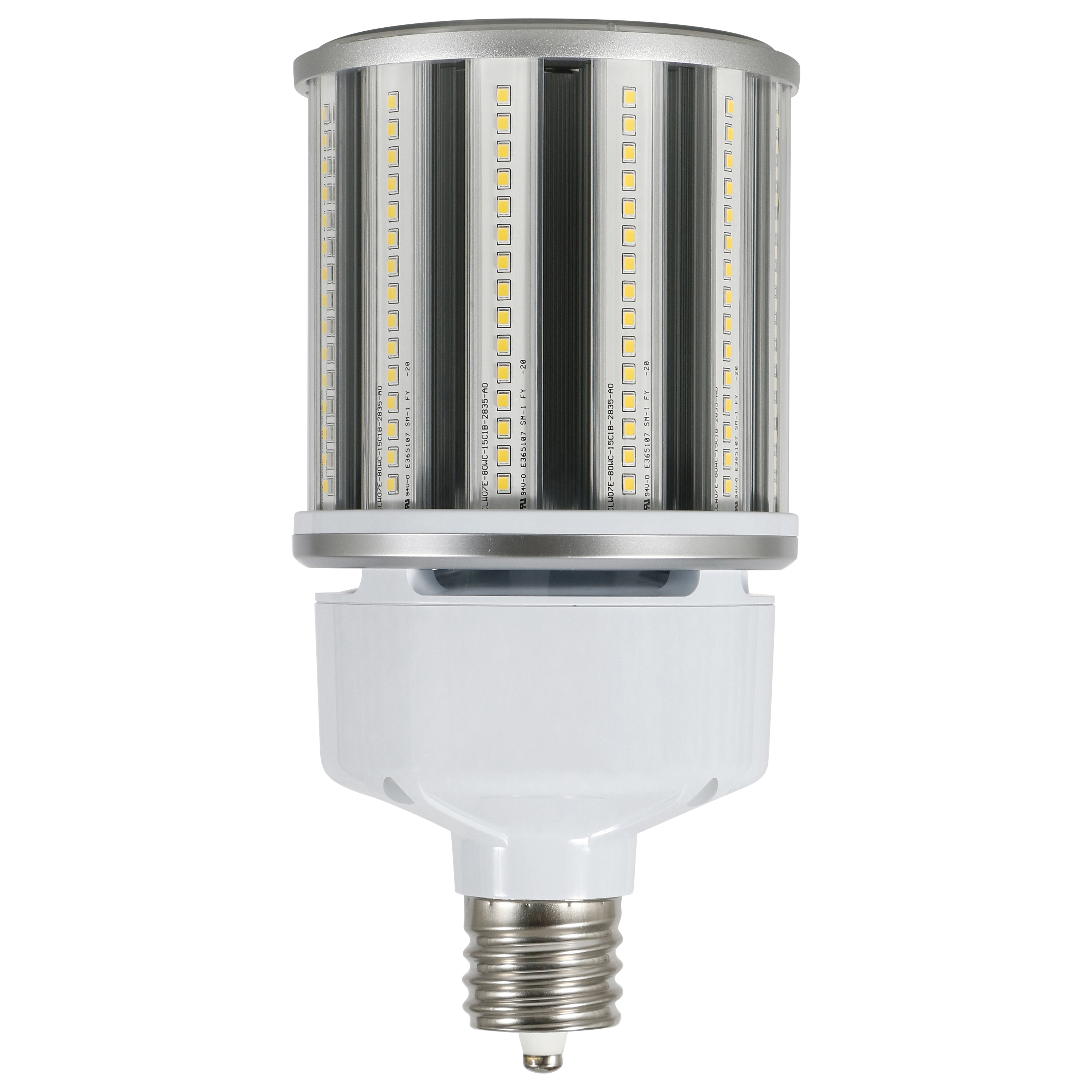

Product image: white background, upright
