SYLVANIA ULTRA LED™ High Lumen Filament Lamps

HIDr High Lumen Filament ED37 63W UNV 4000K FR MOG

NAED: 41911 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • High and Low Bay
  • Decorative post tops
  • Walkways
  • Shoebox
  • Wall packs
  • Hospitality
  • Retail
  • Suitable for use in open and enclosed fixtures
Product features
  • 300° beam angle
  • Made of glass for high quality light distribution and superior optics
  • LED replacements are not bound to single operating positions
  • Up to 158 LPW
  • 80 CRI, R9>0
  • Energy savings up to 82 %
  • Available in 120-277V
  • 2KV surge
  • Easy to install, UL type B requires easy ballast bypass
Safety advice
  • Should not be directly exposed to water.
  • Please read and comply with all instructions, including the installation manual included inside the packaging before attempting installation.
  • All installation, inspection, and maintenance of lighting fixtures should be done with the power to the fixture turned off.
  • Lamps should be installed and operated in compliance with the National Electrical Code (NEC), Underwriters Laboratories Inc. (UL) requirements, and all applicable codes and regulations.
  • See installation manual for wiring options.
  • Ensure lamp holders/sockets are in good operating condition before installation and if any defects are detected, change the lamp holders/sockets.
  • Do not make or alter any open holes in an enclosure of wiring or electrical components during installation.
Electrical data
Nominal wattage 63 W
Construction wattage 63.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 250 W
Photometrical data
Luminous flux 9500 lm
Luminous efficacy 150 lm/W
Color temperature 4000 K
Color rendering index Ra > 80
Light color 840
Dimensions & Weight
Overall length 260.00 mm
Diameter 120.00 mm
Product weight 330.00 g
Additional product data
Base (standard designation) EX39
Mercury content 0.0 mg
Capabilities
Dimmable Yes
Country-specific categorizations
Order reference 63W/840 120V EX
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) EX39
Length 260.00 mm
Height 120.00 mm
Width 120.00 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135419119 Folding box
1		 138 mm x 138 mm x 304 mm 415.00 g 5.79 dm³
4058118265824 Shipping box
6		 438 mm x 298 mm x 338 mm 2948.00 g 44.12 dm³
Product image Product name EAN
LED ADAPTOR MOGUL BASE 0046135750557
Product information bulletin
ULTRA LED™ High Lumen Filament Lamp
PDF (739.36 KB)
Other documents / promotion
Ultra LED Retrofit and True Wave™ Limited Product Warranty
PDF (226.52 KB)

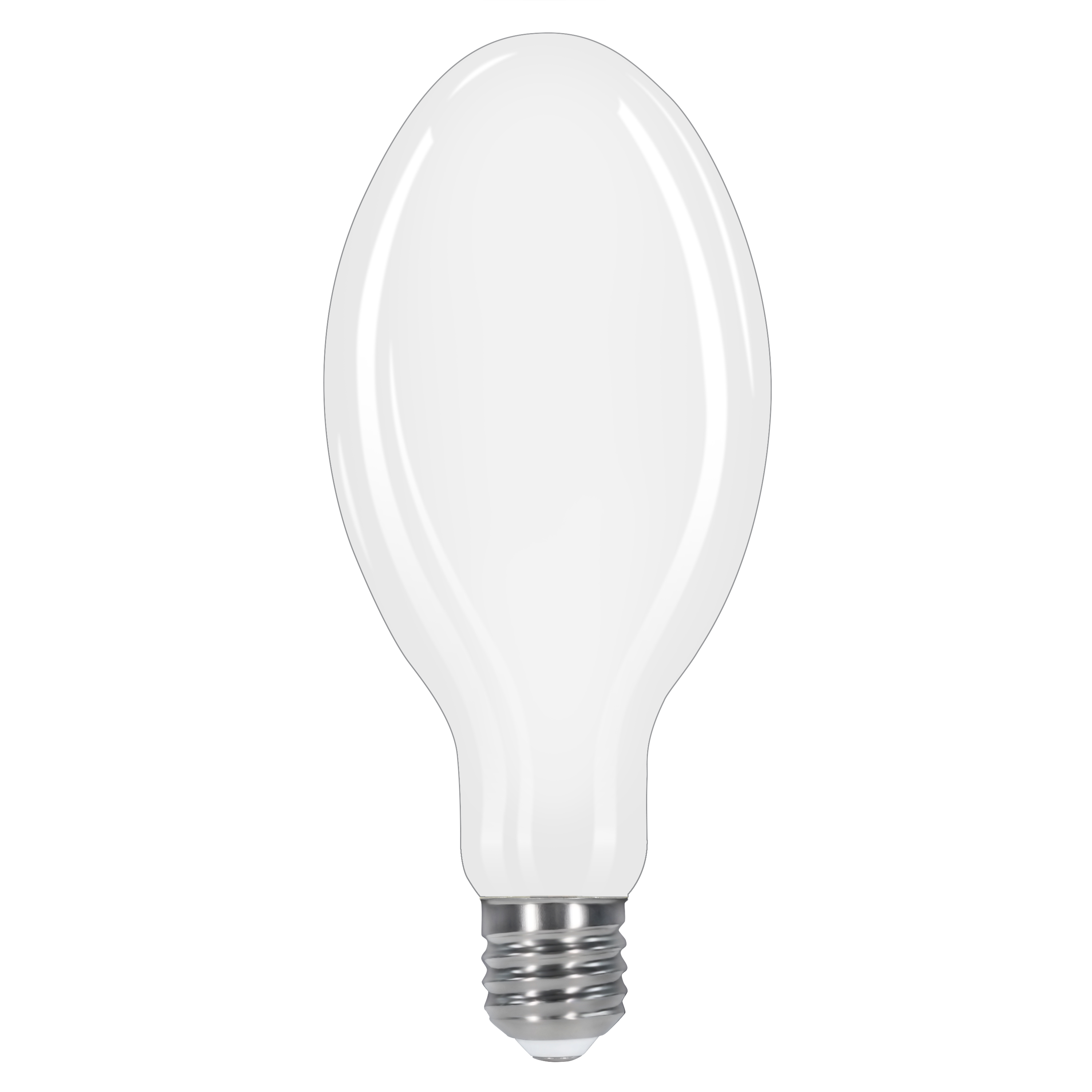

Product image: white background, upright
Frosted ED37 HIDr Bulb
JPG (785.49 KB)

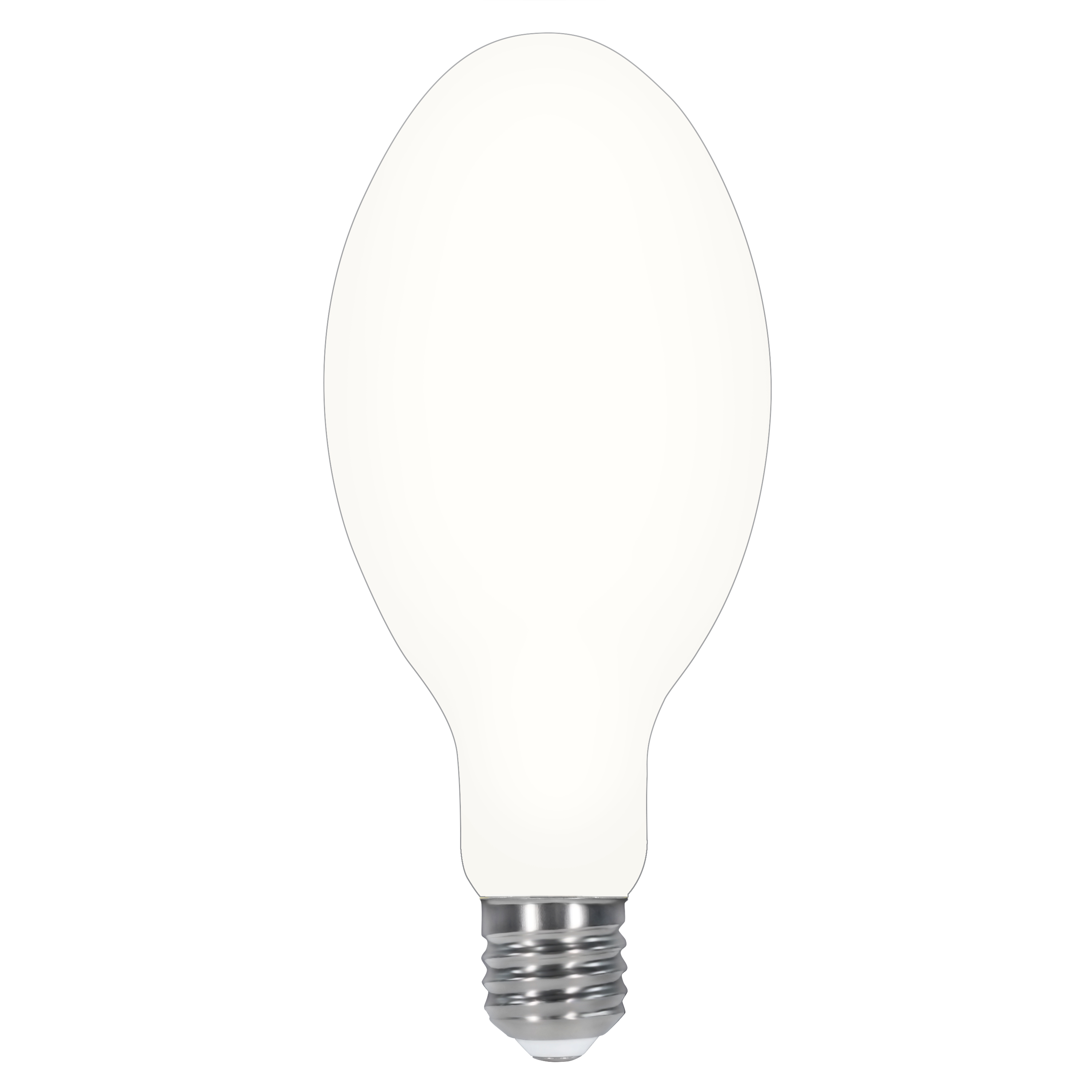

Beauty Shot
ED37 Frosted Bulb HIDr - 4000K
JPG (750.6 KB)
IES files (IES, additional)
HIDr IES LM79
ZIP (14.5 MB)
