SYLVANIA ULTRA LED™ HID Replacement CCT Selectable Lamps

HIDr 3 CCT Selectable 120W 3CCT MOG

NAED: 41014 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • High and Low Bay
  • Decorative post tops
  • Walkways
Product features
  • Lumen and CCT selectable light enabled through onboard switches
  • No warm-up time, instant-on with full light output and stable color
  • Rated for open and enclosed fixtures
  • 360° beam angle (or omnidirectional) with Type V distribution
  • Up to 155 LPW
  • Selectable CCTs: 3000/4000/5000K
  • 80 CRI, R9>0
  • Energy savings up to 76 %
  • Available in 120-277V
  • 6KV surge
  • Easy to install, UL type B requires easy ballast bypass
Safety advice
  • Verify fixture size before installation to ensure fit.
  • Dimming function can only be enabled either through a physical knob on 27W-120W lamps or by pairing with a SYLVANIA motion sensor and remote control (purchased separately) for 80W-120W lamps.
  • Dimming is not compatible with other dimmers.
  • Not suited with outdoor fixtures with air vents.
  • Should not be directly exposed to water.
  • All installation, inspection, and maintenance of lighting fixtures should be done with the power to the fixture turned off.
  • Please read and comply with all instructions, including the installation manual included inside the packaging before attempting installation.
  • Lamps should be installed and operated in compliance with the National Electrical Code (NEC), Underwriters Laboratories Inc. (UL) requirements, and all applicable codes and regulations.
  • See installation manual for wiring options.
  • Ensure lamp holders/sockets are in good operating condition before installation and if any defects are detected, change the lamp holders/sockets.
  • Do not make or alter any open holes in an enclosure of wiring or electrical components during installation.
  • Make sure the lamps have the proper connections before restoring power.
Product information bulletin
ULTRA LED™ Selectable HIDR
PDF (656.48 KB)
Other documents / promotion
Ultra LED Retrofit and True Wave™ Limited Product Warranty
PDF (226.52 KB)
Electrical data
Nominal wattage 120 W
Construction wattage 120.00 W
Nominal voltage 120 V
Claimed equiv. conventional lamp power 400 W
Photometrical data
Luminous flux 18000 lm
Luminous efficacy 150 lm/W
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Dimensions & Weight
Overall length 286.00 mm
Diameter 130.00 mm
Product weight 1640.00 g
Additional product data
Base (standard designation) EX39
Capabilities
Dimmable Yes
Country-specific categorizations
Order reference 4X1 EN/FR
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) EX39
Length 286.00 mm
Height 130.00 mm
Width 130.00 mm
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135410147 Folding box
1		 137 mm x 137 mm x 317 mm 1788.00 g 5.91 dm³
4058118189519 Shipping box
4		 285 mm x 285 mm x 330 mm 7570.00 g 26.81 dm³

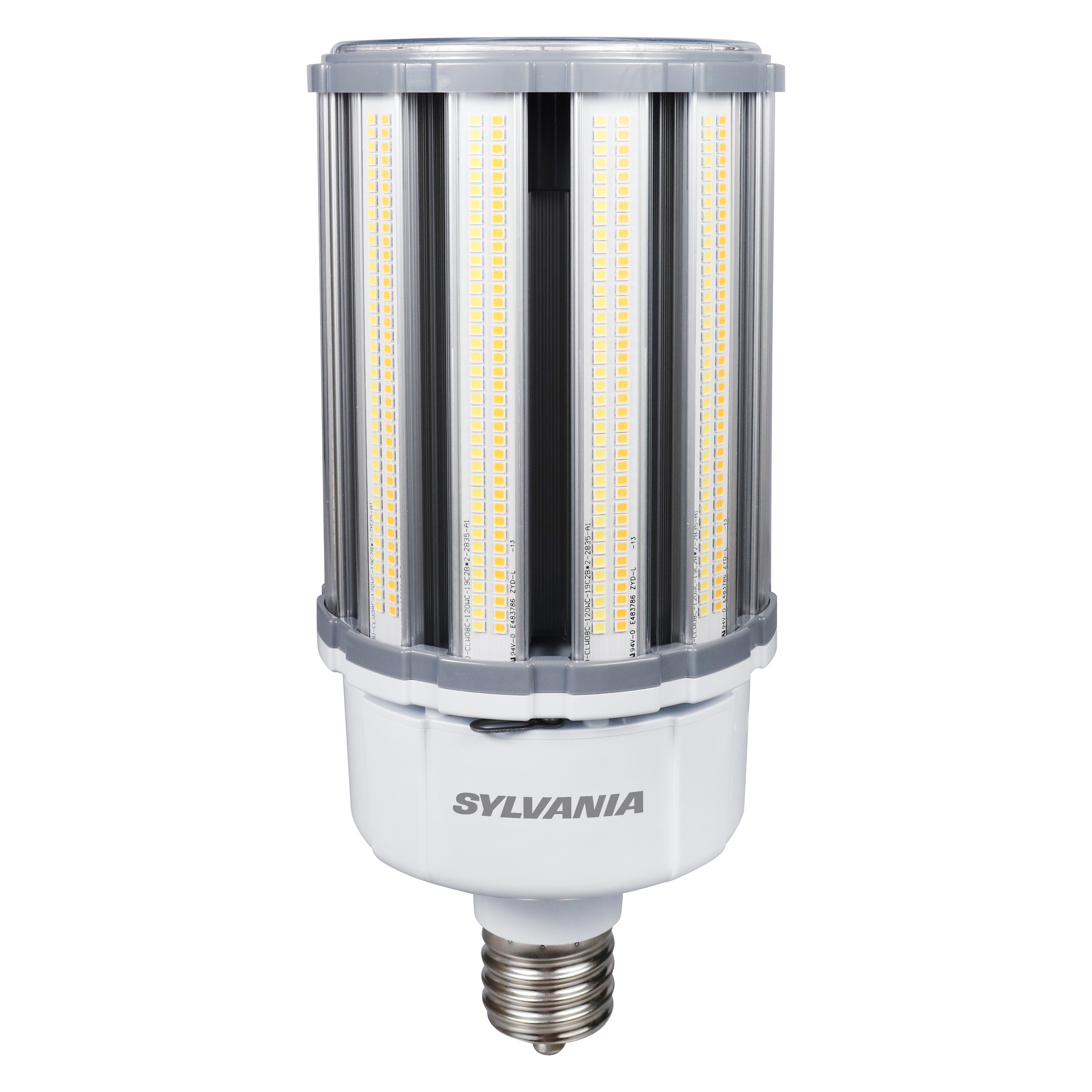

Product image: white background, upright
120W LED HIDr Lamp
JPG (2.11 MB)

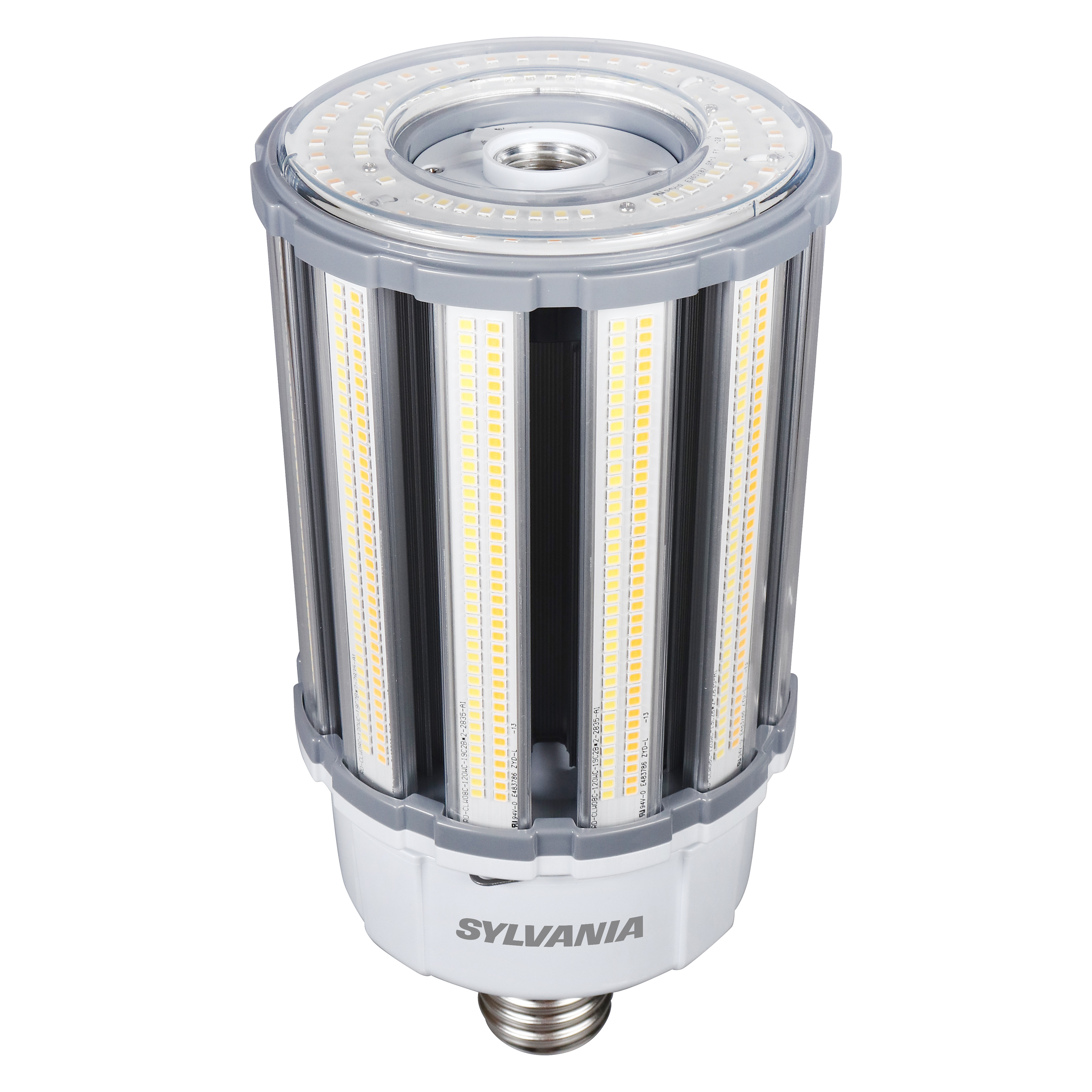

Beauty Shot
120W LED HIDr Lamp
JPG (2.45 MB)
