PRODUCT DETAILS
Areas of application
- Indoor low bay
- Garages
- Attics
- Workshops
Product features
- Ultra slim design for a modern look
- Available in 120V only
- Clear bright light (5000K) offers uniform, glare free illumination distribution
- Adjustable panels allow for customizable light
- 113° directional beam angle
- Up to 120 LPW
- 80 CRI, R9>0
- Energy savings up to 68 %
- E26 Medium Screw-based design intended to replace traditional technologies
Safety advice
- Suitable for use in enclosed luminaires
- Not for use with dimmers.
- Please read and comply with all instructions, including the installation manual included inside the packaging before attempting installation.
- All installation, inspection, and maintenance of lighting fixtures should be done with the power to the fixture turned off.
- Lamps should be installed and operated in compliance with the National Electrical Code (NEC), Underwriters Laboratories Inc. (UL) requirements, and all applicable codes and regulations.
Product Family Spec Sheet
MULTIPURPOSE UTILITY LIGHT
MULTIPURPOSE UTILITY LIGHT
Other documents / promotion
LEDVANCE Product Launch Flyer May 2023
LEDVANCE Product Launch Flyer May 2023
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Other documents / promotion
LED HIDr Lamps
LED HIDr Lamps
Electrical data
| Nominal Wattage | 60.00 W |
| Nominal voltage | 120.00 V |
| Claimed Equivalent Lamp Pwr | 120 W |
Photometrical data
| Lumens | 7200 lm |
| Efficacy | 120 |
| Color Temperature/CCT | 5000 K |
| Color Rendering Index (CRI) | 80 |
| Light color | 850 |
Dimensions & Weight
| Diameter | 11.97 in |
| Length | 3.94 in |
| Height | 11.97 in |
| Width | 11.97 in |
| Product weight | 1.76 lb |
Materials & Colors
| Lamp Finish | Frosted |
| Bulb shape | SPECIAL |
| Bulb Glass Type | PLASTIC LENS |
Application & Mounting
| Dimming | No |
Temperatures & operating conditions
| Ambient temperature range | -40…+40 °C |
Lifespan
| Average Rated Life (hr) | 50000 |
Additional product data
| Base type | E26 |
| Mercury content | 0.0 mg |
| Ordering Abbreviation | LED60GARAGE850MED |
| Abbrev. With Packaging Info. | LED60GARAGE850MED 8/CS 1/SKU |
| SKU UPC | 0046135413940 |
| Family Brand Name | LEDVANCE PERFORMANCE CLASS |
| General Description | 60W Garage Retrofit, black finish, 120V, 1.5kV surge suppression |
Capabilities
| Dimming | No |
Certificates & Standards
| Certification Listing | RoHS; FCC; cULus |
Logistical data
| SKU Qty | 1 |
| Case Qty | 8 |
| Case Length (in) | 12.598 |
| Case Width (in) | 12.598 |
| Case Depth (in) | 13.976 |
| Case Cube (ft) | 1.284 |
| Case Weight (lbs) | 17.454 |
| SKU UPC | 0046135413940 |
| Pallet Qty | 216 |
| SKU's/Case | 8 |
| SKU's/Pallet | 216 |
| Cases/Pallet | 27 |

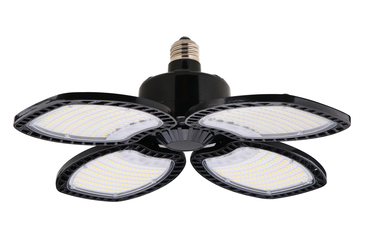

Product image: white background, horizontal
