HID REPLACEMENT SELECTABLE GLASS FILAMENT LAMPS
HIDR GLASS FILAMENT ED37 45W 3CCT 120-277V CL MOG
NAED: 42888
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Outdoor open spaces
- Parking lots
- Pathways
- Walkways
Product features
- Glass Lens
- Available in 120-277V
- 360° beam angle (or omnidirectional) with Type V distribution
Safety advice
- Ensure the internal ambient air temperature does not exceed maximum lamp temperature ratings.
User instruction / safety instructions
HID REPLACEMENT SELECTABLE GLASS FILAMENT LAMPS UI
HID REPLACEMENT SELECTABLE GLASS FILAMENT LAMPS UI
Product Family Spec Sheet
HID REPLACEMENT SELECTABLE GLASS FILAMENT LAMPS
HID REPLACEMENT SELECTABLE GLASS FILAMENT LAMPS
Other documents / promotion
LEDVANCE Product Launch Flyer August 2026
LEDVANCE Product Launch Flyer August 2026
Electrical data
| Nominal Wattage | 30.00/38.00/45.00 W |
| Nominal voltage | 120.00…277.00 V |
| Claimed Equivalent Lamp Pwr | 320 W |
Photometrical data
| Lumens | 8325 lm |
| Efficacy | 185 |
| Color Temperature/CCT | 3000/4000/5000 K |
| Color Rendering Index (CRI) | > 80 |
| Light color | 830 |
Dimensions & Weight
| Diameter | 4.72 in |
| Length | 11.5 in |
| Height | 4.72 in |
| Width | 4.72 in |
| Product weight | 1.1 lb |
Materials & Colors
| Lamp Finish | Clear |
| Bulb shape | ED37 |
| Bulb Glass Type | SOFT GLASS |
Application & Mounting
| Dimming | Yes |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
Lifespan
| Average Rated Life (hr) | 50000 |
Additional product data
| Base type | EX39 |
| Mercury content | 0.0 mg |
| Ordering Abbreviation | LEDS45ED37UNVCL8SC2MOG |
| Abbrev. With Packaging Info. | LEDS45ED37UNVCL8SC2MOG 10/CS 1/SKU |
| SKU UPC | 0046135428883 |
| Family Brand Name | PERFORMANCE |
| General Description | UNV 120-277V, ED37 SHAPE, 8325LM, 30/38/45W, 3000/4000/5000K, ›80 CRI, R9›0, CLEAR FINISH, MOGUL BASE, Ballast Bypass, 3KV |
Capabilities
| Dimming | Yes |
Certificates & Standards
| Certification Listing | RoHS; FTC; FCC; cETLus |
Logistical data
| SKU Qty | 1 |
| Case Qty | 10 |
| Case Length (in) | 24.409 |
| Case Width (in) | 24.409 |
| Case Depth (in) | 12.992 |
| Case Cube (ft) | 4.480 |
| Case Weight (lbs) | 14.433 |
| SKU UPC | 0046135428883 |
| Pallet Qty | 240 |
| SKU's/Case | 10 |
| SKU's/Pallet | 240 |
| Cases/Pallet | 24 |
| Product image | Product name | UPC |
|---|---|---|
|
Socket Extender EX39 MOGUL | OS42719 |

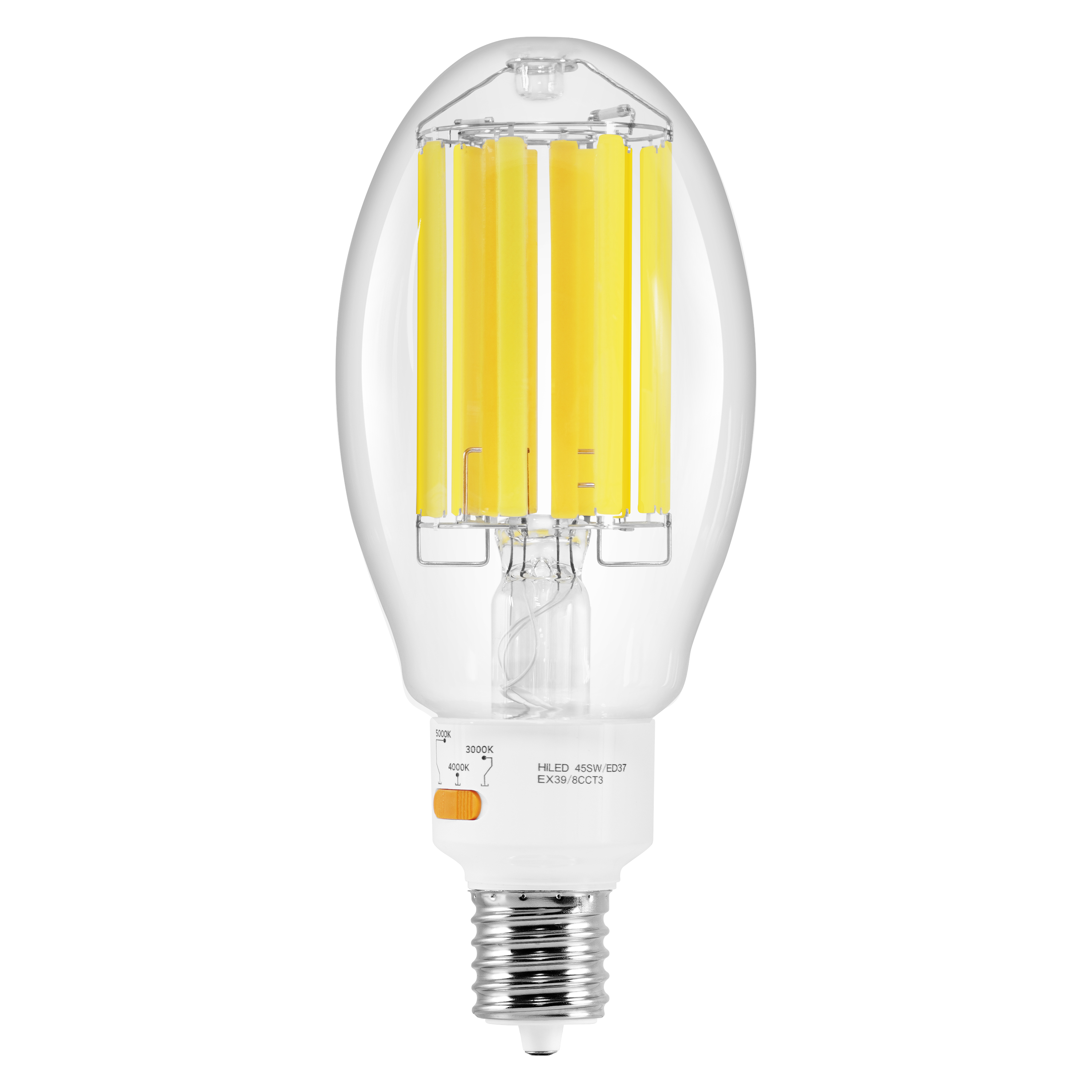

Product image: white background, upright
