SYLVANIA ULTRA A19 Lamps
ULTRA LED A19 5.5W DIM FR 2700K 1PK
NAED: 74688
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
- Indoor and outdoor
- Suitable for rough service
Product features
- 15,000 hours lifetime (L70)
- RoHS compliant, mercury and lead free
- UV and IR free
- Reduces energy consumption up to 85 %
- Last up to 20 times longer than incandescent lamps
- No warm-up time, instant-on with full light output and stable color
- Dimmable down to 10 %
- Approved for enclosed fixtures
Safety advice
- Suitable for damp locations.
- Not for use with emergency light fixtures or exit lights.
- -4°F and + 113°F (-20°C and +45°C)
Electrical data
| Nominal wattage | 5.5 W |
| Construction wattage | 5.50 W |
| Nominal voltage | 120 V |
| Claimed equiv. conventional lamp power | 40 W |
Photometrical data
| Luminous flux | 450 lm |
| Luminous efficacy | 81 lm/W |
| Color temperature | 2700 K |
| Color rendering index Ra | 80 |
| Light color | 827 |
Dimensions & Weight
| Overall length | 107.01 mm |
| Diameter | 59.99 mm |
| Product weight | 60.00 g |
Additional product data
| Base (standard designation) | E26 |
| Mercury content | 0.0 mg |
Capabilities
| Dimmable | Yes |
Country-specific categorizations
| Order reference | 5,5W/827 120V 6 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E26 |
| Length | 107.01 mm |
| Height | 59.99 mm |
| Width | 59.99 mm |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135746888 | Folding box 1 |
64 mm x 95 mm x 140 mm | 114.00 g | 0.84 dm³ |
| 10046135746885 | Shipping box 6 |
279 mm x 260 mm x 187 mm | 868.00 g | 13.63 dm³ |
Product information bulletin
ULTRA LED A-line Lamps
ULTRA LED A-line Lamps
Other documents / promotion
LED Ultra General Purpose Lamps Limited Warranty
LED Ultra General Purpose Lamps Limited Warranty
Packaging image, beauty shot
LED A19 package lamp dimmable 5.5W medium base
LED A19 package lamp dimmable 5.5W medium base

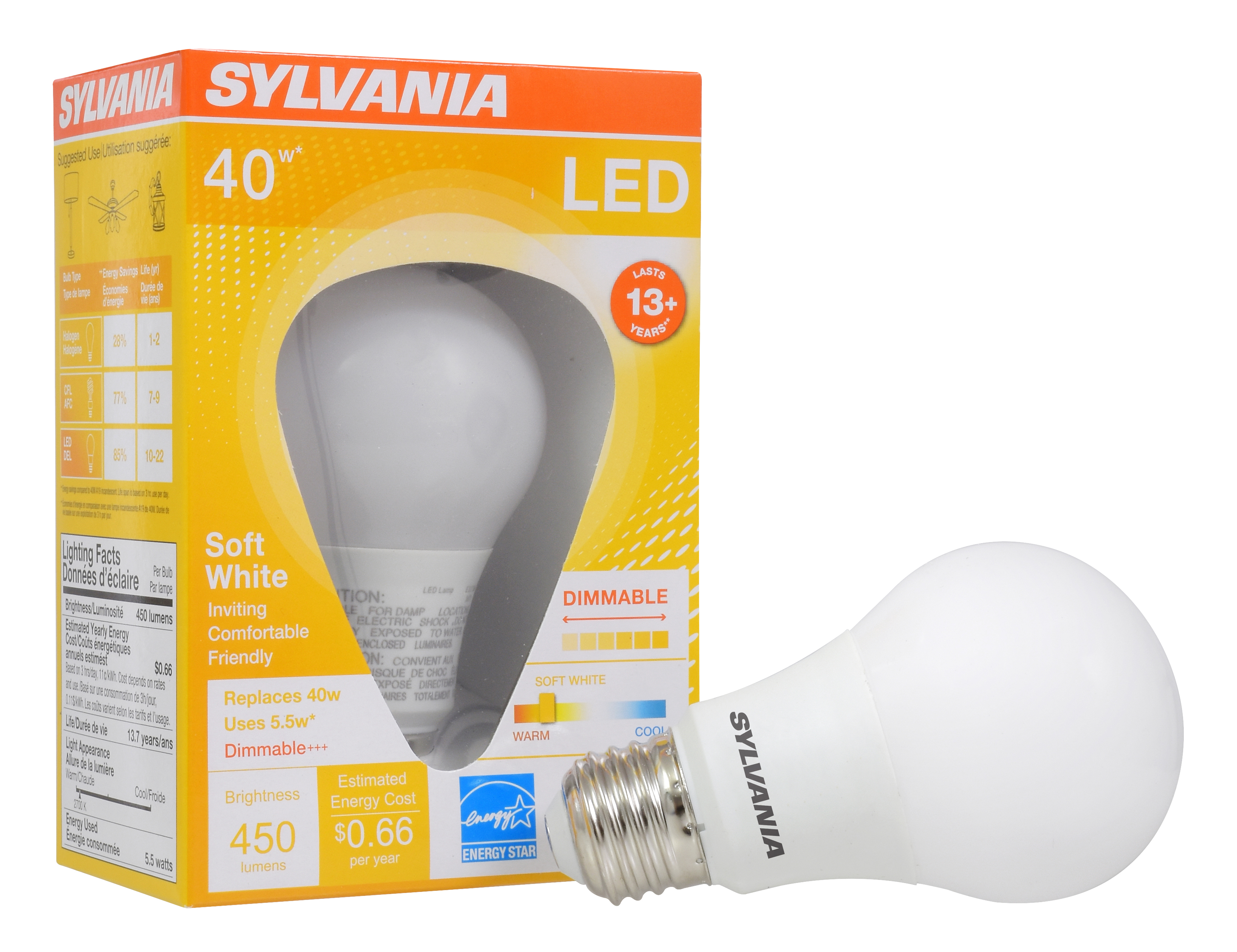

Packaging image, beauty shot
04613574688 bb Beauty Shot
04613574688 bb Beauty Shot
Packaging image, spacial
LED A19 PACKAGE 5.5W MEDIUM BASE Dimmable
LED A19 PACKAGE 5.5W MEDIUM BASE Dimmable
Packaging image, spacial
LED Soft White 5.5W A19
LED Soft White 5.5W A19

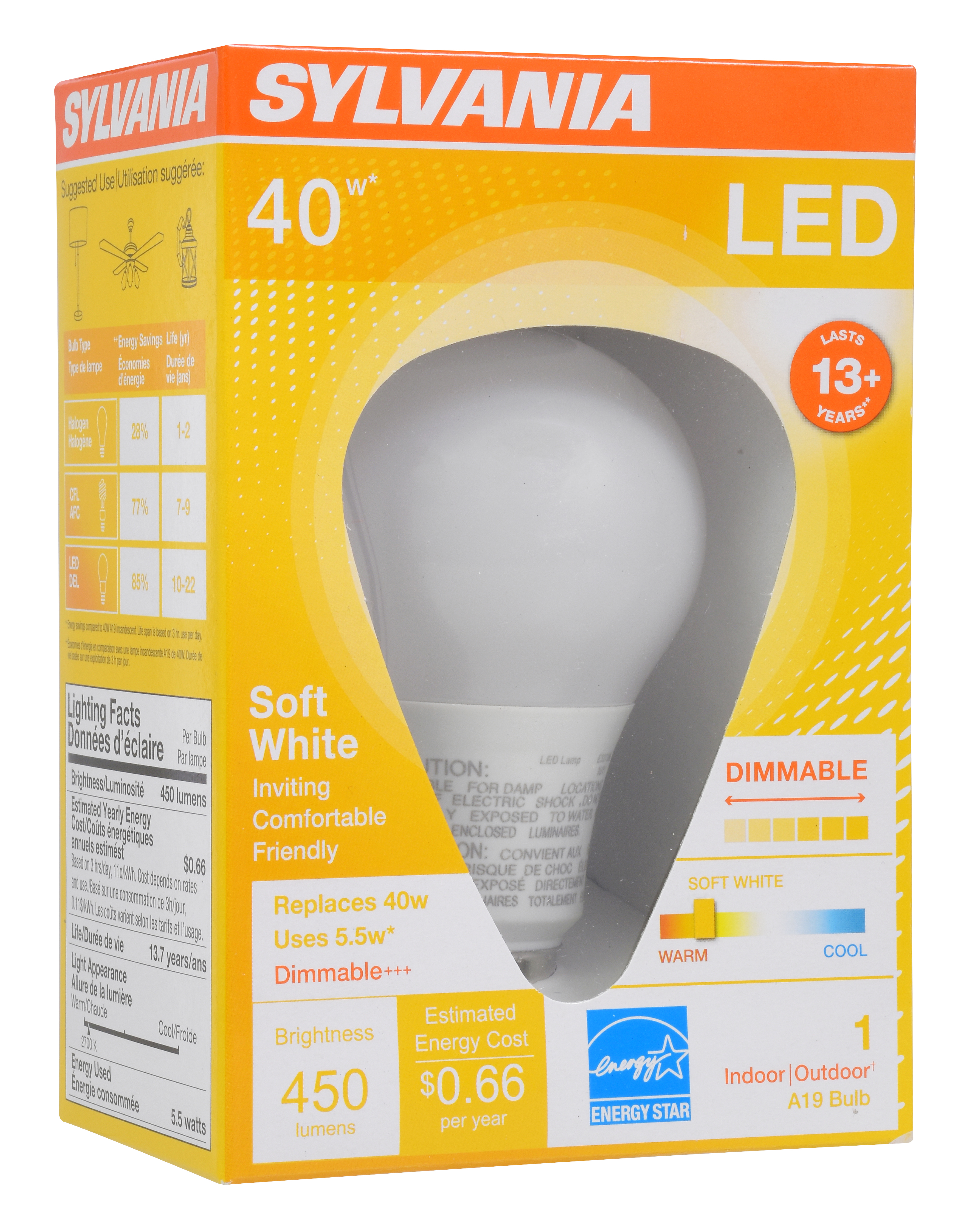

Packaging image, spacial
