SYLVANIA OCTRON 800 HIGH OUTPUT ECOLOGIC Fluorescent Lamps
FO96 HO ECO 86 841
NAED: 22207
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Industrial
- Recreation
- Refrigeration cases
- Retail
- Signage
- Warehousing / Storage
Product features
- Designed to pass the Federal TCLP test
- Energy saving alternative to T12 HO lamps and magnetic ballasts
- 50 % longer lamp life than T12 HO lamps
- 18,000 hours vs. 12,000 hours average rated life
- 94 % Lumen Maintenance
- Available in 3500K and 4100K
- Recessed Double Contact bases
Safety advice
- If retrofitting T12/HO system, socket change recommended, but not required.
- Minimum starting temperature dependent on ballast.
- Operation below 50°F may affect lumen output or lamp operation
- For cold temp applications, use in enclosed fixtures or use tube guards to maximize performance.
- Contains Mercury – Dispose of according to Local, State or Federal laws
Electrical data
| Nominal Wattage | 86.00 W |
| Rated lamp efficacy (HF data 25 °C) | Under clarification by authority and standardization body |
Photometrical data
| Lumens | 8200 lm |
| Efficacy | 95 |
| Color Temperature/CCT | 4100 K |
| Color Rendering Index (CRI) | 85 |
| Light color | 841 |
| Mean Lumens at 35C | 7,710 lm |
Dimensions & Weight
| Diameter | 1.09 in |
| Length | 96 in |
| Height | 1.09 in |
| Width | 1.09 in |
| Tube diameter | 26 mm |
| Product weight | 0.75 lb |
Materials & Colors
| Bulb shape | T8 |
Application & Mounting
| Starting Method | RAPID & INSTANT START |
Lifespan
| Service life | 18000 h 1) |
| Average Rated Life (hr) | 18000 |
| Life at 12 hrs./start on IS ballasts | 27000 |
| Life at 3 hrs./start on IS ballasts | 18000 |
1) With preheat ECG
Additional product data
| Base type | R17d |
| Mercury content | 8.5 mg |
| Ordering Abbreviation | FO96841HOECO |
| Abbrev. With Packaging Info. | FO96841HOECO 24/CS 1/SKU |
| SKU UPC | 0046135222078 |
| Family Brand Name | OCTRON® 800 HO ECO |
| General Description | 86W, 96" MOL, T8 OCTRON high output fluorescent lamp, 4100K color temperature, rare earth phosphor, 85 CRI, suitable for RS operation, ECOLOGIC |
Logistical data
| SKU Qty | 1 |
| Case Qty | 24 |
| Case Length (in) | 95.220 |
| Case Width (in) | 6.940 |
| Case Depth (in) | 5.350 |
| Case Cube (ft) | 2.046 |
| Case Weight (lbs) | 20.219 |
| SKU UPC | 0046135222078 |
| Pallet Qty | 960 |
| SKU's/Case | 24 |
| SKU's/Pallet | 960 |
| Cases/Pallet | 40 |
Product image: white background, diagonal
313063_LUMILUX T8 XT / LUMILUX T8 XXT
313063_LUMILUX T8 XT / LUMILUX T8 XXT
Product line drawing with letters
324360_FLUORESCENT LAMP (BASIC T8/LUMILUX T8) G13 BASE
324360_FLUORESCENT LAMP (BASIC T8/LUMILUX T8) G13 BASE
Beauty Shot

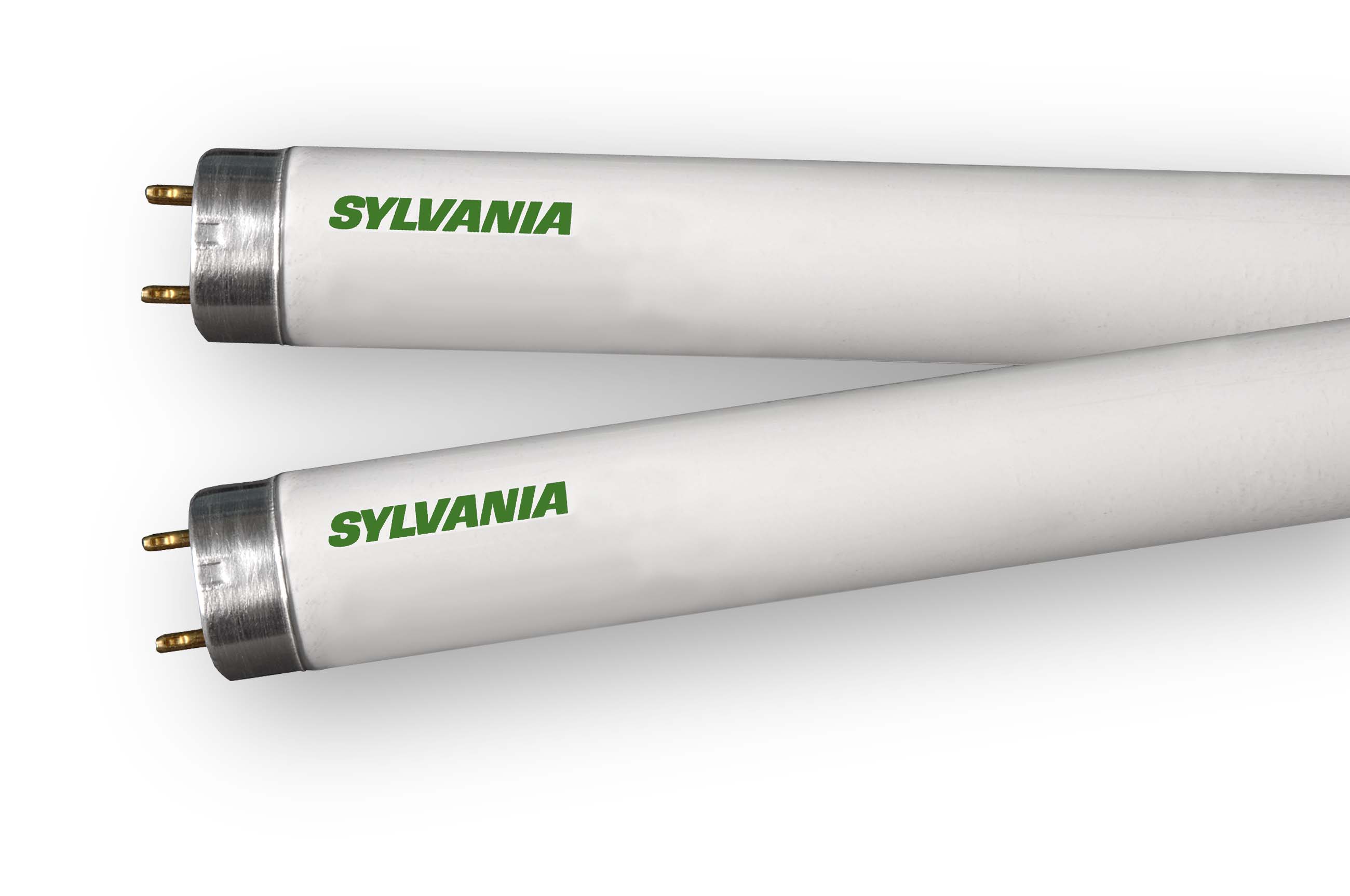

SYLVANIA OCTRON T8 Fluorescent image
