SYLVANIA OCTRON 800 XP CURVALUME EXtended Performance ECOLOGIC U-Shaped Fluorescent Lamps - 1 5/8" Leg Spacing
FBO XP ECO 29 835 SS
NAED: 22196
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Retail
- Offices
- Education
- Hospitals
- General lighting
Product features
- 1 5/8" OCTRON CURVALUME
- Improved lumens, CRI, and life vs. 800 series lamps
- 82 CRI
- Available in 3000K, 3500K, and 4100K
- 20,000-hour average rated life @ 3hr/start on a reference magnetic ballast
- OCTRON CURVALUME lamps operate on the same ballasts as linear OCTRON T8 lamps
- Lead-free, TCLP, & RoHS compliant
Safety advice
- Operate on electronic fluorescent ballasts.
- Lamp starting down to 0°F (dependent on ballast).
- Operation below 50°F may affect lumen output or lamp operation
- For rapid start operation, check with ballast manufacturer for ground plane requirements.
- For maximum energy savings, operate OCTRON lamps on electronic instant start ballasts.
- Contains Mercury – Dispose of according to Local, State or Federal laws
Product Family Spec Sheet
FLO20 OCTRON CURVALUME FLUORESCENT LAMPS
FLO20 OCTRON CURVALUME FLUORESCENT LAMPS
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 29.00 W |
| Rated lamp efficacy (HF data 25 °C) | Under clarification by authority and standardization body |
Photometrical data
| Lumens | 2500 lm |
| Efficacy | 86 |
| Color Temperature/CCT | 3500 K |
| Color Rendering Index (CRI) | 85 |
| Light color | 835 |
Dimensions & Weight
| Diameter | 1.09 in |
| Length | 22.5 in |
| Height | 1.09 in |
| Width | 1.09 in |
| Tube diameter | 26 mm |
| Product weight | 0.52 lb |
Materials & Colors
| Bulb shape | T8 |
Lifespan
| Service life | 5000 h |
| Average Rated Life (hr) | 24000 |
Additional product data
| Base type | G12 |
| Design / version | LUMILUX version |
| Ordering Abbreviation | FBO29/835XP/SS/ECO |
| Abbrev. With Packaging Info. | FBO29835XPSSECO 15/CS 1/SKU |
| SKU UPC | 0046135221965 |
| Family Brand Name | OCTRON® XP Curvalume SuperSaver® Ecologic® |
| General Description | 29W, 22.5" MOL, T8 OCTRON CURVALUME SUPERSAVER XP Extended Performance fluorescent lamp, 1 5/8" leg spacing, 3500K color temperature, rare earth phosphor, 85 CRI, suitable for instant start or programmed rapid start operation, ECOLOGIC |
Certificates & Standards
| Industry Standards | C78.901-2001 |
Logistical data
| SKU Qty | 1 |
| Case Qty | 15 |
| Case Length (in) | 24.000 |
| Case Width (in) | 9.000 |
| Case Depth (in) | 6.750 |
| Case Cube (ft) | 0.844 |
| Case Weight (lbs) | 10.670 |
| SKU UPC | 0046135221965 |
| Pallet Qty | 840 |
| SKU's/Case | 15 |
| SKU's/Pallet | 840 |
| Cases/Pallet | 56 |
Beauty Shot

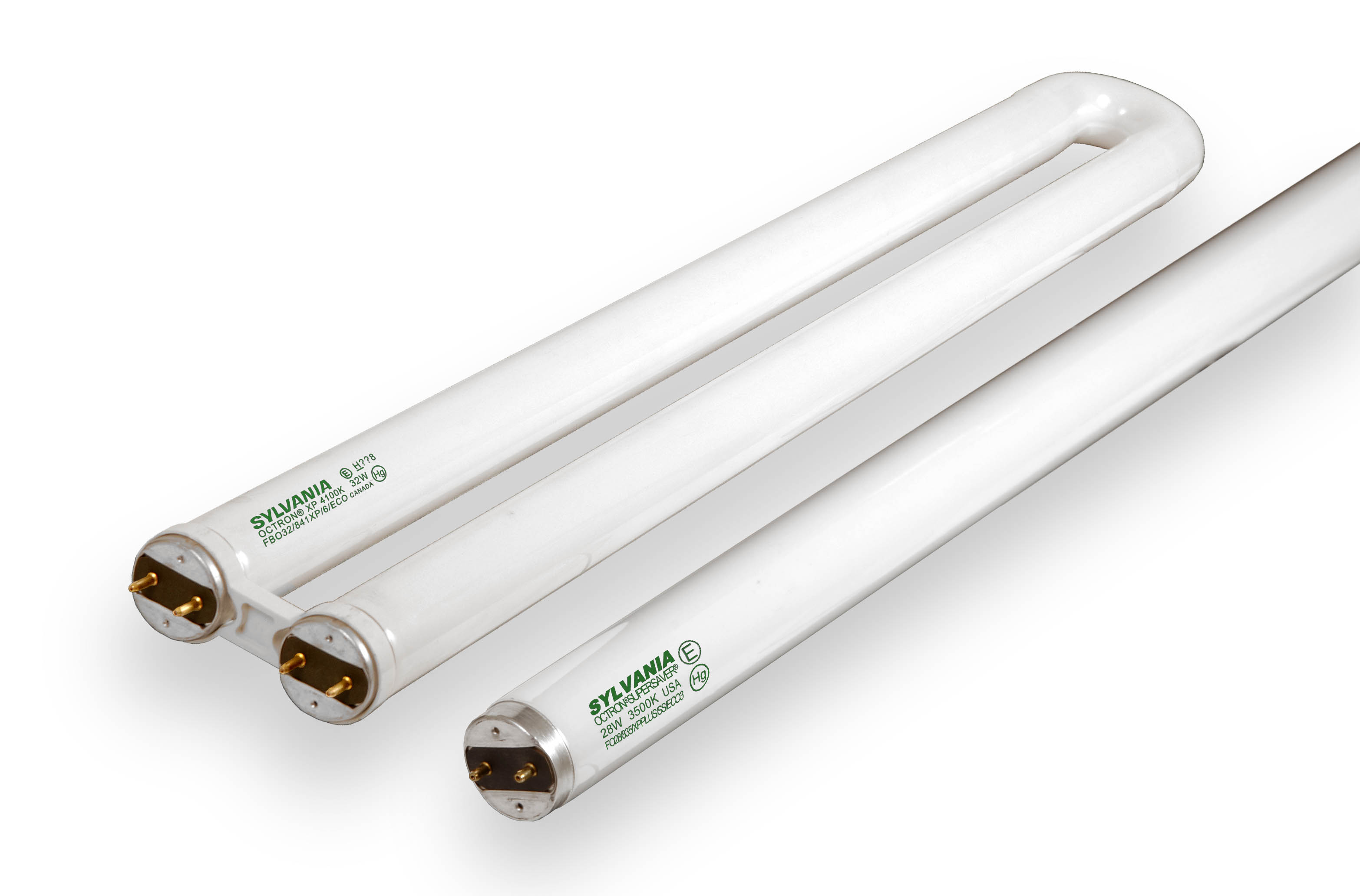

OCTRON T8 Fluorescent Lamp Family
OCTRON T8 Fluorescent Lamp Family
