LEDVANCE LINK™ TIME CLOCK MODULE
LINK TIME CONTROLLER 1A BLE
NAED: 63828
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product features
- Commission and configure with LEDVANCE LINK™ app
- Control using either the LEDVANCE LINK™ app or the wireless controller
- Grouping and Zoning: Wirelessly group luminaires to act in sync with each other
- Scene Control: Preset various scenes for individual or group of luminaires using the app and/or wireless/wired controllers
- QR Code for Admin/Guest control: Using the LEDVANCE LINK™ app, Admin and Guest QR codes for each zone can be generated. Allows copying the settings to another phone/tablet by scanning this QR code
- Allows setting time-based schedules and high-end and low-end trim through the LEDVANCE LINK™ app
Electrical data
| Nominal wattage | 360.00 W |
| Nominal voltage | 120…277 V |
| Mains frequency | 50…60 Hz |
Dimensions & Weight
| Length | 73.66 mm |
| Width | 29.21 mm |
| Height | 15.49 mm |
| Product weight | 22.00 g |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Protection class | II |
| Type of protection | IP66 |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854201196 | BAG 1 |
|||
| 4099854182457 | Shipping box 100 |
310 mm x 240 mm x 305 mm | 2535.00 g | 22.69 dm³ |
Extended installation guide
INSTALLATION GUIDE BLUETOOTH® MESH TIME CLOCK MODULE LEDVANCE LINK
INSTALLATION GUIDE BLUETOOTH® MESH TIME CLOCK MODULE LEDVANCE LINK
Extended installation guide
INSTALLATION GUIDE BLUETOOTH® MESH TIME CLOCK MODULE LEDVANCE LINKTM
INSTALLATION GUIDE BLUETOOTH® MESH TIME CLOCK MODULE LEDVANCE LINKTM
Extended installation guide
USER GUIDE LEDVANCE LINK FW Manager
USER GUIDE LEDVANCE LINK FW Manager
Other documents / promotion
DATASHEET LEDVANCE LINK™ BLUETOOTH MESH TIME CLOCK MODULE
DATASHEET LEDVANCE LINK™ BLUETOOTH MESH TIME CLOCK MODULE
Other documents / promotion
LEDVANCE Product Launch Flyer February 2024
LEDVANCE Product Launch Flyer February 2024
Other documents / promotion
CHOOSING THE RIGHT LEDVANCE CONTROL SOLUTION
CHOOSING THE RIGHT LEDVANCE CONTROL SOLUTION
Other documents / promotion
LEDVANCE LINK Sales Flyer
LEDVANCE LINK Sales Flyer
Product image: white background, diagonal with LEDVANCE logo
LINK Bluetooth Low Energy Mesh Time Clock Module
LINK Bluetooth Low Energy Mesh Time Clock Module
Product image: white background, horizontal
LINK Bluetooth Low Energy Mesh Time Clock Module
LINK Bluetooth Low Energy Mesh Time Clock Module

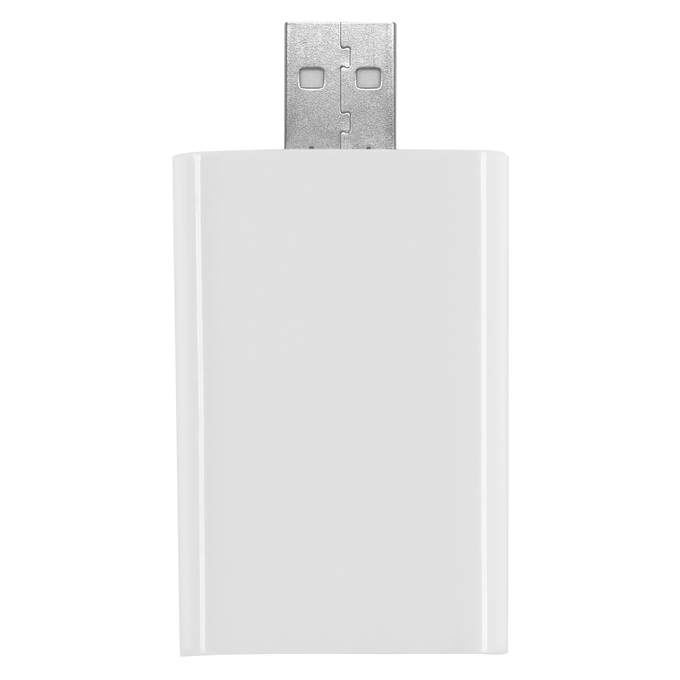

Product image: white background, upright
