LEDVANCE LINK™ HARDWIRED LUMINAIRE / ZONE CONTROLLER
LINK POWER PACK 20A UNV BLE
NAED: 63827
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product features
- Commission and configure with LEDVANCE LINK™ app
- Control using either the LEDVANCE LINK™ app or the wireless controller
- Grouping and Zoning: Wirelessly group luminaires to act in sync with each other
- Scene Control: Preset various scenes for individual or group of luminaires using the app and/or wireless/wired controllers
- QR Code for Admin/Guest control: Using the LEDVANCE LINK™ app, Admin and Guest QR codes for each zone can be generated. Allows copying the settings to another phone/tablet by scanning this QR code
- Allows setting time-based schedules and high-end and low-end trim through the LEDVANCE LINK™ app
Electrical data
| Nominal wattage | 5540.00 W |
| Nominal voltage | 120…277 V |
| Mains frequency | 50…60 Hz |
Dimensions & Weight
| Length | 68.58 mm |
| Width | 3.90 mm |
| Height | 45.72 mm |
| Product weight | 125.00 g |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Protection class | II |
| Type of protection | IP66 |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854201189 | Folding box 1 |
|||
| 4099854182440 | Shipping box 50 |
480 mm x 250 mm x 280 mm | 9285.00 g | 33.60 dm³ |
Extended installation guide
INSTALLATION GUIDE LEDVANCE LINKTM BLUETOOTH® LOW ENERGY MESH LINE VOLTAGE 20A LOAD CONTROLLER
INSTALLATION GUIDE LEDVANCE LINKTM BLUETOOTH® LOW ENERGY MESH LINE VOLTAGE 20A LOAD CONTROLLER
Extended installation guide
INSTALLATION GUIDE LEDVANCE LINKTM BLUETOOTH® LOW ENERGY MESH LINE VOLTAGE 20A LOAD CONTROLLER
INSTALLATION GUIDE LEDVANCE LINKTM BLUETOOTH® LOW ENERGY MESH LINE VOLTAGE 20A LOAD CONTROLLER
Extended installation guide
USER GUIDE LEDVANCE LINK FW Manager
USER GUIDE LEDVANCE LINK FW Manager
Product information bulletin
DATASHEET LEDVANCE LINK BLUETOOTH LOW ENERGY MESH LINE VOLTAGE 20A LOAD CONTROLLER
DATASHEET LEDVANCE LINK BLUETOOTH LOW ENERGY MESH LINE VOLTAGE 20A LOAD CONTROLLER
Other documents / promotion
LEDVANCE Product Launch Flyer February 2024
LEDVANCE Product Launch Flyer February 2024
Other documents / promotion
CHOOSING THE RIGHT LEDVANCE CONTROL SOLUTION
CHOOSING THE RIGHT LEDVANCE CONTROL SOLUTION
Other documents / promotion
LEDVANCE LINK Sales Flyer
LEDVANCE LINK Sales Flyer

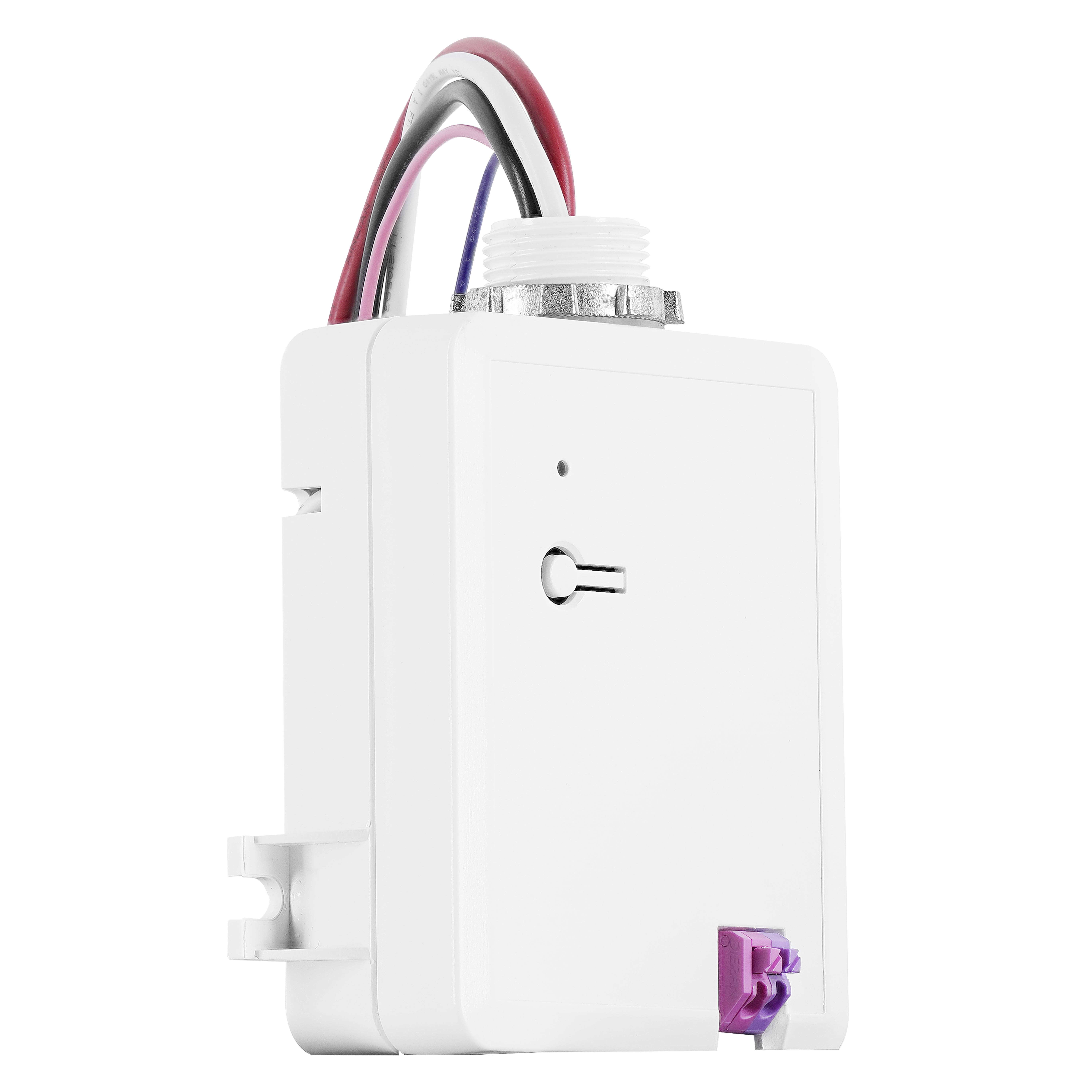

Product image: white background, diagonal
ZONE CONTROLLER 1AUNVBLE
ZONE CONTROLLER 1AUNVBLE

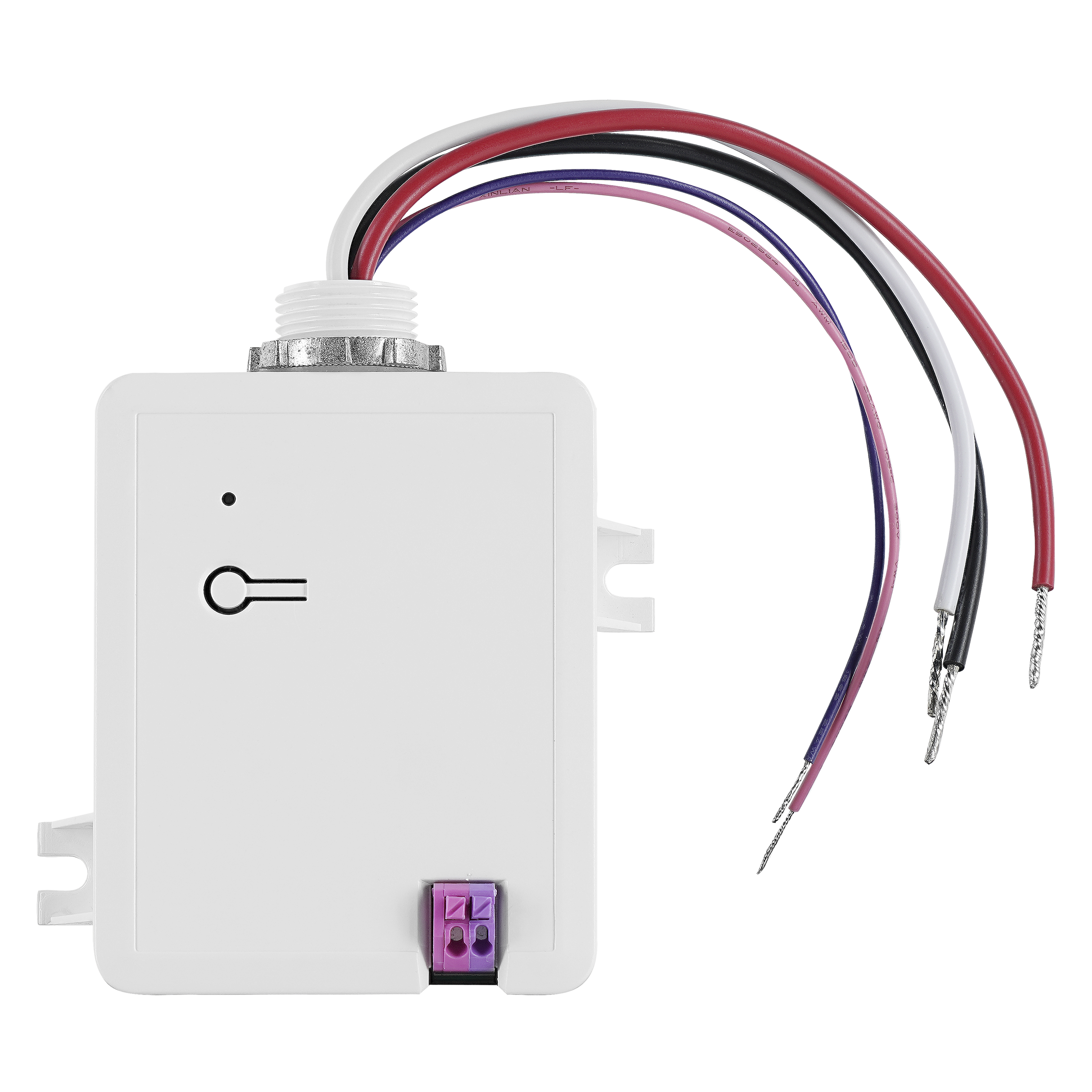

Product image: white background, upright
