RELAY DALI-2 RAIL MOUNTING
RELAY DALI-2 RAIL MOUNTING
GTIN: 4099854709159
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Simple integration of non-dimmable luminaires in DALI systems
- Configurable Power-Up behaviour
- Integrated current limiter
- Over temperature protection for save operation
- Supports over voltage protection for long product lifetime
- Zero cross switching
- Compatible with LEDVANCE VIVARES DALI light management system
Areas of application
- Integration of non-dimmable luminaires in DALI lighting systems (DT7)
Product features
- Installation in electrical cabinets on DIN Rails
- Suitable for high inrush currents up to 350 A
- Fulfills the requirements for DALI Device Type 7 - switching function
- Switching of non-dimmable loads up to 16 A via DALI
- Suitable for loads with high inrush current
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For current information see www.ledvance.com/light-management-systems
Electrical data
| Nominal wattage | 3000.00 W |
| Nominal voltage | 230 V |
| Type of current | AC |
| Nominal current | 16 A |
| Inrush current | 350 A |
| Mains frequency | 50…60 Hz |
Dimensions & Weight
| Length | 98.00 mm |
| Width | 17.50 mm |
| Height | 56.00 mm |
| Cable cross-section, input side | 0.5…2.5 mm² 1) |
| Cable cross-section, output side | 0.5…2.5 mm² 2) |
| Wire preparation length, input side | 7.0 mm |
| Wire preparation length, output side | 7.0 mm |
| Product weight | 52.00 g |
1) Solid wire: 0.5…2.5 mm² / Flexible wire: 0.5…1.5 mm²
2) Solid wire: 0.5…2.5 mm²
2) Solid wire: 0.5…2.5 mm²
Colors & materials
| Product color | Grey |
| Body material | Polycarbonate (PC) |
Temperatures & operating conditions
| Ambient temperature range | -20…+60 °C |
| Maximum temperature at tc test point | 75 °C |
Lifespan
| Number of switching cycles | 100000 |
Additional product data
| Product remark | Available from December 2025 |
| Number of control outputs | 1 |
Capabilities
| Dimmable | Yes |
| Dimming interface | DALI-2 |
| Overheating protection | Reversible |
| Type of installation | Rail mounting |
| Reverse polarity protection | Yes |
| Over voltage protection | Yes |
Certificates & Standards
| Standards | CE, UKCA |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -20…+75 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854709159 | Folding box 1 |
66 mm x 105 mm x 27 mm | 67.00 g | 0.19 dm³ |
| 4099854709166 | Shipping box 100 |
347 mm x 287 mm x 224 mm | 6900.00 g | 22.31 dm³ |
User instruction / safety instructions
RELAY DALI 2 RM
RELAY DALI 2 RM
Addon technical information
VIVARES DALI LMS components
VIVARES DALI LMS components
Addon technical information
VIVARERS DALI LMS komponenten
VIVARERS DALI LMS komponenten
Addon technical information
DALI RELAY application guide
DALI RELAY application guide
Addon technical information
DALI RELAY Anwendungsleitfaden
DALI RELAY Anwendungsleitfaden
Legal information
Safety Insert G11201420
Safety Insert G11201420
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Legal Insert G11185544
Legal Insert G11185544
Declarations of conformity
CE declaration RELAY DALI-2
CE declaration RELAY DALI-2

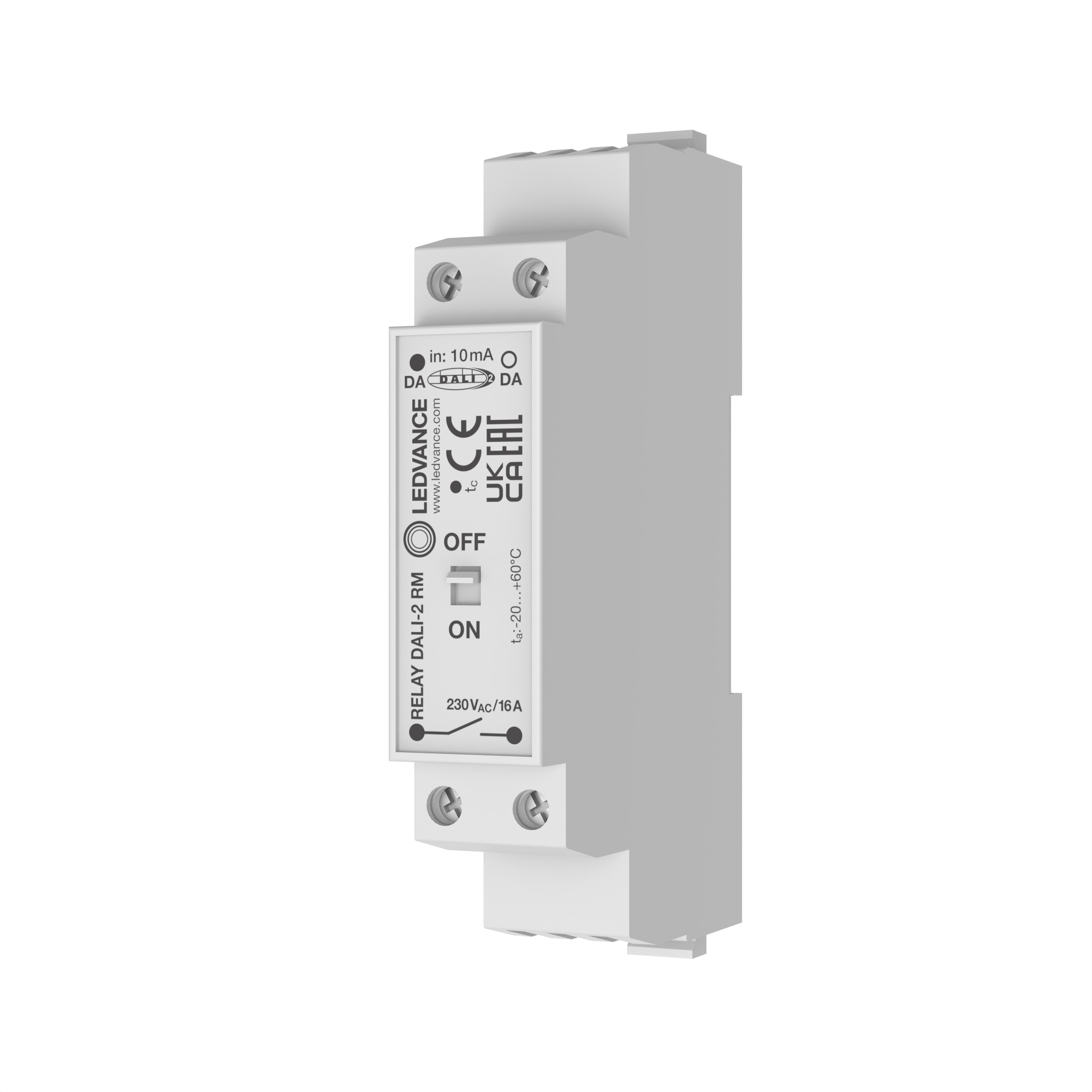

Product image: white background, diagonal
RELAY DALI-2 RM DIAGONAL
RELAY DALI-2 RM DIAGONAL

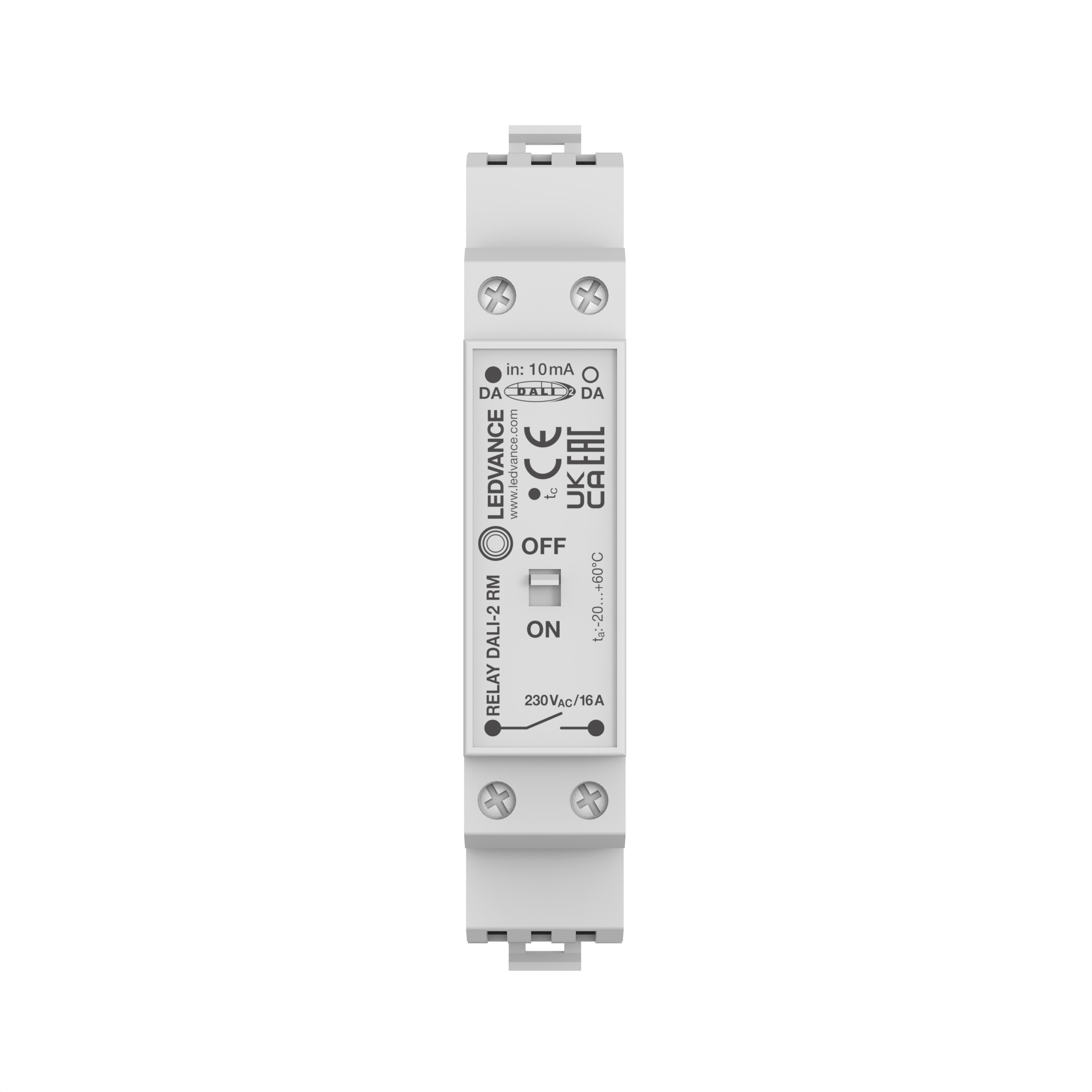

Product image: white background, upright
