Smart+ Table Frame Maxi Multicolor

SMART+ Wifi Table Frame MAX Powerbank USB RGB + W

GTIN: 4058075763241 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • Colorful garden lighting with smart and intelligent control options
  • USB chargeable for mobile use (cable included, fully charged in 6h)
  • Integrated Powerbank
  • High-quality materials
Areas of application
  • Gardens
  • Patios, balconies
  • General illumination
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • RGB color control, approx. 16 million color options adjustable
  • Dimmable
  • Color temperature: 3,000 K (Warm White)
  • Network protocol: WiFi
  • Type of protection: IP44
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Complete mounting and connecting accessories included
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 5.00 W
Nominal voltage 5 V
Nominal current 1000.000 mA
Protection class III
Photometrical data
Luminous flux 270 lm
Total luminous flux of contained light sources 310 lm
Luminous efficacy 54 lm/W
Color temperature 3000 K
Light color (designation) Warm White, RGB
Color rendering index Ra ≥80
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM)
Photobiological safety group acc. to EN62778 RG0
Beam angle 270 °
Dimensions & Weight
Length 140.00 mm
Height 263.00 mm
Width 140.00 mm
Product weight 950.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Aluminum|Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection USB
Type of protection IP44
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Application environment Outdoor
Adjustable No
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 12500
BATTERY
Type of Battery Lithium ion
Battery size [GMS] 18650
Number of included batteries 1
Nominal voltage of battery 3.7 V
Nominal capacity of battery 5200 mAh
Battery charging time 5 h
Certificates & Standards
Standards CE, UKCA
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075763241 Folding box
1
145 mm x 145 mm x 270 mm 1073.00 g 5.68 dm³
4058075763258 Shipping box
4
310 mm x 310 mm x 290 mm 4950.00 g 27.87 dm³
User instruction / safety instructions
SMART+ WIFI TABLE FRAME
Declarations of conformity
SMART ODWIFI TABLEFRAME

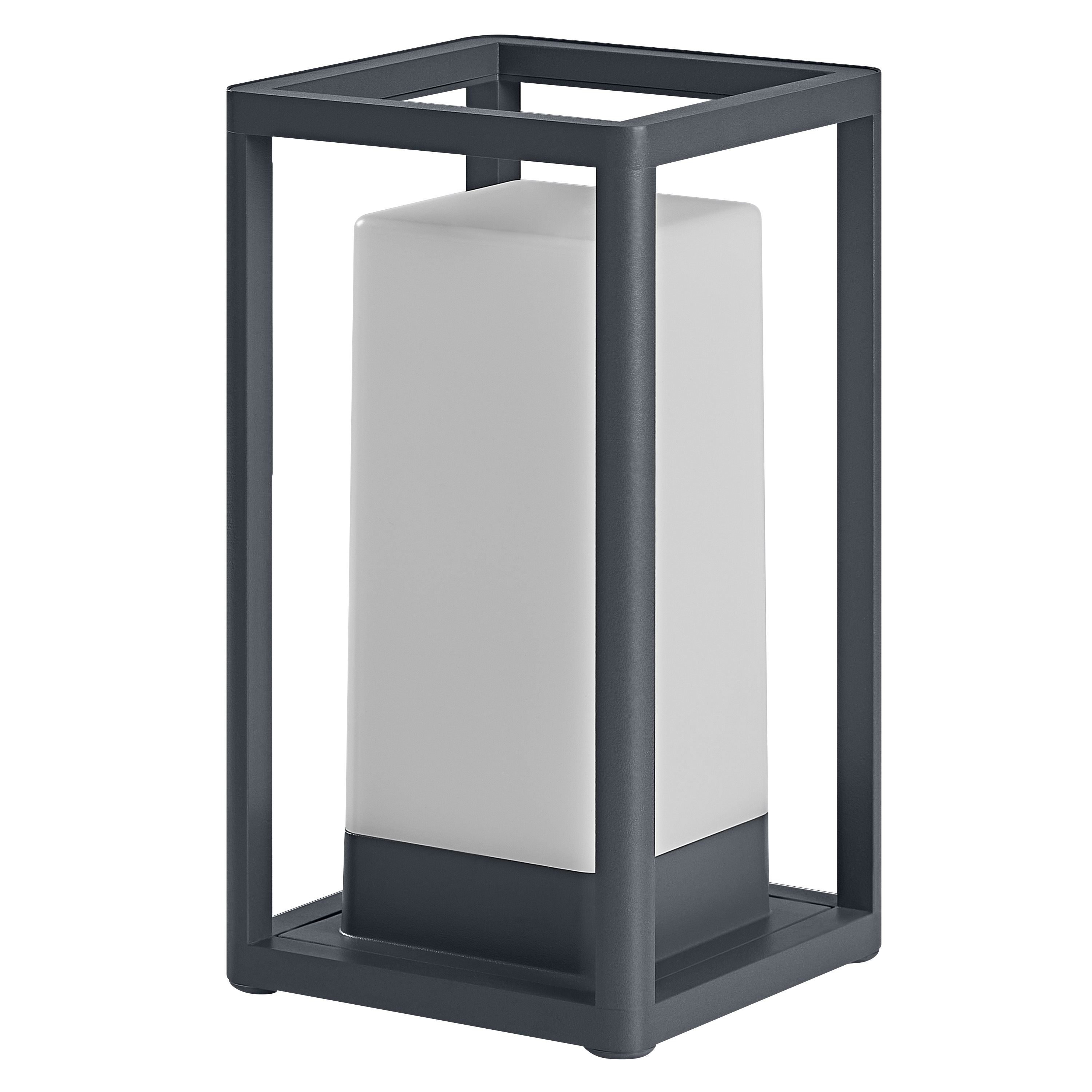

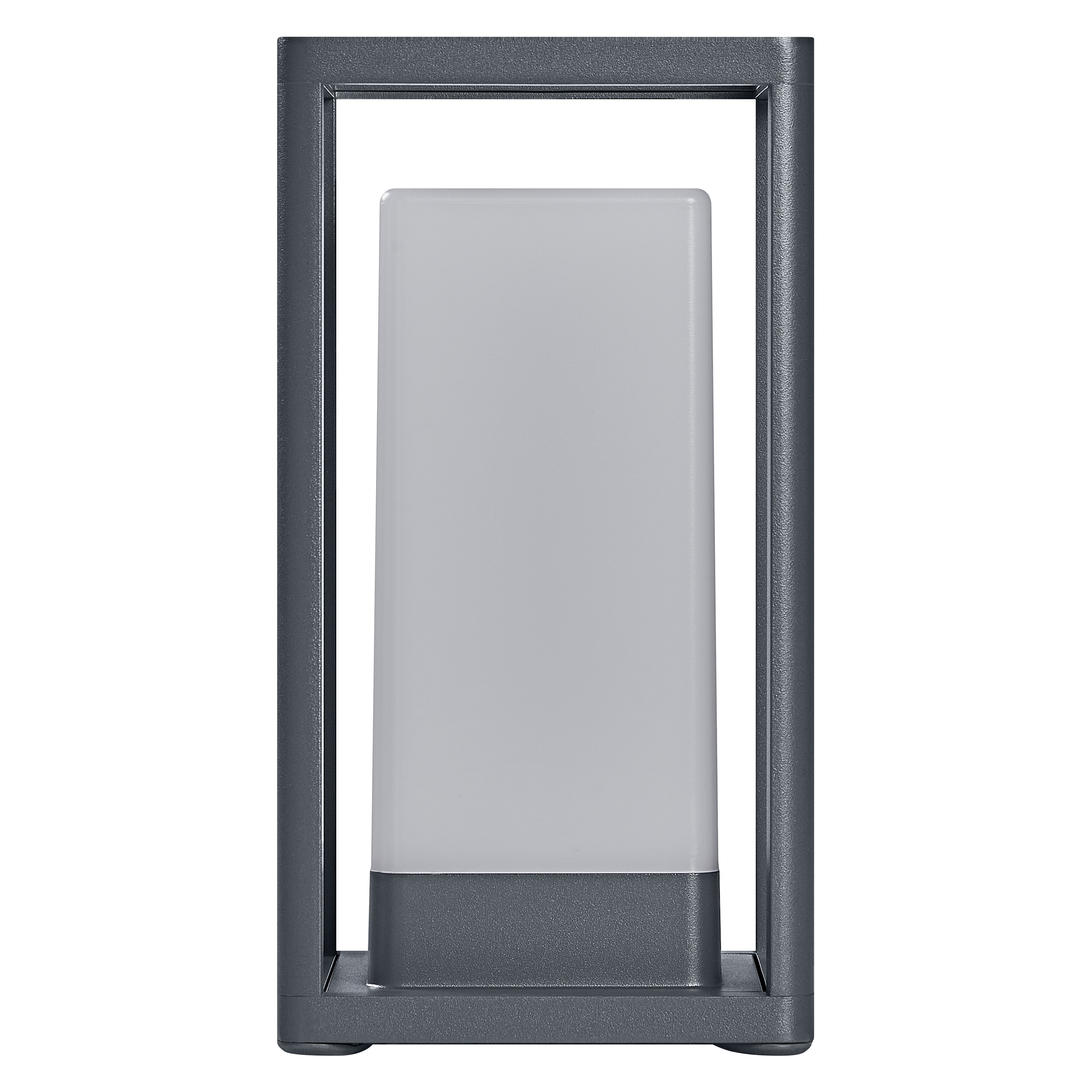

Product image: white background, upright
SMART OD WIFI TABLE FRAME MAX PB USB RGBW
Product image: white background, upright, alternative image
SMART OD WIFI TABLE FRAME MAX PB USB RGBW
Product image: white background, upright, switched on
SMART OD WIFI TABLE FRAME MAX PB USB RGBW
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product line drawing with letters
SMART OD WIFI TABLE FRAME MAX PB USB RGBW
Product line drawing with numbers
SMART OD WIFI TABLE FRAME MAX PB USB RGBW

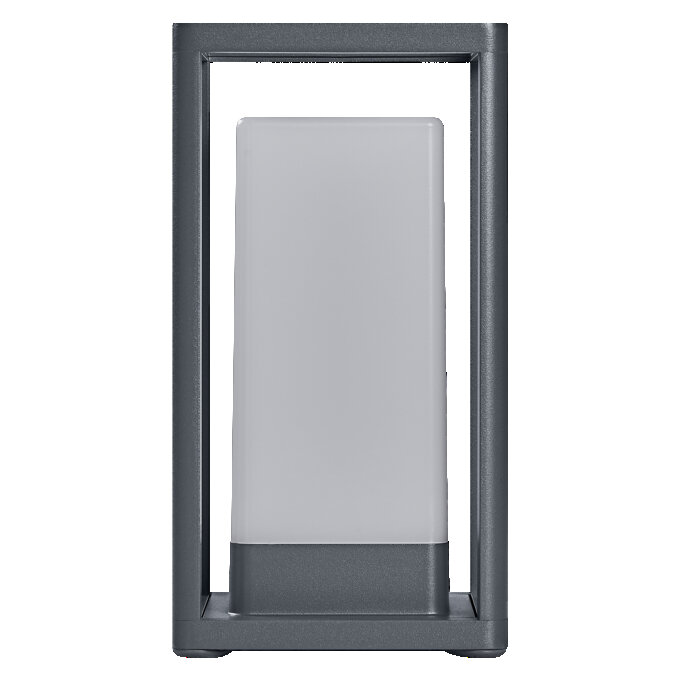

Product line drawing, front, no dimensions
SMART OD WIFI TABLE FRAME MAX PB USB RGBW

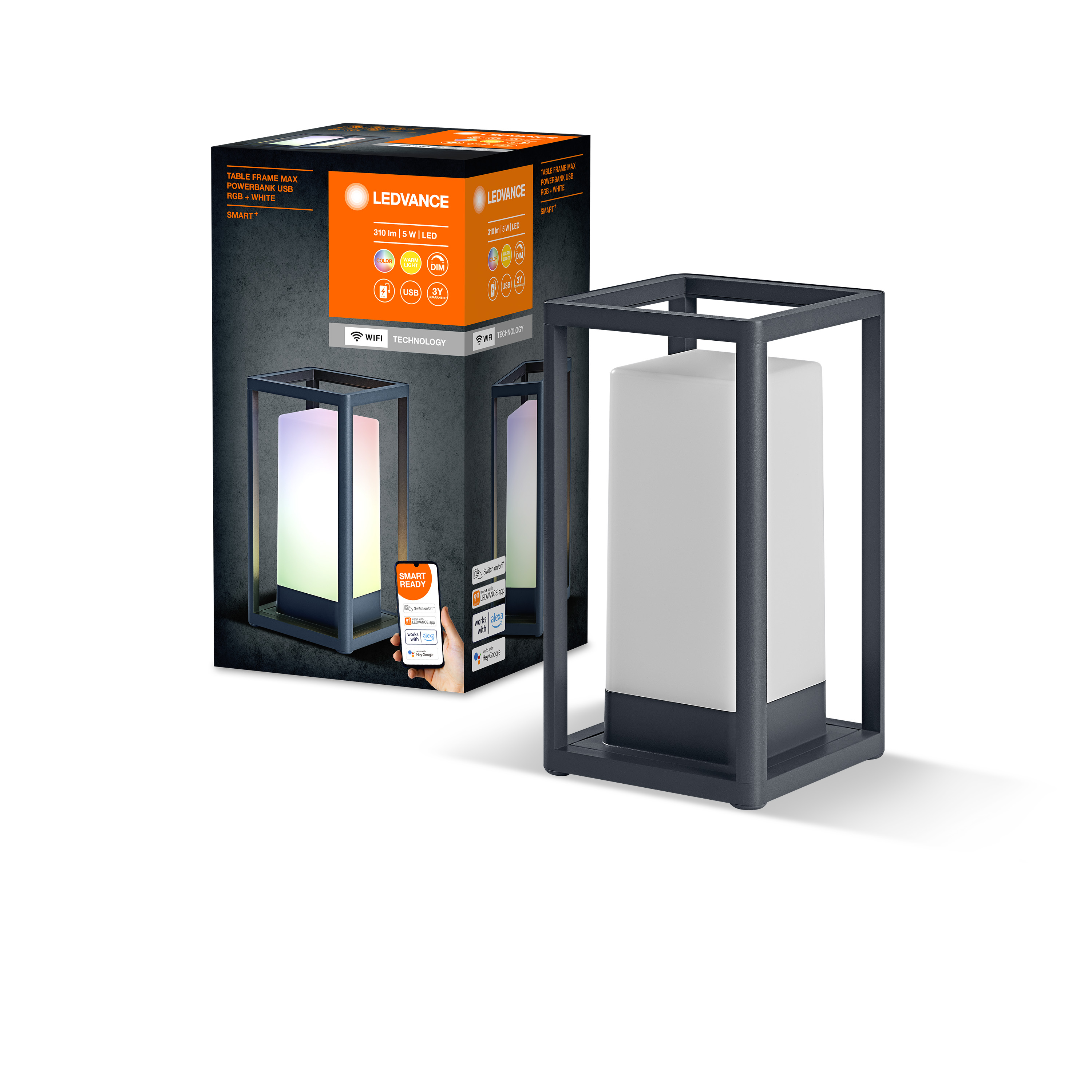

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI TABLE FRAME PB RGBW MiPRC
Packaging image, frontal
SH FC WIFI TABLE FRAME PB RGBW MiPRC
Packaging image, spacial
SH FC WIFI TABLE FRAME PB RGBW MiPRC

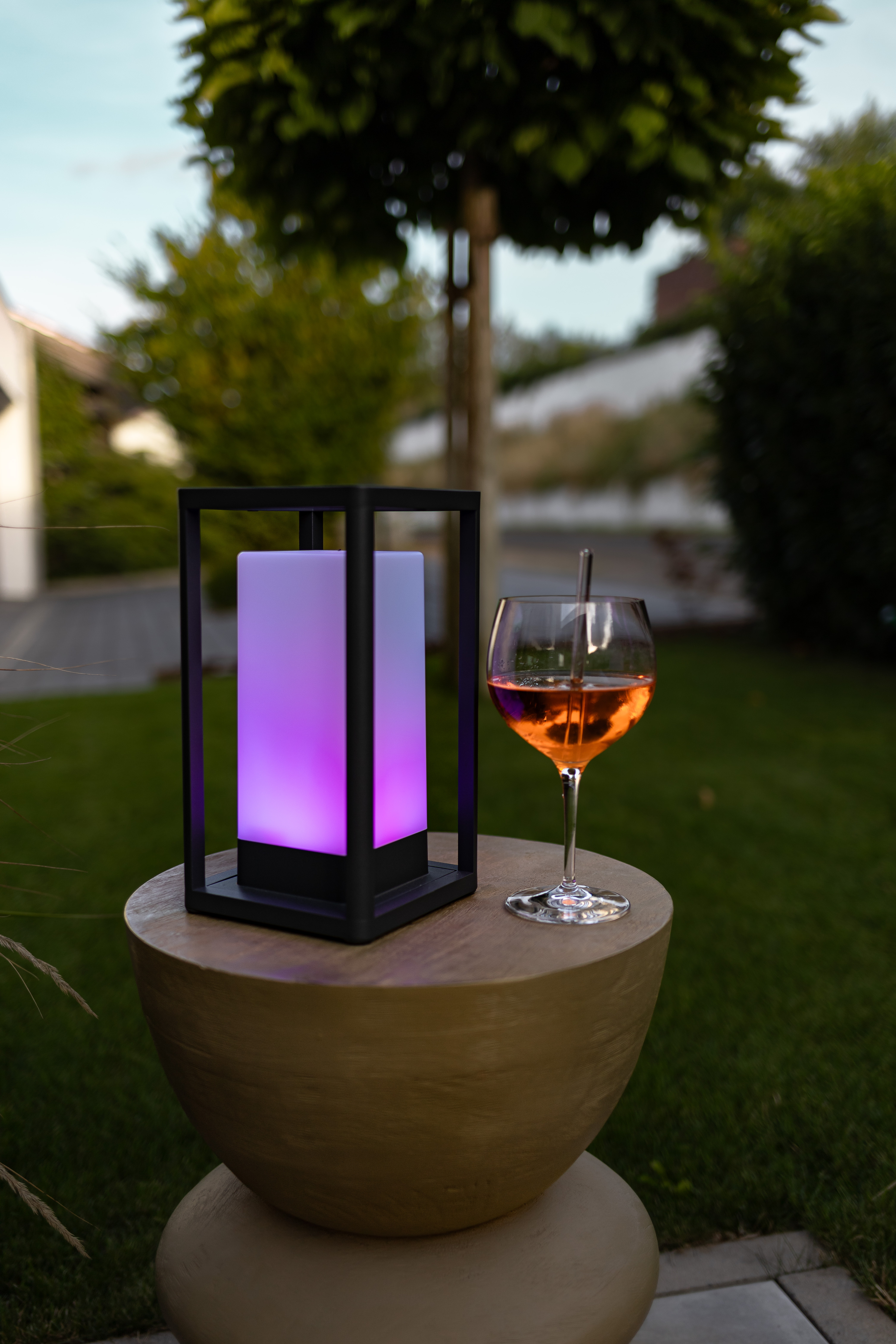

Application pictures
03 herzchen zauber IMG 2052

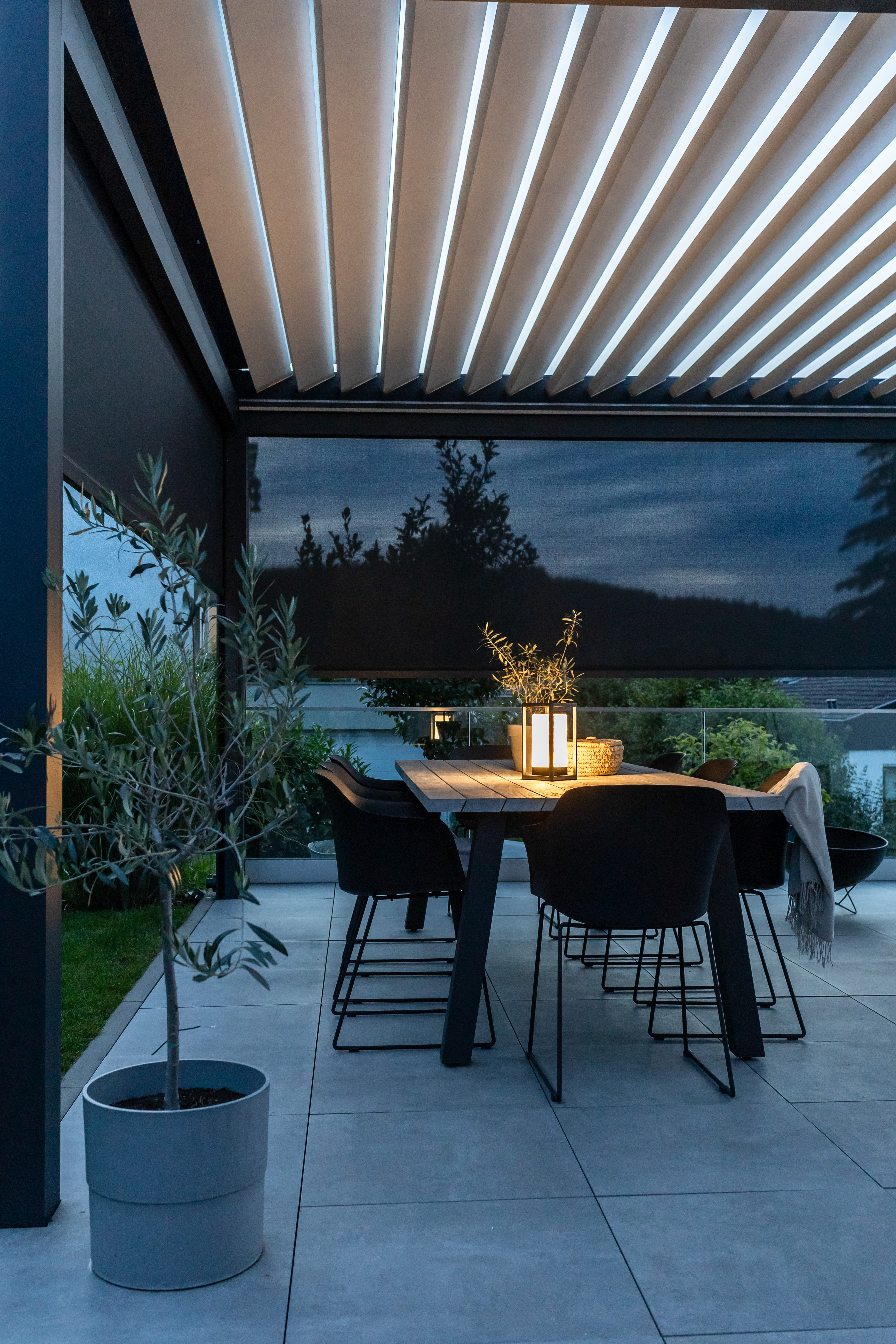

Application pictures
03 herzchen zauber IMG 2060

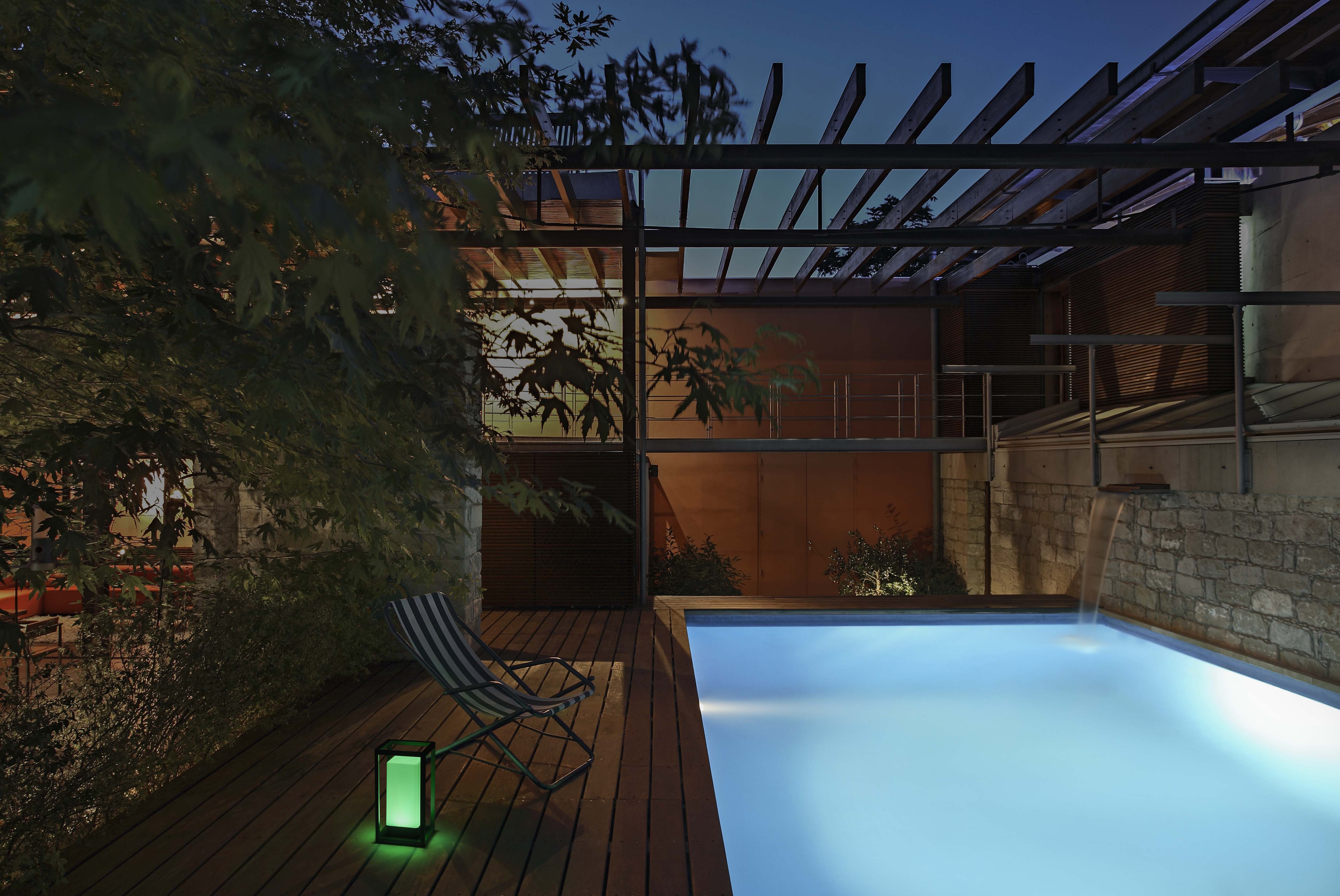

Application pictures Getty
Smart Wifi Outd Table Frame Maxi
EAN ELDAS number
4058075763241 941005180
