LS P -1500/940/5LED STRIP P 1500

LED STRIP P 1500

LS P -1500/940/5

GTIN: 4058075707672 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Great scope of design options due to long and flexible LED strips
Easy installation, no tools required for connection
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Maximum flexibility due to large range of accessories
Simple connection thanks to integrated cables on both sides

Areas of application

General indoor illumination
Industry
Offices, retail outlets and conference rooms
Architecture lighting
Decorative illumination

Product features

Flexible and cuttable LED strip
Smallest cuttable unit: 55.56 mm
Lifetime (L70/B50): up to 50,000 h at Tc max.: 80°C
Luminous flux: 1500 lm/m
Very good color rendering index R_a: > 90
Initial color consistency: < 3 SDCM
Large range of color temperatures: from warm white to cool daylight
Dimmable with suitable drivers, see also www.ledvance.com/dim

Equipment / Accessories

Connectors, profiles and covers for several mounting options available

Electrical data

Nominal wattage	60.00 W
Construction wattage	60.00 W
Nominal wattage per meter	12 W
Nominal voltage	24 V
Input voltage range	23…25 V
Type of current	DC
Nominal current	2500 mA

Photometrical data

Luminous efficacy	129 lm/W
Luminous flux	7020 lm
Luminous flux per meter	1550 lm
Color temperature	4000 K
Color rendering index Ra	> 90
Light color LED	Daylight
Light color (designation)	Daylight
Standard deviation of color matching	‹3 sdcm

Light technical data

Beam angle	120 °
Rated beam angle (half peak value)	120.00 °

LED MODULE INFORMATION

Number of LEDs per meter	144
Number of LEDs per module	720
Number of LEDs per smallest unit	8

Dimensions & Weight

Length	5000.00 mm
Length – smallest unit	55.56 mm
Cable length	500.000
Width	8.00 mm
Height	1.50 mm
Prewired	Yes
Conductor cross section	0.5 mm²
LED pitch	6.94 mm
Short pitch	Yes
Product weight	95.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+55 °C
Maximum temperature at tc test point	80 °C

Lifespan

Nominal lamp life time

50000 h

Additional product data

Mounting location

All surfaces

Capabilities

Dimmable	Yes ¹⁾
Lowest bending radius	30,0 mm
Self-adhesive	Yes

¹⁾ Dimmable with suitable drivers, see also www.ledvance.com/dim

Certificates & Standards

Approval marks – approval	CE, TUV, ENEC
Protection class	III
Type of protection	IP00
Energy class of contained light source	E
Salt mist resistance acc. IEC 60068-2-52	No
UV resistance acc. IEC 60068-2-5	No

LOGISTICAL DATA

Temperature range at storage

-20…+80 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075707672	Folding box 1	242 mm x 242 mm x 26 mm	426.00 g	1.52 dm³
4058075707689	Shipping box 30	450 mm x 420 mm x 230 mm	7285.00 g	43.47 dm³

Product image	Product name	EAN
	LS AY -CSW/P2/50	4058075727434
	LS AY -CSD/P2	4058075727526
	LS AY -8/SMB	4058075727588
	LS AY -CP/P2/500	4058075727403
	LS AY -PF02/U/16X5/10/1	4058075278226
	LS AY -PM04/UW/23X15,5/10/1	4058075278400
	LS AY -PF04/U/17X7/12/1	4058075278288
	LS AY -PM02/R/18X15,5/10/1	4058075278349
	LS AY -PM05/U/17,5X14,5/10/1	4058075279278
	LS AY -PF01/UW/22X6/10/1	4058075278196
	LS AY -PM06/E/18X18/12/1	4058075279308
	LS AY -PF01/UW/22X6/10/2	4058075401532
	LS AY -PF02/U/16X5/10/2	4058075401563
	LS AY -PF03/UW/25X7/12/1	4058075278257
	LS AY -PW01/U/26X8/14/1	4058075278103
	LS AY -PM01/UW/21,5X12/10/1	4058075278318
	LS AY -PM03/E/19X19/10/1	4058075278370
	LS AY -PW02/UW/39X26/14/1	4058075278134
	LS AY -PW03/U/26X26/14/2	4058075401501
	LS AY -PW01/U/26X8/14/2	4058075401440
	LS AY -PW02/UW/39X26/14/2	4058075401471
	LS AY -PW03/U/26X26/14/1	4058075278165
	DR-PFM -60/220-240/24/P	4058075239913
	DR-PFM -100/220-240/24/P	4058075239937
	DR-PFM -150/220-240/24/P	4058075239975
	DR-PFM -250/220-240/24/P	4058075240032
	DR DIM-PFM -250/220-240/24/P	4058075240155
	DR DIM-PFM -150/220-240/24/P	4058075240117
	DR DIM-PFM -100/220-240/24/P	4058075240070
	DR DIM-PFM -60/220-240/24/P	4058075379190

User instruction / safety instructions

Legal information
LS insert LED STRIP P IP00

Declarations of conformity
LS P

PDF (289.96 KB)

Product image: white background, diagonal
LED STRIP P G2

Product image: white background, horizontal
LED STRIP P G2

Product line drawing with letters
LED STRIP P G2

Product line drawing with numbers
LED STRIP P G2

Product line drawing - technical
LED STRIP P G2

IES file (IES)
LS P-1500-940-5

IES file (IES)
LS P-1500 940 5

LDT file (Eulumdat)
LS P-1500-940-5

LDT file (Eulumdat)
LS P-1500 940 5

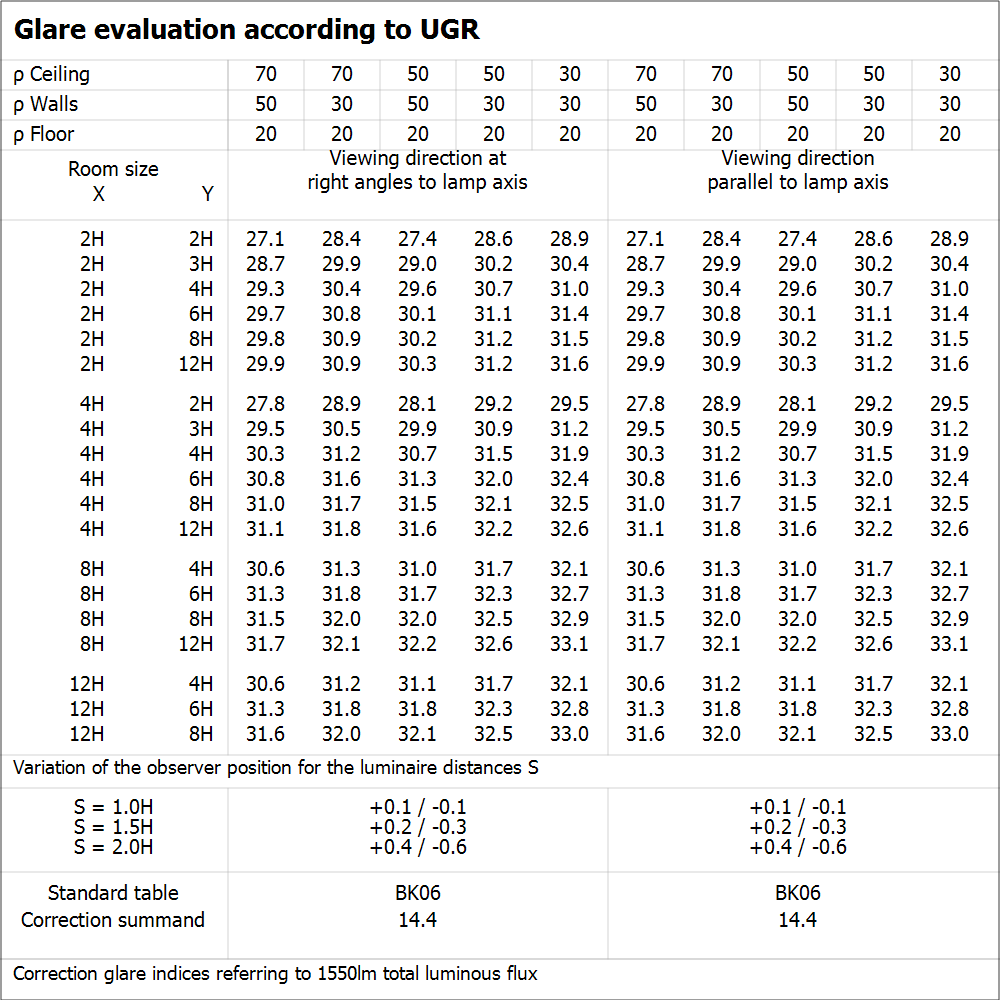

UGR file (UGR table)
LS P-1500 940 5

Light distribution curve type cone
LS P-1500 940 5

Light distribution curve type polar
LS P-1500-940-5

Light distribution curve type polar
LS P-1500 940 5

Tender documents
LED STRIP P 1500 940 5-EN

Application pictures

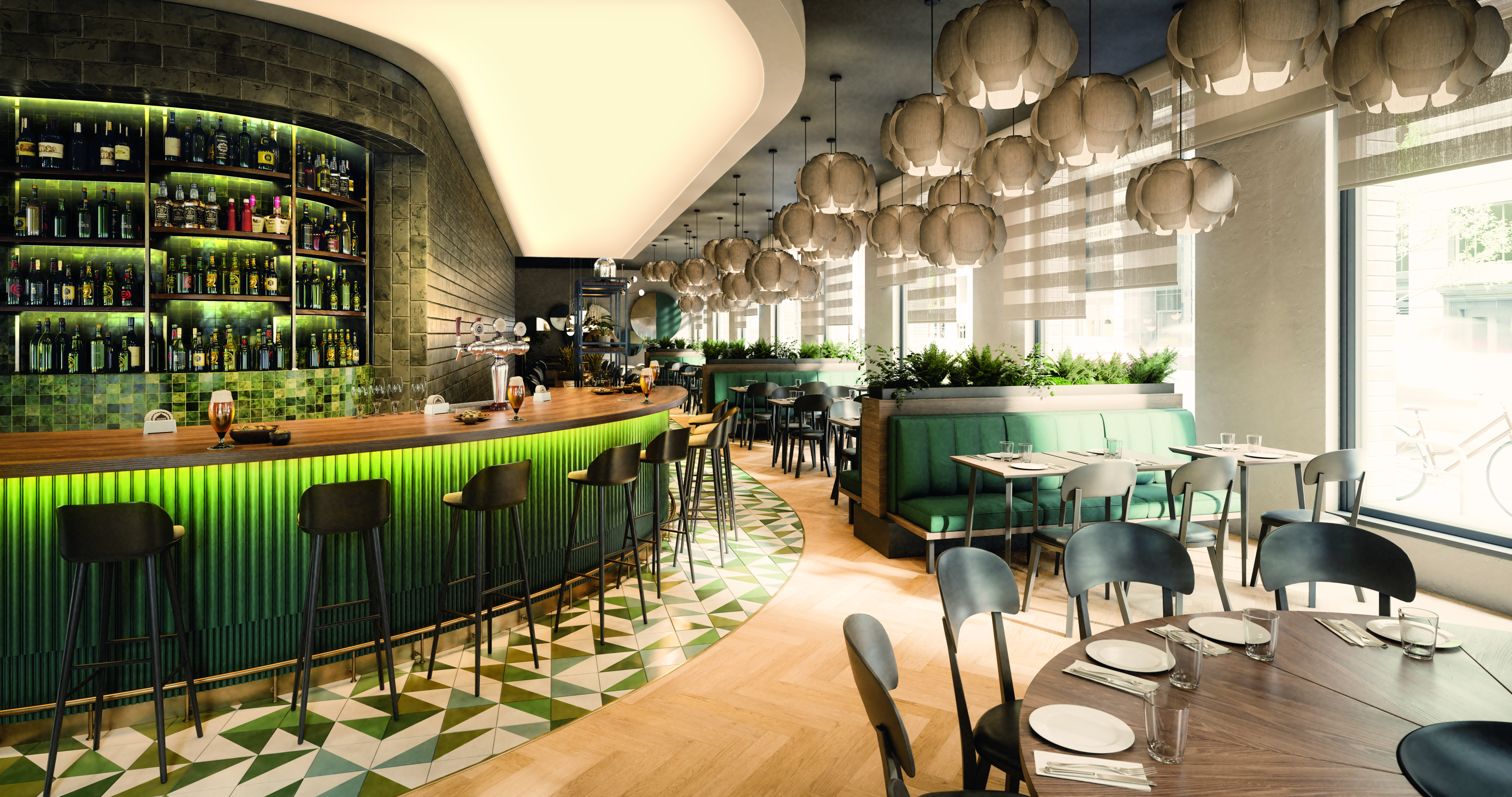

LED strip system – Bar LED Strips
