BULKHEAD COMBO ROUND EMERGENCY KIT

BLKH CBO RD EL CG 100V 1.5W 3h MT

GTIN: 4099854481055 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Plug & Upgrade concept to extend the On/Off luminaire to an emergency luminaire
  • Easy maintenance due to manual self test function for emergency lighting
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h discharge time
  • Easy battery replacement possible
  • Modularly upgradeable Emergency kit reduces stock keeping complexity
Areas of application
  • Suitable for BULKHEAD COMBO ROUND
  • Buildings requiring up to 3 h emergency light operation
Product features
  • Operation mode: maintained (M) or non-maintained (NM)
  • Battery technology: LiFePO4
Equipment / Accessories
  • Battery included
  • Control LED with a retainer for recessed installation included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Disconnect mains before installation.
  • Do not open enclosure-housing.
References / Links
Electrical data
Nominal wattage 1.50 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 20 mA
Inrush current 4.2 A
Power factor λ > 0.3
Protection class II
Surge capability (L/N-Ground) 1000 V
Dimensions & Weight
Length 116.00 mm
Height 23.00 mm
Width 68.00 mm
Product weight 145.00 g
Materials & Colors
Product color White
Body material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range 0…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal
Type of protection IP20
Protection class IK (shock resistance) IK06
Dimmable No
Lifespan
Number of switching cycles 25000
Control gear
ECG lifetime 40000 h
BATTERY
Type of Battery LiFePO4
Battery size [GMS] Others
Emergency lighting
Type of emergency operation test Test button
Wattage in maintained operation mode 1.5 W
Battery life in emergency operation mode 3 h
Certificates & Standards
Standards CE, CB, UKCA, EAC
Additional product data
Product remark Available from March 2025
Added function PLUG & UPGRADE
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854481055 Folding box
1		 32 mm x 82 mm x 137 mm 167.00 g 0.36 dm³
4099854481062 Shipping box
50		 432 mm x 287 mm x 184 mm 8864.00 g 22.81 dm³
User instruction / safety instructions
BLKH CBO RD EM KIT
PDF (2.75 MB)
Legal information
Safety Insert G11218828
PDF (234.52 KB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Legal Insert G11185544
PDF (2.33 MB)
Declarations of conformity
BLKH CBO RD
PDF (230.74 KB)

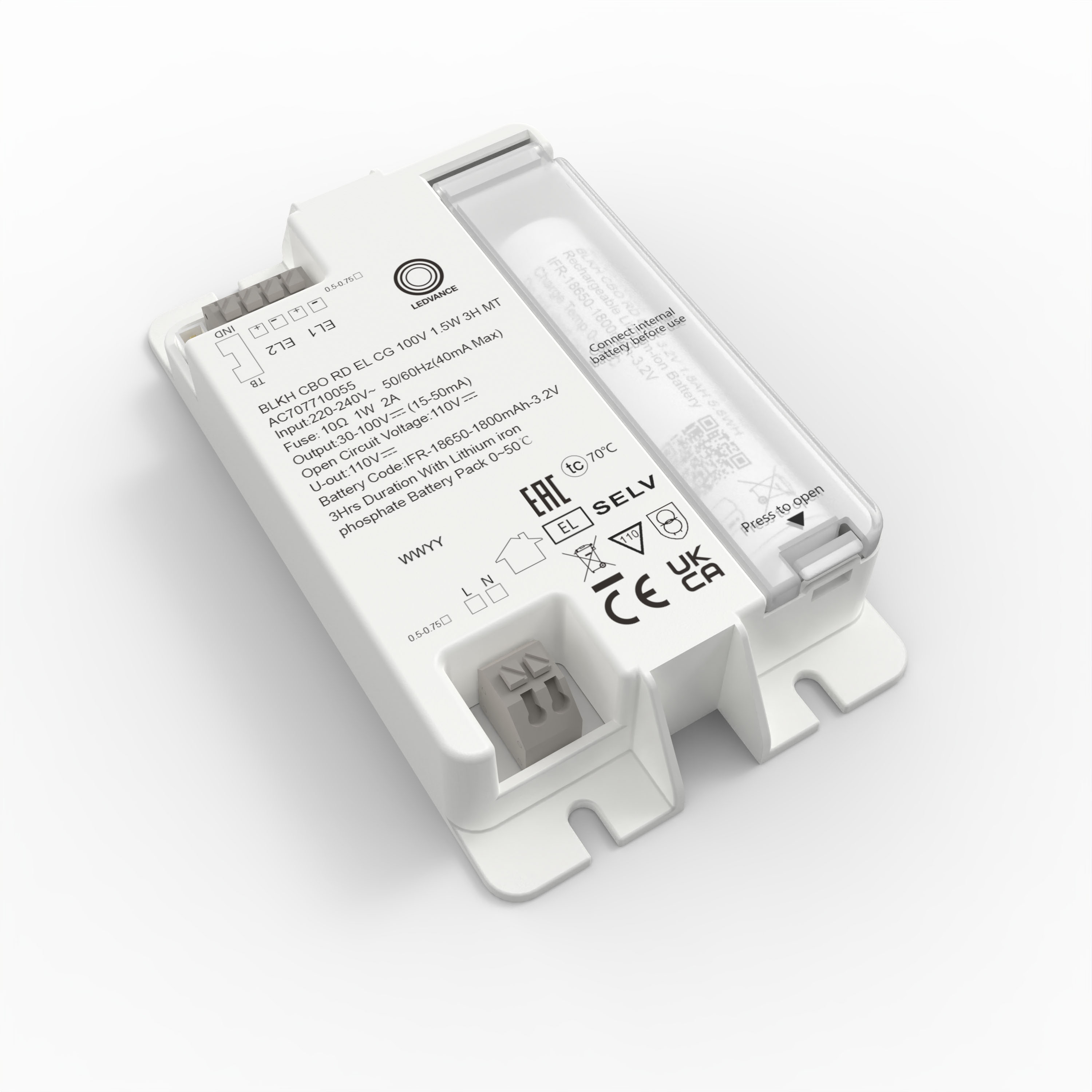

Product image: white background, diagonal
BLKH CBO RD EL CG 100V 1.5W 3H MT
JPG (444 KB)

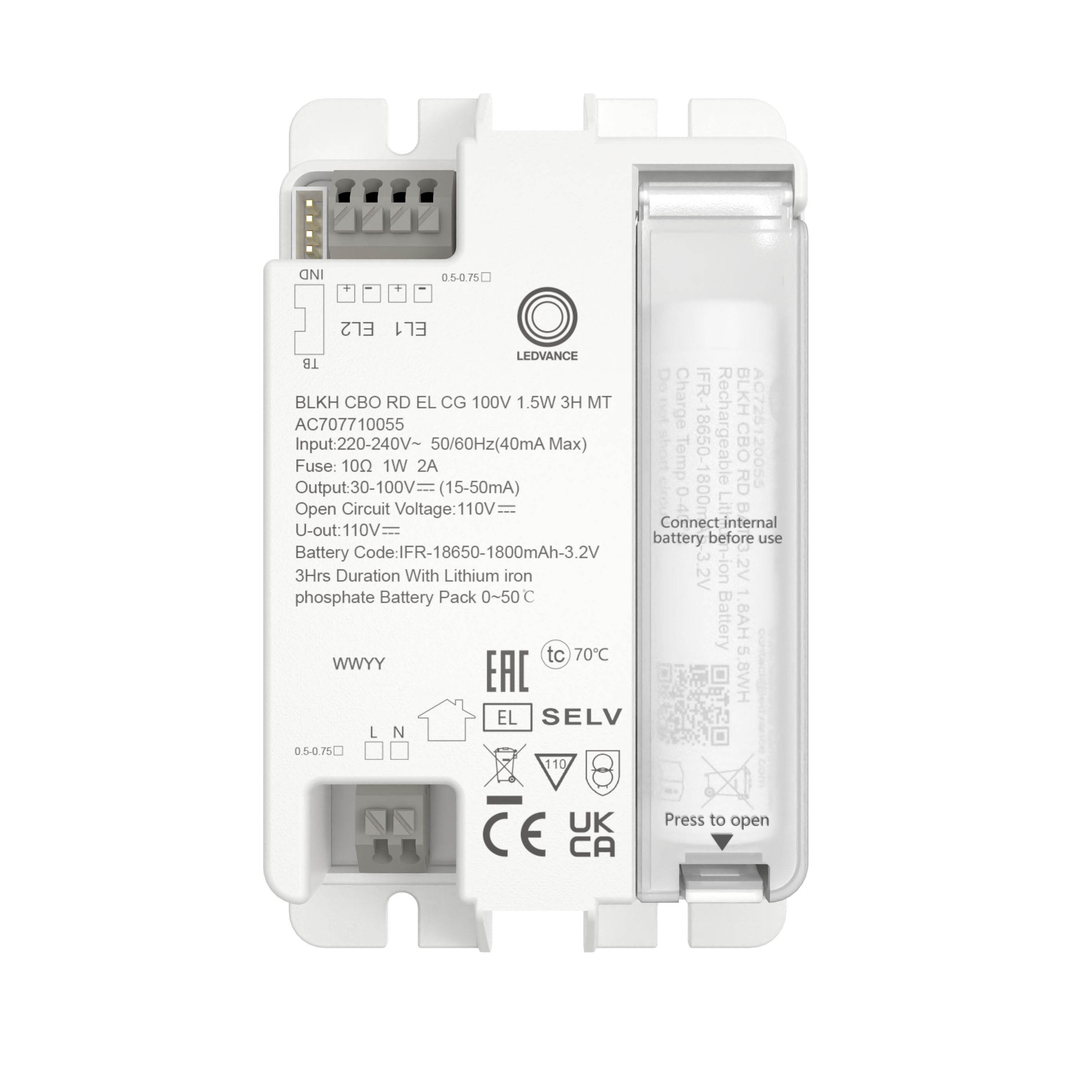

Product image: white background, horizontal
