ORBIS PARIS
Orbis Paris 480 mm 3XE27 BK
GTIN: 4058075829060
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Replaceable LED lamp
- Elegant design
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Decorative domestic lighting
- Ceiling luminaire with socket
- Fabric material
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Mains voltage |
Dimensions & Weight
| Diameter | 480.00 mm |
| Height | 105.00 mm |
| Product weight | 910.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel|TC fabric|PVC |
| Cover material | Polystyrene (PS) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | No |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075829060 | Folding box 1 |
112 mm x 492 mm x 492 mm | 1435.00 g | 27.11 dm³ |
| 4058075829077 | Shipping box 4 |
506 mm x 506 mm x 475 mm | 6885.00 g | 121.62 dm³ |
User instruction / safety instructions
ORBIS
ORBIS
Legal information
Legal Insert
Legal Insert
Declarations of conformity
ORBIS MADRID PARIS MILAN
ORBIS MADRID PARIS MILAN

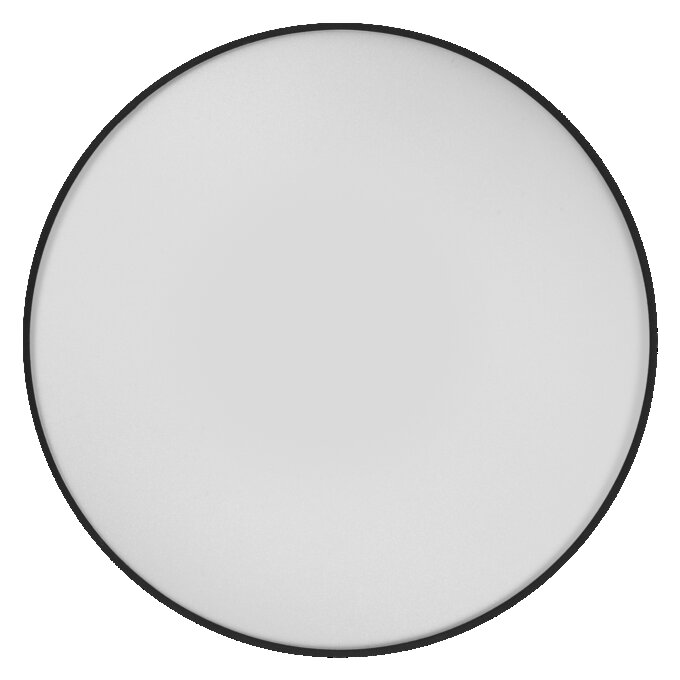

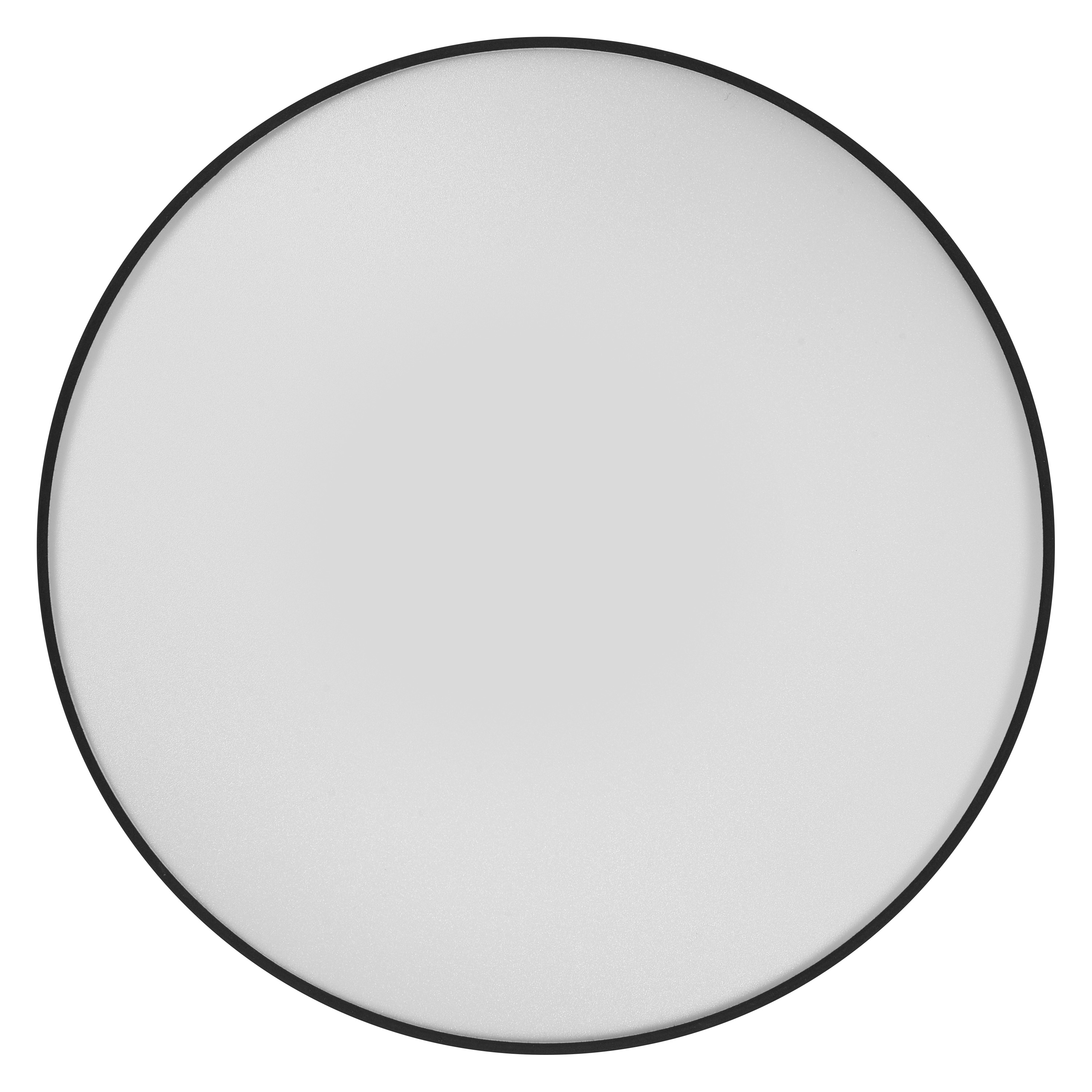

Product image: white background, upright
ORBIS PARIS 480MM 3XE27 BK
ORBIS PARIS 480MM 3XE27 BK

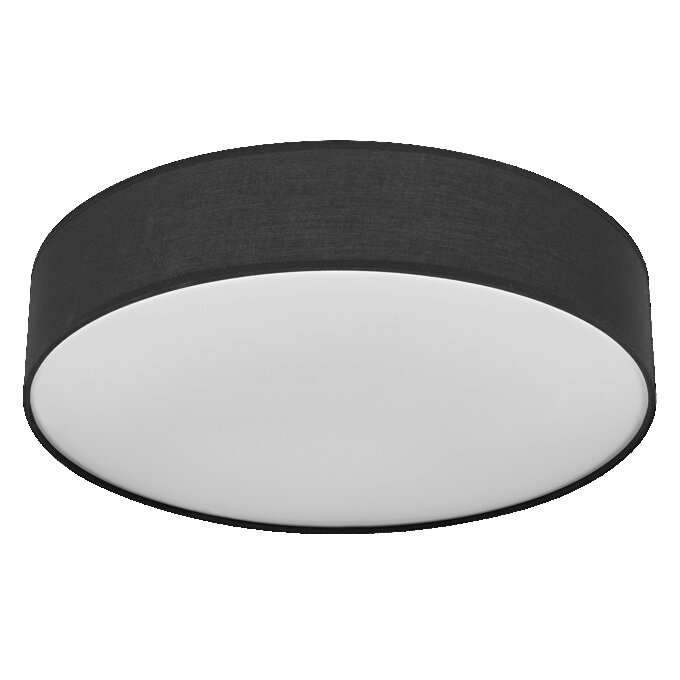

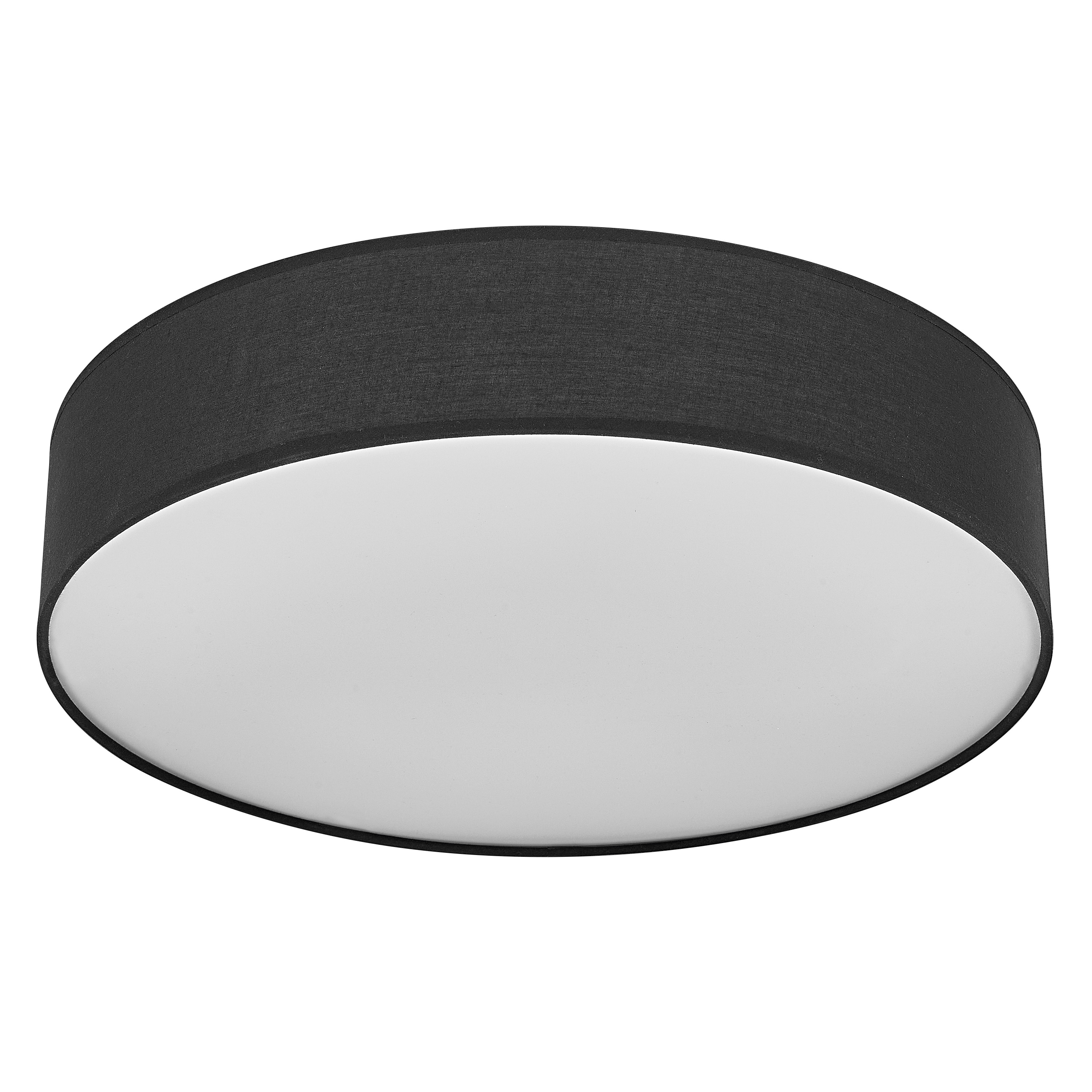

Product image: white background, upright, alternative image
ORBIS PARIS 480MM 3XE27 BK
ORBIS PARIS 480MM 3XE27 BK

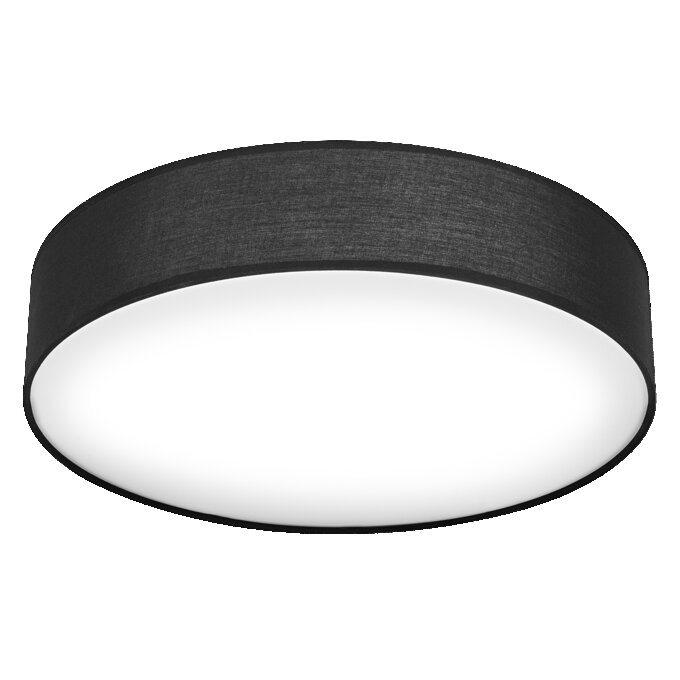

Product image: white background, upright, switched on
ORBIS PARIS 480MM 3XE27 BK
ORBIS PARIS 480MM 3XE27 BK
Product infographic (application image with text and graphic)
ORBIS non-smart e-Com graphic 1200x1200px 2025 EN
ORBIS non-smart e-Com graphic 1200x1200px 2025 EN

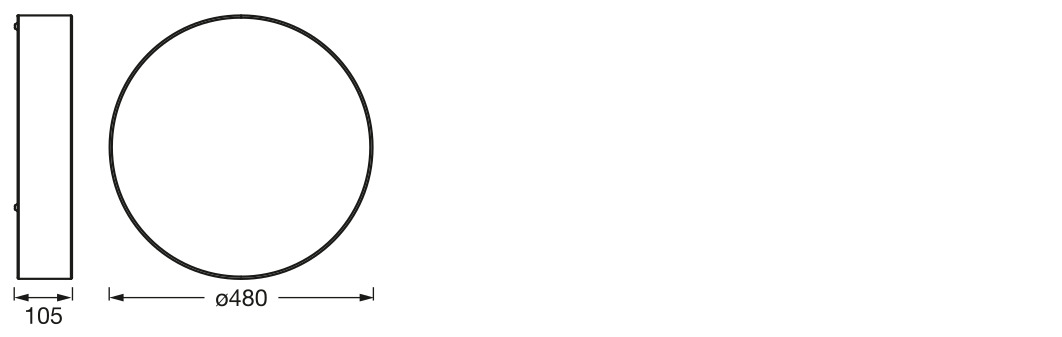

Product line drawing with letters
ORBIS PARIS
ORBIS PARIS
Product line drawing with numbers
ORBIS PARIS
ORBIS PARIS
Product line drawing, front, no dimensions
ORBIS PARIS
ORBIS PARIS

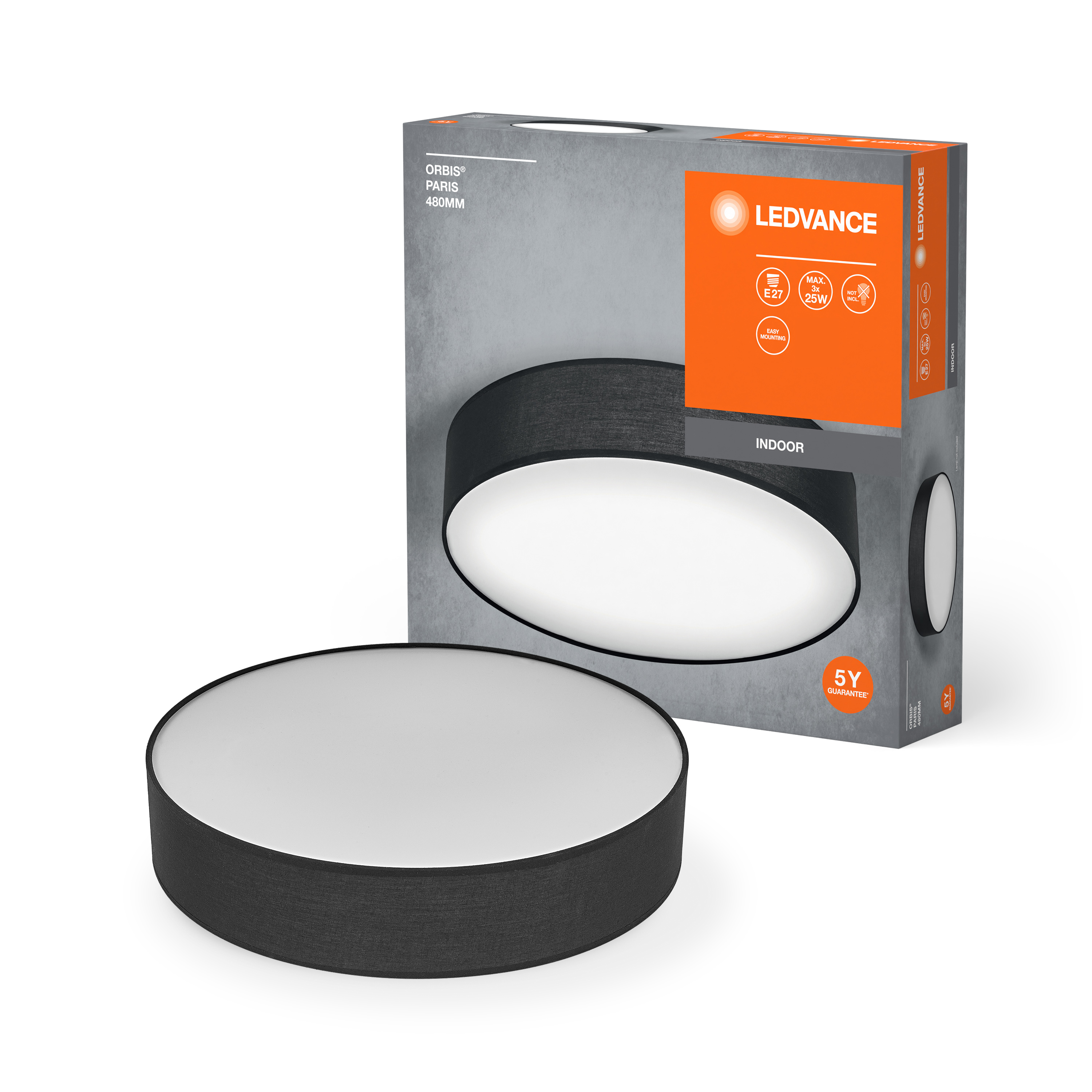

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ORBIS PARIS 480MM 3X BK
LUM FC ORBIS PARIS 480MM 3X BK
Packaging image, frontal
LUM FC ORBIS PARIS 480MM 3X BK
LUM FC ORBIS PARIS 480MM 3X BK

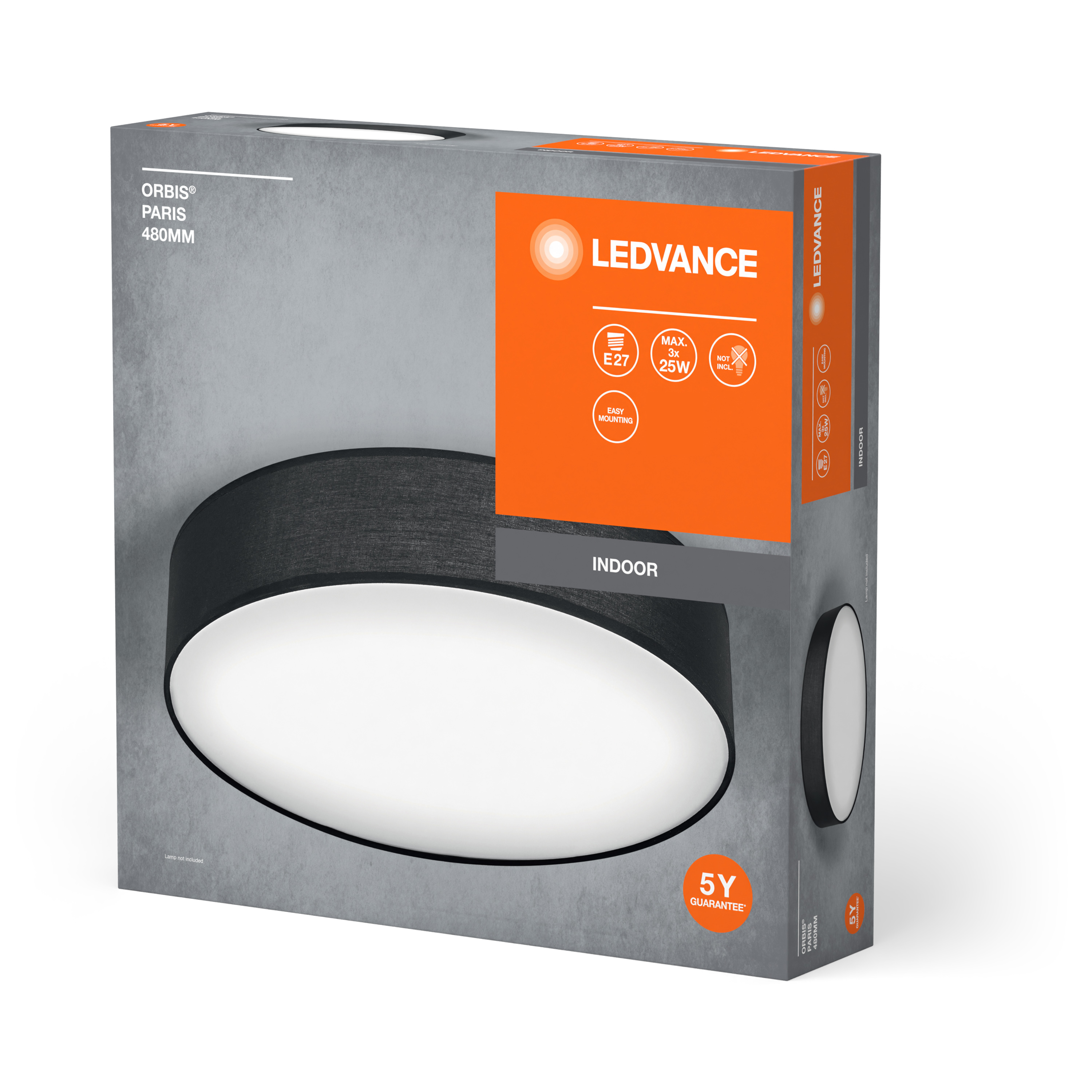

Packaging image, spacial
LUM FC ORBIS PARIS 480MM 3X BK
LUM FC ORBIS PARIS 480MM 3X BK

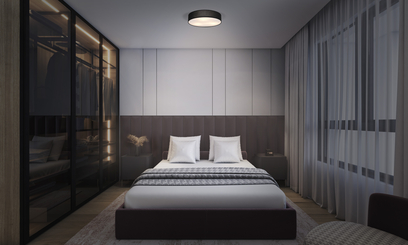

Application pictures Getty
