WORKLIGHT VALUE 3POD
WORK VAL 3POD 2x50 W 4000 K IP65
GTIN: 4058075308879
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Foldable for easy storage
- Energy savings of up to 80% compared to halogen lamp worklights
- Semi-frosted, tempered glass cover for uniform illumination
- 3 years guarantee
Areas of application
- Renovation
- Garages
- Basement
- Workshops
Product features
- "Plug and play" worklights with up to 9000 lm
- Rotation angle luminaire head: 360°, swiveling: 180°
- Die-cast aluminum housing with PC front cover
- Type of protection, luminaire head and housing: IP65, Type of protection, plug: IP44
- Height adjustment of tripod up to 1.8 m total height
- Quick-release fastener for adjustment of luminaire head angle
- Type E/F plug
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 100.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 9000 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 680.00 mm |
| Height | 1800.00 mm |
| Width | 780.00 mm |
| Product weight | 4800.00 g |
| Cable length | 2000 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Glass |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Type of connection | Protective contact Plug type |
| Type of protection | IP65 1) |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Standing |
| Mounting location | Floor |
| Application environment | Indoor |
| Adjustable | Yes |
1) Luminaire head and housing IP65, plug IP44
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 10000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, CB, EAC, RoHS |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075308879 | Folding box 1 |
182 mm x 229 mm x 644 mm | 5059.00 g | 26.84 dm³ |
| 4058075308886 | Shipping box 4 |
475 mm x 380 mm x 665 mm | 21264.00 g | 120.03 dm³ |
User instruction / safety instructions
WORKLIGHT VALUE 3POD
WORKLIGHT VALUE 3POD
Declarations of conformity
CE_WORK VAL 2x50W 4000K 3POD IP65_AC18684
CE_WORK VAL 2x50W 4000K 3POD IP65_AC18684

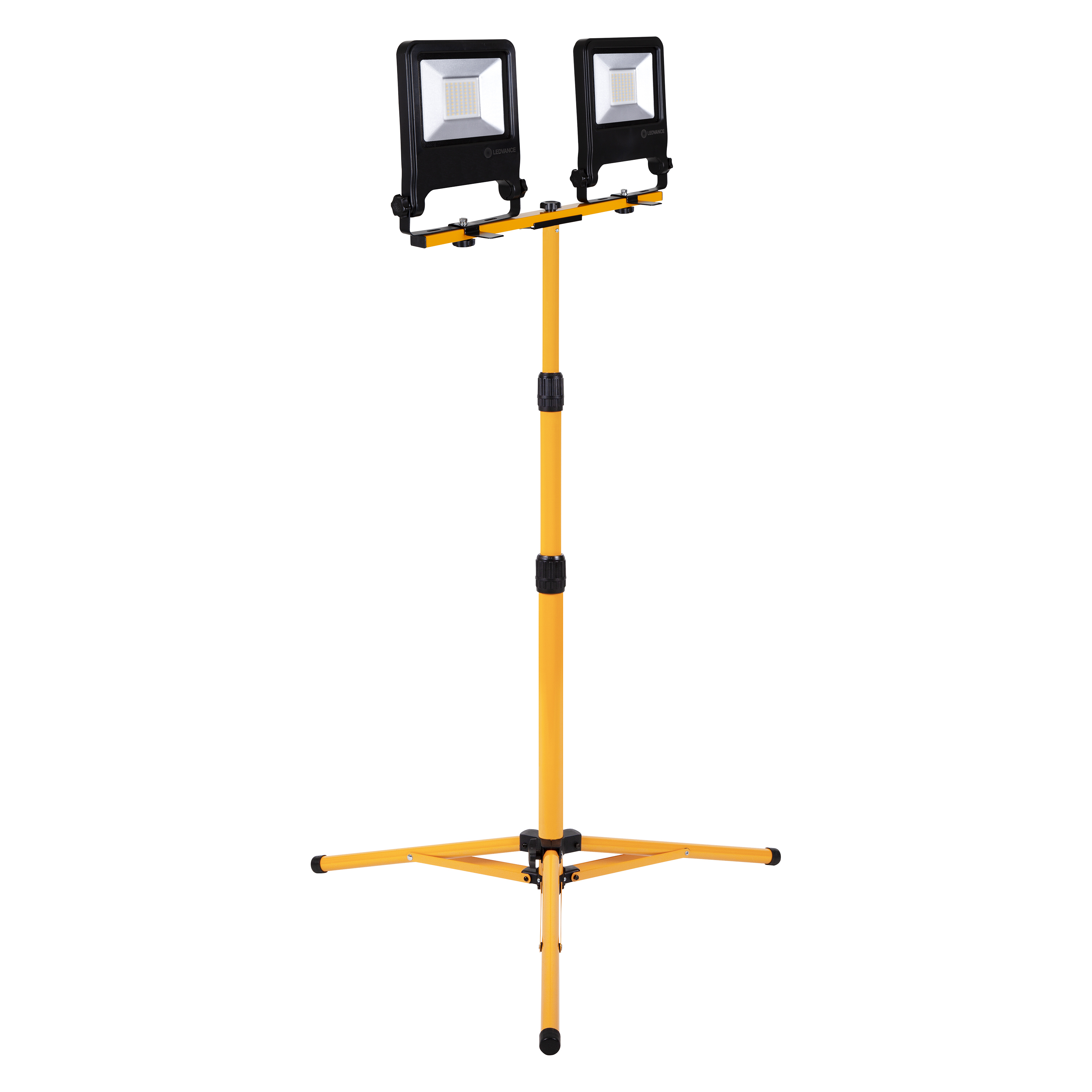

Product image: white background, diagonal
WORKLIGHT 2X50W 3POD
WORKLIGHT 2X50W 3POD

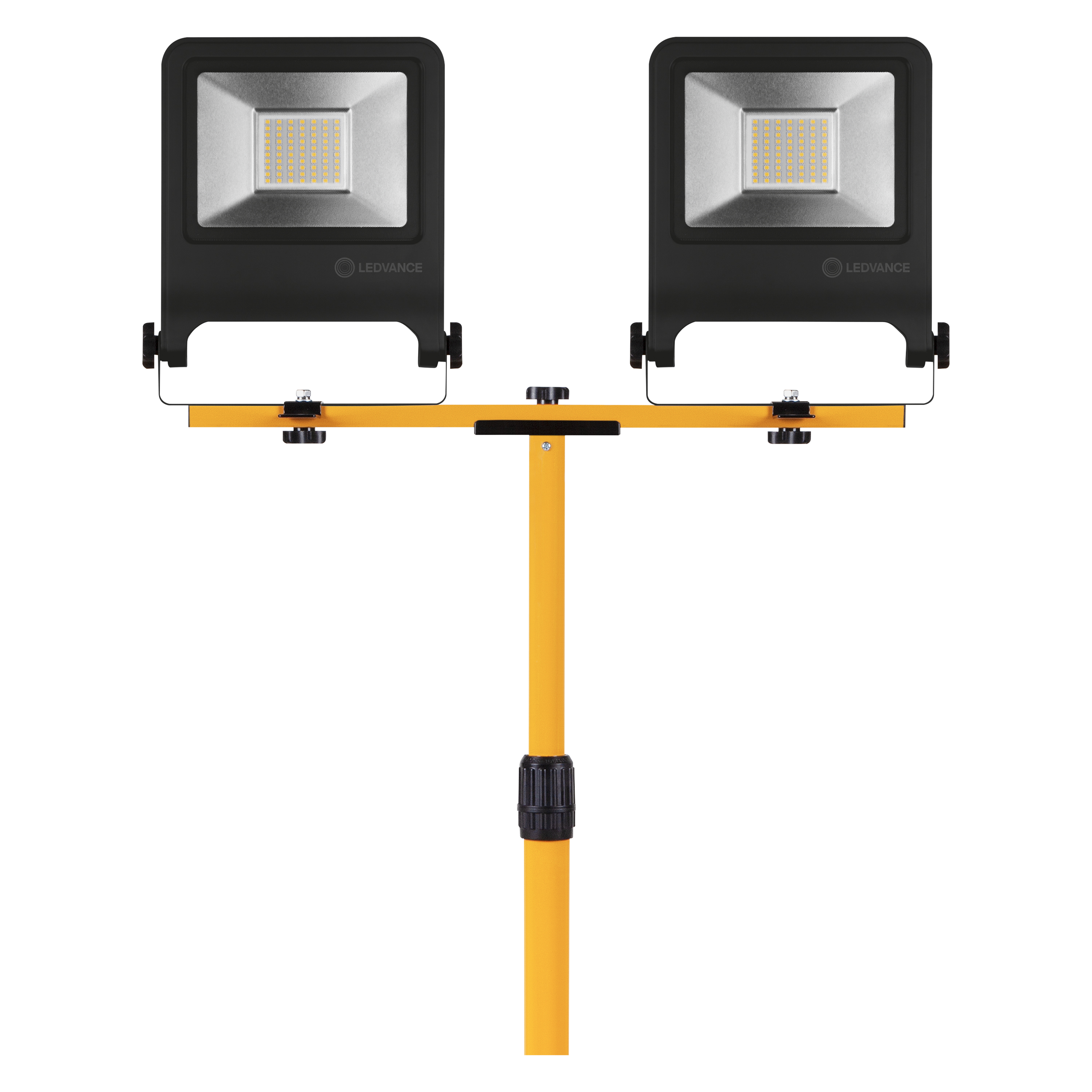

Product image: white background, horizontal
WORKLIGHT 2X50W 3POD
WORKLIGHT 2X50W 3POD

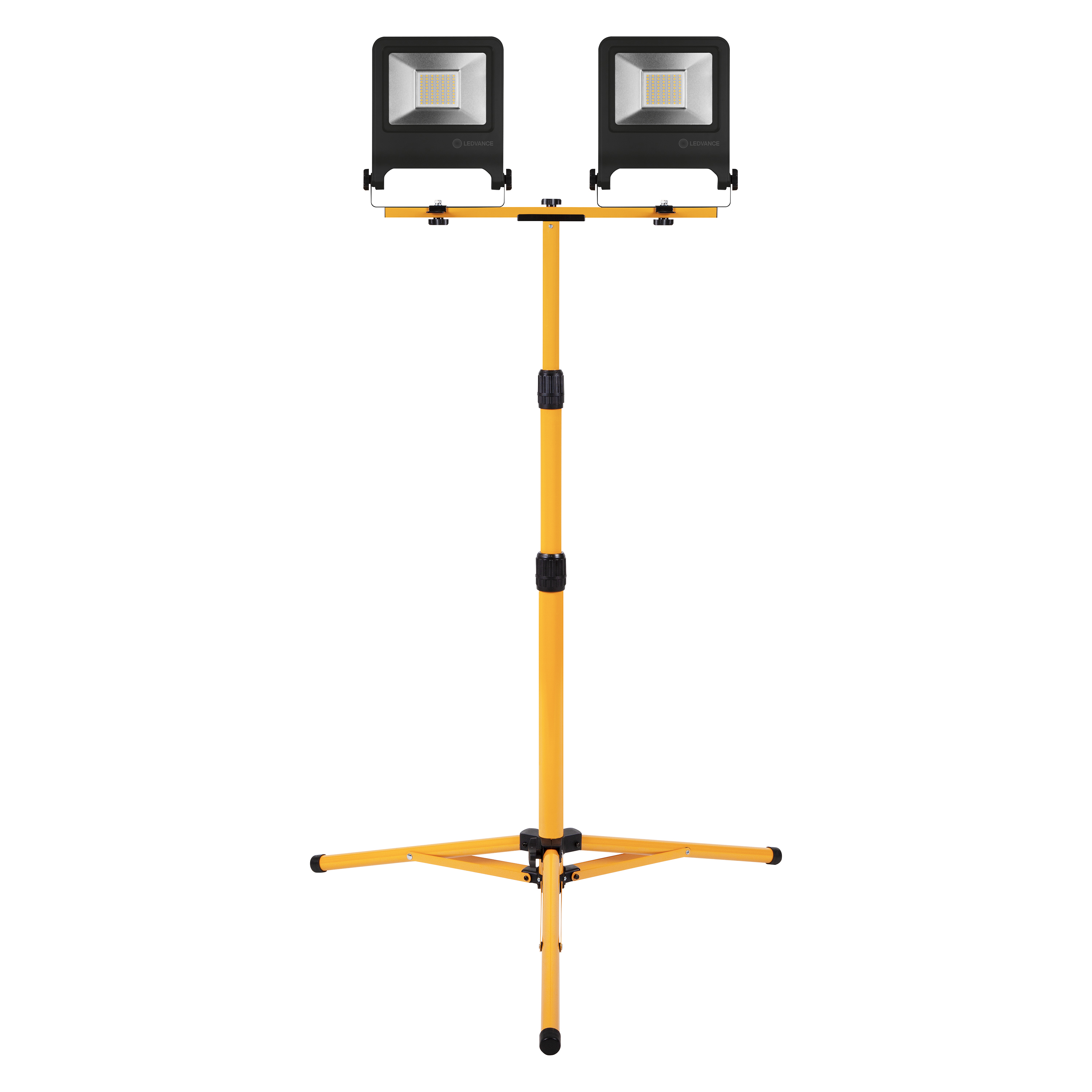

Product image: white background, upright
WORKLIGHT 2X50W 3POD
WORKLIGHT 2X50W 3POD
Product line drawing with letters
WORKLIGHT 2X50W 3POD
WORKLIGHT 2X50W 3POD
Product line drawing with numbers
WORKLIGHT 2X50W 3POD
WORKLIGHT 2X50W 3POD
Product line drawing, front, no dimensions
WORKLIGHT 2X50W 3POD
WORKLIGHT 2X50W 3POD
Packaging image, spacial
Worklight Value 3POD 2x50W 840 BK MiCh
Worklight Value 3POD 2x50W 840 BK MiCh
Catalog info 1
Worklight value 3POD
Worklight value 3POD
Catalog info 2
Worklight value 3POD
Worklight value 3POD
Catalog info 6
Worklight Value 3POD
Worklight Value 3POD
| EAN | SEG number | STK number |
|---|---|---|
| 4058075308879 | 7506212 | 4315576 |
