NEW
SURFACE FLAT LIGHT SOURCES
LISOEV 330 R 19W 830 840 SF FLAT
GTIN: 4099854312212
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- 3000 K and 4000 K LEDs integrated
- Indoor use with high luminous efficacy of up to 140 lm/W
- High color consistency with SDCM 3
- Tool-free electrical connection with plug connectors
- Very homogenous light with a slight backlight effect
- Prepared for SURFACE FLAT SENSOR integration
- 5 years guarantee
Areas of application
- Suitable for SURFACE FLAT 19 W / 27 W
Product features
- Type of protection: IP20
- Polycarbonate (PC) housing, PC-diffusor
- Lifetime (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C)
- Impact resistance: IK08
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- Indoor use only, not suitable for outdoor use
Equipment / Accessories
- Connection wire for direct installation integrated
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 16.0 W |
| Nominal voltage | 30…40 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 450 mA |
Photometrical data
| Luminous flux | 2660 lm |
| Luminous efficacy | 140 lm/W |
| Color temperature | 3000 K / 4000 K |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 3 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 330.00 mm |
| Height | 53.00 mm |
| Product weight | 882.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -40…+80 °C |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
Lifespan
| Lifespan L70/B50 at 25 °C | 10000 h |
| Lifespan L80/B10 at 25 °C | 100000 h |
| Lifespan L90/B10 at 25 °C | 50000 h |
Certificates & Standards
| Standards | CE |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from September 2024 |
| Added function | EVERLOOP, MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854312212 | Folding box 1 |
57 mm x 336 mm x 336 mm | 1078.00 g | 6.44 dm³ |
| 4099854312229 | Shipping box 6 |
355 mm x 353 mm x 358 mm | 7129.00 g | 44.86 dm³ |
User instruction / safety instructions
UI LISOEV SF FLAT
UI LISOEV SF FLAT
Legal information
Legal Insert SF FLAT LISOEV
Legal Insert SF FLAT LISOEV
Legal information
LISO Insert SF FLAT LISOEV
LISO Insert SF FLAT LISOEV
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE Declaration SF FLAT
CE Declaration SF FLAT

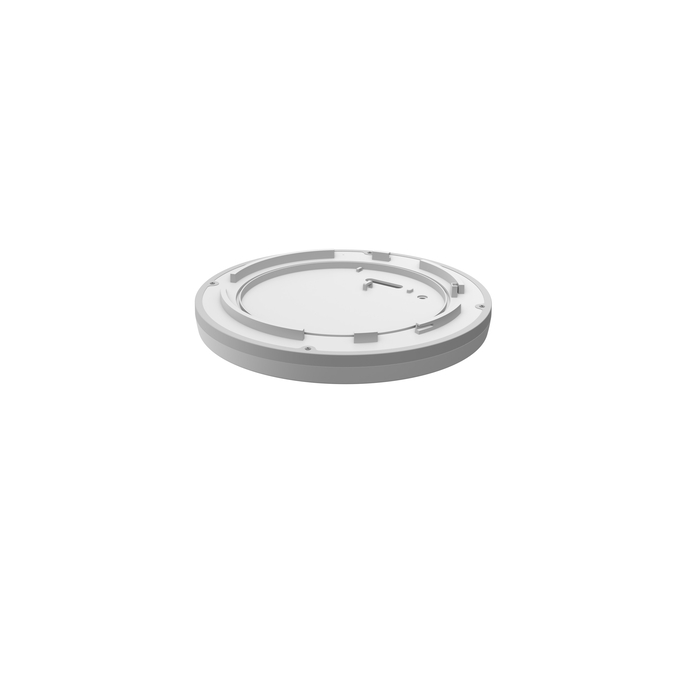

Product image: white background, upright

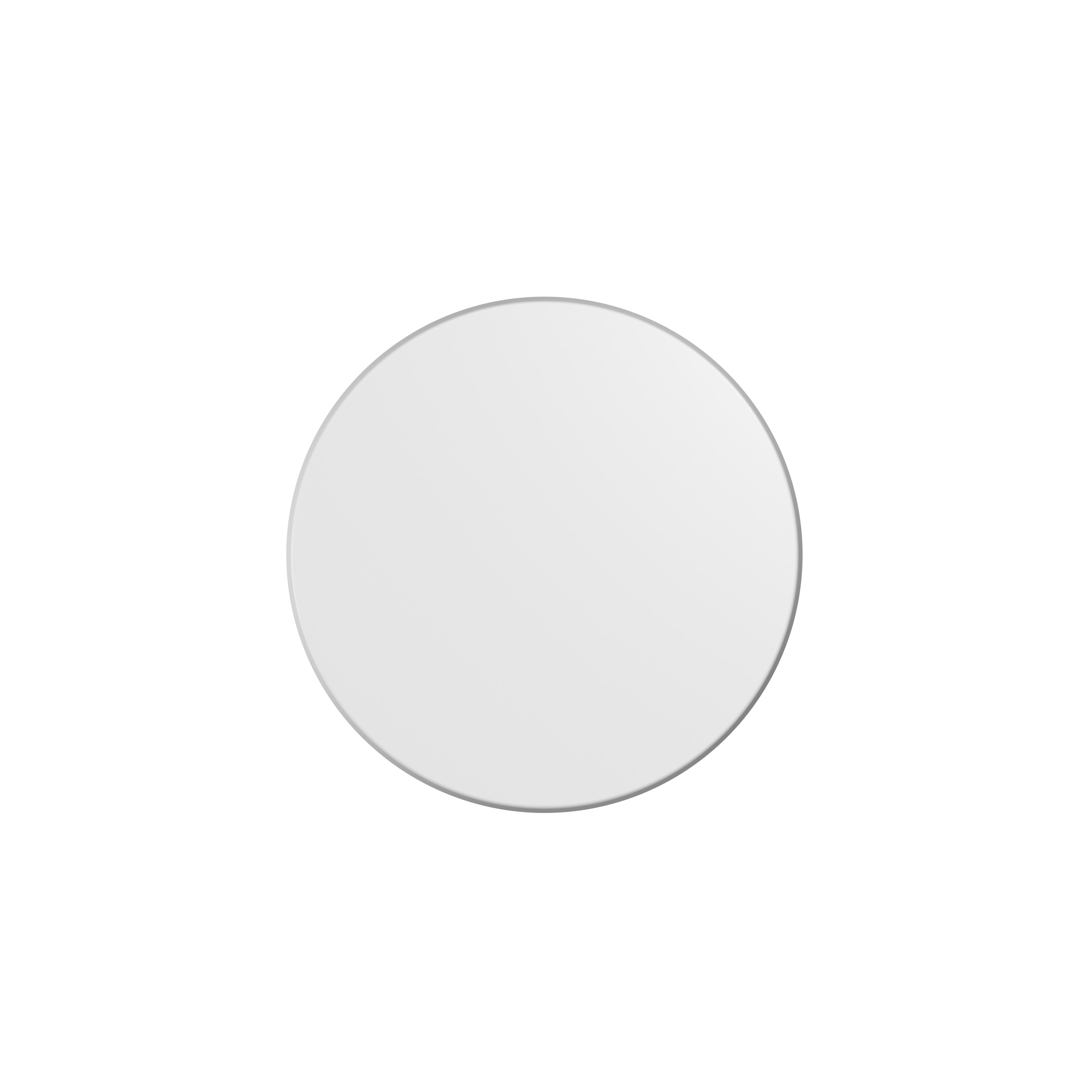

SF FLAT C 330
SF FLAT C 330
Product line drawing with letters
LISOEV 330R 19W 830 840 SF FLAT
LISOEV 330R 19W 830 840 SF FLAT
Product line drawing with numbers
LISOEV 330R 19W 830 840 SF FLAT
LISOEV 330R 19W 830 840 SF FLAT
Product line drawing - technical
LISOEV 330R 19W 830 840 SF FLAT
LISOEV 330R 19W 830 840 SF FLAT

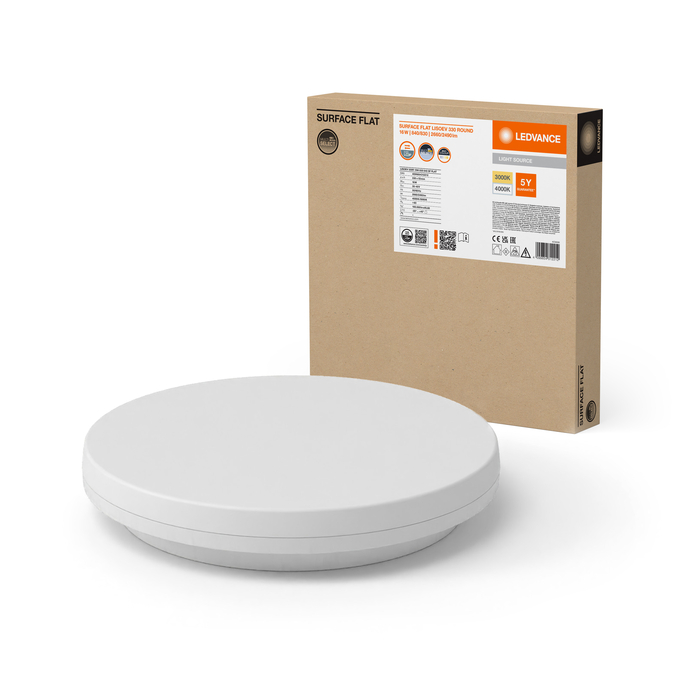

Combo Shot = Product Beauty Shot + Packaging Image
LISOEV 330R 19W 830 840 SF FLAT
LISOEV 330R 19W 830 840 SF FLAT
Packaging image, frontal
LISOEV 330R 19W 830 840 SF FLAT
LISOEV 330R 19W 830 840 SF FLAT
Packaging image, spacial
LISOEV 330R 19W 830 840 SF FLAT
LISOEV 330R 19W 830 840 SF FLAT
Catalog info 2
Catalog info 2 SF FLAT
Catalog info 2 SF FLAT

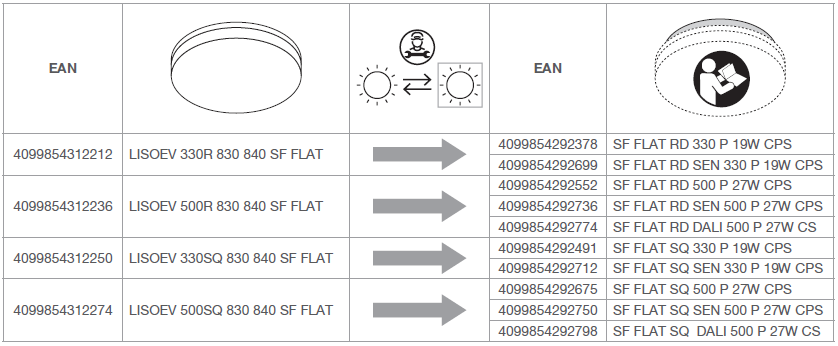

Catalog info 3
